Colfax CX1150g-NVMe5-S12-E9 1U Rackmount Server




  • 1x AMD EPYC™ 9004/9005 Series Processor
  • 12x DDR5 DIMM Sockets
  • 12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 2 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 1300W 80 PLUS Titanium redundant power supplies

Features

  • 1x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processor
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x PCIe 5.0 x16 Slots (Full-Height Half-Length)
  • 2x OCP 3.0 Gen5 x16 Slots
  • 12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 1x M.2 with PCIe 3.0 x4 Interface
  • 1x 1Gb/s Intel® I210-AT LAN Port
  • 1x Dedicated Management Port
  • 1+1 1300W 80 PLUS Titanium redundant power supplies
  • Dual ROM Architecture Supported

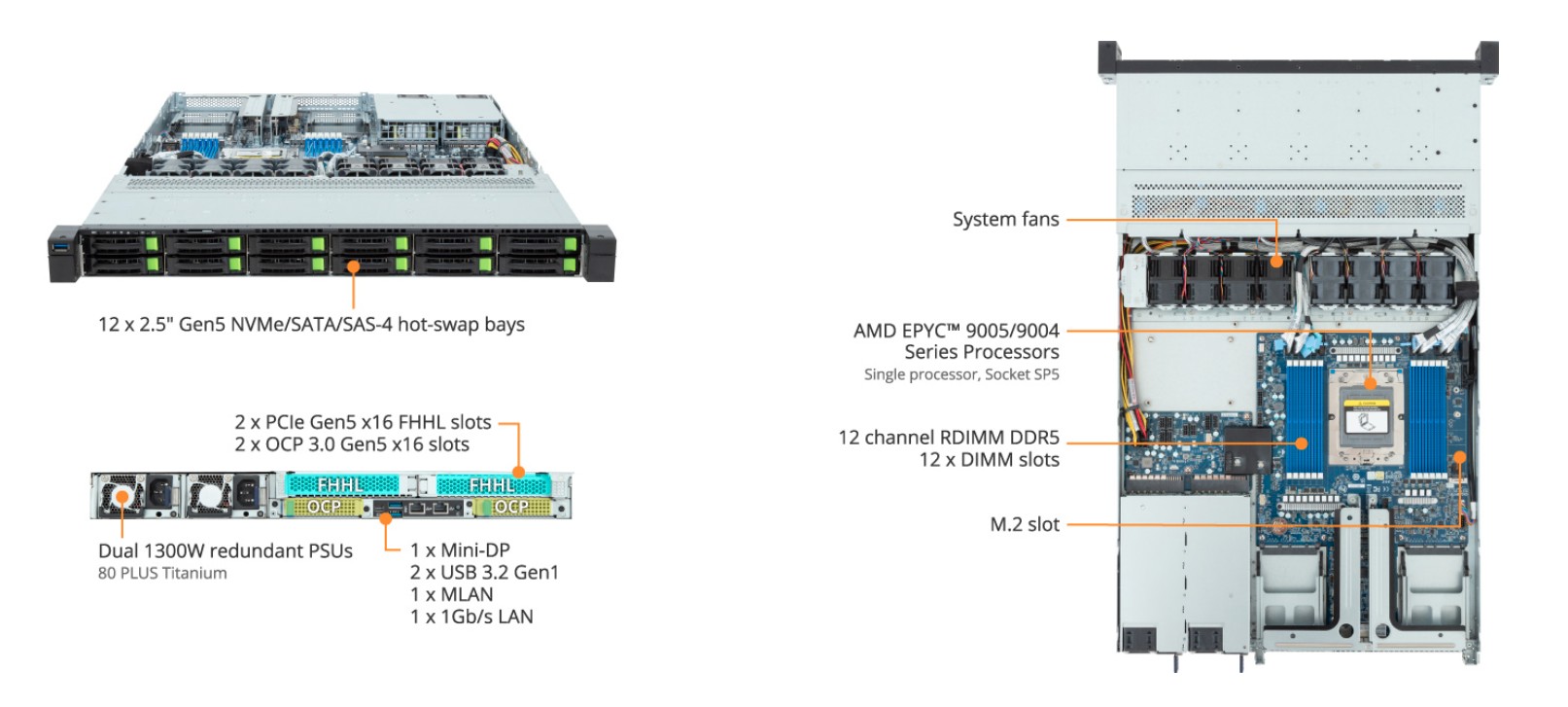

Product Overview



GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 1U
• Dimension (W x H x D) 17.24" x 1.7" x 27.95" (438 x 43.5 x 710 mm)
CPU • 1 x LGA 6096
• Socket SP5
• Single AMD EPYC™ 9004/9005 Series Processor
• Supports CPU cTDP up to 300W*

* cTDP supported up to 400W under limited thermal conditions.
Memory • 12x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
AMD EPYC™ 9005:
• RDIMM: Up to 6400 MT/s
AMD EPYC™ 9004:
• RDIMM: Up to 4800 MT/s
Expansion Slots • Riser Card CRS101V: 1x PCIe 5.0 x16 slot (FHHL)
• Riser Card CRS101W: 1x PCIe 5.0 x16 slot (FHHL)
• 2x OCP 3.0 Gen5 x16 slots
- Supported NCSI function
M.2
• 1x M.2 slot
- PCIe Gen3 x4
- Supports 2280/22110 cards
Storage Front hot-swap
• 12 x 2.5" Gen5 NVMe/SATA/SAS-4
Networking • 1x 1GbE LAN port (Intel® I210-AT)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 1 x Mini-DP
Power Supply • 1+1 1300W 80 PLUS Titanium redundant PSUs
• AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
• DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12.2Vsb/ 3A
- Max 1300W/ 200-240V~
+ 12.2V/ 106A
+ 12.2Vsb/ 3A
• 80 plus Platinum
System Cooling • 4 x 40x40x28mm (25,000rpm)
• 4 x 40x40x56mm (29,700rpm)
Front I/O • 2x USB 3.2 Gen1
• 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 2x LAN activity LED (1 x LED disabled)
• 1x Storage activity LED
• 1x System status LED
Rear I/O • 2x USB 3.2 Gen1
• 1x Mini-DP
• 1x RJ45
• 1x MLAN
• 1x ID button with LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2500
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

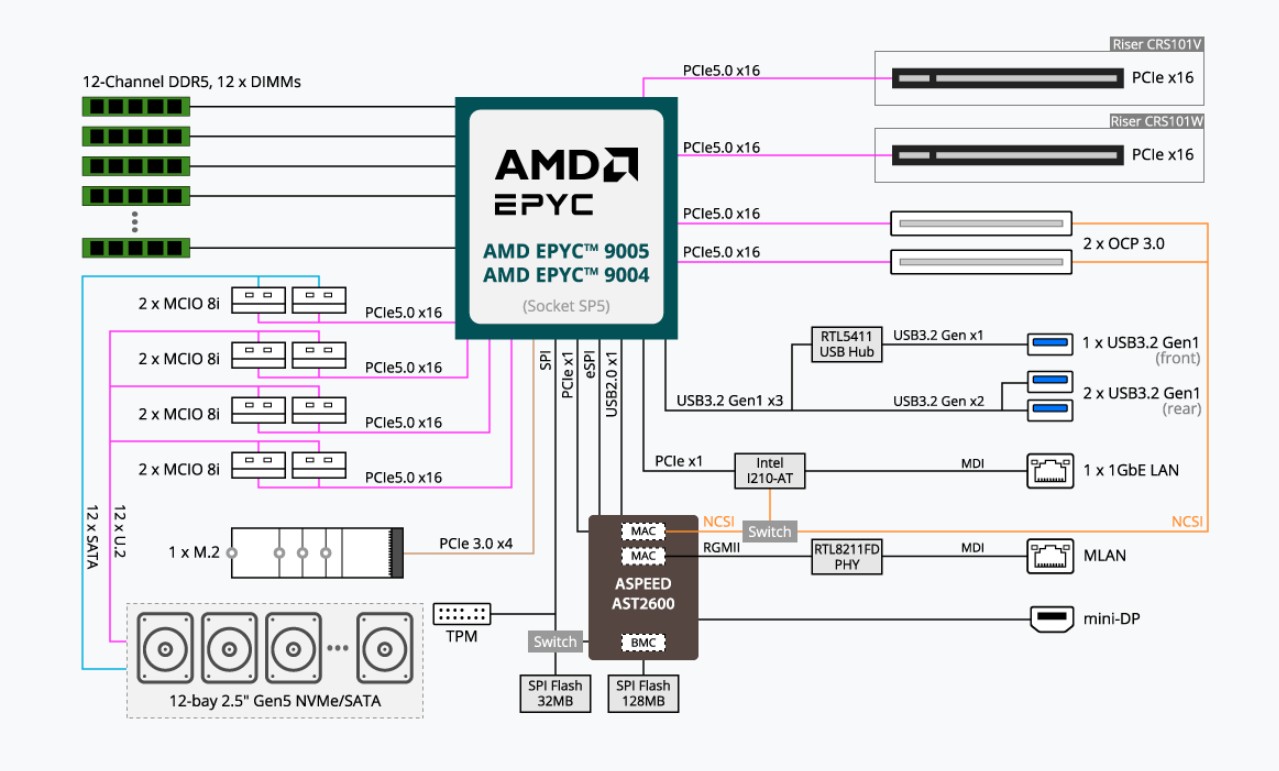

Block Diagram

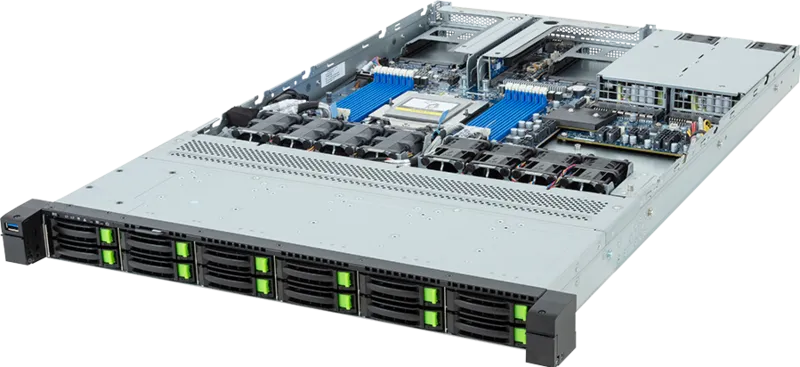

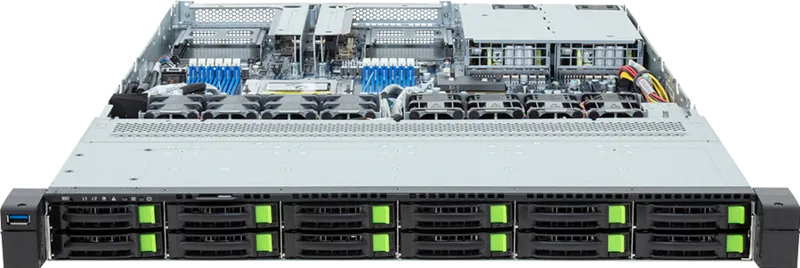

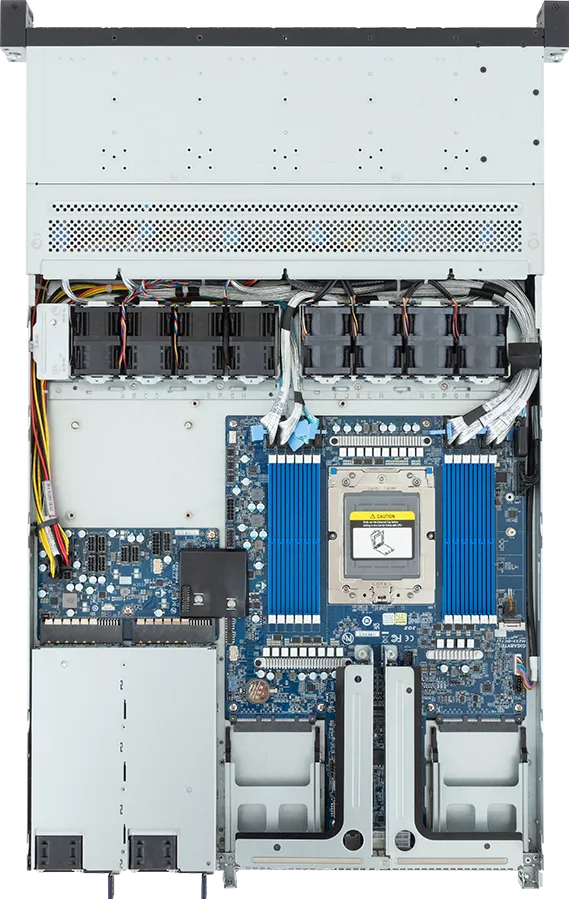

Images
