Colfax CX1150s-X7 1U Rackmount Server



  • Single Intel® Xeon® Scalable Processor
  • 8x DIMMs
  • 4x 3.5" SATA3 Drive Bays
  • Single or Redundant Power

Features

2 Models:

  • CX1150s-X7 - Single Power Supply
  • CX1150s-R-X7 - Redundant Power Supplies

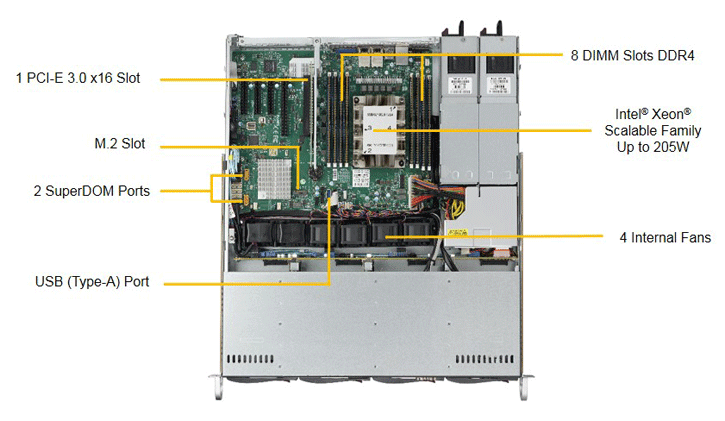

  • 1x Intel® Xeon® Scalable Processor
  • Intel C622 Chipset
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • 1 PCI-E 3.0 x16 Slot
  • 4x 3.5" Hot-swap SATA3 Bays w/ RAID 0, 1, 5, 10 Support
  • 2x SATA DOMs
  • 2x 10GBase-T ports with Intel® X772 + X557
  • 350W Single or 400W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Single Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)
Memory • 8x DDR4 DIMM slots
• Supports up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C622
I/O Expansion • 1x PCI-E 3.0 x16 slot
Onboard Devices SATA
• SATA3 (6Gbps) via C622 controller
• RAID 0, 1, 5, 10 support
Network Controllers
• Dual 10GBase-T LAN with Intel® X772 + X557
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 4x SATA3 (6Gbps) ports

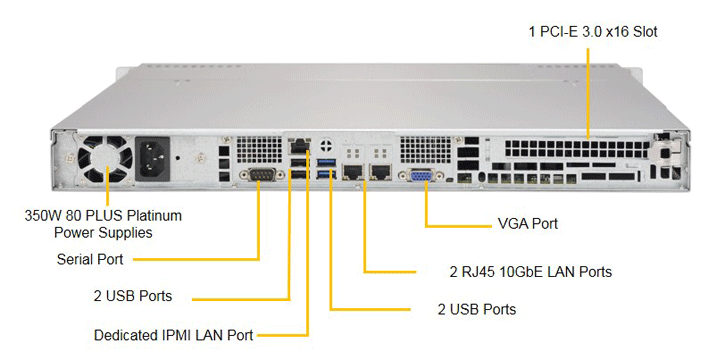

LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 4x USB 3.0 ports (2 front, 2 rear)
• 2x USB 2.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 2x COM ports (1 rear, 1 header)
DOM
• 2x SuperDOM (Disk on Module) ports with built-in power

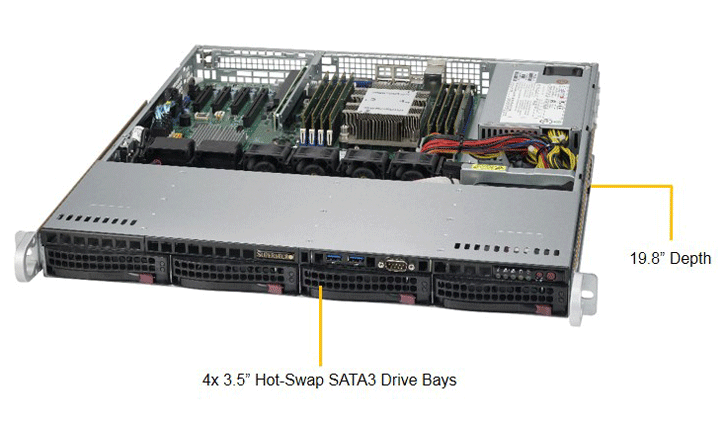

Storage • 4x 3.5" Hot-swap SATA3 drive bays
• M.2 mini-PCI-e support
Chassis Form Factor • 1U Rackmount
• Dimension: 17.2"W (437mm) x 1.7"H (43mm) x 19.8" (503mm)

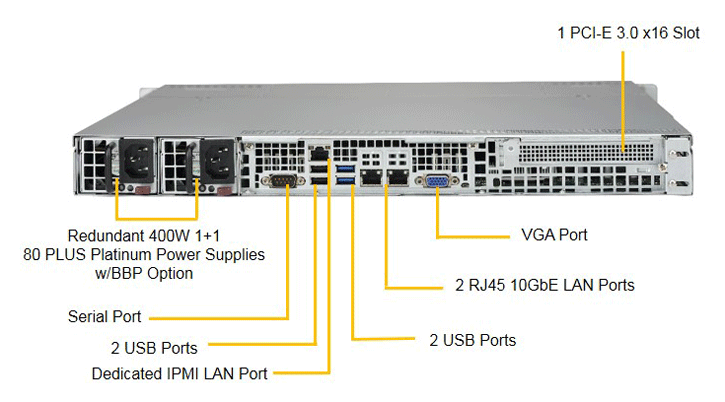

Power Supply • 350W AC power supply w/ PFC or 400W (1+1) redundant power supply with PMBus
• 80PLUS Platinum Certified
System Cooling • 4x 40mm mid-fans

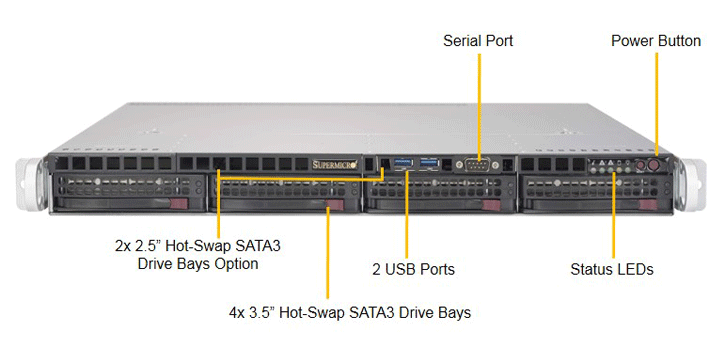

Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram


Images

Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $1,480.26




  Qty.Colfax CX1150s-X7, Cost As Configured $1,480.26
Base Platform 1
Primary CPU 1
CPU 1 - Socket 1 of 8    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 8    1
CPU 1 - Socket 3 of 8    1
CPU 1 - Socket 4 of 8    1
CPU 1 - Socket 5 of 8    1
CPU 1 - Socket 6 of 8    1
CPU 1 - Socket 7 of 8    1
CPU 1 - Socket 8 of 8    1
SATA DOM 1 1
SATA DOM 2 1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Ethernet HBA 1
Infiniband HBA 1
Operating System SW 1
   Colfax CX1150s-X7, Cost As Configured $1,480.26
