Colfax CX1155g-NVMe4-SH12-AAC2-EL9 1U Rackmount Server




  • 1x AMD EPYC™ 8004 Series Processor
  • 12x DDR5 DIMM Sockets
  • 8x 2.5" SATA Drive Bays + 4x 2.5" Gen4 NVMe Drive Bays
  • 2x PCIe 5.0 x16 Slots

Features

  • 1x AMD EPYC™ 8004 Series Processor (Click here for Specifications and Comparison)
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots:
    - 2x PCIe 5.0 x16 Slots (FHFL; Supports Dual-Slot GPU)
    - 1x PCIe 5.0 x16 Slot (FHHL)
    - 1x OCP 3.0 Gen5 x16 Slot
  • 8x 2.5" SATA Drive Bays + 4x 2.5" Gen4 NVMe Drive Bays
  • 1x M.2 with PCIe 3.0 x4 Interface
  • 1x Dedicated Management Port
  • 1+1 1300W (240V) Redundant Power Supplies
  • Dual ROM Architecture Supported




GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 1U
• Dimension (W x H x D) 17.24" x 1.7" x 32.09" (438 x 43.5 x 815 mm)
CPU • Single Socket SP6
• AMD EPYC™ 8004 Series Processor
• Supports cTDP up to 225W
Memory • 12x DIMM sockets
• DDR5 memory supported only
• 6-channel memory architecture
• Supports up to 96GB RDIMM modules
• Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
Expansion Slots PCIe Cable x 3:
• 1x PCIe 5.0 x16 FHFL slot, for GPU
• 1x PCIe 5.0 x16 FHFL slot, occupied when dual slot GPU is installed
• 1x PCIe 5.0 x16 FHHL slot
• 1x OCP 3.0 Gen5 x16 slot
- Supported NCSI function
M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
Storage • 8x 2.5" SATA Drive Bays + 4x 2.5" Gen4 NVMe Drive Bays
Networking • 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply • 1+1 1300W (240V) redundant PSUs
• AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
• DC Input:
- 240Vdc/ 6.5A
• DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
• 80 PLUS Platinum
System Cooling • 8x 40x40x56mm (29,700 rpm)
Internal I/O • 1x M.2 slot
• 1x TPM header
• 1x OCP 3.0 slot
Front I/O • 1x USB 3.2 Gen1
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs (disabled)
• 1x HDD activity LED
• 1x System status LED
Rear I/O • 2x USB 3.2 Gen1
• 1x Mini-DP
• 1x MLAN
• 1x ID LED
Backplane I/O • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

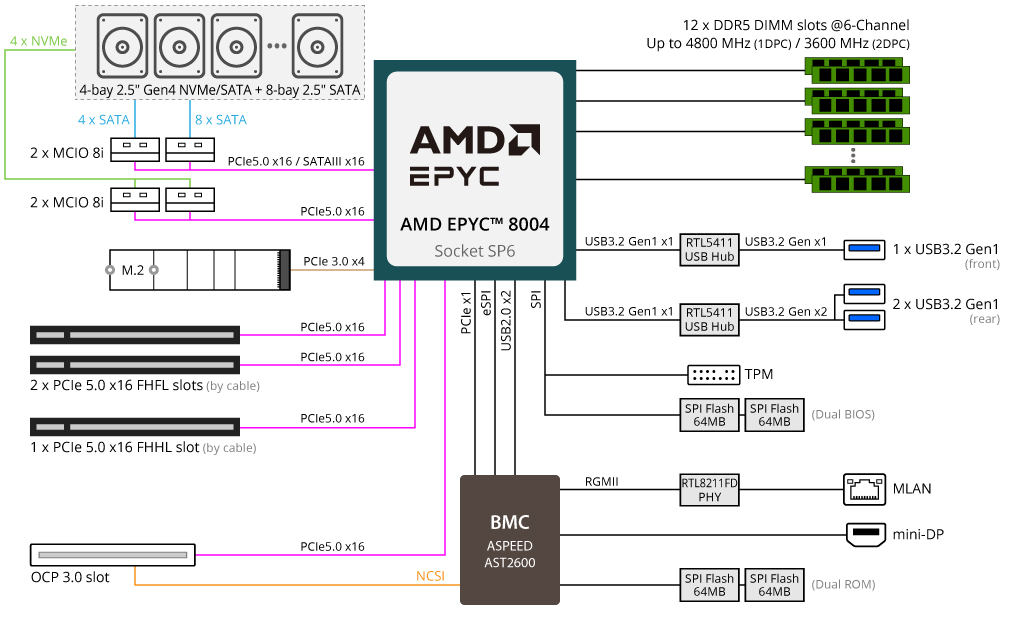

Block Diagram

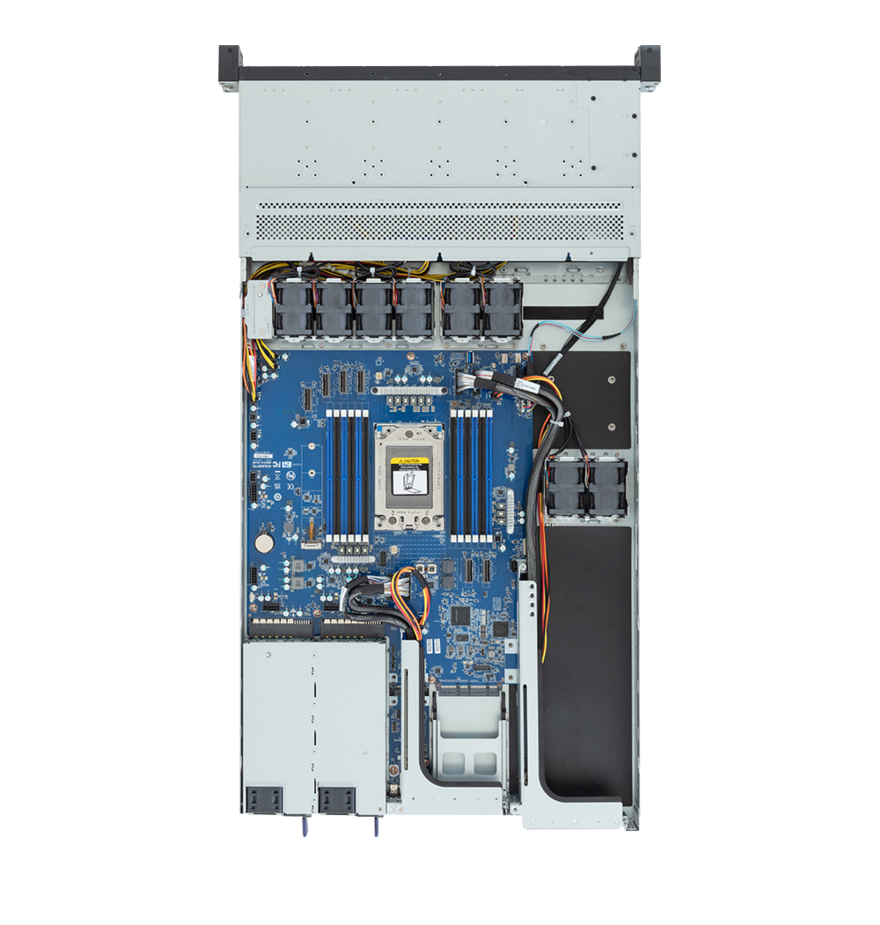

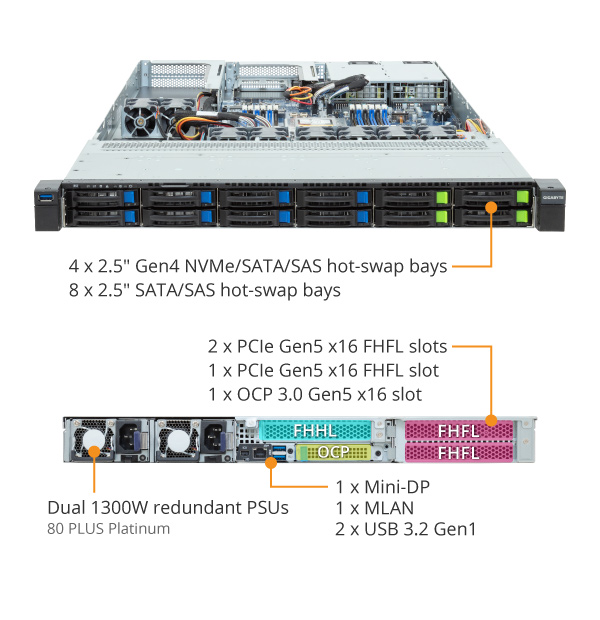

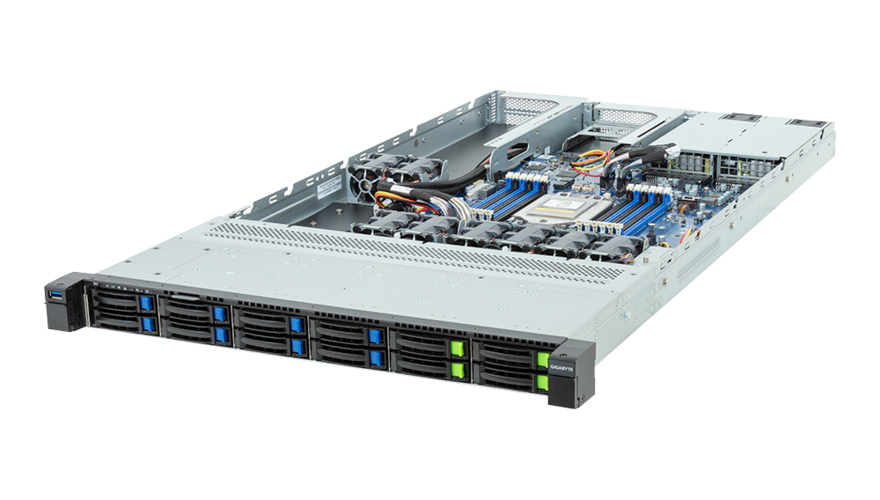

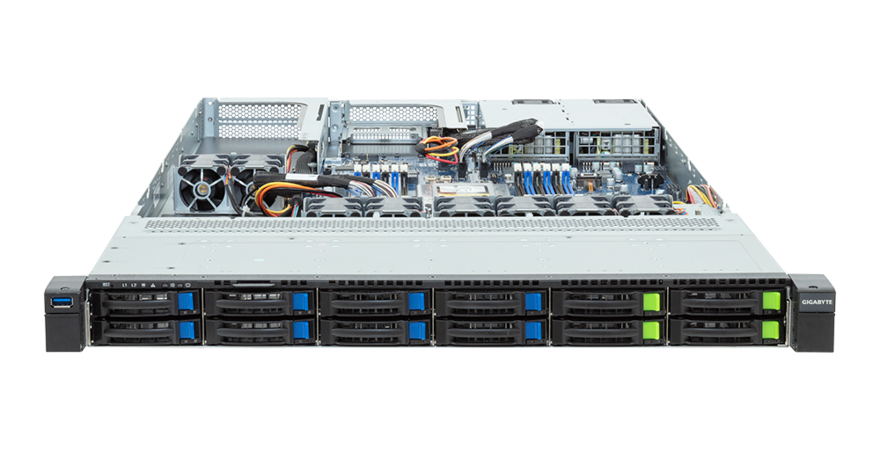

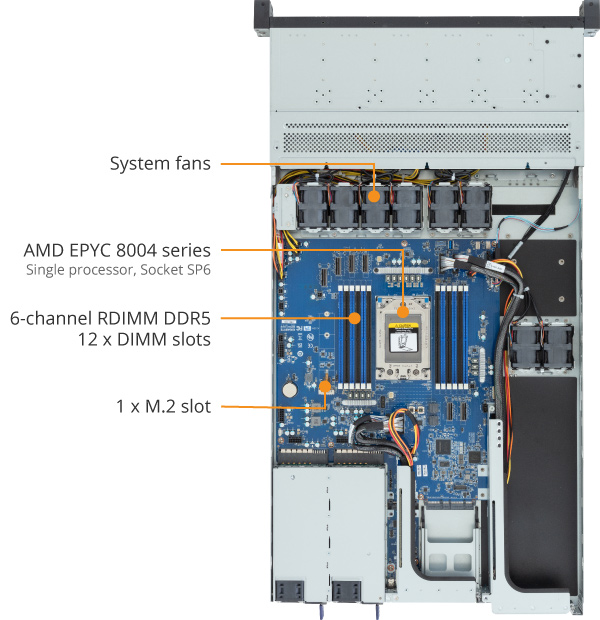

Images
