Colfax CX1165s-NVMe-E8 1U Rackmount Server



  • 1x AMD EPYC™ 7002 Series
  • 16x DDR4 DIMM Sockets
  • 10x 2.5" U.2 Gen4/Gen3 NVMe SSDs

Features

  • 1x AMD EPYC™ 7002 Series
  • 16x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • Expansion Slots
    - 2 PCI Express 4.0 x16 Slots (FH/HL)
    - 1 PCI Express 4.0 x16 Slot (Low-Profile)
  • 10x 2.5" Hot-Swap U.2 Gen4/Gen3 NVMe Drive Bays
  • 2x M.2 SSDs
  • Integrated 2x 10GBase-T LAN ports via Broadcom BCM57416 + Management LAN
  • Software Out of Band License Key included for OOB BIOS Management
  • 700W/750W Redundant Power Supplies, Platinum Level (Full redundancy based on configuration and application load)


Technical Specifications

CPU • Socket SP3
• Single AMD EPYC™ 7002 series processor
• Supports CPU TDP up to 280W
Memory • 16 DIMM Sockets
• Supports up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
• Memory Type 3200 MHz Registered ECC
I/O Expansion PCI-Express
• 2 PCI-E 4.0 x16 slots (FH/HL)
• 1 PCI-E 4.0 x16 slot (LP)
M.2
• 2 Slots
• Interface: PCI-E 4.0 x2 (NVMe based)
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• Broadcom BCM57416
VGA
• ASPEED AST2500 BMC
Input / Output NVMe
• 10x U.2 NVMe
LAN
• 2x 10GbBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 7x USB 3.0 ports (4 rear + 2 front + 1 Type A)
VGA
• 1 VGA port
DOM
• 2x SATA DOM power connectors
Chassis Form Factor • 1U Rackmount
• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 23.5" (597mm)
Power Supply • 700W/750W Redundant Power Supplies with PMBus
• Total Output Power - 700W/750W
• Input
- 100 - 140Vac / 8 - 6A / 50-60Hz
- 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
- 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
• +12V
- Max: 58A / Min: 0.5A (100 - 140Vac)
- Max: 62A / Min: 0.5A (200 - 240Vac)
- Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
• +5V sb
- Max: 3A / Min: 0A
• 80PLUS Platinum Certified
Storage • 10x 2.5" hot-swap U.2 NVMe4/NVMe3/SATA3 drive bays
System Cooling • 6x heavy-duty PWM fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
BIOS • AMI 128Mb SPI Flash EEPROM

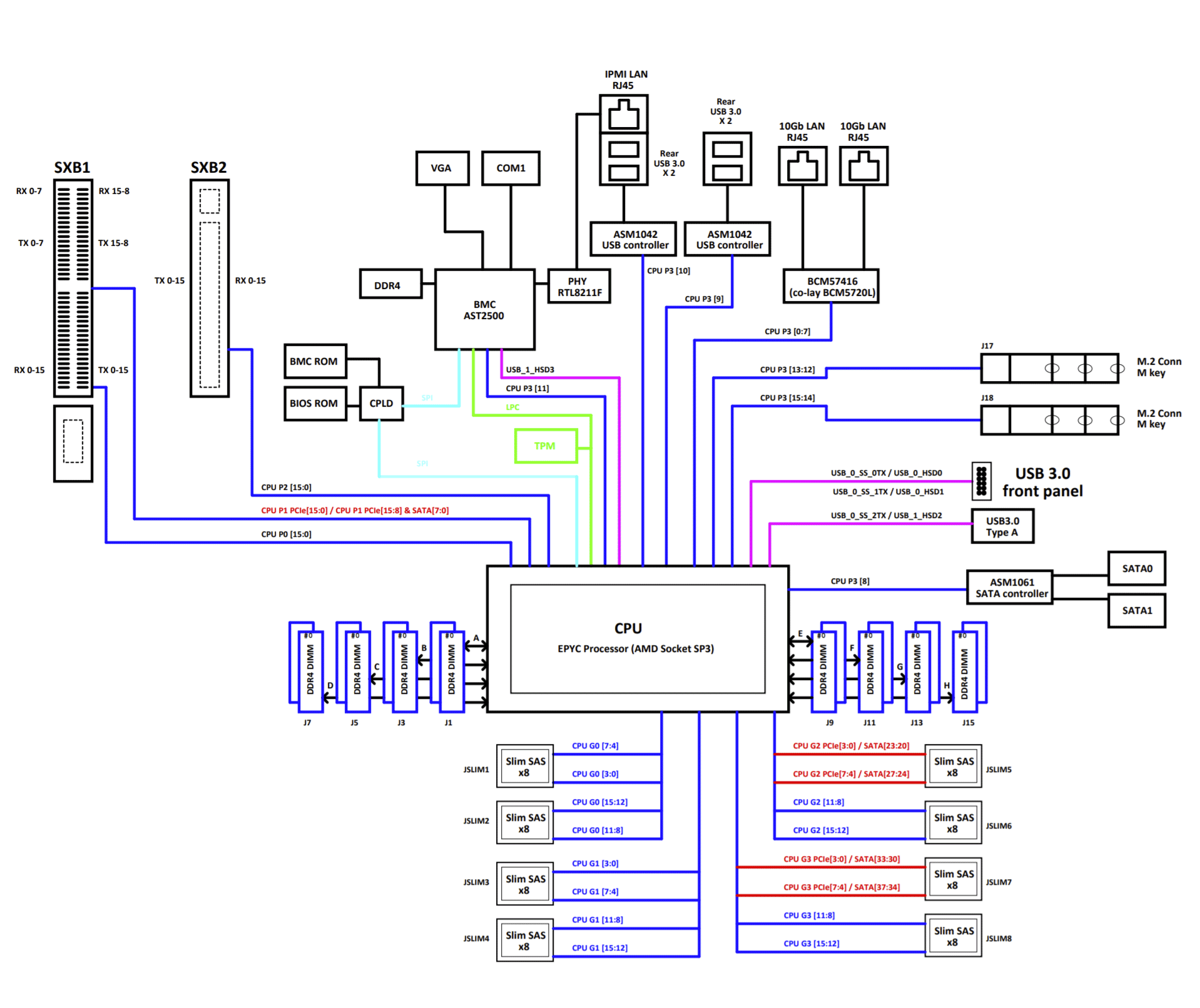

Block Diagram

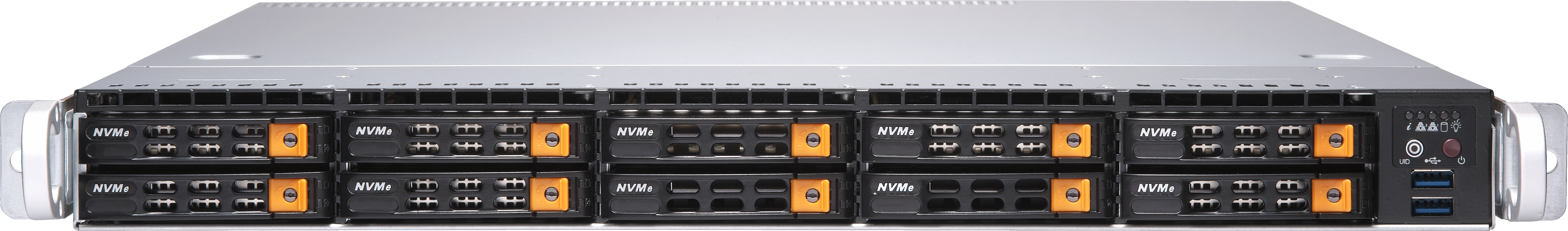

Images


$2,932.23


  Qty.Colfax CX1165s-NVMe-E8 1U Rackmount Server, Cost As Configured $2,932.23
