Colfax CX1170s-E9 1U Rackmount Server



  • 1x AMD EPYC™ 9004/9005 Series Processor
  • 12x DDR5 DIMM Sockets
  • 4x 3.5" Hot-Swap SATA Drive Bays
  • 2 PCI Express 5.0 x16 Slots (FH/HL)

Features

  • 1x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processor
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 2 PCIe 5.0 x16 Slots (FH/HL)
    - 2 PCIe 5.0 x16 AIOM Slots
  • 4x 3.5" Hot-Swap SATA Drive Bays
  • 2x M.2 PCIe 3.0 x2 NVMe SSDs
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 800W/860W* Redundant** Power Supplies, Platinum Level


* 800W: 100-127Vac | 860W: 200-240Vac
** Full redundancy based on configuration and application load



Technical Specifications

Chassis Form Factor • 1U Rackmount
• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 25.6" (650mm)
CPU • Socket SP5
• Single AMD EPYC™ 9004/9005 Series Processor
• Supports CPU TDP up to 400W*

* Air Cooled CPUs with TDP over 360W only supported under specific conditions.
Memory • 12x DIMM Sockets
• Supports DDR5 ECC RDIMM
• Memory Type 4800 MHz Registered ECC
I/O Expansion • 2 PCIe 5.0 x16 slots (FH/HL)
• 2 PCIe 5.0 x16 AIOM Slots
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• Via AIOM
VGA
• ASPEED AST2600 BMC

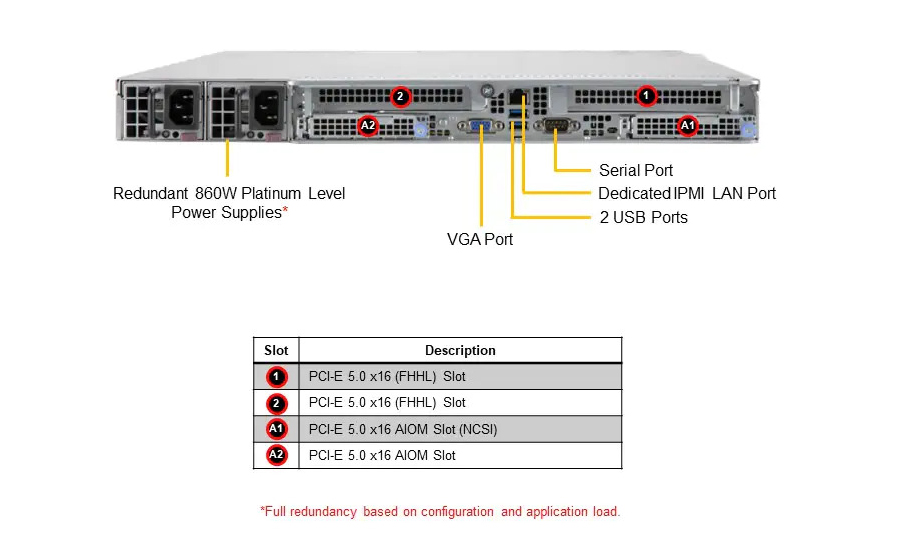

Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1 VGA port
Serial Port
• 1 COM port
Power Supply • 1U 800W/860W Redundant power supply
• AC Input
- 800W: 100-127Vac / 9A-7.5A / 50-60Hz
- 860W: 200-240Vac / 6A-4.5A / 50-60Hz
• +12V
- Max: 66.6A / Min: 0A (100Vac-127Vac)
- Max: 71.6A / Min: 0A (200Vac-240Vac)
• 5V sb
- Max: 4A / Min: 0A
• 80PLUS Platinum Certified

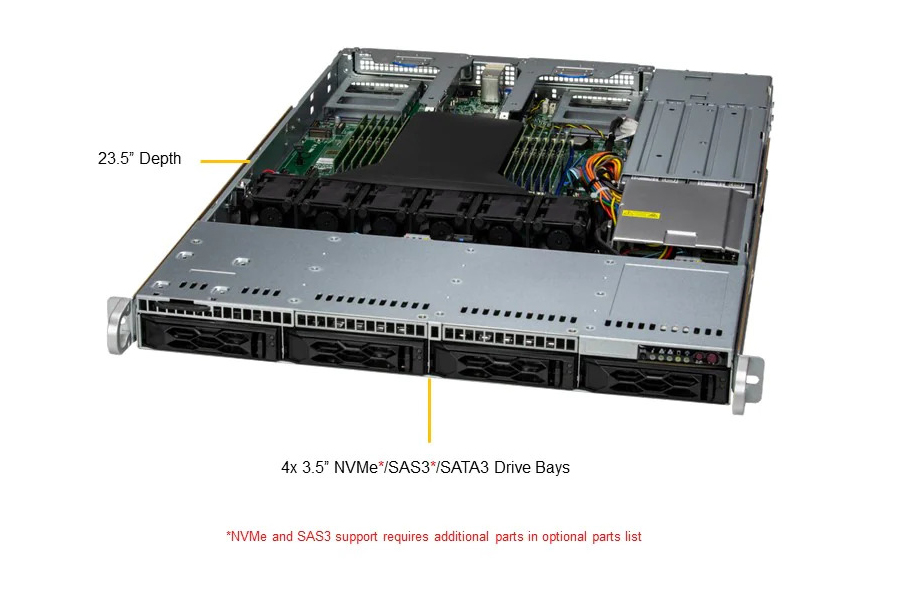

Storage • 4x 3.5" hot-swap SATA drive bays
• 2x M.2 PCIe 3.0 x2 NVMe (2280/22110, boot drive only)
System Cooling • 6x 4cm heavy duty fans with optimal fan speed control

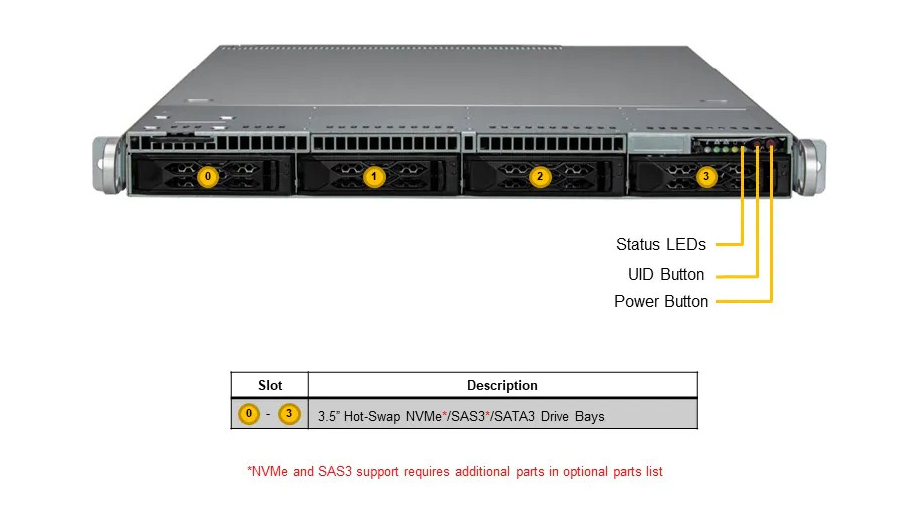

Front Panel Buttons
• Power On/Off button
• Reset button
• UID button
LEDs
• Hard drive activity LED
• Network activity LED
• Power status LED
• UID LED
BIOS • AMI 32Mb SPI Flash EEPROM


Block Diagram

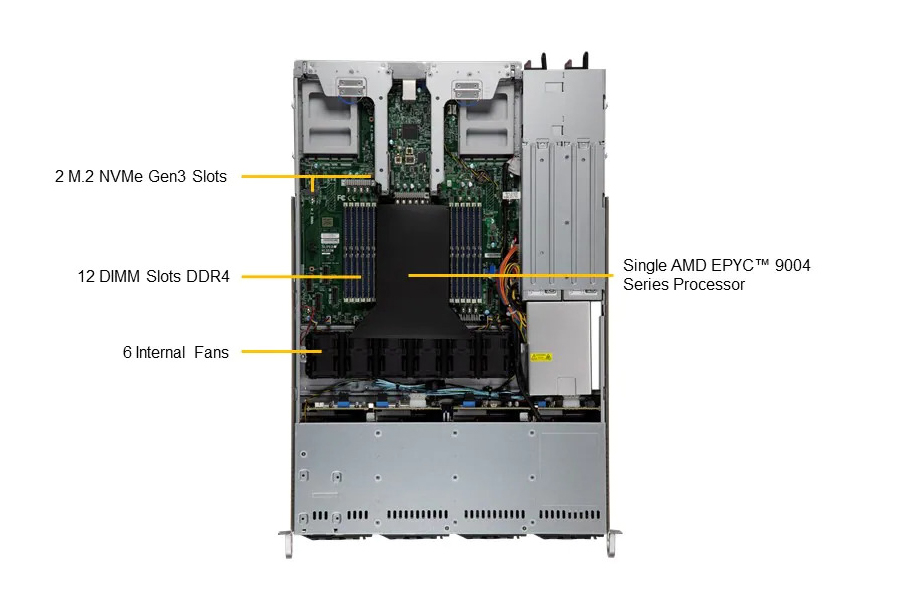

Images
