Colfax CX1195s-NVMe5-S8-E9 1U Rackmount Server



  • 1x AMD EPYC™ 9005 Series Processor
  • 12x DDR5 DIMM Sockets
  • 8x 2.5" Hot-Swap Drive Bays
  • 2 PCI Express 5.0 x16 Slots (FHHL)

Features

  • 1x AMD EPYC™ 9005 (Model Specs) Series Processor
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 2 PCIe 5.0 x16 Slots (FHHL)
    - 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible)
  • 8x 2.5" Hot-Swap NVMe Drive Bays (Option for up to 12 Drives)
  • 2x M.2 NVMe SSDs (PCIe 3.0 x2)
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 1+1 1000W Redundant Power Supplies


Technical Specifications

Chassis Form Factor • 1U Rackmount

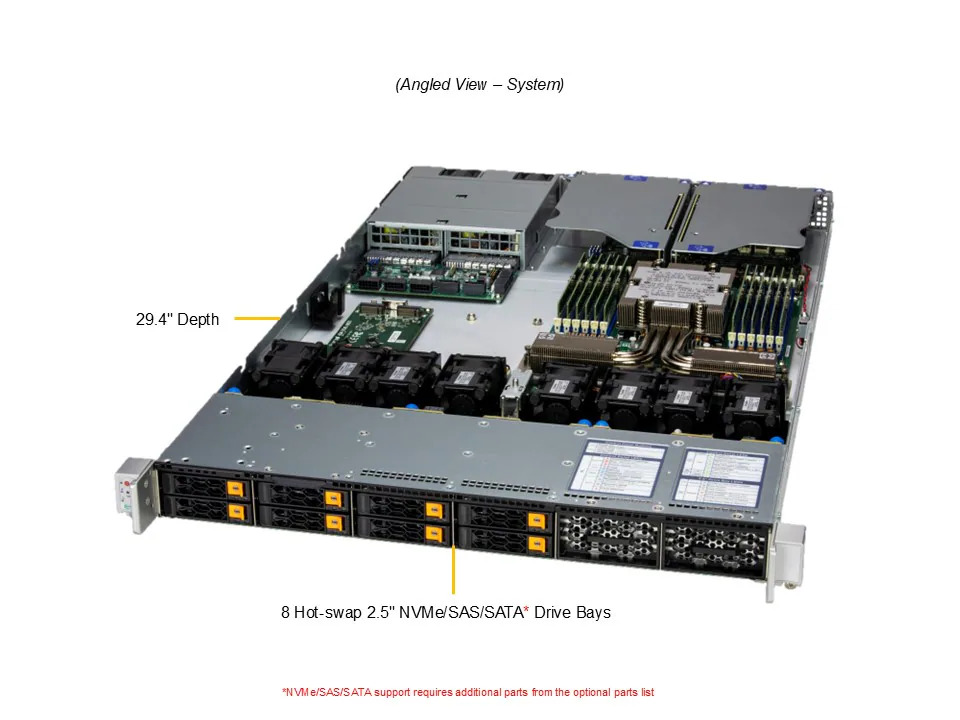

• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 29.4" (747mm)
CPU • Socket SP5
• Single AMD EPYC™ 9005 Series Processor
• Supports CPU TDP up to 500W

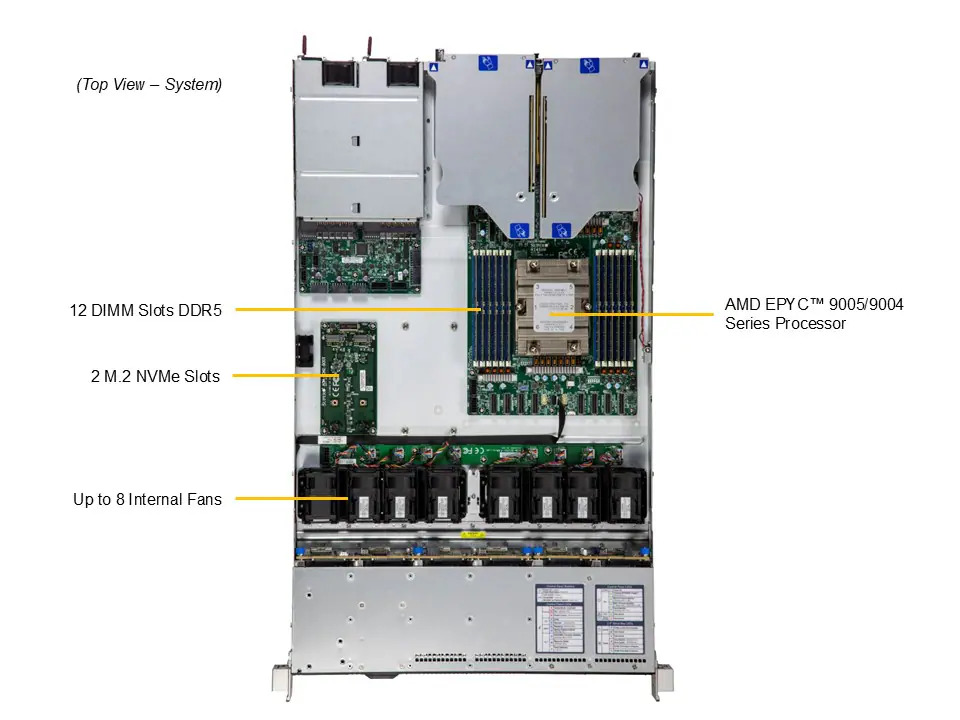

Memory • 12x DIMM Sockets
• Memory Capacity (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
I/O Expansion PCIe
• 2 PCIe 5.0 x16 Slots (FHHL)
• 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible)

CXL Support
• Up to 4 CXL 2.0 x16 devices
Storage Drive Bays
• 8x 2.5" hot-swap NVMe drive bays (Option for up to 12 Drives)

M.2
• 2x M.2 (PCIe 3.0 x2)
• M-key 2280(default)/22110
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Network Controller
• Via AIOM

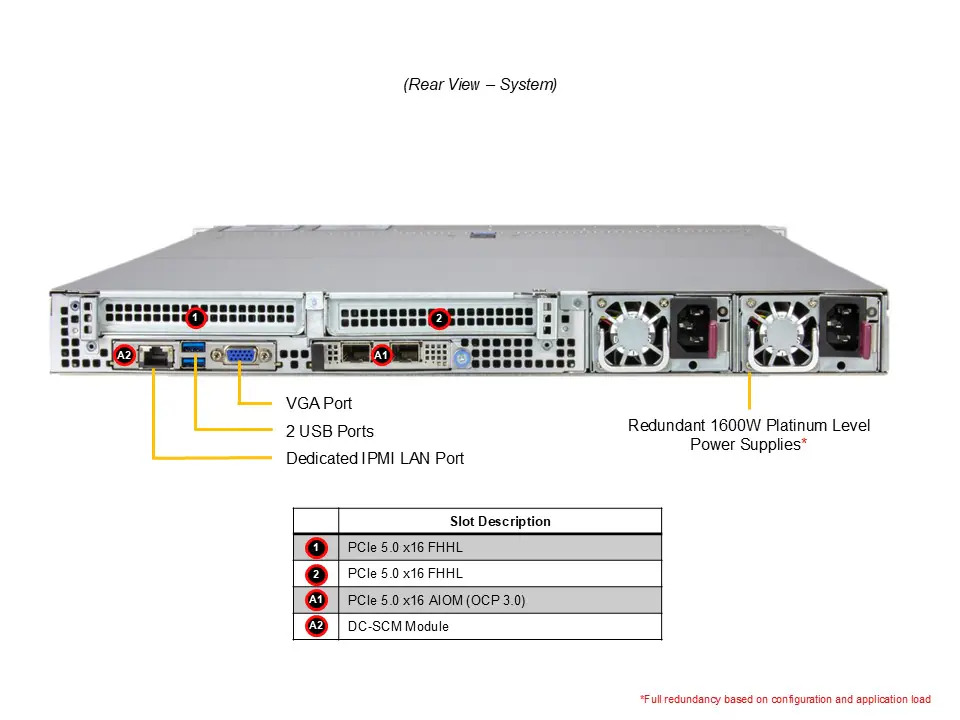

Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 1x USB 2.0 Type-A port (rear)
• 1x USB 3.2 Gen1 Type-A port (rear)
VGA
• 1x VGA port (rear)
TPM
• 1x TPM header
Power Supply • 2x 1000W Redundant (1+1)
• AC Input
- 800W: 100-127Vac / 50-60Hz
- 1000W: 200-240Vac / 50-60Hz
• +12V
- Max: 66.7A / Min: 0A (100Vac-127Vac)
- Max: 83A (200Vac-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80 PLUS Titanium Certified
System Cooling • 8x counter-rotating PWM 40x40x56mm fans

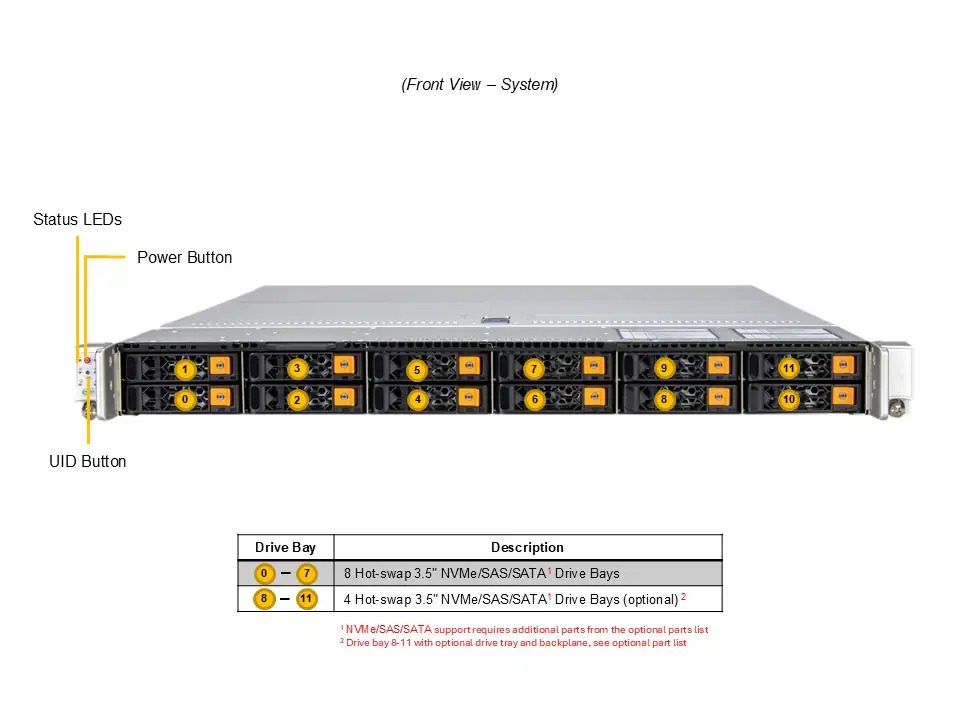

Front Panel Buttons
• Power On/Off button
• UID button

LEDs
• Hard drive activity LED
• LAN1 activity LED
• Power failed LED
• Power status LED
• System information LED
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• KVM with dedicated LAN
• IPMI 2.0
• Supermicro Thin-Agent Service (TAS)
• OOB Management Package (SFT-OOB-LIC )
• SuperServer Automation Assistant (SAA)
• IPMIView

Power Configurations
• ACPI/APM Power Management • Power-on mode control for AC power loss recovery • Power button override mechanism
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown
Health Monitoring Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

Voltage
• System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
BIOS • AMI 64MB SPI Flash EEPROM


Images
$2,778.84


  Qty.Colfax CX1195s-NVMe5-S8-E9 1U Rackmount Server, Cost As Configured $2,778.84
Base Platform 1
Primary CPU 1
Memory Socket 1 of 12    1

Set next    items (  ) like this
Memory Socket 2 of 12    1
Memory Socket 3 of 12    1
Memory Socket 4 of 12    1
Memory Socket 5 of 12    1
Memory Socket 6 of 12    1
Memory Socket 7 of 12    1
Memory Socket 8 of 12    1
Memory Socket 9 of 12    1
Memory Socket 10 of 12    1
Memory Socket 11 of 12    1
Memory Socket 12 of 12    1
M.2 Drive 1    1

Set next    items (  ) like this
M.2 Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Disk Drive 3    1
Disk Drive 4    1
Disk Drive 5    1
Disk Drive 6    1
Disk Drive 7    1
Disk Drive 8    1
Supermicro AIOM 1
Infiniband HBA 1
Ethernet HBA 1
TPM Module 1
Operating System SW 1
   Colfax CX1195s-NVMe5-S8-E9 1U Rackmount Server, Cost As Configured $2,778.84
