Colfax CX1265s-X7 1U Rackmount Server



  • Dual Intel® Xeon® Scalable Processors
  • 24x DIMMs
  • 10x 2.5” Hot-Swap Drive Bays
  • 2 PCI-E 3.0 x16 Slots (FH, 10.5" L)

Models

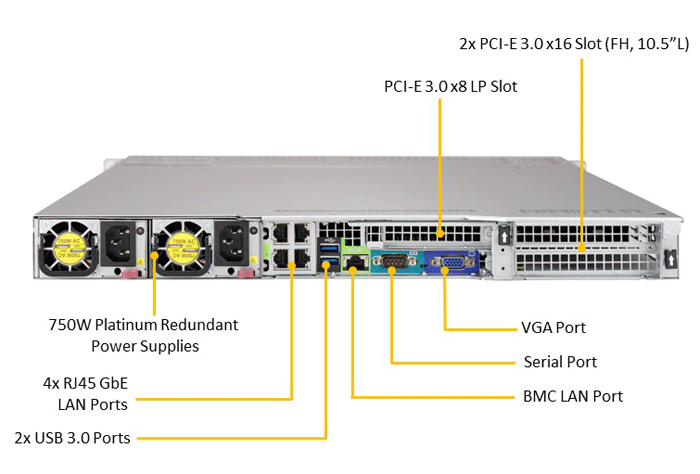

  • CX1265s-X7 - Integrated 4x 1GbE

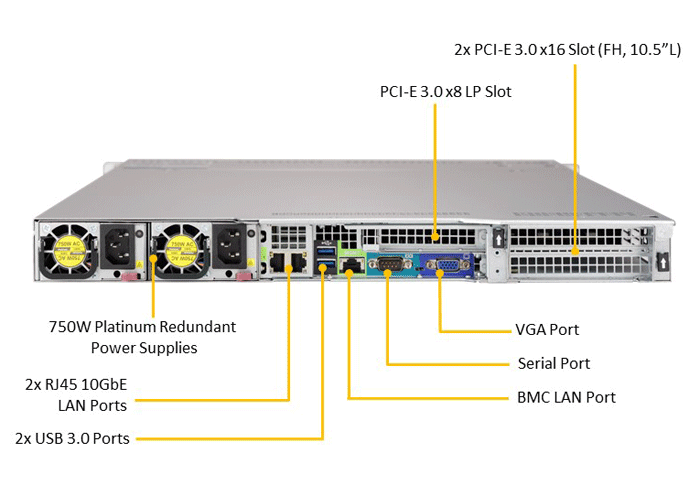

  • CX1265s-2T-X7 - Integrated 2x 10GBase-T

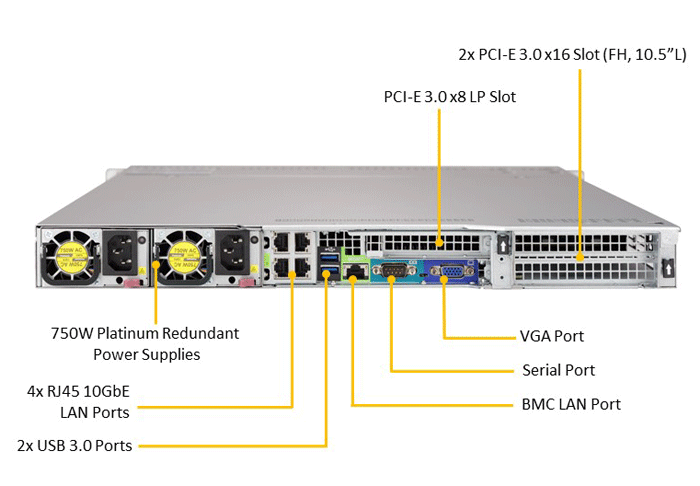

  • CX1265s-4T-X7 - Integrated 4x 10GBase-T

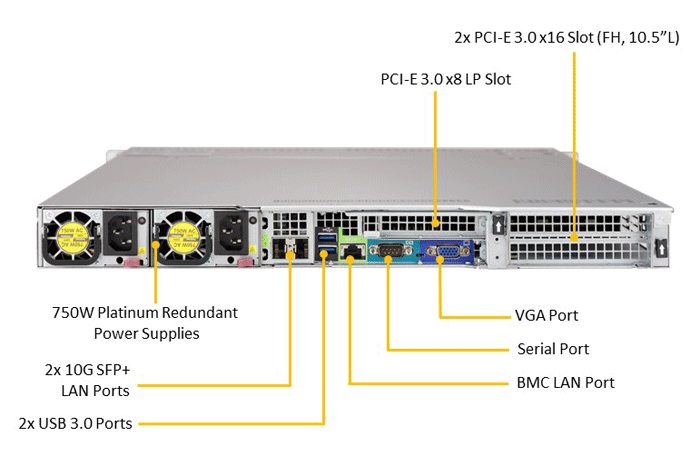

  • CX1265s-TP-X7 - Integrated 2x 10G SFP+

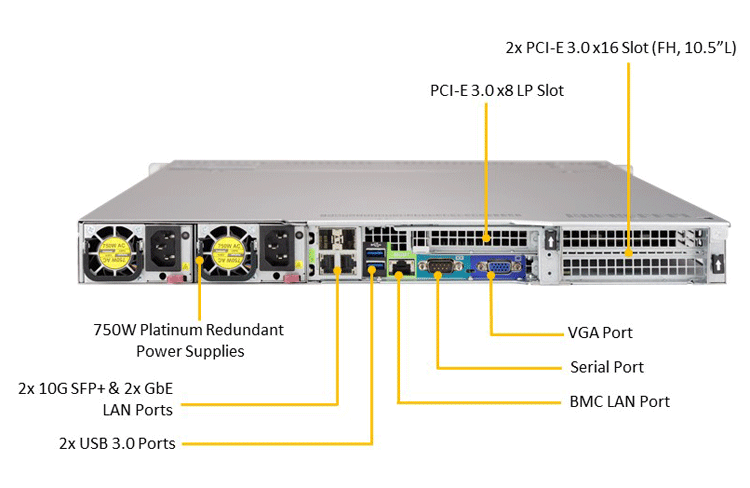

  • CX1265s-TP2-X7 - Integrated 2x 10G SFP+ and 2x 1GbE

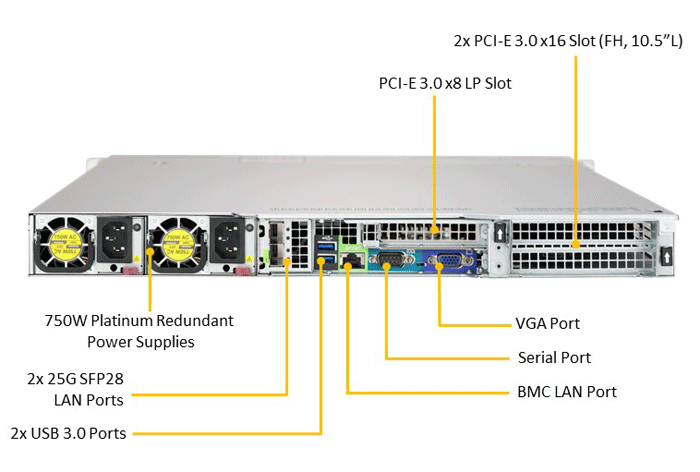

  • CX1265s-TR25-X7 - Integrated 2x 25G SFP28

Features

  • 2x Intel® Xeon® Scalable Processors (Up to 205W TDP) (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 24x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 2 PCI-E 3.0 x16 (Full-Height, 10.5” Length)
    - 2 PCI-E 3.0 x8 (1 Low-Profile, 1 Internal Low-Profile)
  • 10x 2.5" Hot-Swap Drive Bays
  • Integrated 4x 1GbE or 2x 10Gbase-T or 4x 10Gbase-T or 2x 10G SFP+ or 2x 10G SFP+ and 2x 1GbE or 2x 25G SFP28 Ports
  • 750W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Dual Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-205W)
Memory • 24 DIMM Sockets
• Supports up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM
• Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 2 PCI-E 3.0 x16 slots (FH, 10.5"L)
• 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• 4 Gigabit Ethernet ports via AOC-UR-I4G (Intel® i350AM4) (CX1265s-X7)
• 2 10GBase-T ports via AOC-UR-I2XT (Intel® X540) (CX1265s-2T-X7)
• 4x 10GBase-T ports via AOC-UR-i4XTF (Intel® X710-B) (CX1265s-4T-X7)
• 2 10G SFP+ ports via AOC-URN2-I2XS (Intel® 82599ES) (CX1265s-TP-X7)
• 2 10G SFP+ ports and 2 1GbE ports via AOC-URN2-I4GXS-O (Intel X710-AM2 and Intel i350-AM2) (CX1265s-TP2-X7)
• 2 25GbE SFP28 ports via AOC-URN4-M2TS-O (Mellanox ConnectX-4 Lx EN) (CX1265s-TR25-X7)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 10x SATA3 (6Gbps) ports
LAN
• 4 RJ45 Gigabit Ethernet ports (CX1265s-X7)
• 2 RJ45 10GBase-T Ethernet ports (CX1265s-2T-X7)
• 4 RJ45 10GBase-T Ethernet ports (CX1265s-4T-X7)
• 2 10G SFP+ ports (CX1265s-TP-X7)
• 2 10G SFP+ ports and 2 RJ45 Gigabit Ethernet ports (CX1265s-TP2-X7)
• 2 25GbE SFP28 ports (CX1265s-TR25-X7)
• 1 RJ45 Dedicated IPMI LAN port
USB
• 5 USB 3.0 ports (2 rear, 2 front, 1 Type A)
VGA
• 2 VGA ports (1 rear, 1 onboard)
Serial Port
• 1 Serial header
DOM
• 2x SuperDOM (Disk on Module) ports

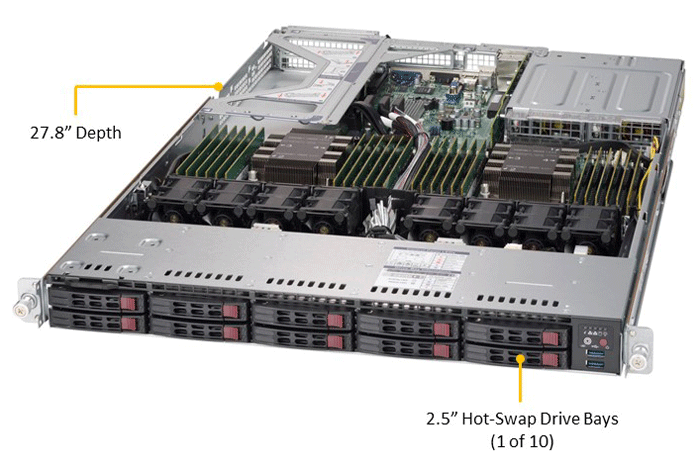

Chassis Form Factor • 1U Rackmount
• Dimension (HxWxD): 1.7" (43mm) x 17.2" (437mm) x 27.8" (707mm)
Power Supply • 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
• AC Input
- 100-127Vac, 50-60Hz
- 200-240Vac, 50-60Hz
• +12V
- Max: 62.5A & Min: 0A (100Vac-127Vac)
- Max: 62.5A & Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 2.1A
- Min: 0A
• 80PLUS Platinum Certified

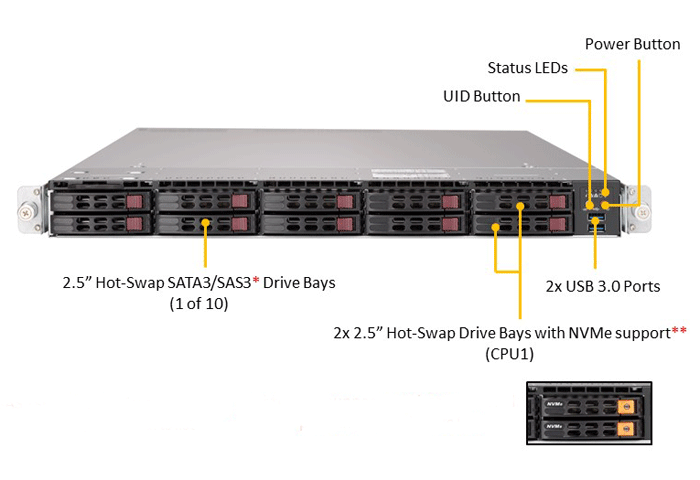

Storage • 10 hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe optional)

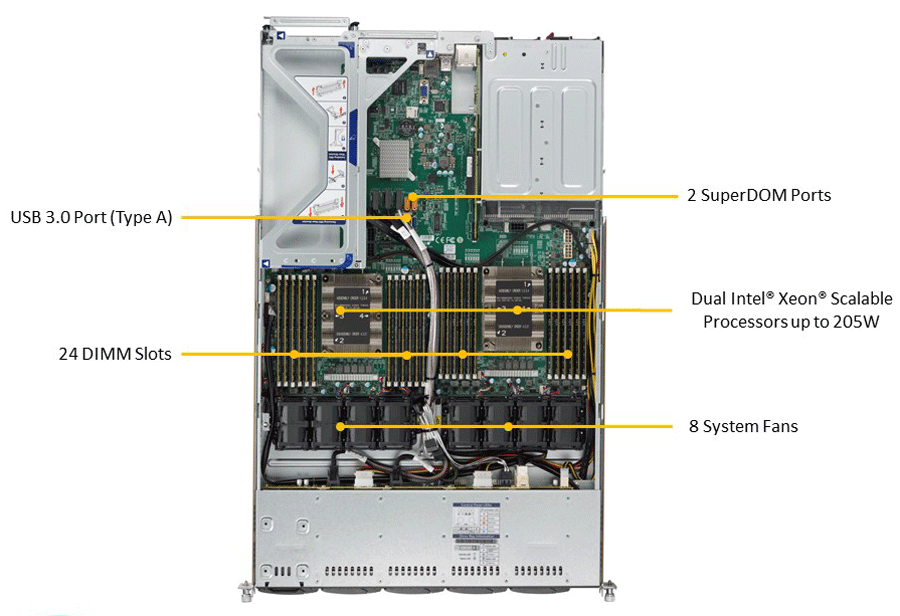

System Cooling • 8x heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
BIOS • AMI 32Mb SPI Flash ROM


Block Diagram


Images

Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $2,167.50




  Qty.Colfax CX1265s-X7 1U Rackmount Server, Cost As Configured $2,167.50
