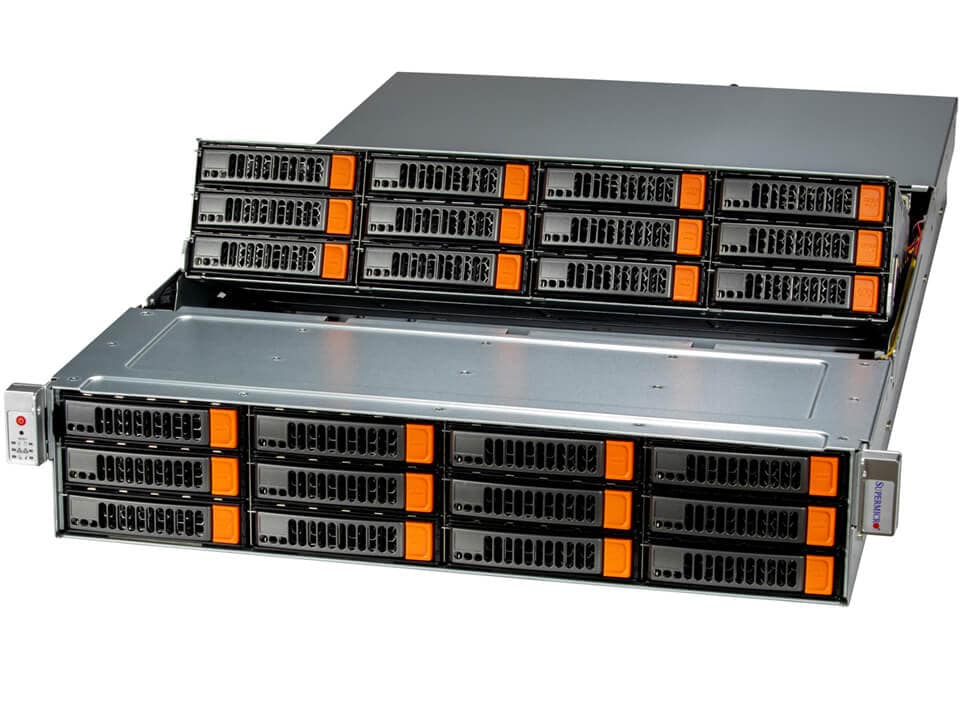

Colfax CX2130LPs-S24-JBOD-E9 2U Rackmount Server



  • 1x AMD EPYC™ 9004/9005 Processor
  • 24x 3.5" Hot-Swap SAS/SATA Drive Bays
  • Up to 6x 2.5" Hot-Swap Rear Drive Bays
  • Broadcom 3808 HBA Controller

Features

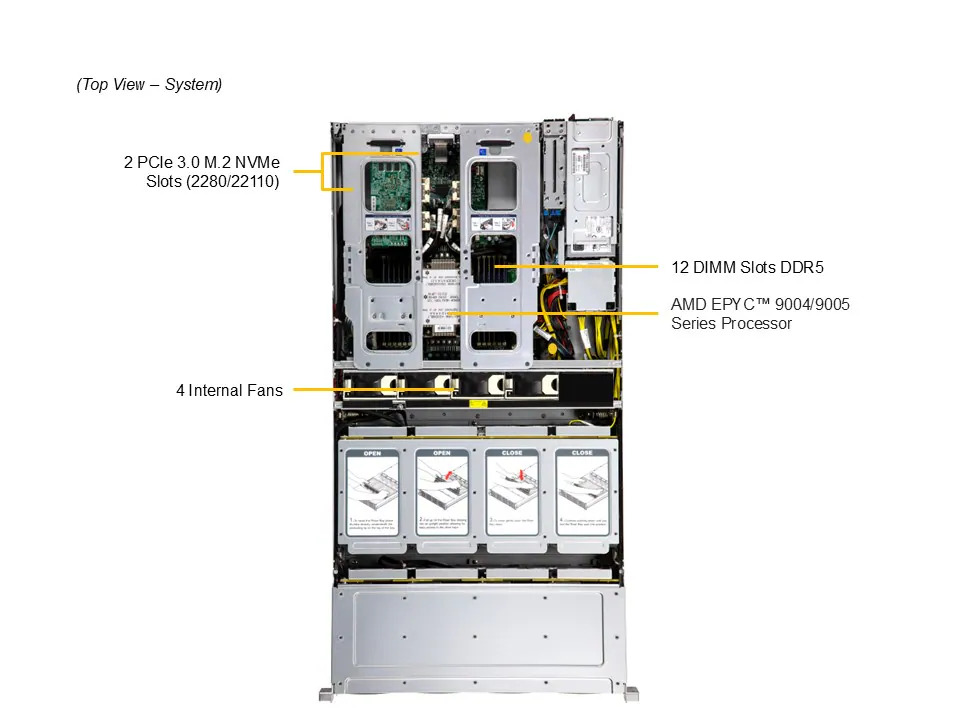

  • 1x AMD EPYC™ 9004/9005 Processor
  • 12x DIMMS, Supports DDR5 ECC RDIMMM
  • Expansion Slots (See options below)

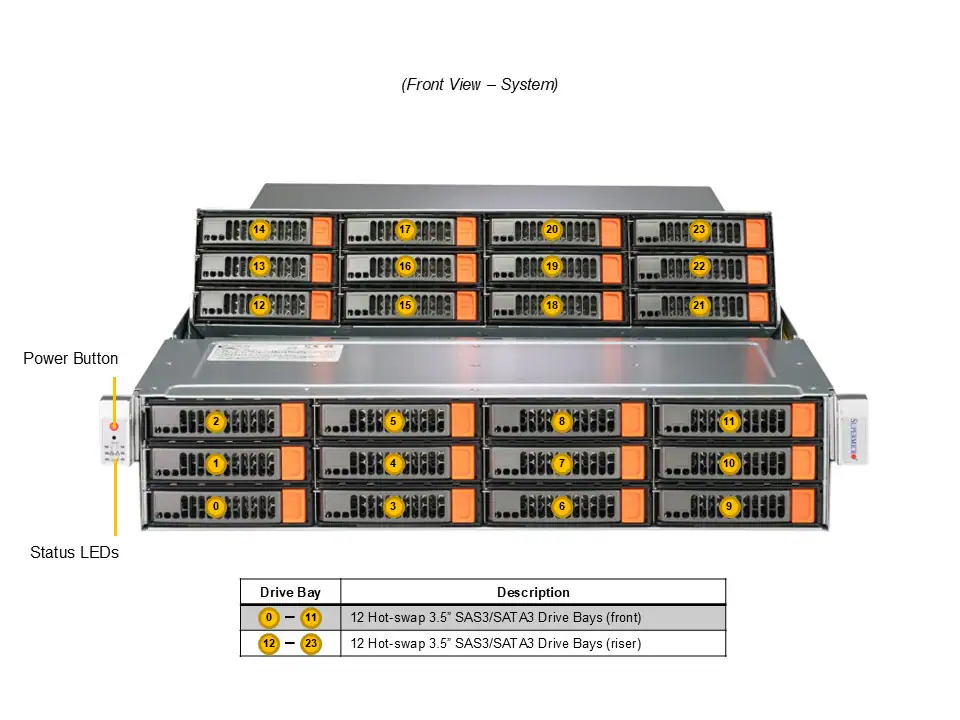

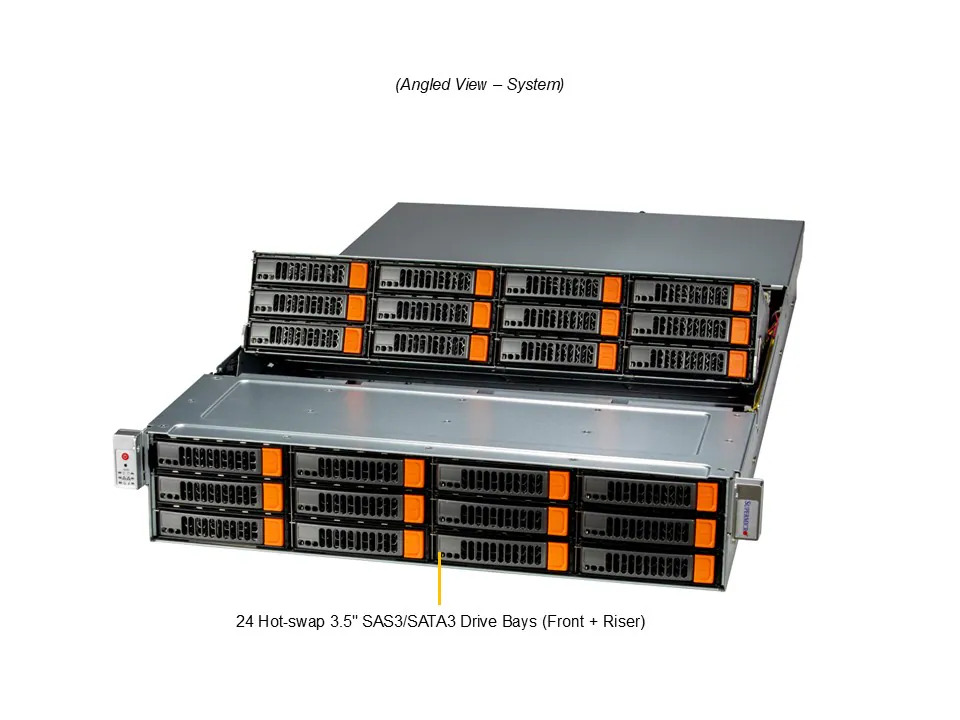

  • Drive Bays
    - 12x 3.5" Front Hot-Swap SAS/SATA Drive Bays
    - 12x 3.5" Top-Loading Hot-Swap SAS/SATA Drive Bays
    - Up to 6x 2.5" Rear Hot-Swap Drive Bays (See options below)
  • Integrated Broadcom 3808 HBA Controller
  • 1600W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN

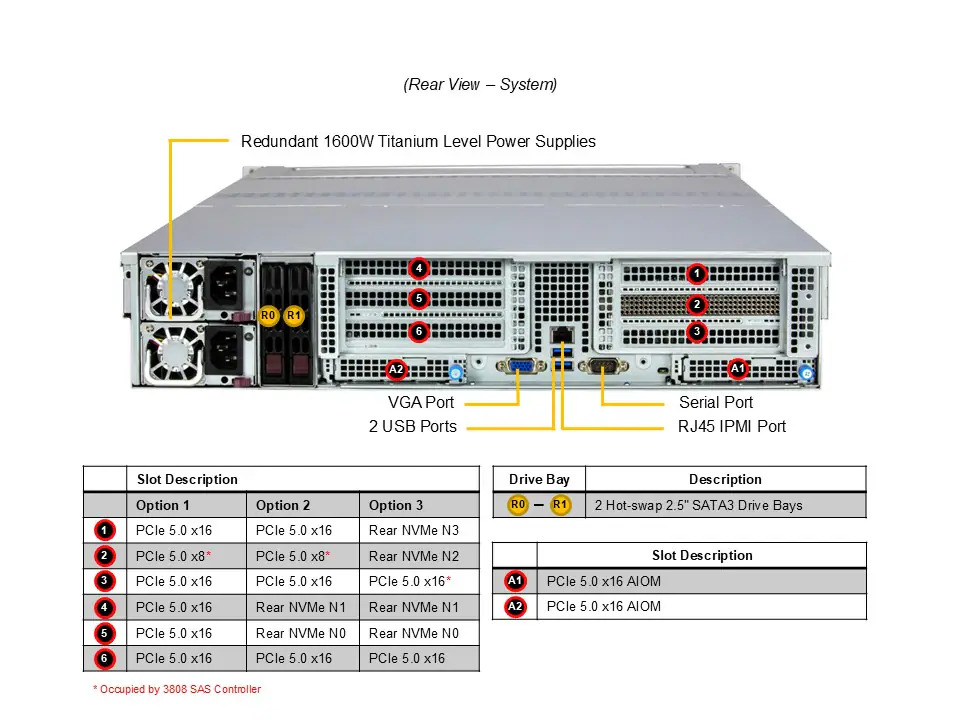

Expansion Slots and Storage Options



Expansion Slots Options

Slot

Config A (Default)

Config B1

Config C1

Slot 1

PCIe 5.0 x16

PCIe 5.0 x16

PCIe 5.0 x16*

Slot 2

PCIe 5.0 x8*

PCIe 5.0 x8*

PCIe 5.0 x16

Slot 3

PCIe 5.0 x16

PCIe 5.0 x16

N/A

Slot 4

PCIe 5.0 x8

PCIe 5.0 x16

N/A

Slot 5

PCIe 5.0 x16

N/A

N/A

Slot 6

PCIe 5.0 x16

N/A

N/A

A1

PCIe 5.0 x16 AIOM

PCIe 5.0 x16 AIOM

PCIe 5.0 x16 AIOM

A2

PCIe 5.0 x16 AIOM

PCIe 5.0 x16 AIOM

PCIe 5.0 x16 AIOM

1 Config A is default, for Config B and C, please contact sales@colfax-intl.com
* Occupied by Broadcom 3808 HBA controller

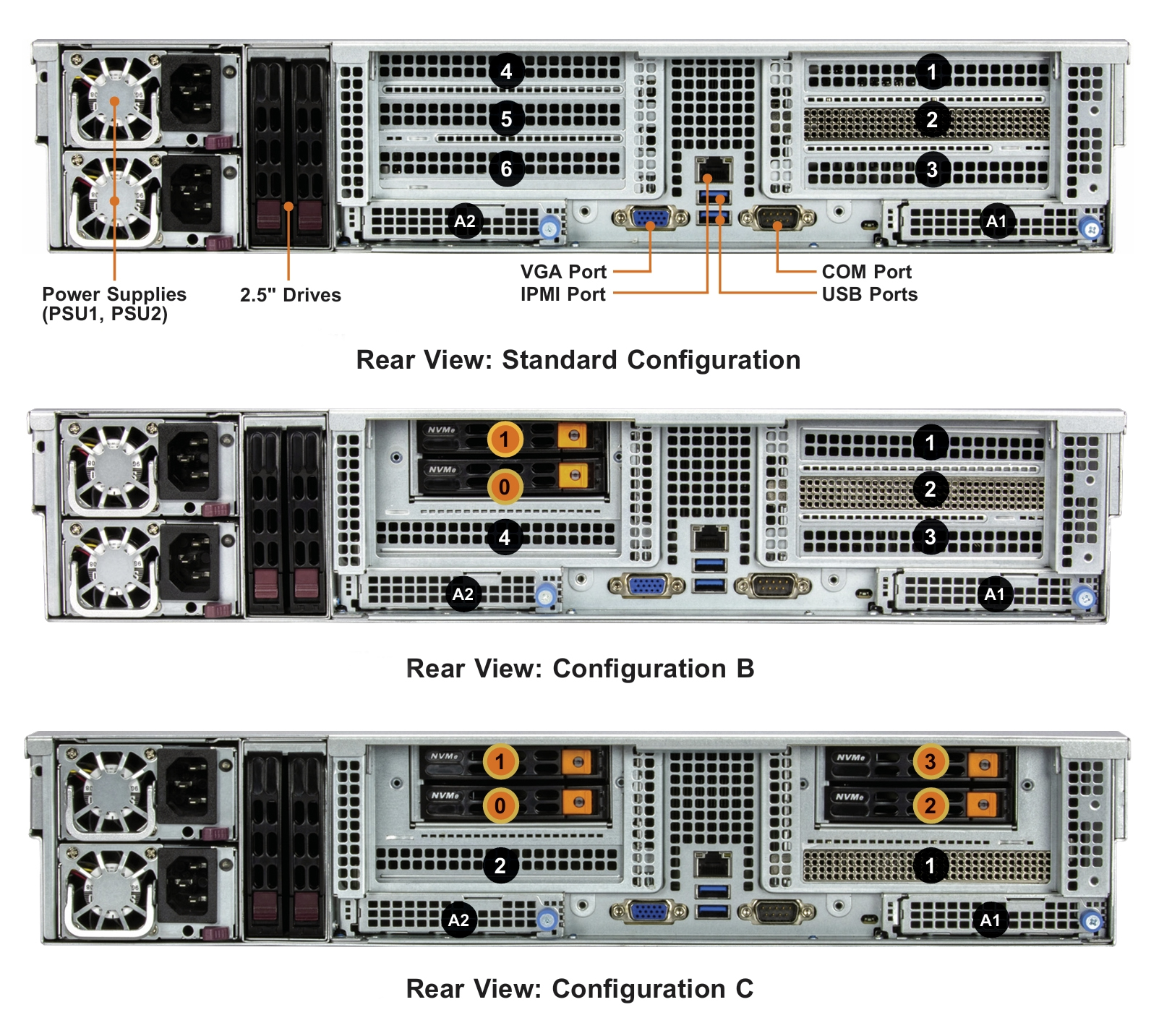

Storage Options

Rear Drive Bays

Config A (Default)

2x 2.5" Rear Hot-Swap SATA Drive Bays

Config B

2x 2.5" Rear Hot-Swap SATA Drive Bays
2x 2.5" Rear Hot-Swap NVMe Drive Bays

Config C

2x 2.5" Rear Hot-Swap SATA Drive Bays
4x 2.5" Rear Hot-Swap NVMe Drive Bays

1 Config A is default, for Config B and C, please contact sales@colfax-intl.com
* Occupied by Broadcom 3808 HBA controller


Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension: 17.2" W (437mm) x 3.5" H (89mm) x 34" D (863mm)

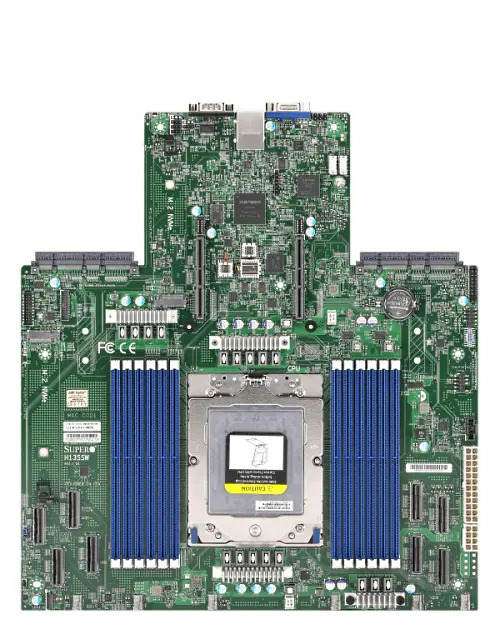

CPU • Single Socket SP5
• Supports AMD EPYC™ 9004/9005 Processor (AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
• Supports 200W - 290W TDP CPUs (Air Cooled)
Memory • 12x DDR5 DIMM slots
• Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
• Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
I/O Expansion Config A (Default)
• 4x PCIe 5.0 x16 FHHL slots
• 2x PCIe 5.0 x8 FHHL slots
• 2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Config B
• 3x PCIe 5.0 x16 FHHL slots
• 1x PCIe 5.0 x8 FHHL slot
• 2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Config C
• 2x PCIe 5.0 x16 FHHL slots
• 2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Storage Config A (Default)
• 24x hot-swap 3.5" SAS3/SATA3 drive bays (12x drives in front of the chassis and 12x drives in pop-up riser drive bays on top of the chassis
• 2x hot-swap 2.5" SATA drive bays (rear)
Config B
• 24x hot-swap 3.5" SAS3/SATA3 drive bays (12x drives in front of the chassis and 12x drives in pop-up riser drive bays on top of the chassis
• 2x hot-swap 2.5" SATA drive bays (rear)
• 2x hot-swap 2.5" NVMe drive bays (rear)
Config A (Default)
• 24x hot-swap 3.5" SAS3/SATA3 drive bays (12x drives in front of the chassis and 12x drives in pop-up riser drive bays on top of the chassis
• 2x hot-swap 2.5" SATA drive bays (rear)
• 4x hot-swap 2.5" NVMe drive bays (rear)

M.2
• 2x M.2 NVMe slots (M-key 2280/22110)
Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1x VGA port
Power Supply • 2x 1600W Redundant power supplies
• AC Input
- 1000W: 100-127Vac / 50-60Hz
- 1600W: 200-240Vac / 50-60Hz
• +12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 133.3A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified
System Cooling • 4x 8cm heavy duty fans
Front Panel Buttons
• Power button
LEDs
• Hard drive activity LED
• Network activity LED
• System information LED
• Power status LED
BIOS • AMI 32MB SPI Flash EEPROM

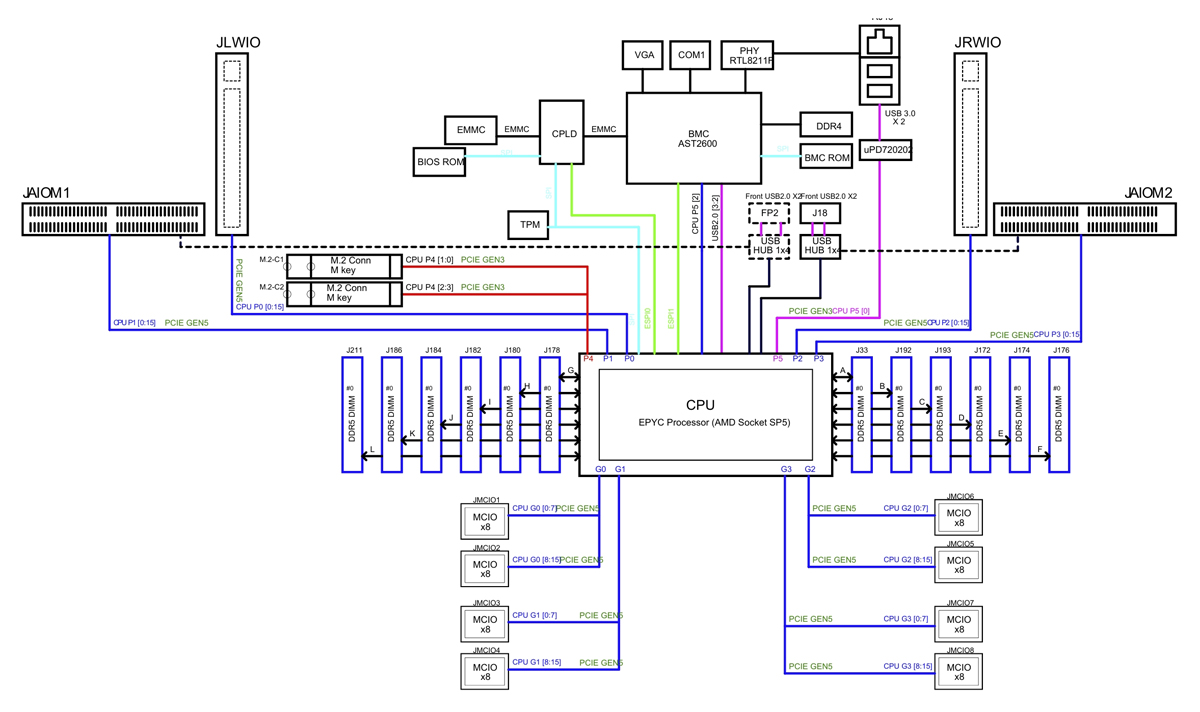

Block Diagram

Images
