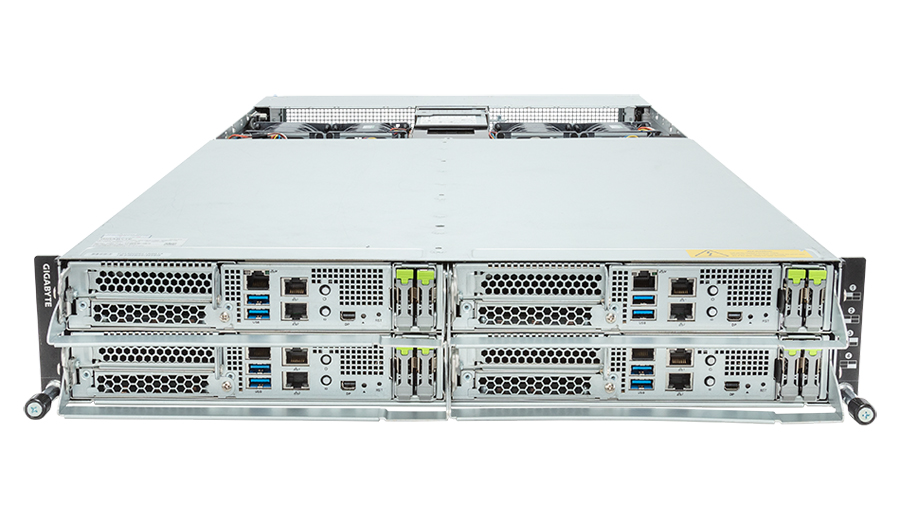

Colfax CX21465g-E1S-E9 2U Rackmount Server

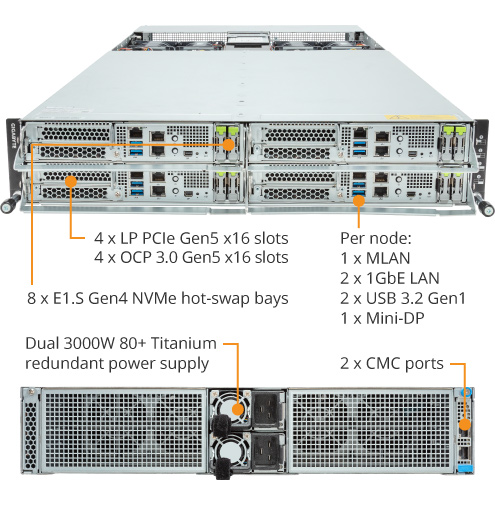

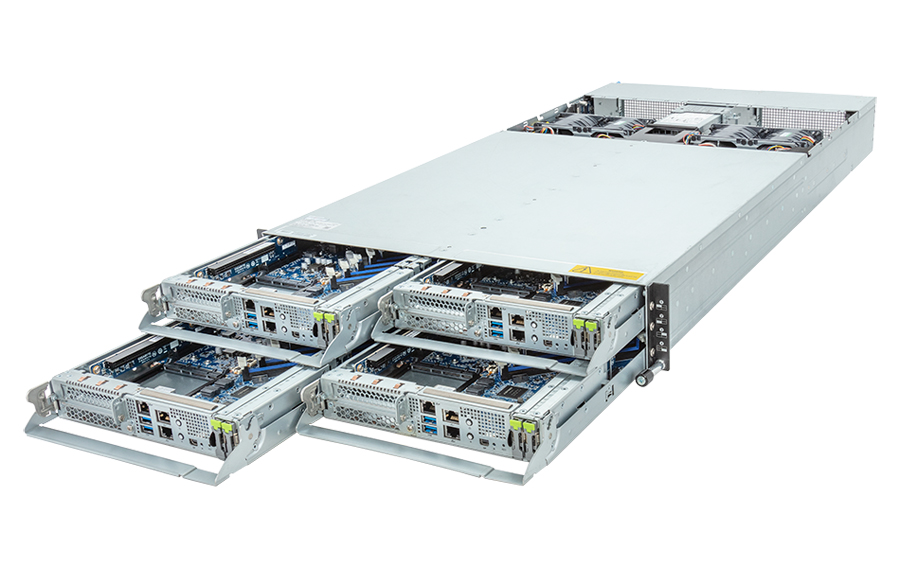

  • Hot-Swappable 4-Nodes in 2U; Front Access
  • Total 4x AMD EPYC™ 9004 Series Processors
  • Total 96x DDR5 DIMM Sockets
  • Total 8x E1.S Gen4 NVMe Drive Bays
  • Total 4x PCIe 5.0 x16 Slots (LP)

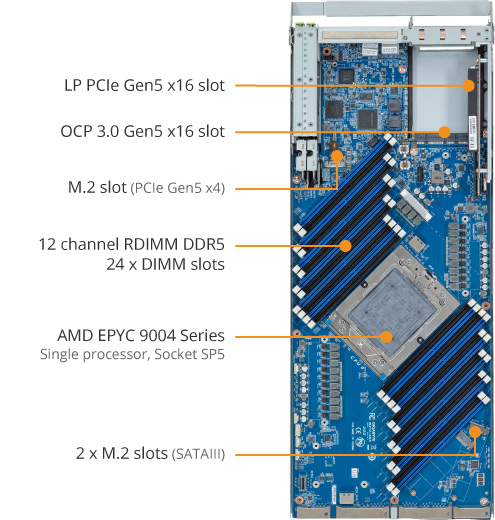

  • 4x AMD EPYC™ 9004 Series Processors (1/node) (Click here for Specifications and Comparison)
  • 96x DIMM Sockets Support DDR5 ECC RDIMM (24/node)
  • 4x PCIe 5.0 x16 Low-Profile Slots (1/node)
  • 4x OCP 3.0 Gen5 x16 Mezzanine Slots (1/node)
  • 8x E1.S Gen4 NVMe Hot-Swap Drive Bays (2/node)
  • 12x M.2 Slots (1 w/PCIe 5.0 x4 and 2x SATA Interface/node)
  • 8x 1Gb/s Intel® I350-AM2 LAN Ports (2/node)
  • 4x Dedicated Management Ports (1/node)
  • 2x 3000 Watts RPSU, 80 PLUS Titanium
  • Dual ROM Architecture Supported

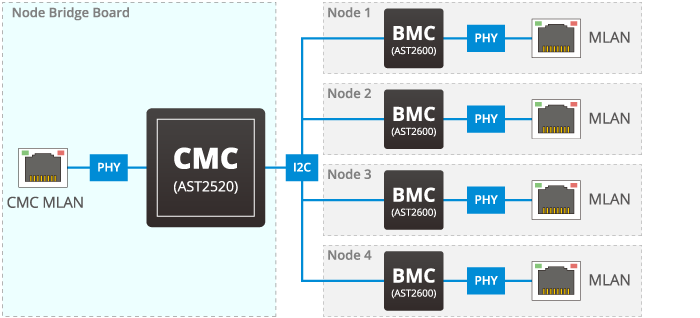

CMC for Chassis Management & Multi-Node Monitoring

The server features a Chassis Management Controller (CMC) for chassis-level management and node-level monitoring by connecting nodes internally via BMC chips integrated on each node. Resulting in only one mLAN connection required to perform monitoring of all four nodes*, and results in less Top-of-Rack (ToR) cabling and switch connections.

* IPMI only (no iKVM functionality)

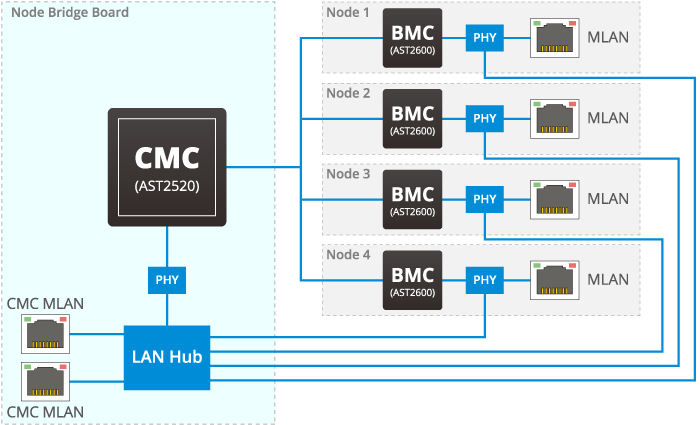

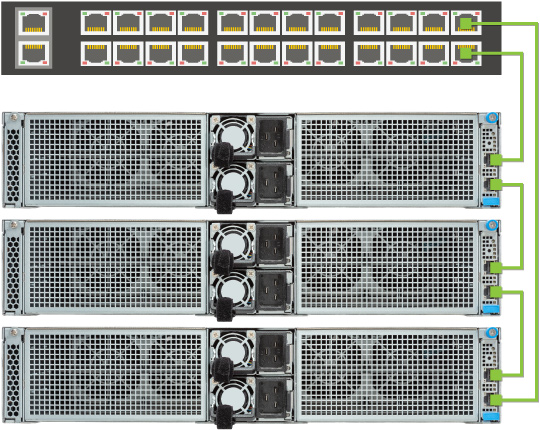

Ring Topology Management

The server features the ability to create a "ring" connection for monitoring & management of all servers in a rack for greater cost savings and management efficiency.

GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Technical Specifications

Enclosure • 2U 4 Nodes - front access
• Dimension (W x H x D) 17.56" x 3.4" x 35.5" (447 x 86.8 x 902 mm)

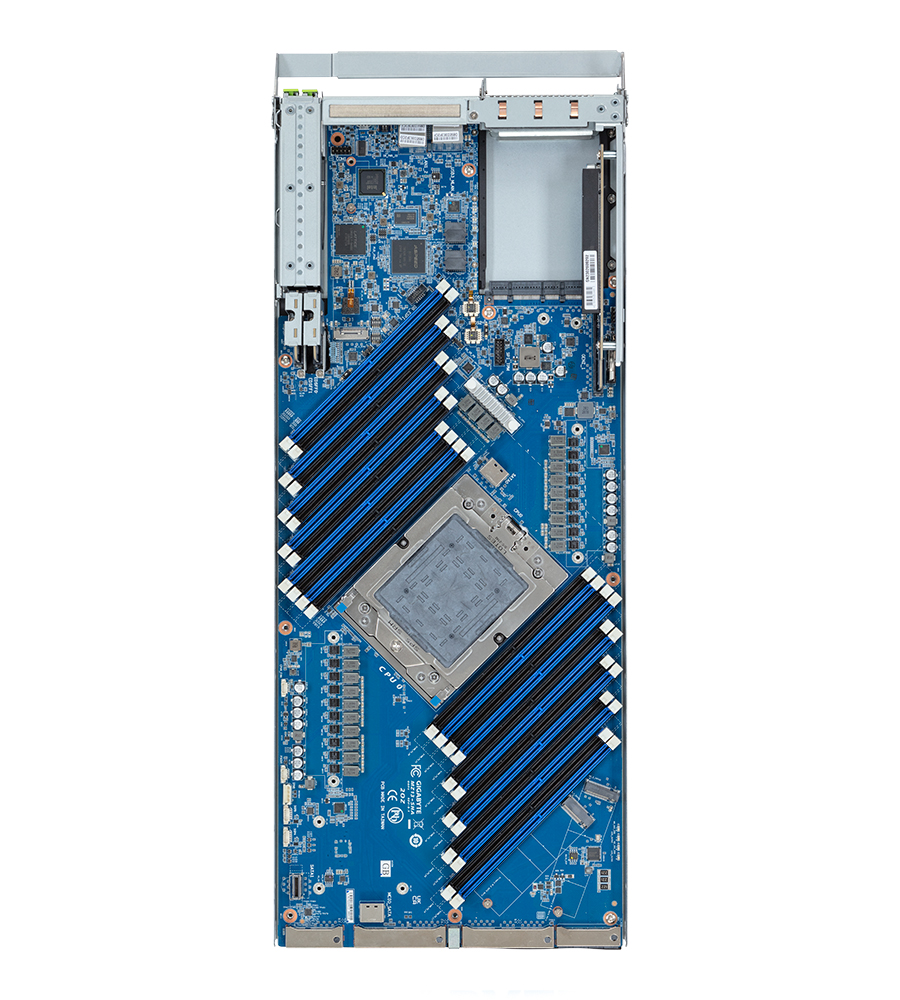

CPU / Node • Socket SP5
• 1x AMD EPYC™ 9004 series processor
Supports CPU cTDP up to 300W at ambient 35°C
Memory / Node • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Supports up to 128GB RDIMM / 256GB 3DS RDIMM modules
• Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
Expansion Slots / Node • 1x PCIe x16 (Gen5 x16) low-profile slot
• 1x OCP 3.0 mezzanine slot with PCIe Gen5 x16 bandwidth
• 1x M.2 slot
- M-key
- PCIe Gen5 x4
- Supports 2280/22110 cards
• 2x M.2 slots
- M-key
- SATAIII via ASM1062R
- Supports 2280 cards
- Supports Hardware RAID 0/1
Storage / Node • 2x 9.5mm E1.S Gen4 NVMe hot-swappable bays
Networking / Node • 2x 1GbE LAN ports (1x Intel® I350-AM2)
• 1x 10/100/1000 management LAN
CMC • Management chip on CMC board
• Integrated in Aspeed® AST2520A2-GP

* Spanning Tree Protocol (STP) must be enabled in LAN switch function if using ring topology
Video / Node • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Internal I/O / Node • 1x COM
• 1x TPM header
Front I/O / Node • 2x USB 3.2 Gen1
• 1x Mini-DP
• 2x RJ45
• 1x RJ45 MLAN
• 1x Power button with LED
• 1x ID button with LED
• 1x System status LED
• 1x Reset button

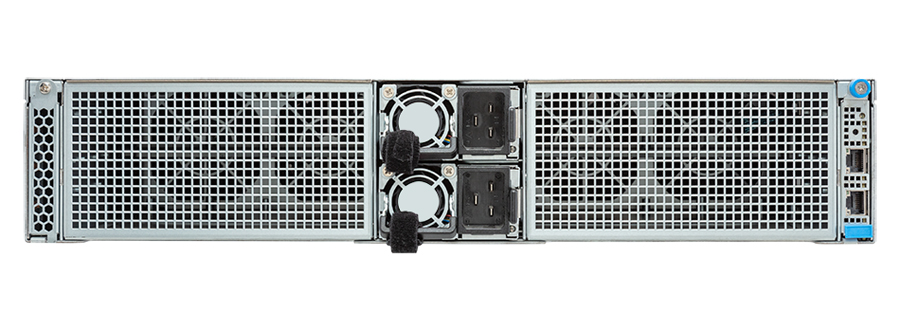

Rear I/O • 2x CMC ports
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
Power Supply • 2x 3000W redundant PSUs
• AC Input:
- 100-127V~/ 16A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
• DC Input:
- 240Vdc/ 15.5A
• DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 81A
+ 12Vsb/ 3A
- Max 2600W/ 200-220V~
+ 12.2V/ 213A
+ 12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+ 12.2V/ 245A
+ 12Vsb/ 3A
• 80 PLUS Titanium
System Cooling • 4x 80x80x80mm (16,500 rpm)

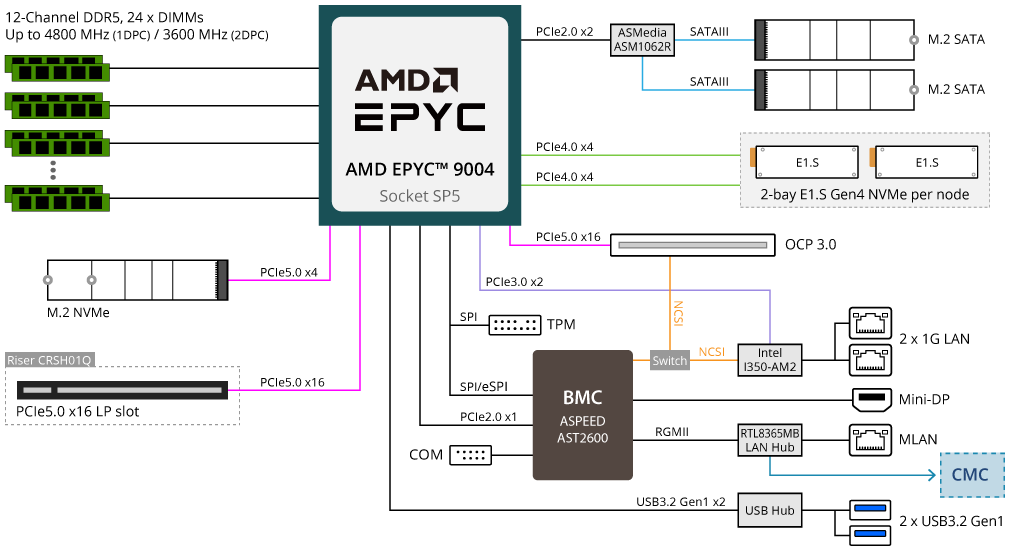

Block Diagram
