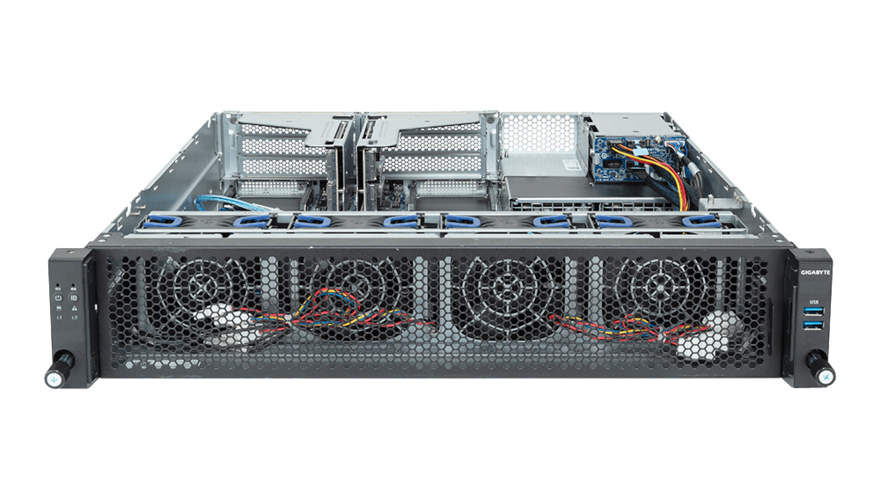

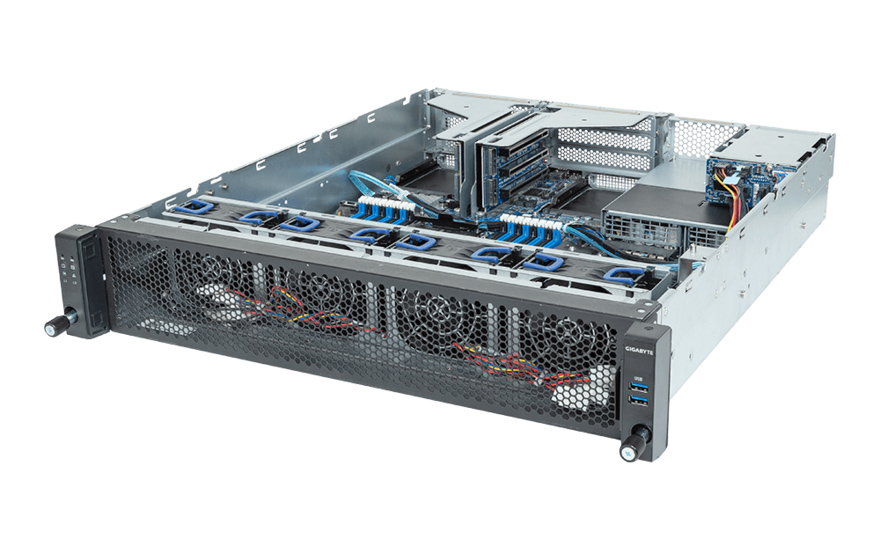

Colfax CX2155g-XK9 2U Rackmount Server




  • 2U Short Depth
  • 1x 4th Gen Intel® Xeon® Scalable Processor
  • 2x NVIDIA GPUs
  • 16x DDR5 DIMM Sockets
  • 2x 2.5" Gen4 NVMe Drive Bays (Rear)

Features

  • 2U Short Depth
  • 1x 4th Gen Intel® Xeon® Scalable Processor
  • 2x NVIDIA GPUs
  • 16x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x OCP 3.0 Gen5 x16 Slots
  • 2x 2.5" Hot-Swap Gen4 NVMe Drive Bays (Rear)
  • 1x M.2 with PCIe 3.0 x4 Interface
  • 1x 1Gb/s Intel® I210-AT LAN Port
  • 1x Dedicated Management Port
  • 1+1 1600W (240V) RPSU, 80 PLUS Platinum
  • Dual ROM Architecture Supported




GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.24" x 3.4" x 20.47" (438 x 87.5 x 520 mm)
CPU • Single Socket E (LGA-4677)
• 4th Gen Intel® Xeon® Scalable Processor
• TDP up to 350W
Memory • 16x DIMM sockets
• DDR5 memory supported only
• 8-channel memory architecture
• Supports up to 128GB RDIMM / 256GB 3DS RDIMM modules
• Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
Expansion Slots • Riser Card 1: 1x PCIe 5.0 x16 slot (FHFL)
• Riser Card 2: 1x PCIe 5.0 x16 slot (FHFL)
• 2x OCP 3.0 Gen5 x16 slots
- Supported NCSI function
M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
Storage • 2x 2.5" hot-swappable Gen4 NVMe drive bays (rear)
Networking • 1x 1GbE LAN ports (1 x Intel® I210-AT)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply • 1+1 1600W redundant PSUs
• AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
• DC Input:
- 240Vdc/ 10A
• DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A
• 80 PLUS Platinum
System Cooling • 4x 80x80x38mm (18,300rpm)
Internal I/O • 1x M.2 slot
• 1x TPM header
• 1 x VROC connector
• 2x OCP 3.0 mezzanine slots
Front I/O • 2x USB 3.2 Gen1
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 1x LAN activity LED
• 1x HDD activity LED
• 1x System status LED

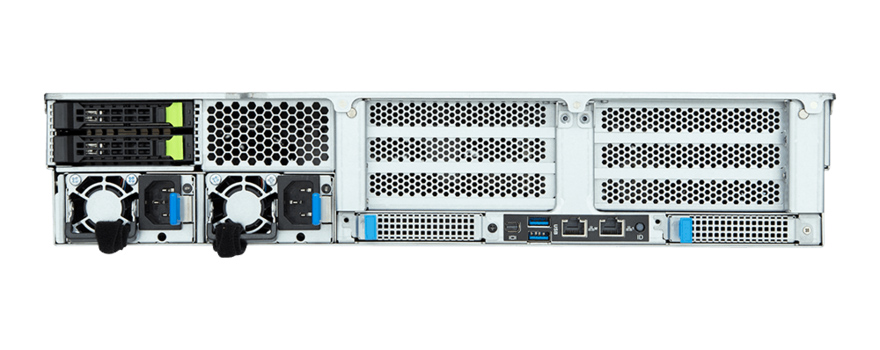

Rear I/O • 2x USB 3.2 Gen1
• 1x Mini-DP
• 1x RJ45
• 1x MLAN
• 1x ID button with LED
Backplane I/O • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

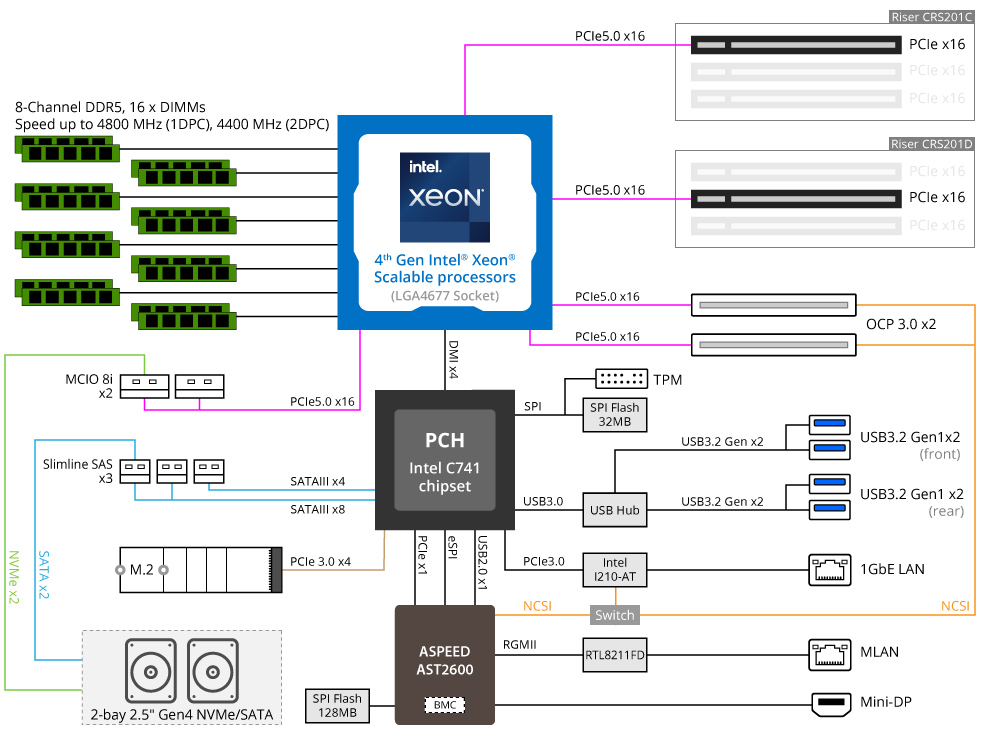

Block Diagram

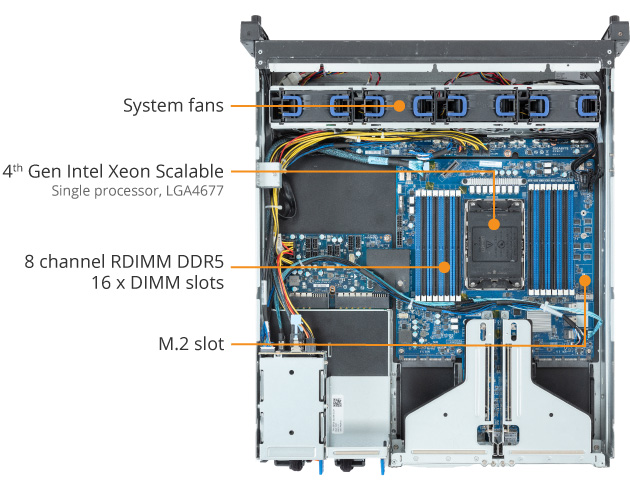

Images
$2,903.98


  Qty.Colfax CX2155g-XK9 2U Rackmount Server, Cost As Configured $2,903.98
Base Platform 1
Rackmount Kit 1
Primary CPU 1
Memory Socket 1 of 16    1

Set next    items (  ) like this
Memory Socket 2 of 16    1
Memory Socket 3 of 16    1
Memory Socket 4 of 16    1
Memory Socket 5 of 16    1
Memory Socket 6 of 16    1
Memory Socket 7 of 16    1
Memory Socket 8 of 16    1
Memory Socket 9 of 16    1
Memory Socket 10 of 16    1
Memory Socket 11 of 16    1
Memory Socket 12 of 16    1
Memory Socket 13 of 16    1
Memory Socket 14 of 16    1
Memory Socket 15 of 16    1
Memory Socket 16 of 16    1
M.2 Drive 1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Infiniband HBA 1
Ethernet HBA 1
OCP 3.0 Gen5 x 16 1 1
OCP 3.0 Gen5 x 16 2 1
TPM Module 1
Operating System SW 1
   Colfax CX2155g-XK9 2U Rackmount Server, Cost As Configured $2,903.98
