Colfax CX2160s-X7 2U Rackmount Server



  • Single Intel® Xeon® Scalable Processor
  • 6x DIMMs
  • 8x 3.5" SATA3 Drive Bays
  • 4 PCI-E 3.0 x8 (FHFL) Slots

Features

  • 1x Intel® Xeon® Scalable Processor
  • Intel C622 Chipset
  • 6x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 4 PCI-E 3.0 x8 (FHFL) Slots
    - 1 PCI-E 3.0 x8 (LP) Slot
  • 8x 3.5" Hot-Swap SATA3 Bays
  • 1x M.2 SSD
  • 2x SATA DOMs
  • 2x 10GBase-T ports with Intel® X772 + X557
  • 500W Redundant Power Supply, 80PLUS Platinum
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Single Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (70-205W TDP)
Memory • 6x DDR4 DIMM slots
• Supports up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM
• 2666/2400/2133MHz ECC DDR4 SDRAM
Chipset • Intel® C622
I/O Expansion • 4 PCI-E 3.0 x8 (FHFL) slots
• 1 PCI-E 3.0 x8 (LP) slot
Onboard Devices SATA
• SATA3 (6Gbps) via C622 controller
• RAID 0, 1, 5, 10 support
Network Controllers
• Dual 10GBase-T LAN with Intel® X772 + X557
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 10x SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
• 2x USB 2.0 ports (rear)
VGA
• 1x VGA port
Serial Port
• 2x COM ports (1 rear, 1 header)
DOM
• 2x SuperDOM (Disk on Module) ports with built-in power
Drive Bays • 8x 3.5" hot-swap SATA3 drive bays
• M.2 mini-PCI-e support
Peripheral Drive Bays • 1x Slim DVD-ROM drive bay
Chassis Form Factor • 2U Rackmount
• Dimension: 17.2"W (437mm) x 3.5"H (89mm) x 25.6"D (650mm)
Power Supply • 500W Redundant Power Supplies with PMBus
• 80PLUS Platinum Certified
System Cooling • 3 hot-swap 8cm PWM cooling fans
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
BIOS • AMI 32Mb SPI Flash ROM

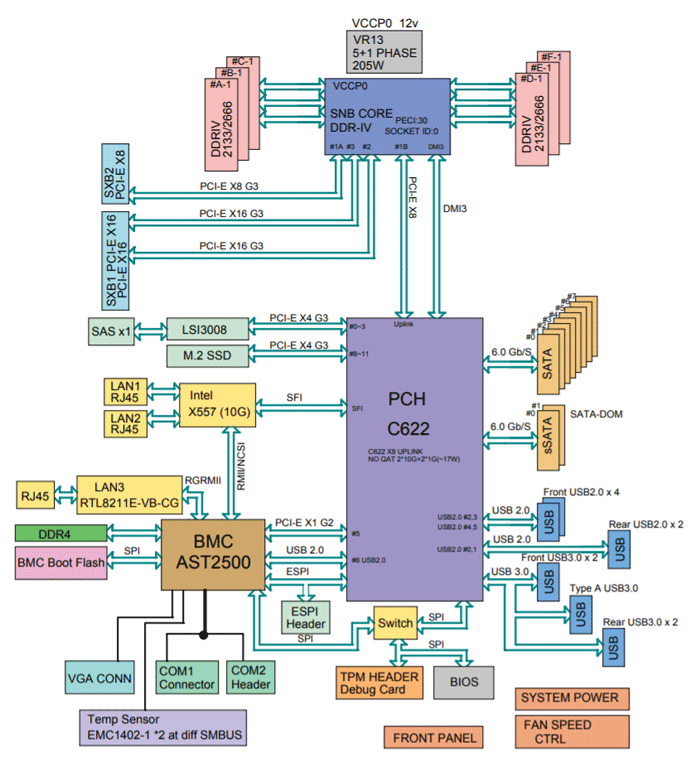

Block Diagram

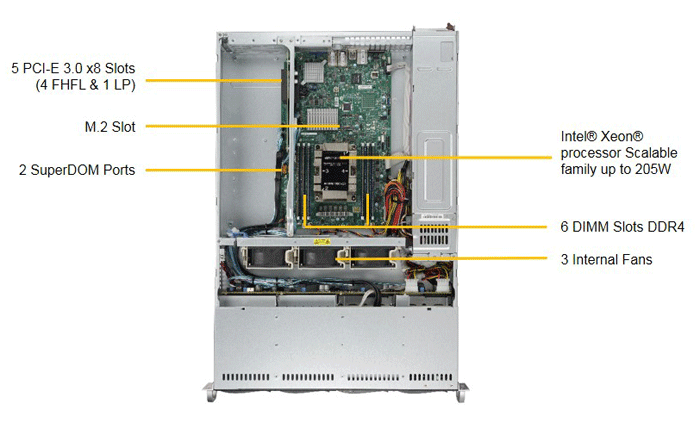

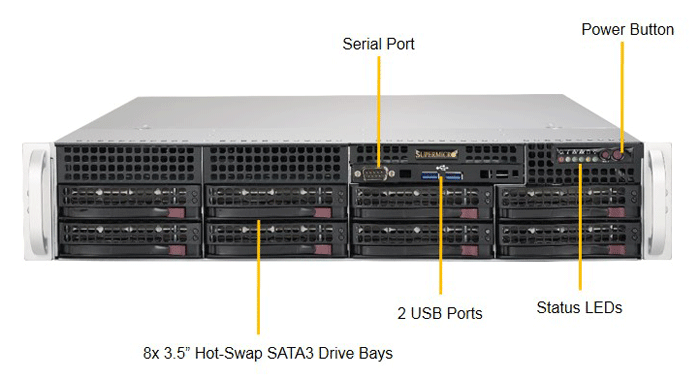

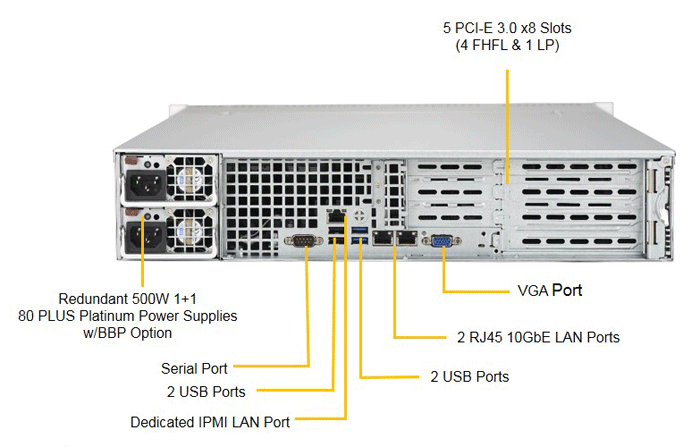

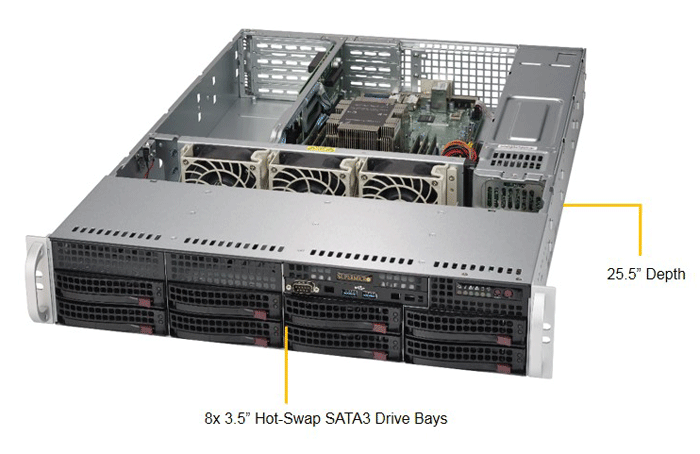

Images
