Colfax CX2165g-EK9 2U Rackmount Server




  • 2U Short Depth
  • 1x AMD EPYC™ 9005 Series Processor (Supports 500W TDP)
  • 2x NVIDIA GPUs
  • 12x DDR5 DIMM Sockets
  • 2x 2.5" Gen5 NVMe Drive Bays (Rear)

Features

  • 2U Short Depth
  • 1x AMD EPYC™ 9005 Series Processor (Model Specs)
    - (Supports 500W TDP)
  • 2x NVIDIA GPUs
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • 2x OCP NIC 3.0 Gen5 x16 Slots
  • 2x 2.5" Hot-Swap Gen5 NVMe Drive Bays (Rear)
  • 1x M.2 with PCIe 3.0 x4 Interface
  • 1x 1Gb/s Intel® I210-AT LAN Port
  • 1x Dedicated Management Port
  • 2x 2000 Watts RPSU
  • Dual ROM Architecture Supported




Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.24" x 3.4" x 20.47" (438 x 87.5 x 520 mm)
CPU • Socket SP5
• Single AMD EPYC™ 9004/9005 Series Processor
• Supports CPU cTDP up to 400W*

* At 25°C ambient, cTDP up to 500W
Memory • 12x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Memory speed: Up to 4800 MT/s (9004) / Up to 6000 MT/s (9005)
Expansion Slots • Riser Card 1: 1x PCIe 5.0 x16 slot (FHFL)
• Riser Card 2: 1x PCIe 5.0 x16 slot (FHFL)
• 2x OCP NIC 3.0 Gen5 x16 slots
- Supported NCSI function
M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
Storage • 2x 2.5" hot-swappable Gen5 NVMe drive bays (rear)
Networking • 1x 1GbE LAN ports (1 x Intel® I210-AT)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply • 2x 2000W redundant PSUs
• AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
• DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
• 80 PLUS Titanium
System Cooling • 4x 80x80x56mm (15,500rpm)
Internal I/O • 1x M.2 slot
• 1x TPM header
• 2x OCP 3.0 mezzanine slots
Front I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 1x LAN activity LED
• 1x Storage activity LED
• 1x System status LED

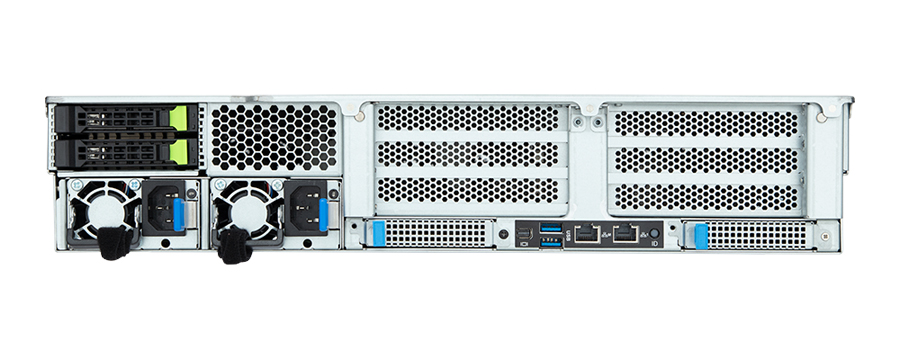

Rear I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x Mini-DP
• 1x RJ45
• 1x MLAN
• 1x ID button with LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

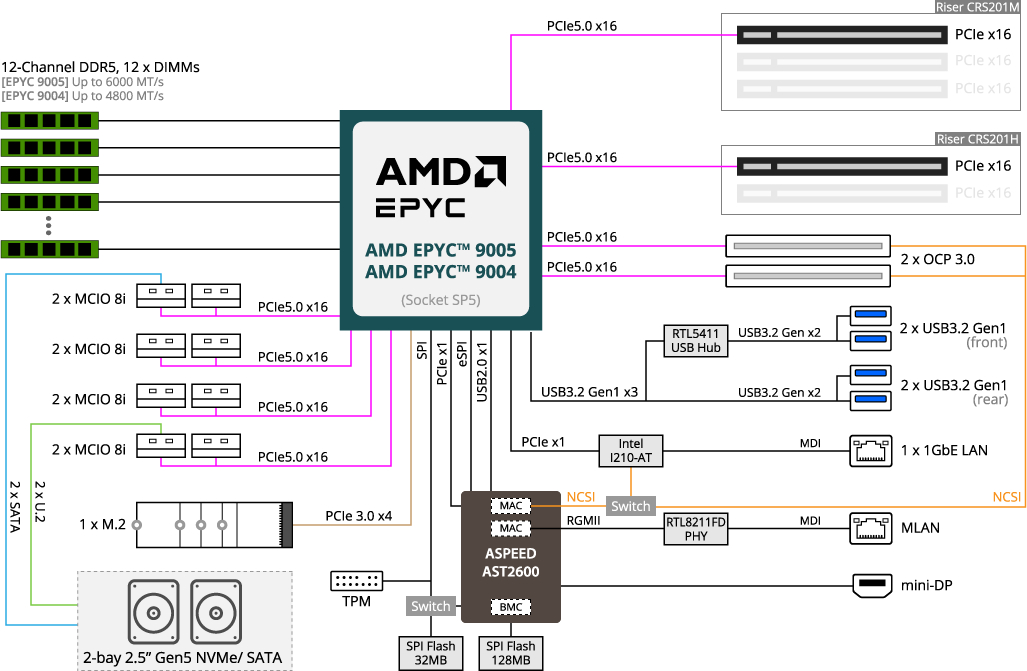

Block Diagram

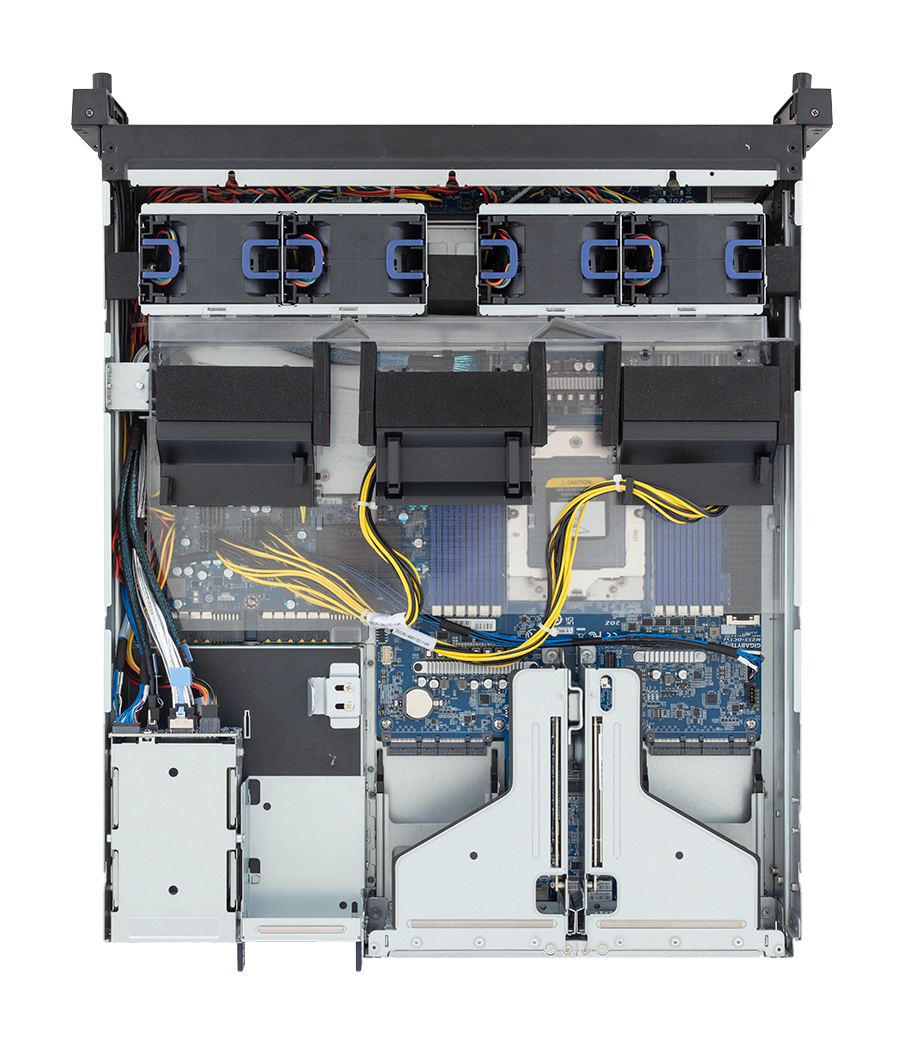

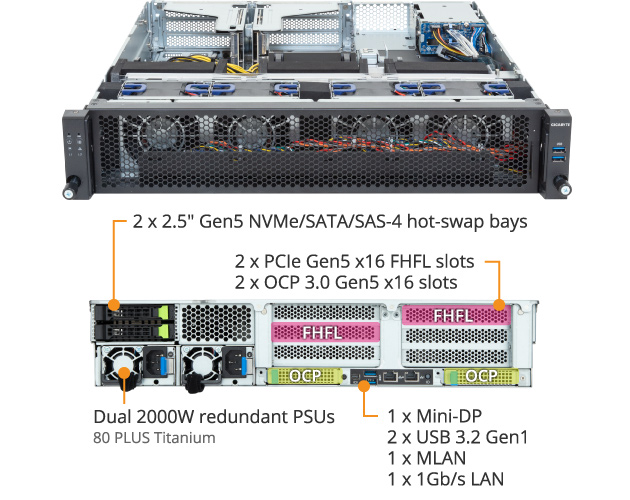

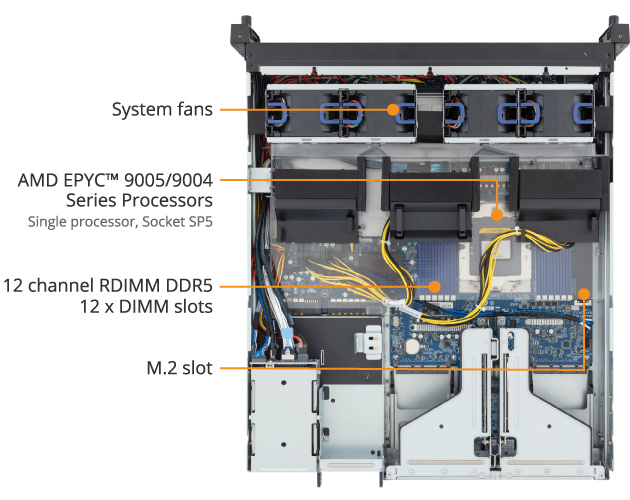

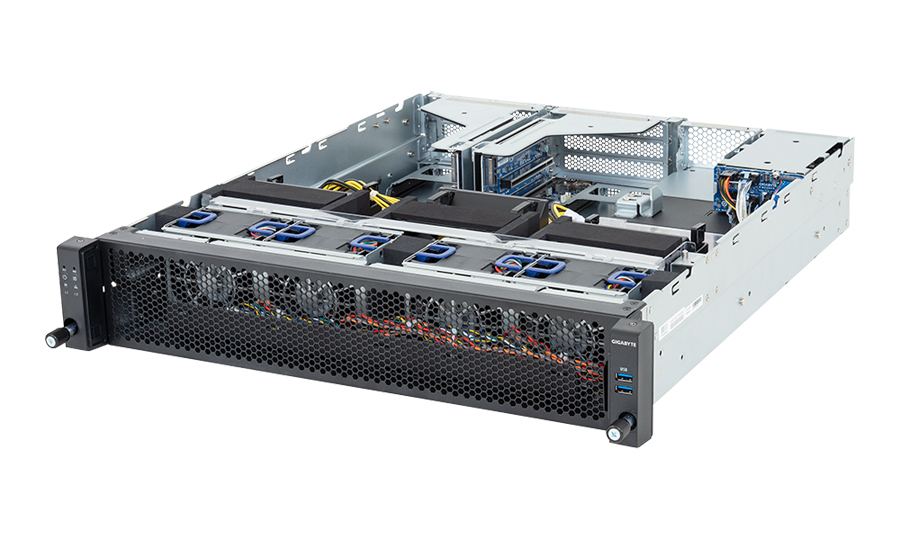

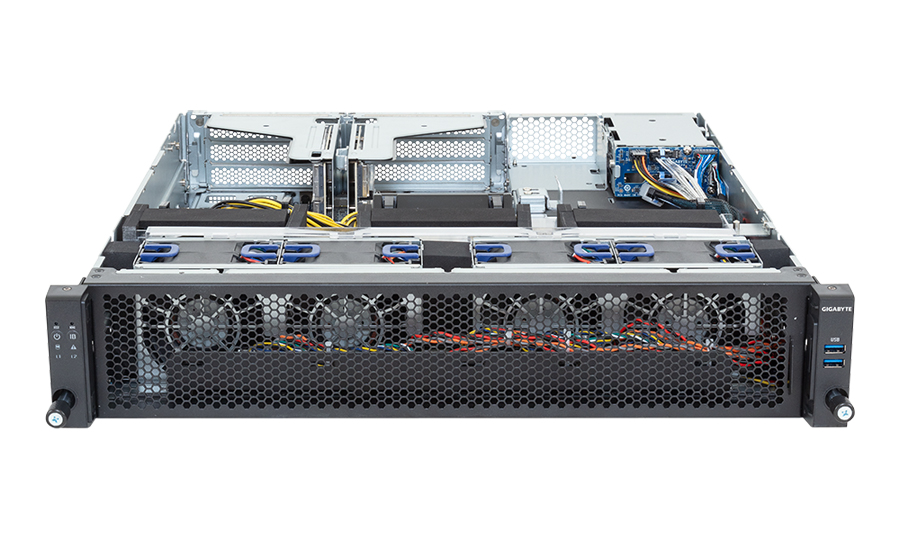

Images
