Colfax CX2170s-E9 2U Rackmount Server



  • 1x AMD EPYC™ 9004 Series Processor
  • 12x DDR5 DIMM Sockets
  • 12x 3.5" Hot-Swap SATA Drive Bays

Features

  • 1x AMD EPYC™ 9004 Series Processor (Click here for Specifications and Comparison)
  • 12x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 2U LHS Riser Card with 3x PCIe 5.0 X16 Slots
    - 2U RHS Riser Card with 3x PCIe 5.0 X16 Slots
    - 2 PCIe 5.0 x16 AIOM Slots
  • 12x 3.5" Hot-Swap SATA Drive Bays
  • 2x 2.5" Hot-Swap Drive Bays (Rear)
  • 2x M.2 PCIe 3.0 x2 NVMe SSDs
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • 1200W Redundant* Power Supplies, Titanium Level


* Full redundancy based on configuration and application load



Technical Specifications

Chassis Form Factor • 2U Rackmount

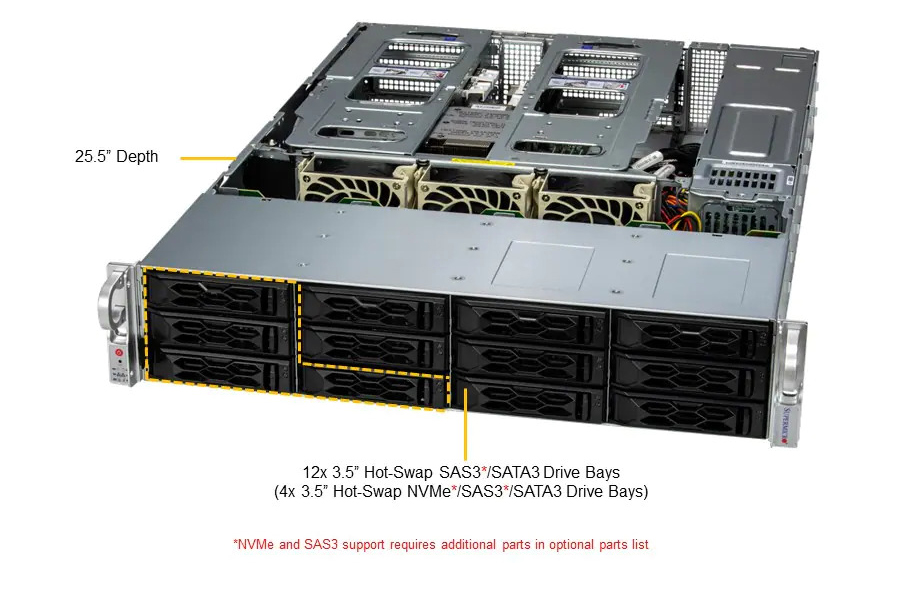

• Dimension (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 25.5" (648mm)
CPU • Socket SP5
• Single AMD EPYC™ 9004 Series Processor
• Supports CPU TDP up to 400W*

* Certain CPUs with high TDP may be supported only under specific conditions.
Memory • 12x DIMM Sockets
• Supports DDR5 ECC RDIMM
• Memory Type 4800 MHz Registered ECC
I/O Expansion • 2U LHS Riser Card with 3x PCIe 5.0 X16 Slots
• 2U RHS Riser Card with 3x PCIe 5.0 X16 Slots
• 2 PCIe 5.0 x16 AIOM Slots
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controller
• Via AIOM
VGA
• ASPEED AST2600 BMC

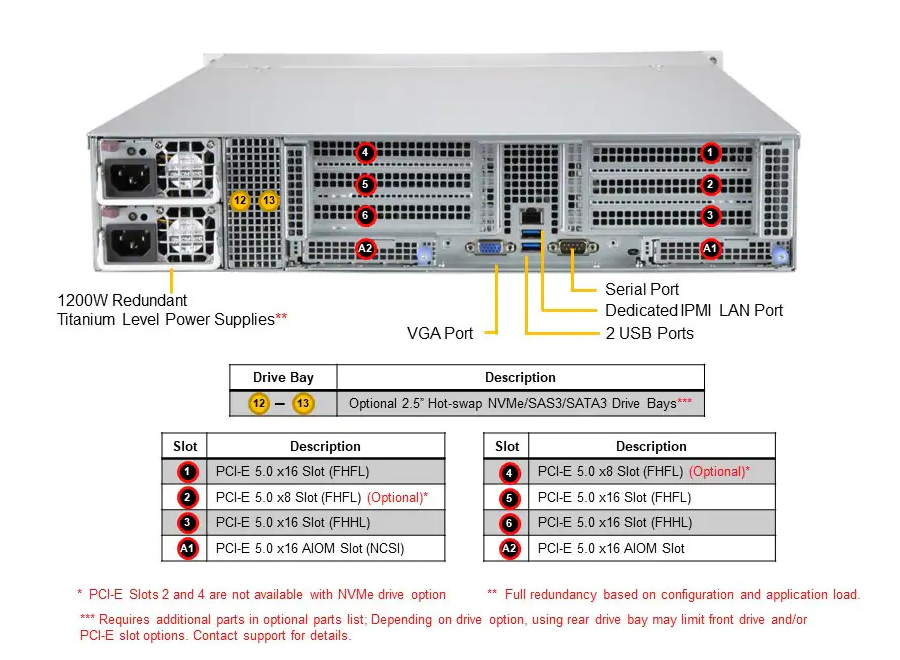

Input / Output LAN
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2x USB 3.0 ports (rear)
VGA
• 1 VGA port
Serial Port
• 1 COM port
Power Supply • 1200W redundant 100-240 Vac and 200-240 Vdc power supplies
• 80PLUS Titanium Certified
Storage • 12x 3.5" hot-swap SATA drive bays
• 2x 2.5" hot-swap drive bays (rear)
• 2x M.2 PCIe 3.0 x2 NVMe (2280/22110, boot drive only)
System Cooling • 3x 8cm heavy duty fans with optimal fan speed control
Front Panel Buttons
• Power On/Off button
• UID button
LEDs
• Hard drive activity LED
• Network activity LED
• Power status LED
• UID LED
BIOS • AMI 32Mb SPI Flash EEPROM


Block Diagram

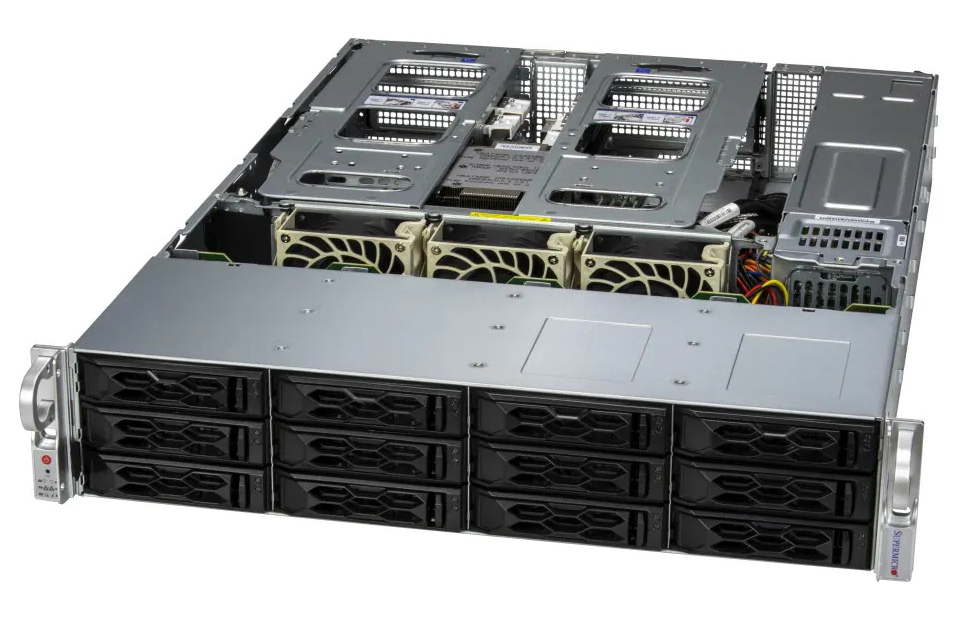

Images


$3,485.23
