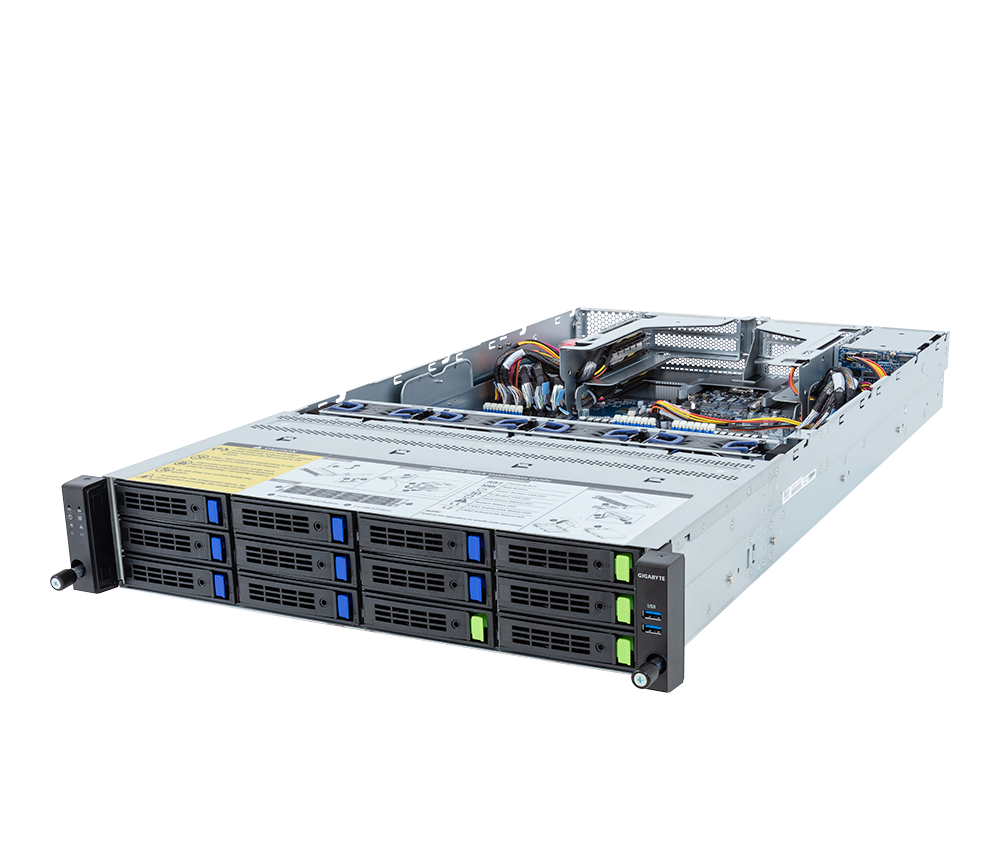

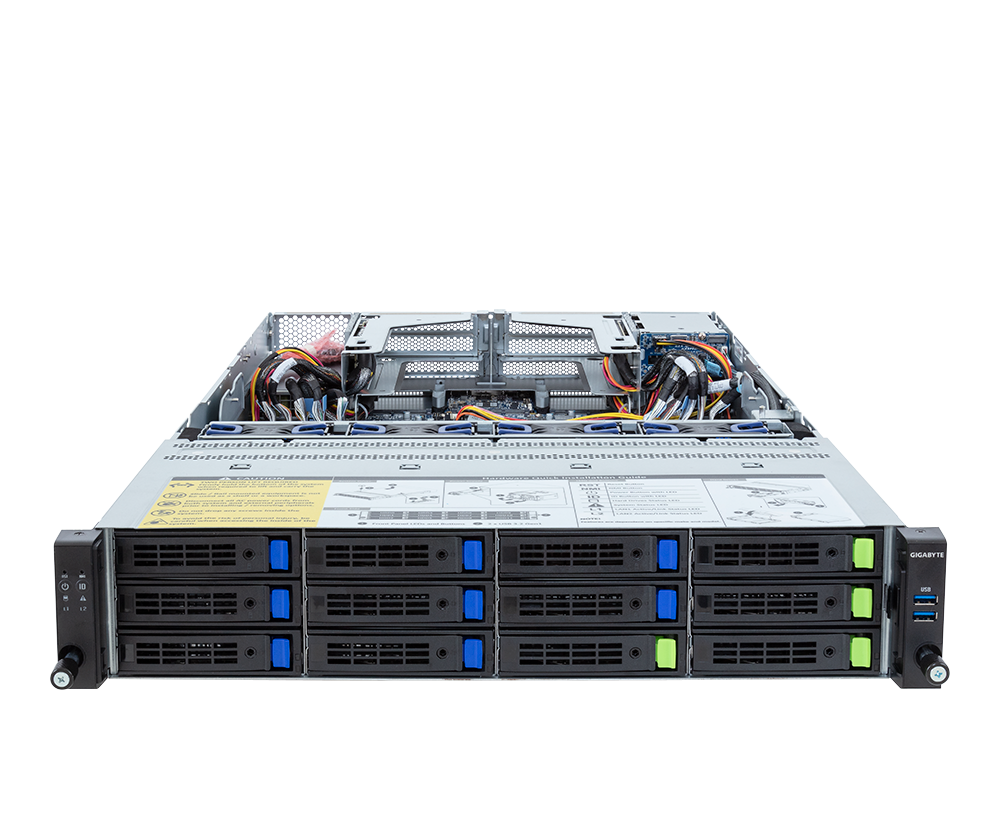

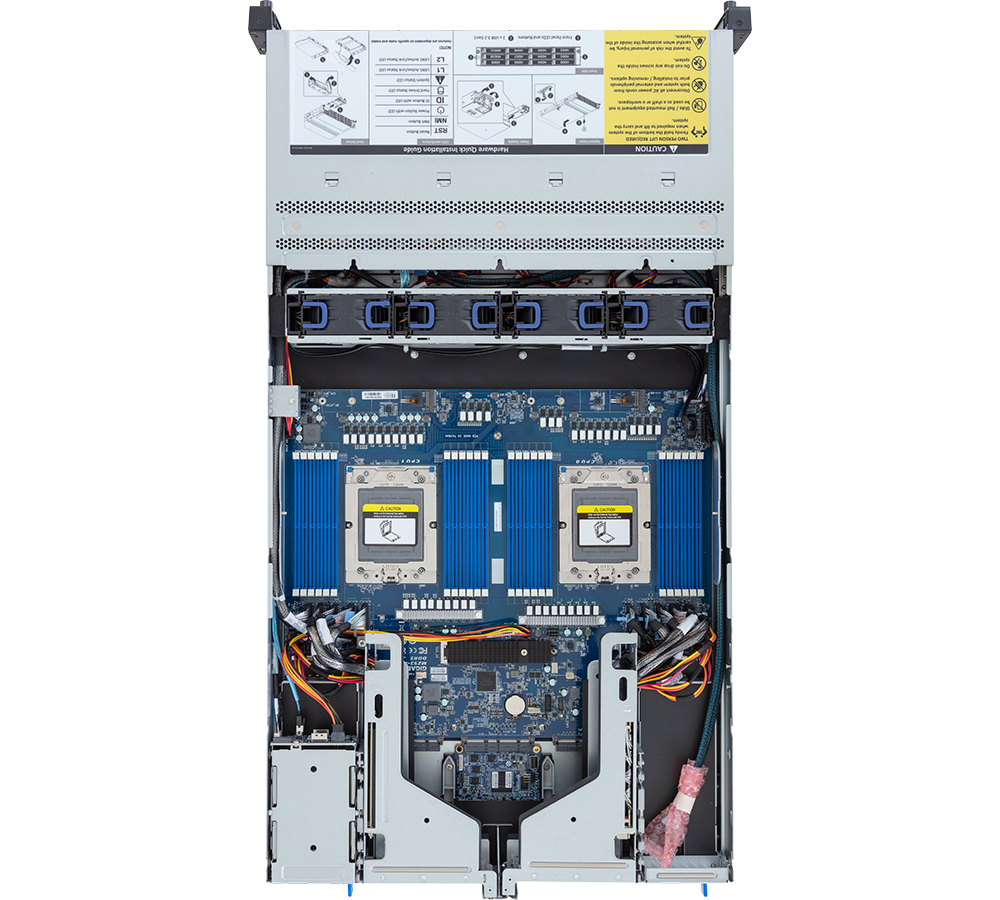

Colfax CX2250g-NVMe5-SH12-ADV1-E9 2U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 8 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
  • 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • Onboard 24Gb/s SAS-4 expander
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 5 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 8 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
  • 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • Onboard 24Gb/s SAS-4 expander
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 5 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply



GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 2U
• Dimension (W × H × D): 438 × 87.5 × 815 mm
CPU • Dual AMD EPYC™ 9005 / 9004 Series Processors
• cTDP up to 400W (with default heatsink)
• cTDP up to 500W (with optional heatsink)
• Socket: 2 × LGA 6096 (SP5)
Memory • 24 × DIMM slots
• DDR5 memory supported
• 12-channel memory per processor
• RDIMM up to 6400 MT/s (for EPYC 9005)
• RDIMM up to 4800 MT/s (for EPYC 9004)
Expansion Slots • 5 × FHHL ×16 PCIe Gen5 slots from CPUs (3 from CPU_0, 2 from CPU_1)
• 2 × OCP NIC 3.0 Gen5 ×16 (one from CPU_0, one from CPU_1)
• NCSI function supported
Storage • Front hot-swap:
  4 × 3.5"/2.5" Gen5 NVMe / SATA / SAS-4 (via CPU_1)
  8 × 3.5"/2.5" SATA / SAS-4
• Rear hot-swap: 2 × 2.5" SATA / SAS-4
• Internal M.2 slots:
  1 × M.2 (2280/22110), PCIe Gen3 ×4 from CPU_0
  1 × M.2 (2280/22110), PCIe Gen3 ×4 from CPU_1
  1 × M.2 (2280/22110), PCIe Gen3 ×2 from CPU_1
• Broadcom SAS4x32 expander (for SAS support)
• Bandwidth: SATA 6 Gb/s or SAS-4 (24 Gb/s) per port
Networking • 2 × 1 Gb/s LAN (Intel I350-AM2) — NCSI supported
• 1 × 10/100/1000 management LAN
Video • Integrated via ASPEED® AST2600 controller
• 1 × Mini-DP output
Power Supply • Dual 1600W redundant PSUs (80 PLUS Titanium)
• AC Input:
  100–127V~/12A, 50–60Hz
  200–240V~/10A, 50–60Hz
• DC Input (China only): 240Vdc/8A
• DC Output:
  Max 1000W / 100–127V~: +12.2V/82A, +12.2Vsb/3A
  Max 1600W / 200–240V~ or 240Vdc: +12.2V/132A, +12.2Vsb/3A
System Cooling • 4 × 80×80×38 mm fans
Internal I/O • 3 × M.2 slots
• 1 × TPM header (SPI interface)
• Optional TPM2.0 kit (CTM010)
Front I/O • 2 × USB 3.2 Gen1 (Type-A)
• Power button with LED
• ID button with LED
• NMI button
• Reset button
• 2 × LAN activity LEDs
• 1 × Storage activity LED
• 1 × System status LED

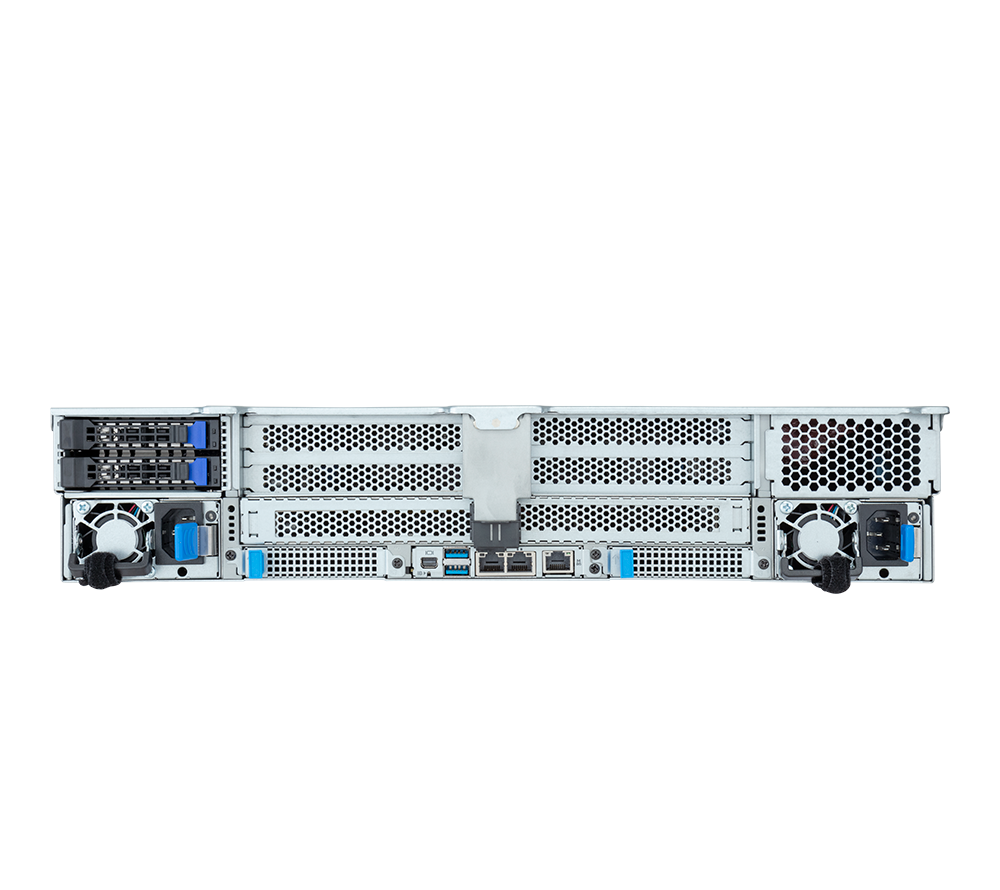

Rear I/O • 2 × USB 3.2 Gen1 (Type-A)
• 1 × Mini-DP
• 2 × RJ45 LAN ports
• 1 × MLAN port
• ID LED/button
Backplane I/O • Front backplane: CBP21C4 — PCIe Gen5 x4 or SATA 6 Gb/s or SAS-4 24 Gb/s
• Rear backplane: CBP2025 — SATA 6 Gb/s or SAS-4 24 Gb/s
TPM • 1 × TPM header (SPI interface)
• Optional TPM 2.0 kit (CTM010)
Server Management • ASPEED® AST2600 BMC
• GIGABYTE Management Console (web interface)
• Dashboard, HTML5 KVM, Sensor Monitor, Fan Profile, Power Control, LDAP/AD/RADIUS support, Remote BIOS/BMC updates, etc.

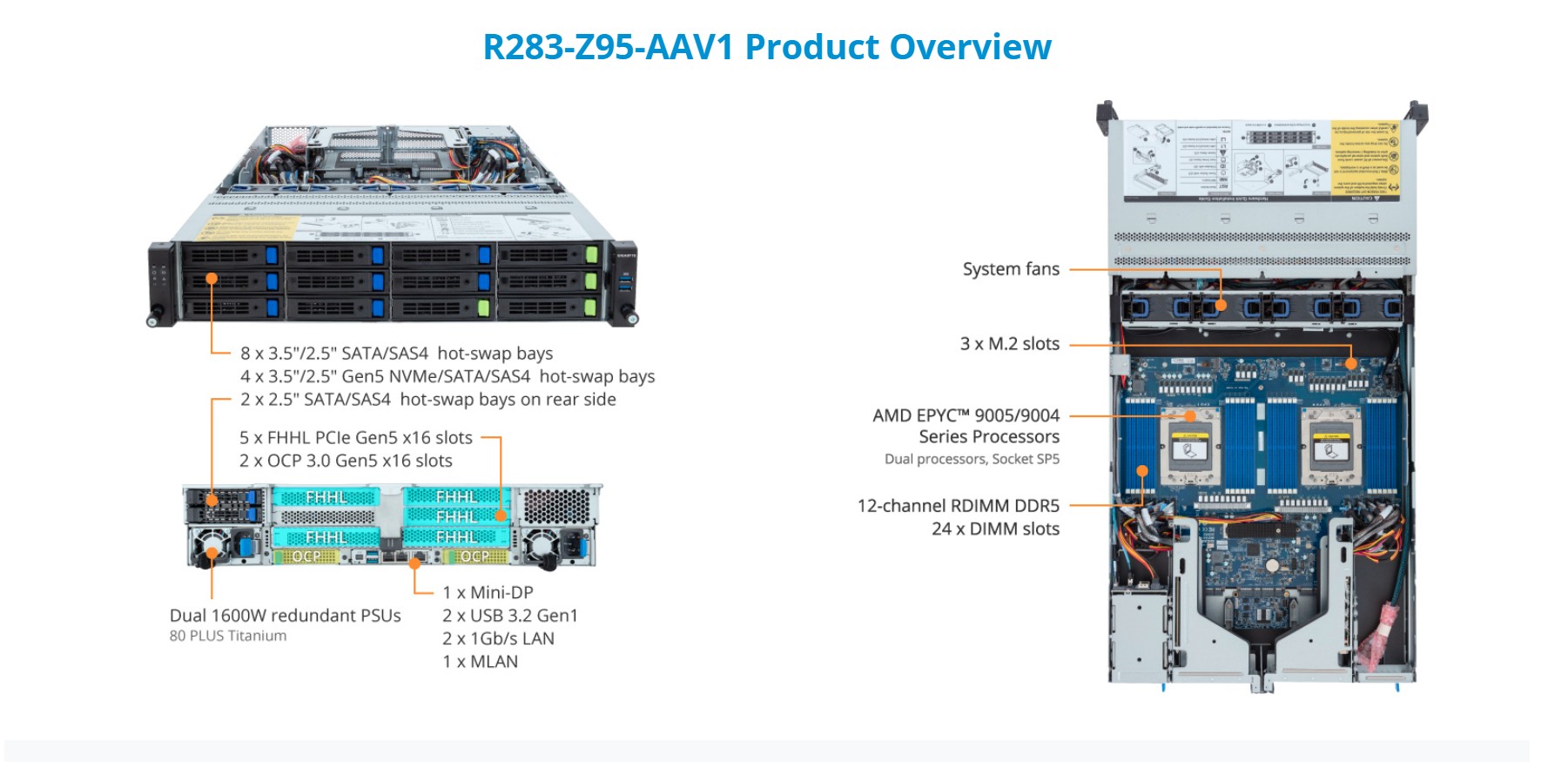

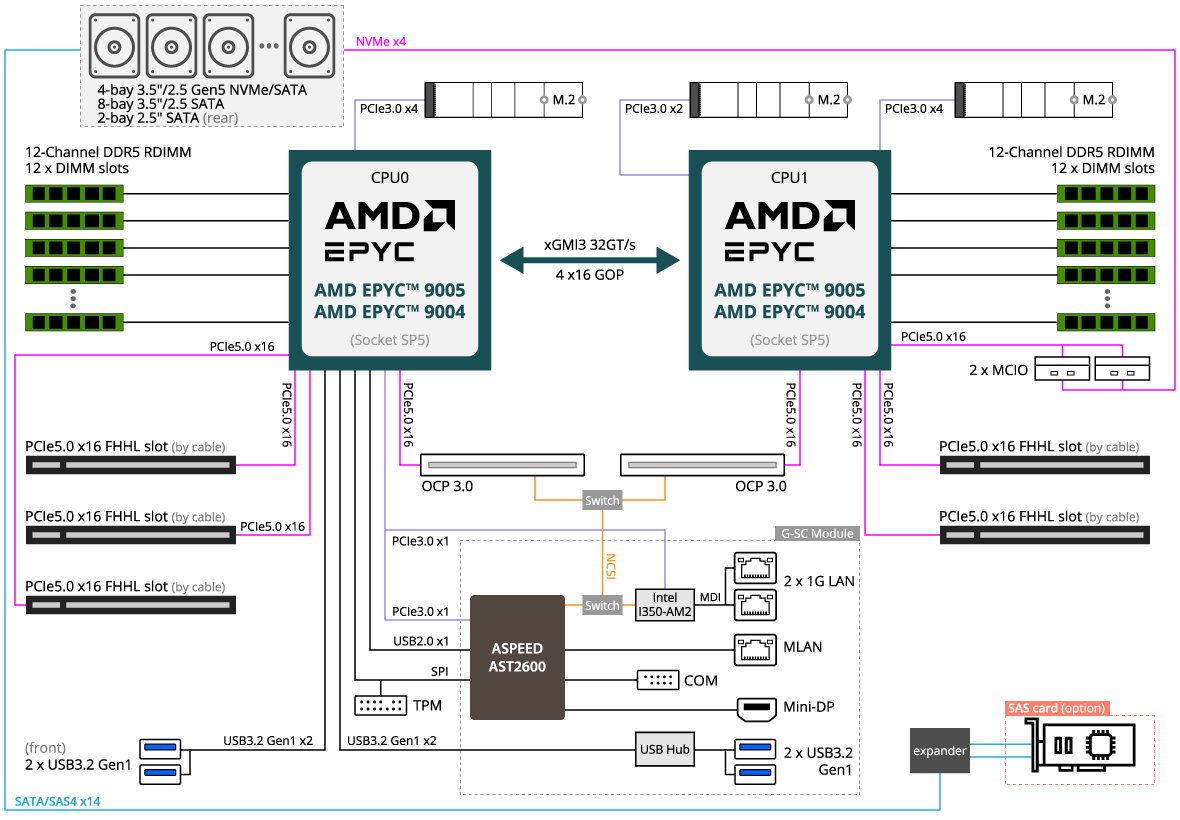

Block Diagram
