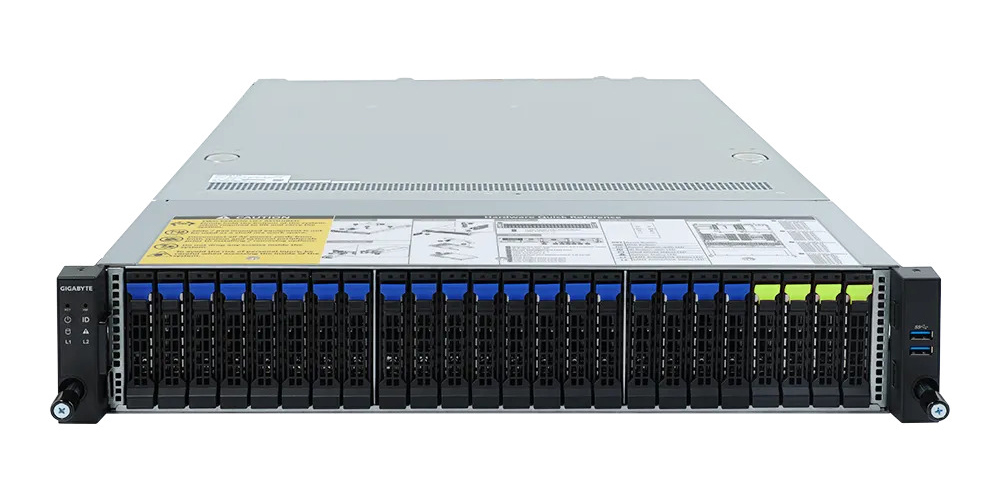

Colfax CX2265g-NVMe4-SH24-AAE3-E9 2U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 24x DDR5 DIMM Sockets
  • 20x 2.5" SATA Drive Bays
  • 4x 2.5" Gen4 NVMe Drive Bays
  • 6x PCIe 5.0 Slots (4 x16, 2 x8)

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 4x PCIe 5.0 x16 Slots (Full-Height Half-Length)
  • 2x PCIe 5.0 x8 Slots (Full-Height Half-Length)
  • 2x OCP 3.0 5.0 x16 Slots
  • 20x 2.5" Hot-Swap SATA Drive Bays
  • 4x 2.5" Hot-Swap Gen4 NVMe Drive Bays
  • 4x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x M.2 with PCIe 3.0 x4 Interface
  • 2x 1Gb/s Intel® I350-AM2 LAN Ports
  • 1x Dedicated Management Port
  • 2x 2000 Watts RPSU, 80 PLUS Platinum
  • Dual ROM Architecture Supported



GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.24" x 3.4" x 32.09" (438 x 87 x 815 mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports CPU cTDP up to 300W* at ambient 35°C

* cTDP supported up to 400W under limited thermal conditions.
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Supports up to 128GB RDIMM / 256GB 3DS RDIMM modules
• Memory speed: Up to 4800 MHz
Expansion Slots • Riser Card 1
- 1x PCIe 5.0 x16 slot, FHHL from CPU_0
• Riser Card 2
- 1x PCIe 5.0 x16 slot, FHHL from CPU_1
• Riser Card 3
- 1x PCIe 5.0 x16 slot, FHHL from CPU_0
- 1x PCIe 5.0 x16 slot (x8), FHHL from CPU_0
• Riser Card 4
- 1x PCIe 5.0 x16 slot, FHHL from CPU_1
- 1x PCIe 5.0 x16 slot (x8), FHHL from CPU_0
• 2x OCP 3.0 5.0 x16 slots (1x from CPU_0 and 1x from CPU_1)
- Supported NCSI function
M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_0
- Supports 2280/22110 cards
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_1
- Supports 2280/22110 cards
• 1x M.2 slot
- M-key
- PCIe Gen3 x2 from CPU_1
- Supports 2280/22110 cards
Storage • 20x 2.5" hot-swappable SATA drive bays
• 4x 2.5" hot-swappable Gen4 NVMe drive bays
• 4x 2.5" hot-swappable SATA drive bays (rear)
Networking • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply • 2x 2000W (240V) redundant PSUs
• AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
• DC Input:
- 240Vdc/ 10A
• DC Output:
- Max 1000W/ 100-120V~
+ 12.2V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+ 12.2V/ 131A
+ 12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+ 12.2V/ 147.5A
+ 12Vsb/ 2.5A
- Max 2000W/ 221-240V~
+ 12V/ 163.5A
+ 12Vsb/ 2.5A
• 80 PLUS Platinum
System Cooling • 4x 80x80x38mm (18,300 rpm)
Internal I/O • 3x M.2 slots
• 1x TPM header
• 2x OCP 3.0 mezzanine slots
Front I/O • 2x USB 3.2 Gen1
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs
• 1x HDD activity LED
• 1x System status LED
Rear I/O • 2x USB 3.2 Gen1
• 1x Mini-DP
• 2x RJ45
• 1x MLAN
• 1x ID button with LED
Backplane I/O • Front Side Backplane P/N: 9CBP20O7NR-00
• Rear Side Backplane P/N: 9CBP2022NR-00
• Speed and bandwidth:
- PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s in front side
- SATA 6Gb/s or SAS 12Gb/s in rear sides
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2500
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

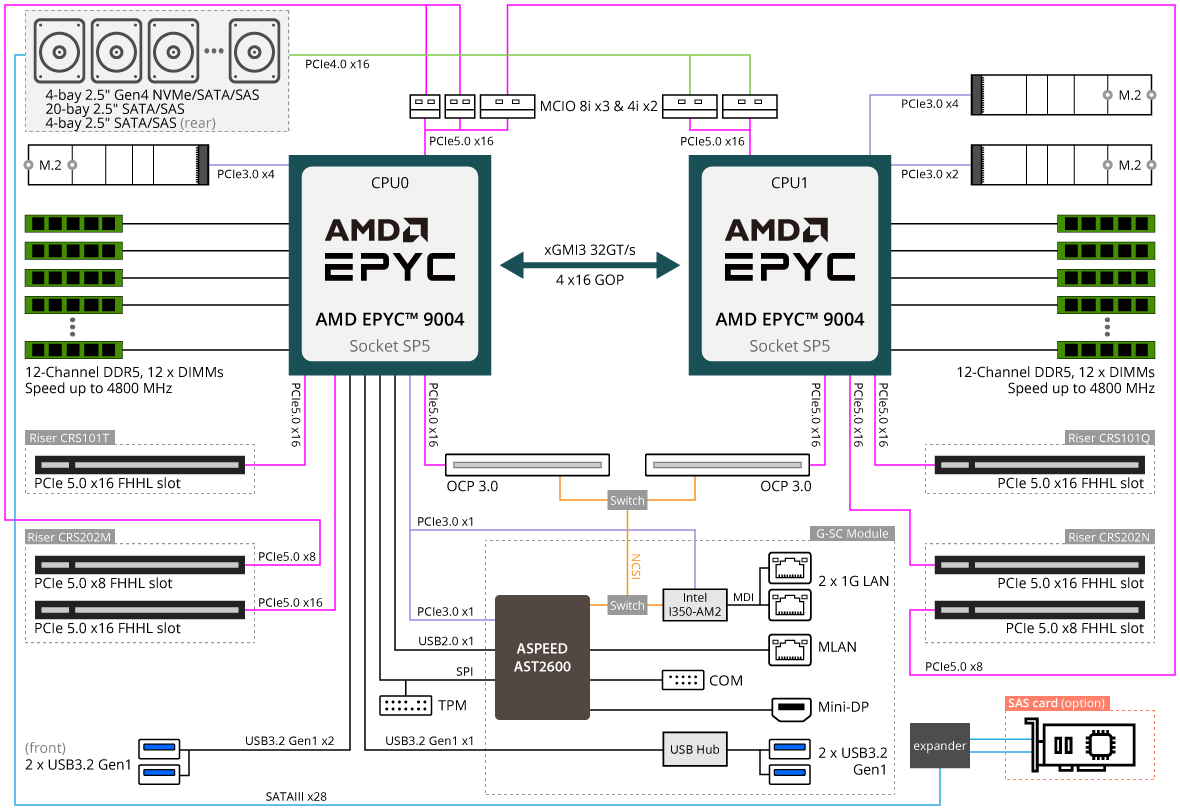

Block Diagram


Images
$5,257.26


  Qty.Colfax CX2265g-NVMe4-SH24-AAE3-E9 2U Rackmount Server, Cost As Configured $5,257.26
