Colfax CX2265g-NVMe5-S24-E9 2U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 24x DDR5 DIMM Sockets
  • 24x 2.5" Gen5 NVMe Drive Bays
  • 4x 2.5" SATA Drive Bays (Rear)

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • 1x PCIe 5.0 x16 Slot (Full-Height Half-Length)
  • 1x OCP NIC 3.0 PCIe Gen5 x16 Slot
  • 24x 2.5" Hot-Swap Gen5 NVMe Drive Bays
  • 4x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x M.2 NVMe SSDs (PCIe Gen3 x4 and x2 Interface)
  • 2x 1Gb/s Intel® I350-AM2 LAN Ports
  • 1x Dedicated Management Port
  • 1+1 2000 Watts RPSU, 80 PLUS Platinum
  • Dual ROM Architecture Supported






Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.24" x 3.4" x 32.09" (438 x 87.5 x 815 mm)
CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports CPU cTDP up to 400W
- cTDP up to 500W with optional heatsink
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• RDIMM: Up to 4800 MT/s
Expansion Slots • PCIe Cable:
- 1x PCIe 5.0 x16 slot, FHHL from CPU_0
• 1x OCP NIC 3.0 (Gen5 x16), from CPU_0, disabled
• 1x OCP NIC 3.0 (Gen5 x16), from CPU_1
Storage Front
• 24x 2.5" hot-swappable Gen5 NVMe drive bays
- 12 x NVMe from CPU_0, 12 x NVMe from CPU_1
Rear
• 4x 2.5" hot-swappable SATA drive bays
- SATA via CRS2810 from CPU_1
Internal M.2
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
• 1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA
• 1x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
Networking Rear (G-SCM board - CDCR114): • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x Mini-DP
Power Supply • 1+1 2000W redundant PSUs
• AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
• DC Output:
- Max 1000W/ 100-120V~
+ 12.2V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+ 12.2V/ 131A
+ 12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+ 12.2V/ 147.5A
+ 12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+ 12V/ 163.5A
+ 12Vsb/ 2.5A
• 80 PLUS Platinum
System Cooling • 4x 80x80x38mm (18,300 rpm)
Front I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs
• 1x Storage activity LED
• 1x System status LED
Rear I/O G-SCM board - CDCR114:
• 2x USB 3.2 Gen1 ports (Type-A)
• 1x Mini-DP
• 2x RJ45 ports
• 1x MLAN port
• 1x ID LED
Backplane I/O • Front side - CBP2081: PCIe Gen5 x4
• Front side - CBP20G0: PCIe Gen5 x4
• Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

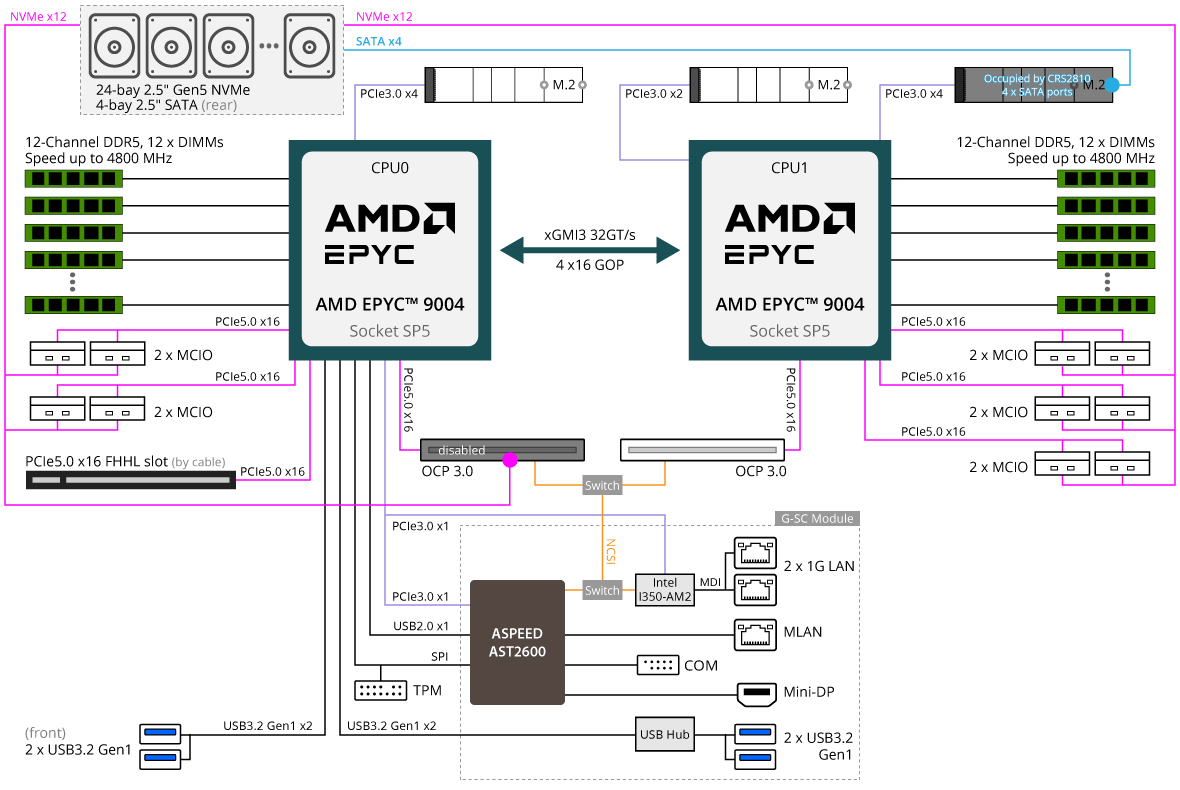

Block Diagram

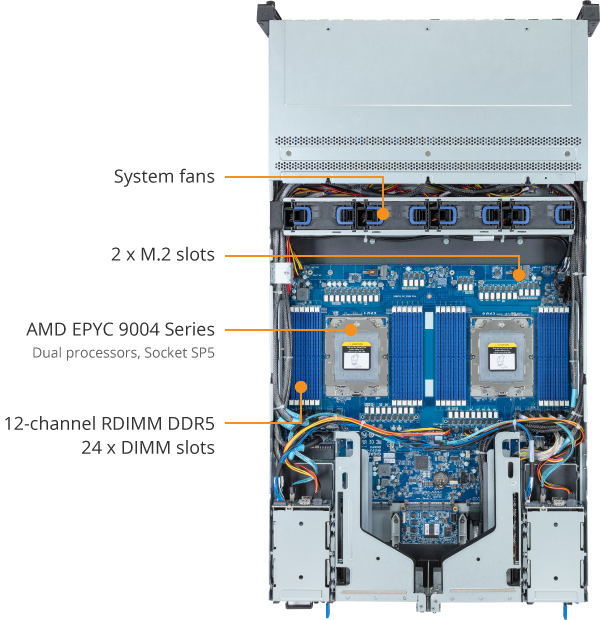

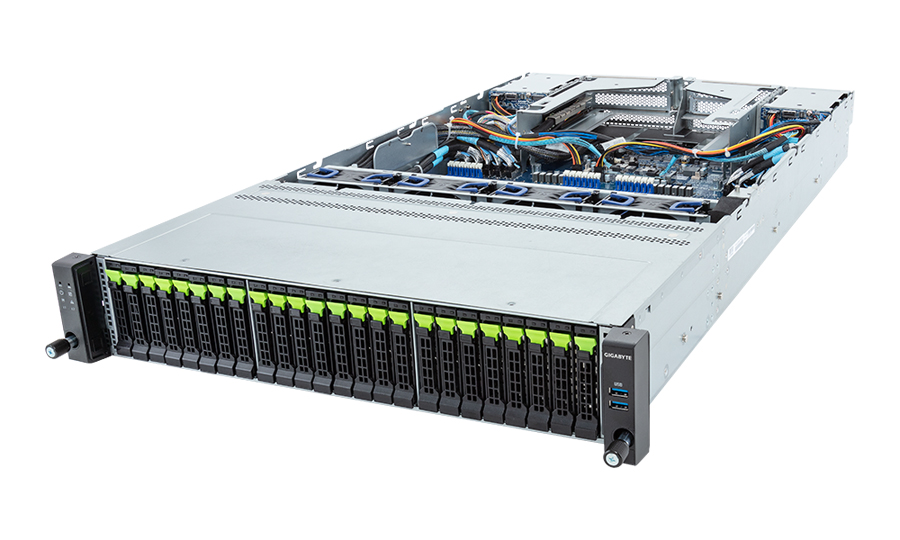

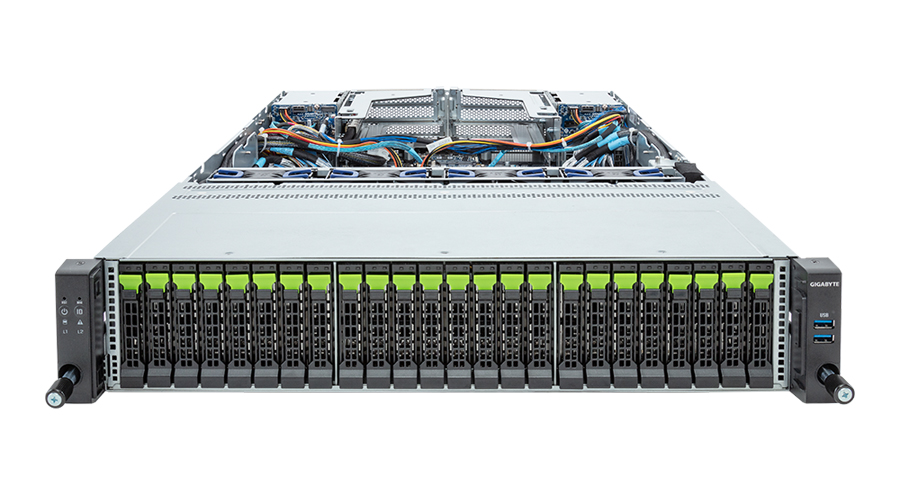

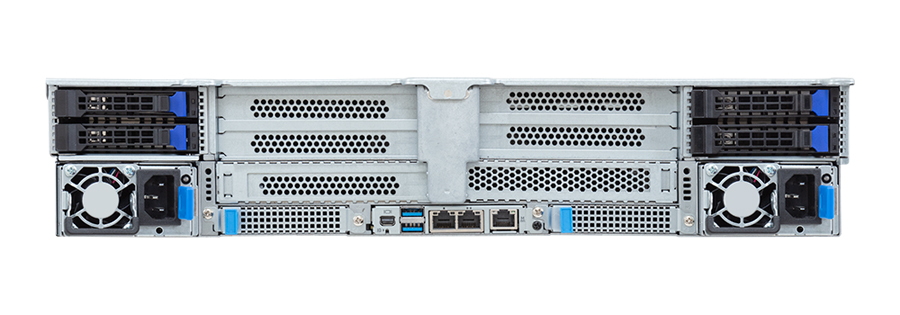

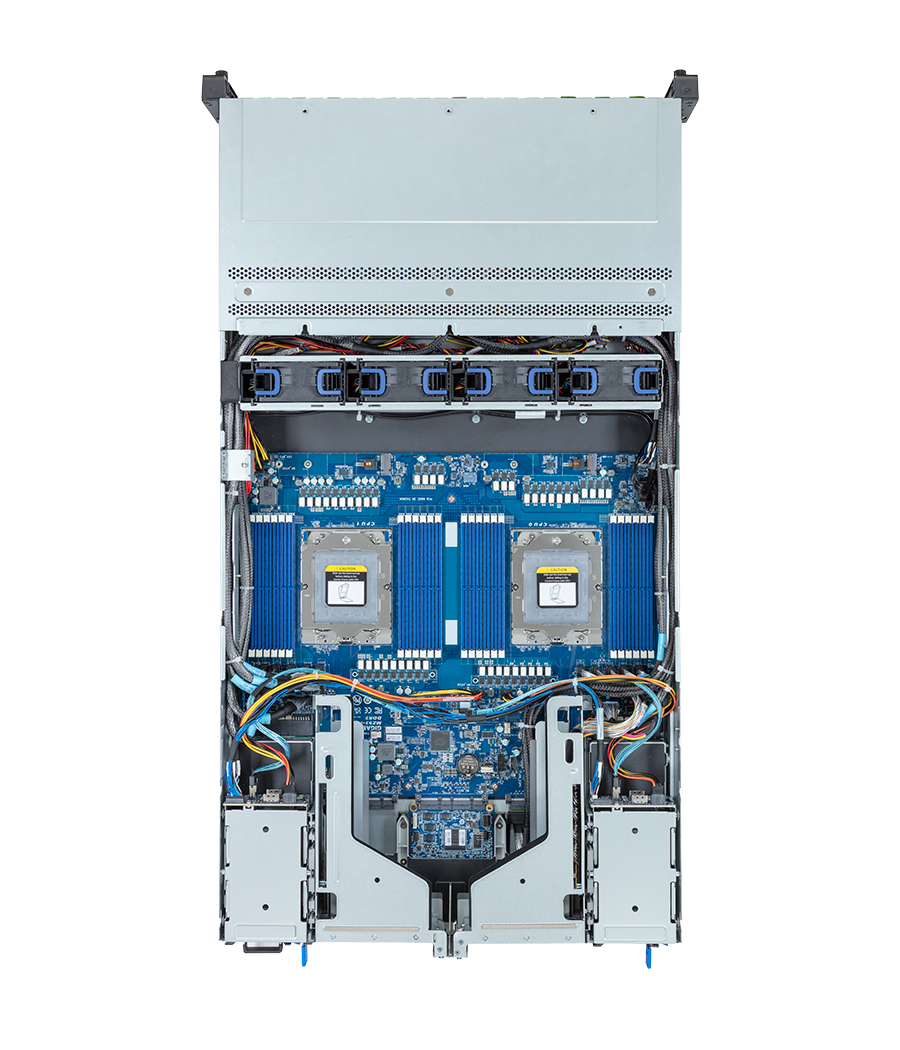

Images
