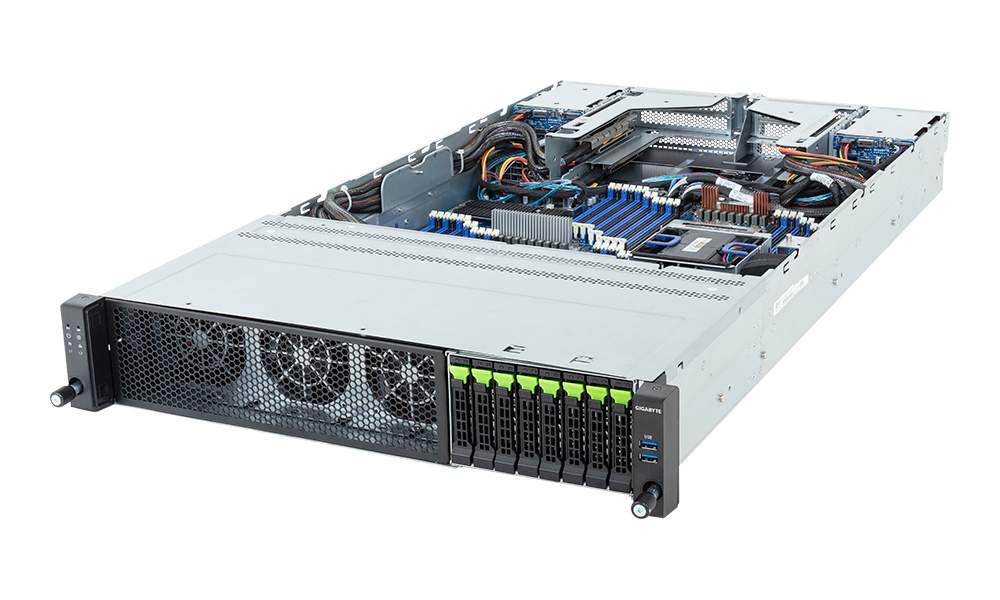

Colfax CX2285g-NVMe5-AAL1-E9 2U Rackmount Server




  • 2x AMD EPYC™ 9004 Series Processors
  • 48x DDR5 DIMM Sockets
  • 8x 2.5" Gen5 NVMe Drive Bays
  • 4x 2.5" SATA Drive Bays (Rear)
  • 4x PCIe 5.0 x16 Slots (FHHL)

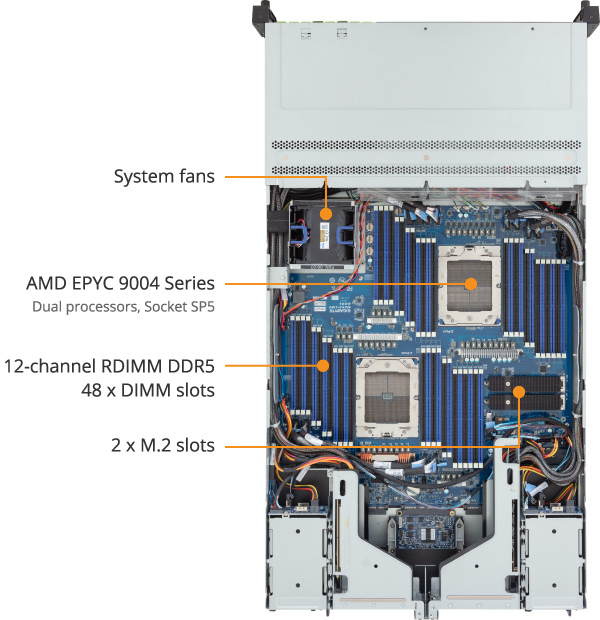

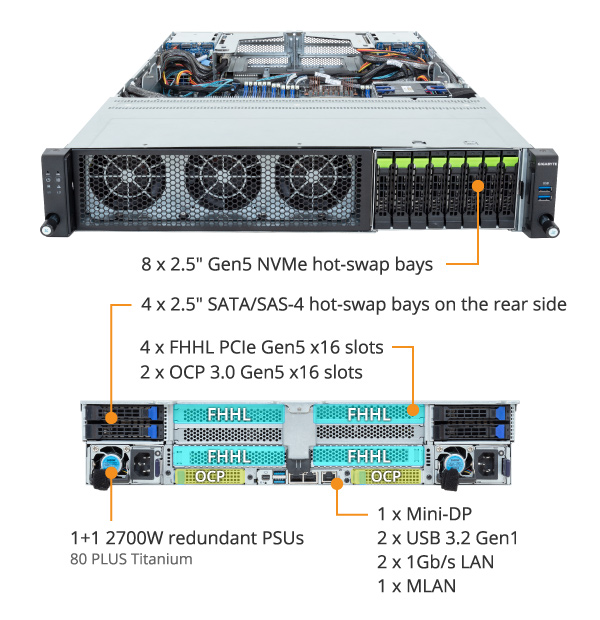

Features

  • 2x AMD EPYC™ 9004 Series Processors (Click here for Specifications and Comparison)
  • 48x DIMM Sockets Support DDR5 ECC RDIMM
  • 4x PCIe 5.0 x16 Slots (Full-Height Half-Length)
  • 2x OCP 3.0 Gen5 x16 Slots
  • 8x 2.5" Hot-Swap Gen5 NVMe Drive Bays
  • 4x 2.5" Hot-Swap SATA Drive Bays (Rear)
  • 2x M.2 SSDs (PCIe Gen3 x4 and x2)
  • 2x 1Gb/s Intel® I350-AM2 LAN Ports
  • 1x Dedicated Management Port
  • 1+1 2700 Watts RPSU
  • Dual ROM Architecture Supported







GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.24" x 3.4" x 32.09" (438 x 87.5 x 815 mm)
CPU • 2x LGA 6096
• Socket SP5
• Dual AMD EPYC™ 9004 Series Processors
• Supports CPU cTDP up to 400W
Memory • 48x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Supports up to 128GB RDIMM / 256GB 3DS RDIMM modules
• Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Expansion Slots • PCIe Cable x 4:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 3 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1
• 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0

M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6x SATA ports
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_1
- Supports 2280/22110 cards
• 1x M.2 slot
- M-key
- PCIe Gen3 x2 from CPU_1
- Supports 2280/22110 cards
Storage • 8x 2.5" hot-swappable Gen5 NVMe drive bays
- - 4x NVMe from CPU_0, 4x NVMe from CPU_1
• 4x 2.5" hot-swappable SATA drive bays (rear)
- SATA via CRS2810 from CPU_0
Networking • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x Mini-DP
Power Supply • 1+1 2700W redundant PSUs
• AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
• DC Output:
- Max 1008W/ 100-120V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+ 12V/ 225A
+ 12Vsb/ 3A
• 80 PLUS Titanium
System Cooling • 4x 80x80x80mm (13,000 rpm)
Internal I/O • 1x TPM header

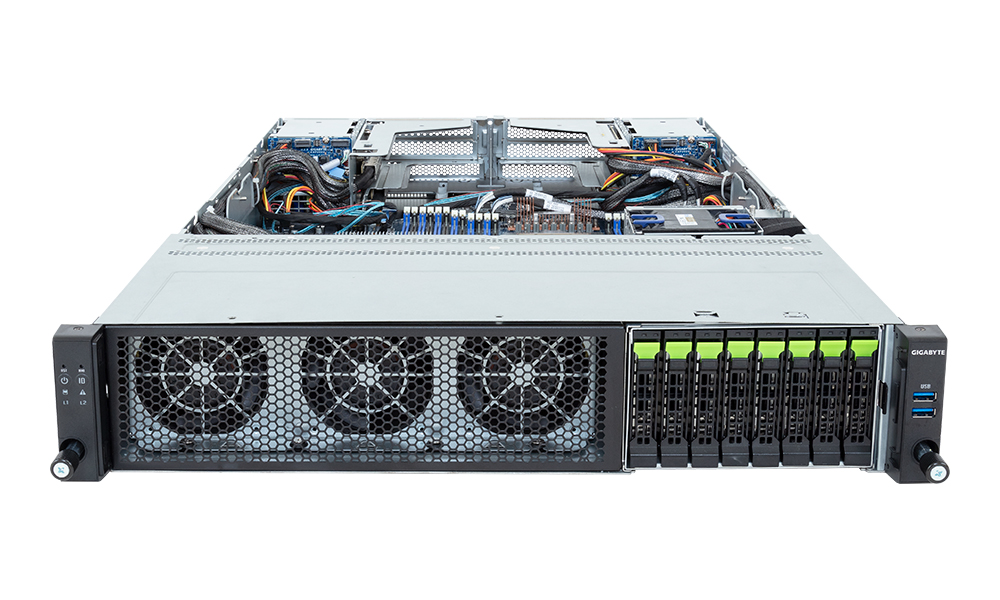

Front I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 2x LAN activity LEDs
• 1x HDD activity LED
• 1x System status LED

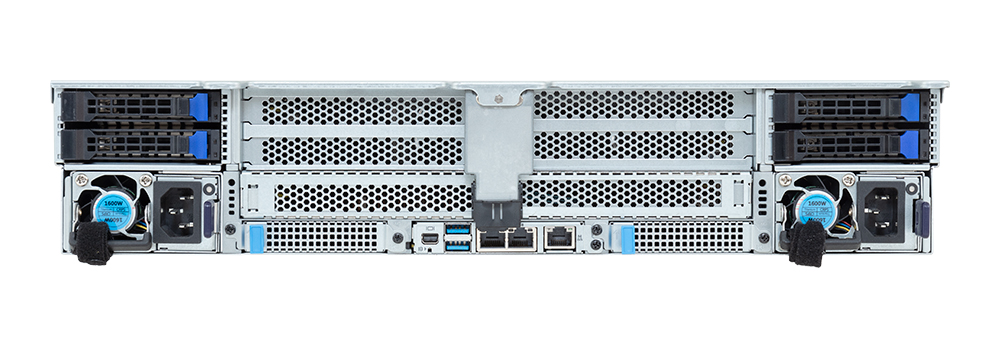

Rear I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x Mini-DP
• 2x RJ45
• 1x MLAN
• 1x ID button with LED
Backplane I/O • Front Side Backplane
- CBP2081: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
• Rear Side Backplane
- CBP2025: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

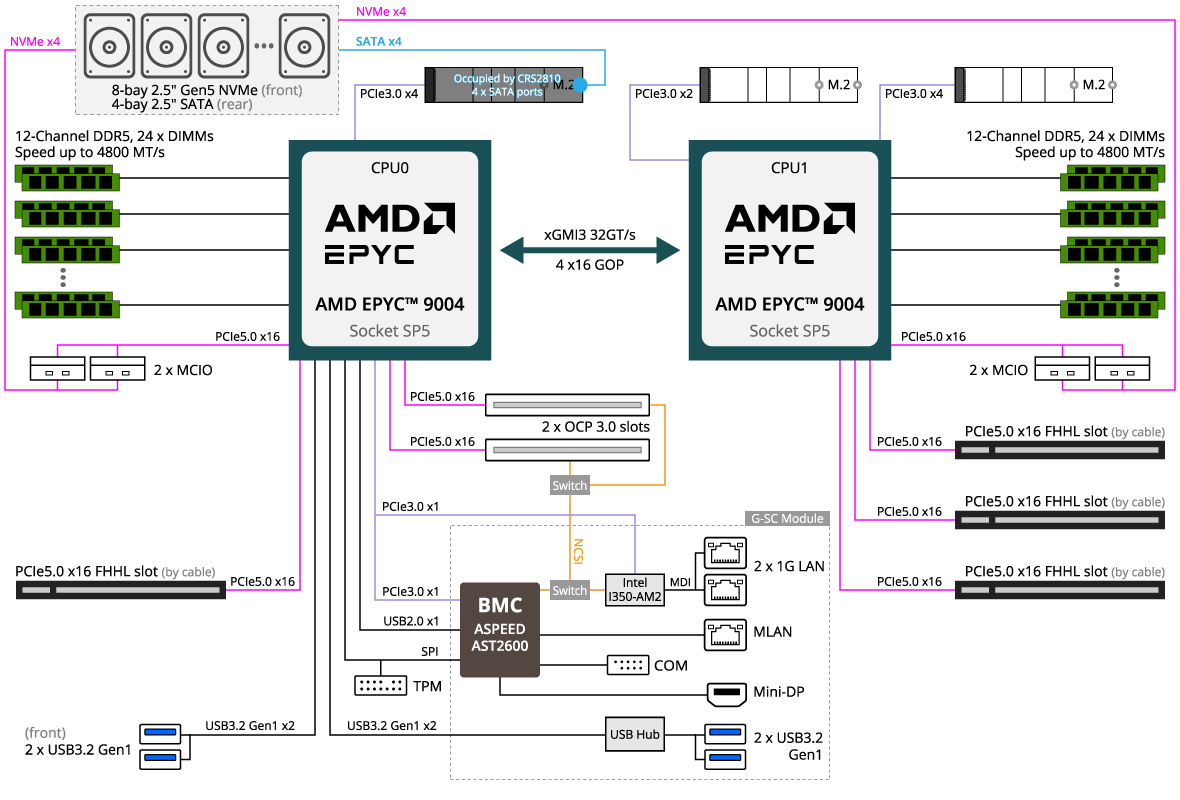

Block Diagram


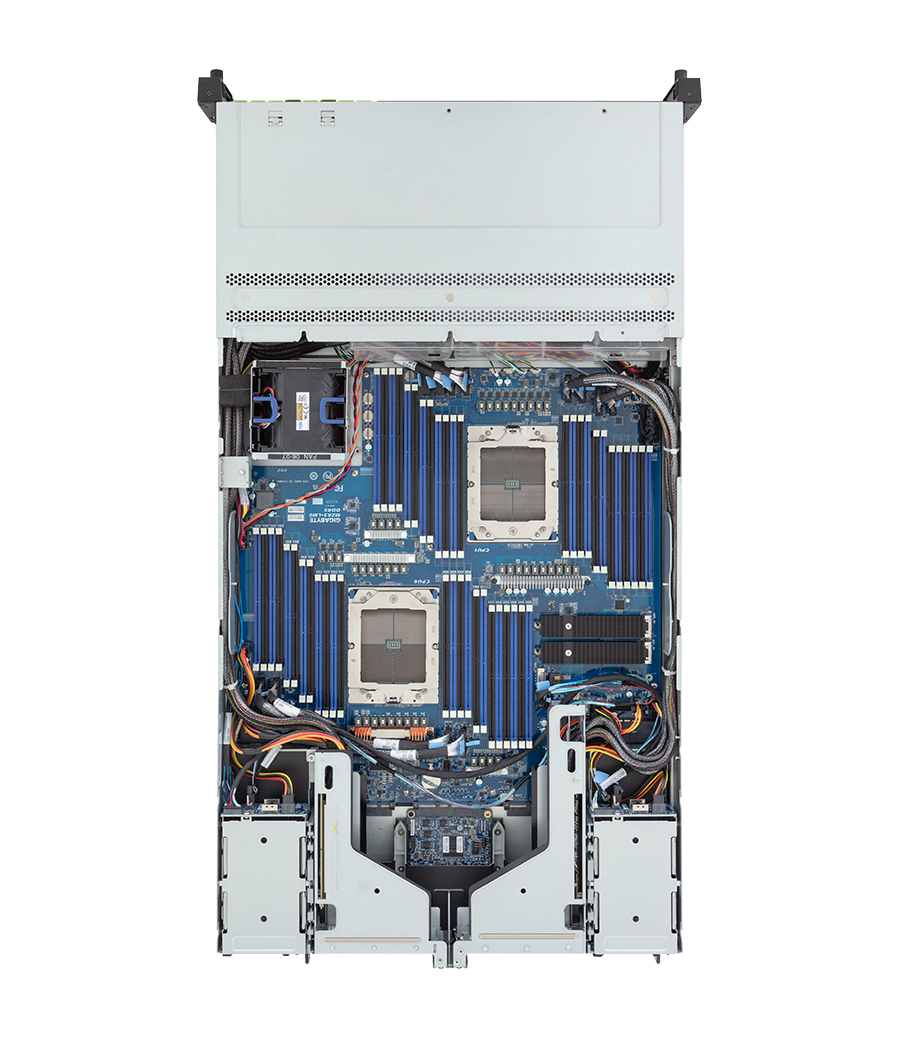

Images
