Colfax CX2420g-S8-X6H2 2U Rackmount Server




  • 1x Intel® Xeon® 6900 Series Processor
  • Up to 4x NVIDIA H200 NVL PCIe GPUs (Direct Connect)
  • 12x DDR5 RDIMMs / MRDIMMs
  • 8x 2.5" SATA Drive Bays

Features

  • Up to 4x NVIDIA H200 NVL PCIe GPUs* (Direct Connect) Datasheet
    - 141GB of HBM3e GPU Memory
    - 4.8TB/s of Memory Bandwidth
    - Form Factor: Dual-Slot Air-Cooled
    - Max Thermal Design Power (TDP): Up to 600W (configurable)
    - Included 5-Year Subscription for NVIDIA AI Enterprise
  • 1x Intel® Xeon® 6900 Series Processor (Click here for Specifications and Comparison)
    - P-core offerings are differentiated with hyperthreaded cores featuring built-in matrix engines that accelerate compute-intensive AI, HPC, and data services workloads, whereas E-core offerings omit matrix engines in favor of higher, single-threaded core density.
    - Deep Dive: Intel® Xeon® 6 Processors with P-Cores
    - Deep Dive: Intel® Xeon® 6 Processors with E-Cores
  • 12x DIMM Sockets Support DDR5 ECC RDIMM/MRDIMM**
  • 4x PCIe 5.0 x16 Slots for GPUs (FHFL)
  • 1x PCIe 5.0 x16 Slot (LP)
  • 1x PCIe 5.0 x8 Slot (LP)
  • 8x 2.5" SATA SSDs
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 1x Dedicated Management Port
  • 2x 3000 Watts RPSU, 80PLUS Titanium
  • Dual ROM Architecture Supported

* The system supports 4x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as four individual GPUs without NVIDIA® NVLink® bridge support.
** MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.






Technical Specifications

Enclosure • 2U
• Dimension (W x H x D) 17.64" x 3.45" x 33.46" (448 x 87.5 x 850 mm)
CPU • Socket BR (1x LGA 7529)
• Intel® Xeon® 6 processors
- Intel® Xeon® 6900 Series Processors
• Supports CPU TDP up to 500W
Chipset • System on Chip
Memory • 12x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Memory speed:
- RDIMM: Up to 6400 MT/s
- MRDIMM*: Up to 8800 MT/s

* MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores
Expansion Slots Rear:
• Riser Card CRCG221 x 2:
- 2x FHFL x16 (Gen5 x16) or 4x FHFL x16 (Gen5 x8) for GPUs
• Riser Card CRCG222 x 2:
- 2x FHFL x16 (Gen5 x16) or 4x FHFL x16 (Gen5 x8) for GPUs
• Riser Card CRSG01F x 2:
- 1x PCIe 5.0 x16 slot (LP) from PEX89048
- 1x PCIe 5.0 x8 slot (LP) from PEX89048

Note: The system supports 4x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as four individual GPUs without NVLink bridge support.
Storage Front
• 8x 2.5" hot-swap SATA drive bays
- SATA via CRS2810
Internal M.2 (Expansion card - CMTP1A0)
• 2x M.2 (2280), PCIe Gen4 x4, occupied for SATA
Networking • 2x 10Gb/s LAN (Intel® X710-AT2)
• 1x 10/100/1000 Mbps management LAN
Video • Integrated in ASPEED AST2600 controller
- 1x VGA port
Power Supply • 2x 3000W redundant PSUs
• 80PLUS Titanium
System Cooling • 8 x 80x80x80mm (16,500rpm)
Front I/O • 1x Power button with LED
• 1x ID button with LED
• 1x Reset button
• 2x LAN activity LEDs
• 1x Storage activity LED
• 1x System status LED

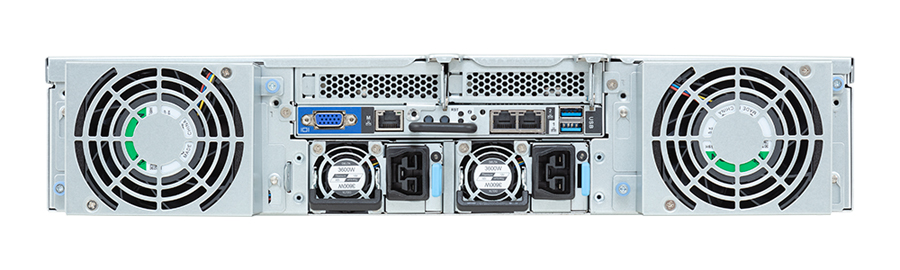

Rear I/O • 2x USB 3.2 Gen1 ports (Type-A)
• 1x VGA port
• 2x RJ45 ports
• 1x MLAN port
• 1x Power button with LED
• 1x ID button with LED
• 1x NMI button
• 1x Reset button
• 1x System status LED
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

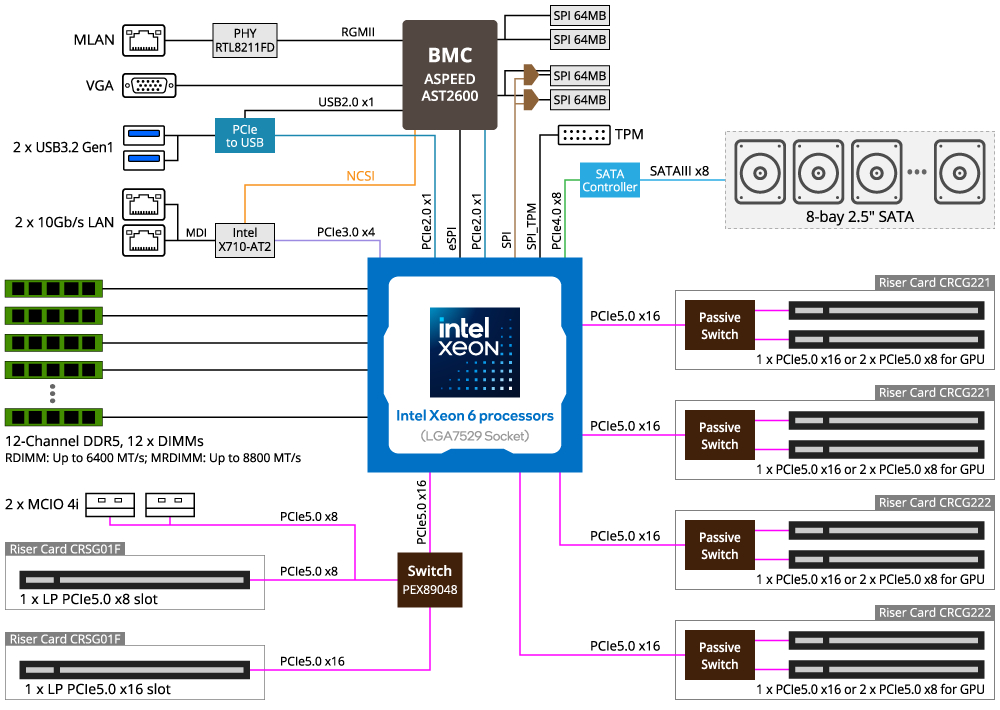

Block Diagram
