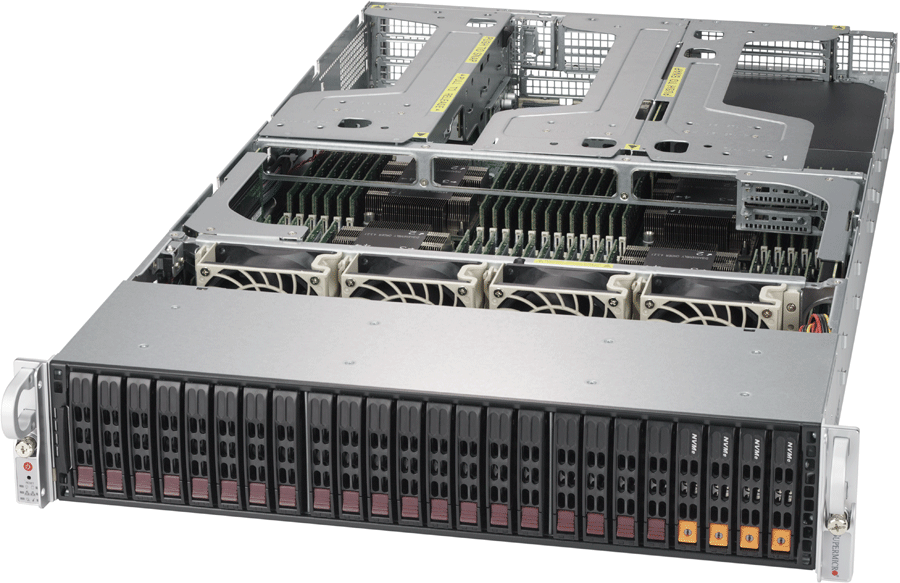

Colfax CX2450s-S24-X7 2U Rackmount Server



  • 4x Intel® Xeon® Scalable Processors
  • 48x DIMMs
  • 24x 2.5” Hot-Swap Drive Bays

Features

  • 4x Intel® Xeon® Scalable Processors (Download Intel® Xeon® Scalable Processor Matrix)
  • Intel C621 Chipset
  • 48x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Supports up to 11x PCI-E 3.0 Expansion Cards by means of 4x Riser Cards (7x External, 4x Internal)
    - 2 PCI-E 3.0 x16 (Double-Width FHFL)
    - 4 PCI-E 3.0 x8 (2 FHFL, 2 FHHL)
    - 1 PCI-E 3.0 x8 (LP)
  • 24x 2.5" Hot-Swap Drive Bays
  • Integrated 4x 1GbE Ports
  • 1600W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN

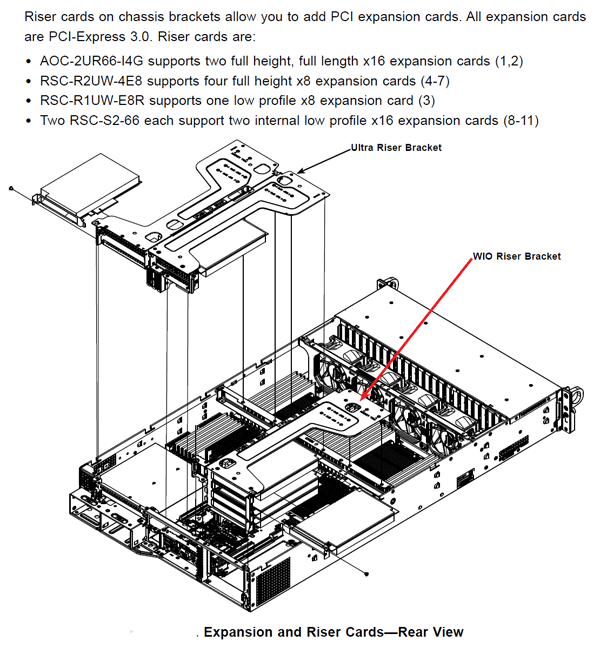

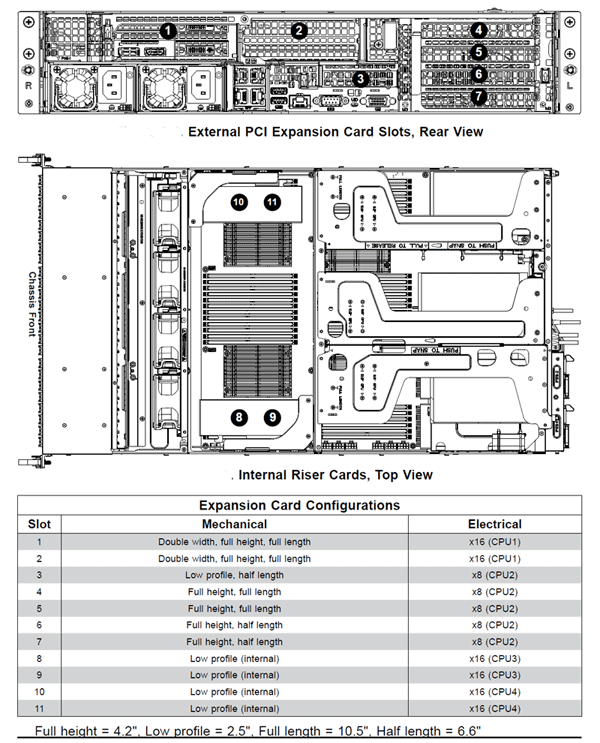

Expansion Slots




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

CPU • Quad Socket P (LGA 3647)
• Supports Intel® Xeon® Scalable processor (TDP 70-165W)
• 205W supported with optional kit
Memory • 48 DIMM Sockets
• Supports up to 6TB ECC 3DS LRDIMM, 6TB ECC RDIMM
• Memory Type 2666 MHz ECC DDR4 SDRAM
Chipset • Intel® C621
I/O Expansion • 5 PCI-E 3.0 x8 slots
• 6 PCI-E 3.0 x16 slots
Onboard Devices SATA
• SATA3 via Intel C621; RAID 0, 1, 5, 10
Network Controllers
• 4 Gigabit Ethernet ports via AOC-2UR66-i4G
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SAS
• 24 SAS3 ports support via Add-on Cards
LAN
• 4 RJ45 Gigabit Ethernet ports
• 1 RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
VGA
• 1 VGA connector
Serial Port/Header
• 1 COM port (rear)
DOM
• 2x SuperDOM (Disk on Module) ports
Chassis Form Factor • 2U Rackmount
• Dimension (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 30.7" (780mm)
Power Supply • 1600W Redundant Power Supplies with PMBus
• Input
- 100-127Vac / 13 - 9A / 50-60Hz
- 200-240Vac / 10 - 8A / 50-60Hz
• +12V
- Max: 83.3A / Min: 0A (100-127Vac)
- Max: 133A / Min: 0A (200-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified
Storage • 24x hot-swap 2.5" drive bays
System Cooling • 4x heavy duty 8cm PWM fans
Front Panel Buttons
• Power On/Off button
• System Reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System information (Overheat/UID) LED
BIOS • AMI 32Mb SPI Flash ROM

Images

Solution Configurator

To review or customize any node in this solution, please select
the node ->
The Current Solution Value (cost as configured) is $3,470.00




  Qty.Colfax CX2450s-S24-X7 2U Rackmount Server, Cost As Configured $3,470.00
