Colfax CX2460s-EK8 2U Rackmount Server



  • 2x AMD EPYC™ 7002/7003 Processors
  • NVIDIA HGX™ A100 4-GPU
  • 32x DDR4 DIMM Sockets
  • 4x 2.5" Hot-Swap NVMe Drive Bays

Features

  • 2x AMD EPYC™ 7002/7003 Series Processors
  • NVIDIA HGX™ A100 4-GPU (4x A100 80GB SXM4 GPUs with NVIDIA® NVLink® Interconnect and PCIe Gen4 to host CPUs)
  • 32x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • Expansion Slots
    - 4 PCI-E 4.0 x16 Slots (LP)
    - 1 PCI-E 4.0 x8 Slot (LP)
  • 4x 2.5" Hot-Swap NVMe Drive Bays
  • Integrated 2x 10GbE-aggregate Host LAN Ports + Management LAN
  • 2200W Redundant Power Supplies, Titanium Level



Technical Specifications

CPU • Socket SP3
• Dual AMD EPYC™ 7002/7003 Series Processors (TDP up to 280W)
Memory • 32 DIMM Sockets
• Supports up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
• Memory Type 3200MHz ECC DDR4 RDIMM/LRDIMM
I/O Expansion • 4 PCI-E 4.0 x16 slots (LP)
• 1 PCI-E 4.0 x8 (LP)
Onboard Devices Network
• Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 4x SATA3 (6Gbps) ports
LAN
• 2 RJ45 10GbE-aggregate host LAN ports
• 1 RJ45 1GbE Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
VGA
• 1 VGA port
COM Port
• 1 COM port (header)
TPM
• 1 TPM 2.0 (header)
Chassis Form Factor • 2U Rackmount
• Dimension (HxWxD): 3.5" (89mm) x 17.2" (437mm) x 32.4" (823mm)
Power Supply • 2200W Redundant Power Supplies with PMBus
• Total Output Power
- 1000W: 100 – 127Vac
- 2200W: 220 – 240Vac
• Input
- 100-127Vac / 12-9A / 50-60Hz
- 220-240Vac / 11-10A / 50-60Hz
• 80PLUS Titanium Certified
Storage • 4x 2.5" hot-swap drive bays (SATA/NVMe Hybrid or SAS with optional HBA)
System Cooling • 4 hot-swap heavy duty fans
BIOS • AMI 256Mb SPI Flash ROM


Block Diagram

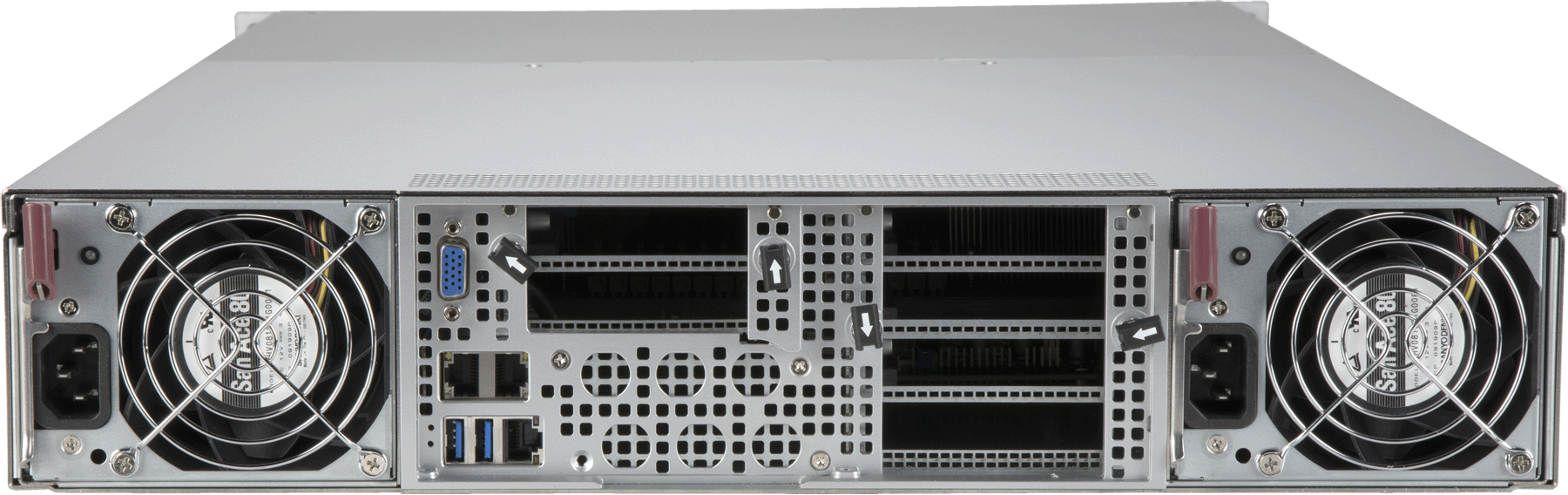

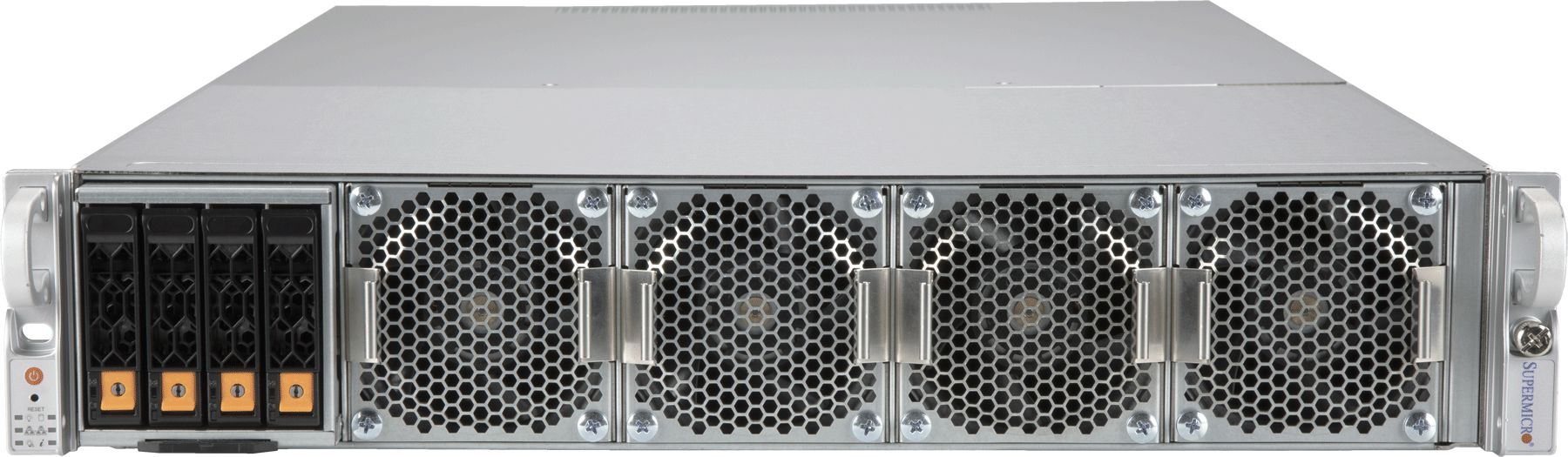

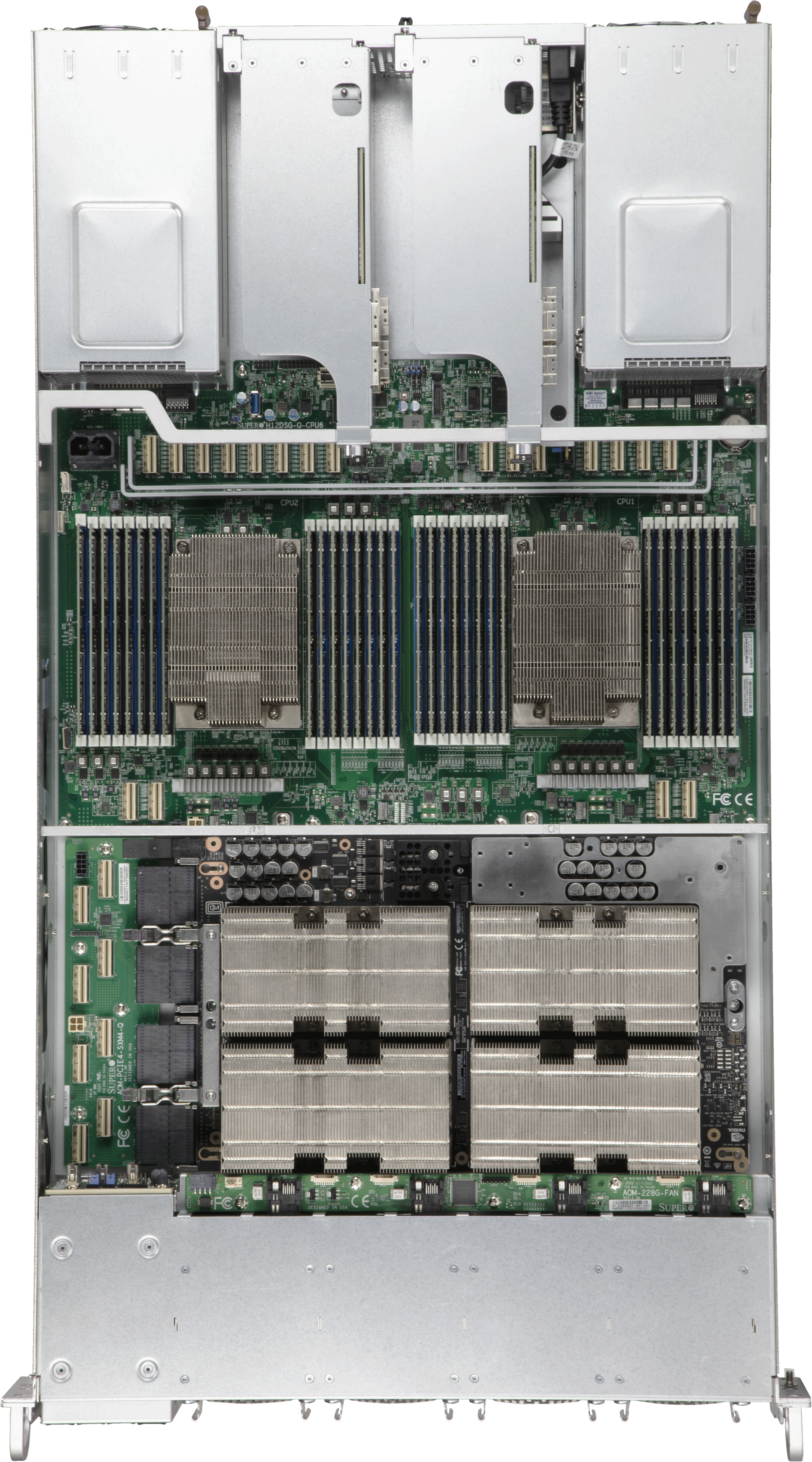

Images


$7,628.03


  Qty.Colfax CX2460s-EK8 2U Rackmount Server, Cost As Configured $7,628.03
