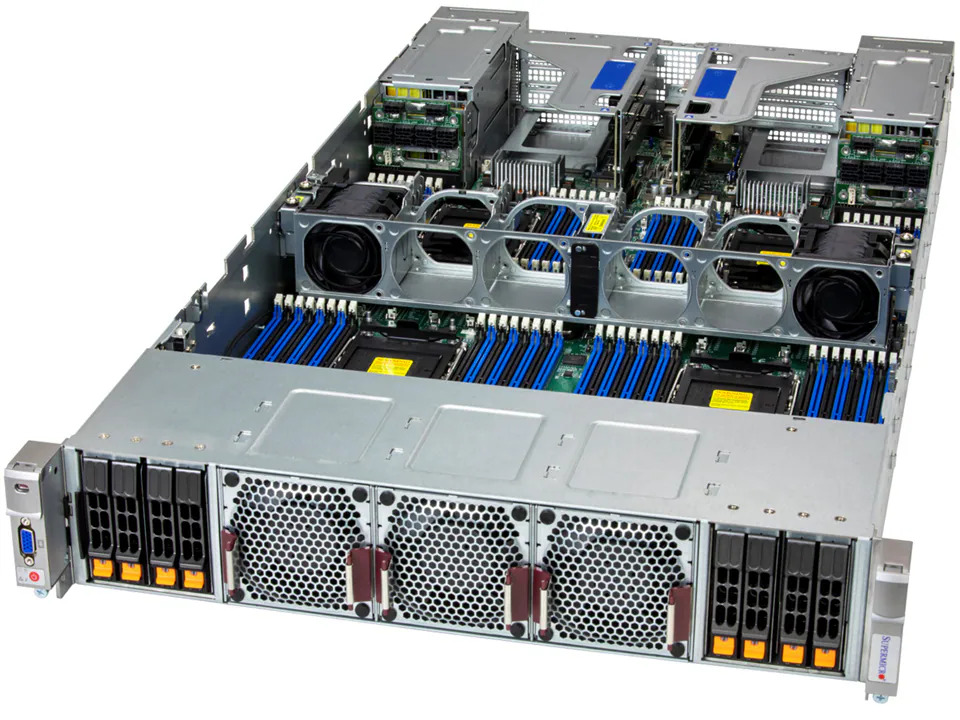

Colfax CX2465s-X6 2U Rackmount Server (Coming Soon)

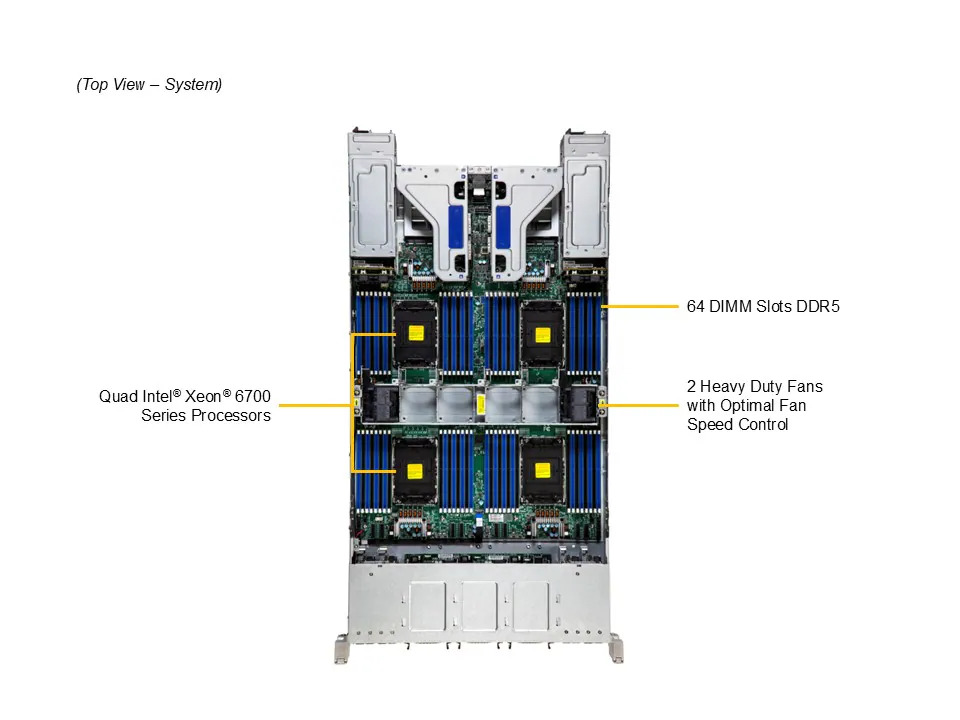

  • 4x Intel® Xeon® 6700-Series Processors with P-cores
  • 64x DDR5 RDIMMs
  • 8x 2.5" NVMe Drive Bays

Features

  • 4x Intel® Xeon® 6700-Series Processors with P-cores (Click here for Specifications and Comparison)
    - P-core offerings are differentiated with hyperthreaded cores featuring built-in matrix engines that accelerate compute-intensive AI, HPC, and data services workloads, whereas E-core offerings omit matrix engines in favor of higher, single-threaded core density.
    - Deep Dive: Intel® Xeon® 6 Processors with P-Cores
  • 64x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slot Options:
    Default
    - 4x PCIe 5.0 x16 FHHL Slots
    - 2x PCIe 5.0 x8 (in x16) FHHL Slots
    - 2x PCIe 5.0 x16 AIOM Slots (OCP 3.0 compatible)
    Optional
    - 2x PCIe 5.0 x16 FHFL Double-Width Slots
    - 2x PCIe 5.0 x16 FHHL Slots
    - 2x PCIe 5.0 x16 AIOM Slots (OCP 3.0 compatible)
  • 8x 2.5" Hot-Swap NVMe Drive Bays
  • 2x M.2 NVMe SSDs (PCIe 4.0 x4)
  • 1x Dedicated BMC LAN Port
  • 2+2 2700 Watts RPSU




Technical Specifications

Enclosure • 2U
• Dimensions (H x W x D) - 3.5" (89 mm) x 17.3" (438.4 mm) x 33.4" (848.7 mm)
CPU • Socket E2 (1x LGA 4710)
• Intel® Xeon® 6 processors
- Intel® Xeon® 6700P-Series Processors
• Supports 165W - 350W TDP CPUs (Air Cooled)
Chipset • System on Chip

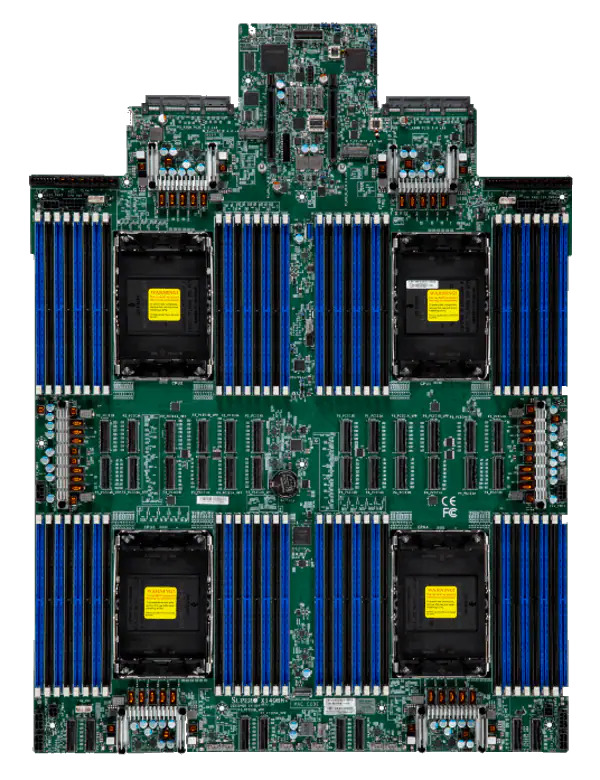

Memory • 64x DIMM sockets
• Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
• Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Expansion Slots Default
• 4x PCIe 5.0 x16 FHHL Slots
• 2x PCIe 5.0 x8 (in x16) FHHL Slots
• 2x PCIe 5.0 x16 AIOM Slots (OCP 3.0 compatible)
Optional
• 2x PCIe 5.0 x16 FHFL Double-Width Slots
• 2x PCIe 5.0 x16 FHHL Slots
• 2x PCIe 5.0 x16 AIOM Slots (OCP 3.0 compatible)
Storage Front

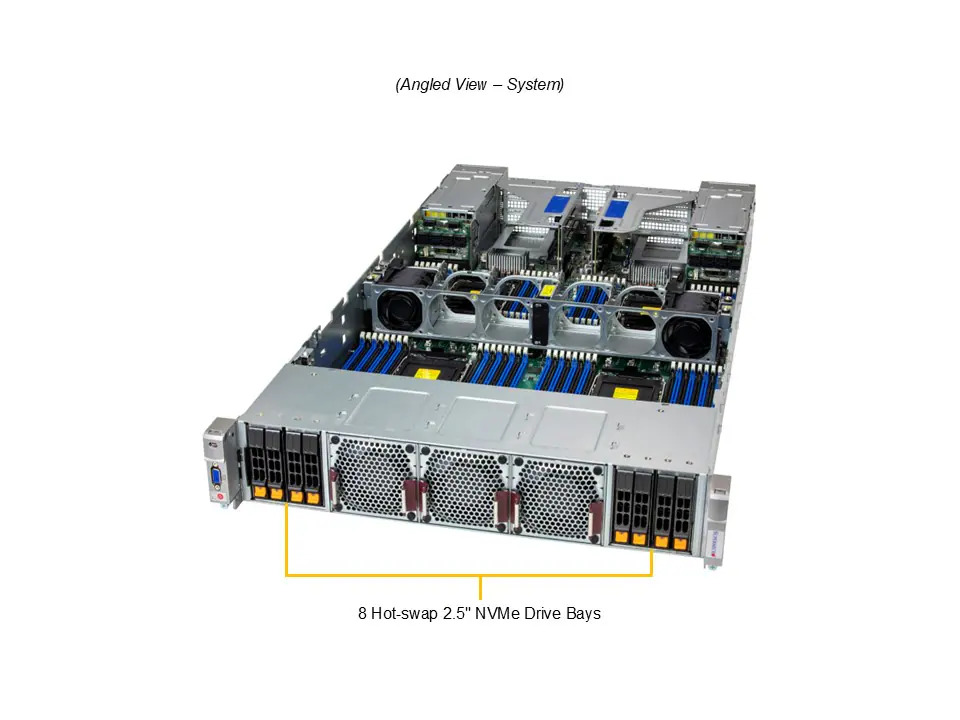

• 8x 2.5" hot-swap NVMe drive bays
Internal M.2
• 1x M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110; VROC required for RAID)
• 1x M.2 PCIe 4.0 x4 NVMe slot (M-key 22110; VROC required for RAID)
Networking • 1x 10/100/1000 Mbps management LAN
Video • 1x VGA port (front)
• 1x DisplayPort (rear)
Power Supply • 2+2 2700W redundant PSUs
• AC Input:
- 2700W: 200-240Vac / 50-60Hz
• +12 V:
- Max: 225A / Min: 0A (200Vac-240Vac)
• 12V SB
- Max: 3.5A / Min: 0A
• 80PLUS Titanium
System Cooling • 2x internal heavy duty counter-rotating 6cm fans
• 3x heavy duty counter-rotating 8cm fans
• 4x air shrouds

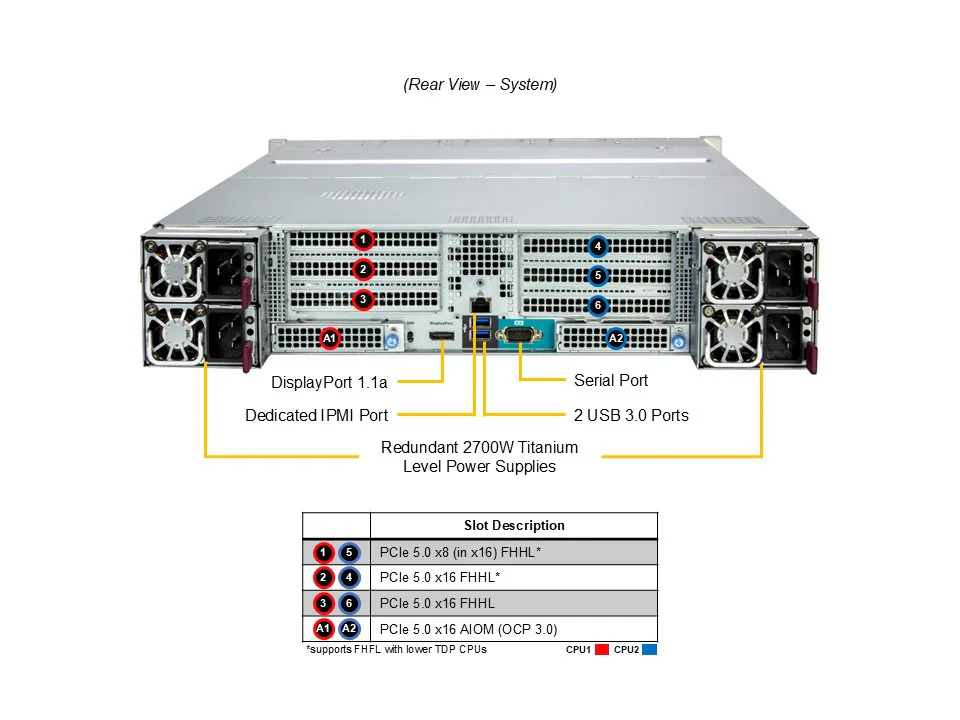

Input / Output LAN
• 1x RJ45 Dedicated BMC LAN port
USB
• 2x USB 3.0 Type-A ports (rear)
Video
• 1x VGA port (front)
• 1x DisplayPort port (rear)
Serial
• 1x COM port (rear)
TPM
• 1x TPM header

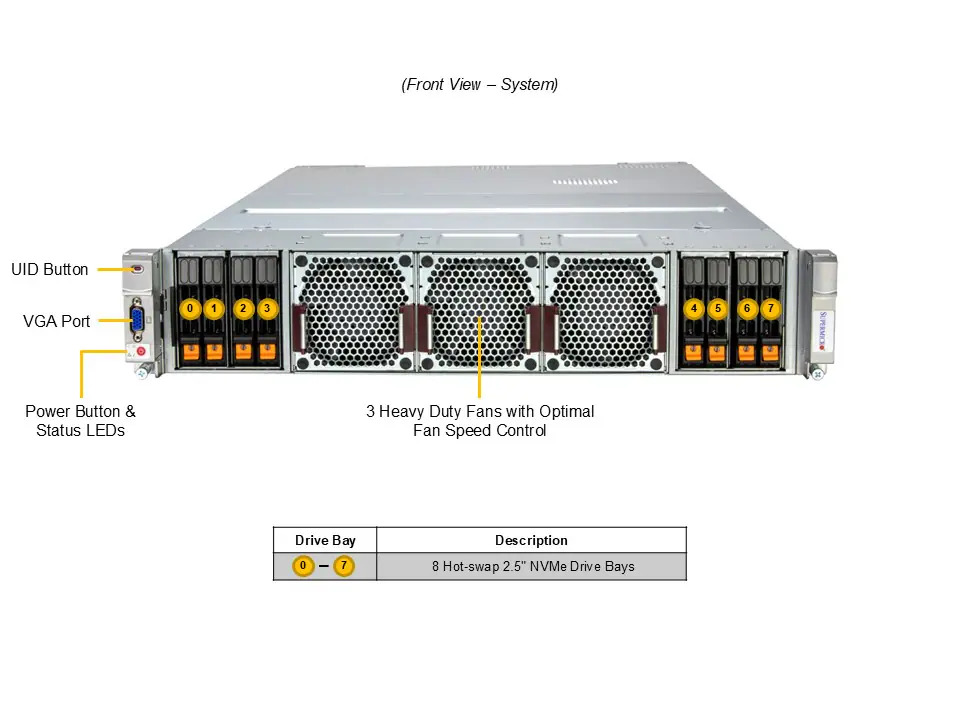

Front Panel Buttons
• Power button
• UID button
LEDs
• Status LEDs
Port
• 1x VGA port
Management Software
• SuperCloud Composer
• Supermicro Server Manager (SSM)
• Super Diagnostics Offline (SDO)
• Supermicro Thin-Agent Service (TAS)
• SuperServer Automation Assistant (SAA)

Power Configurations
• Power-on mode for AC power recovery
• ACPI Power Management
Security Hardware
• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown
Health Monitoring CPU
• Monitors for CPU Cores, Chipset Voltages, Memory
• 8 Phase-switching voltage regulator
Fan
• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature
• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
BIOS • AMI 32Mb SPI Flash EEPROM
