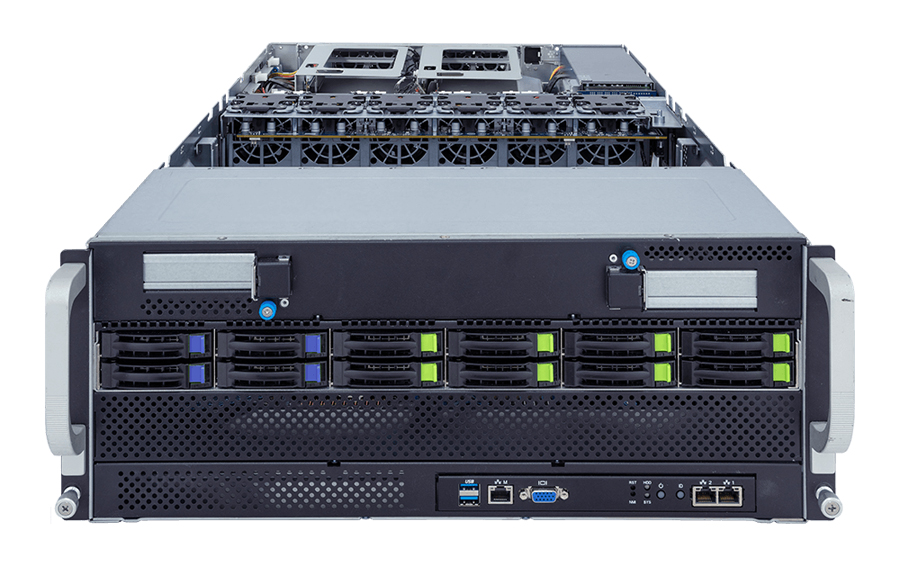

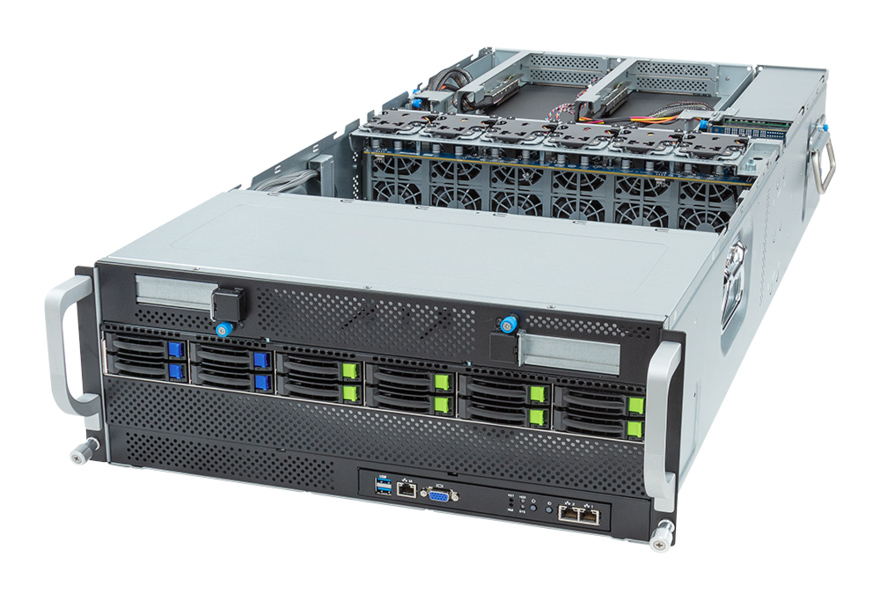

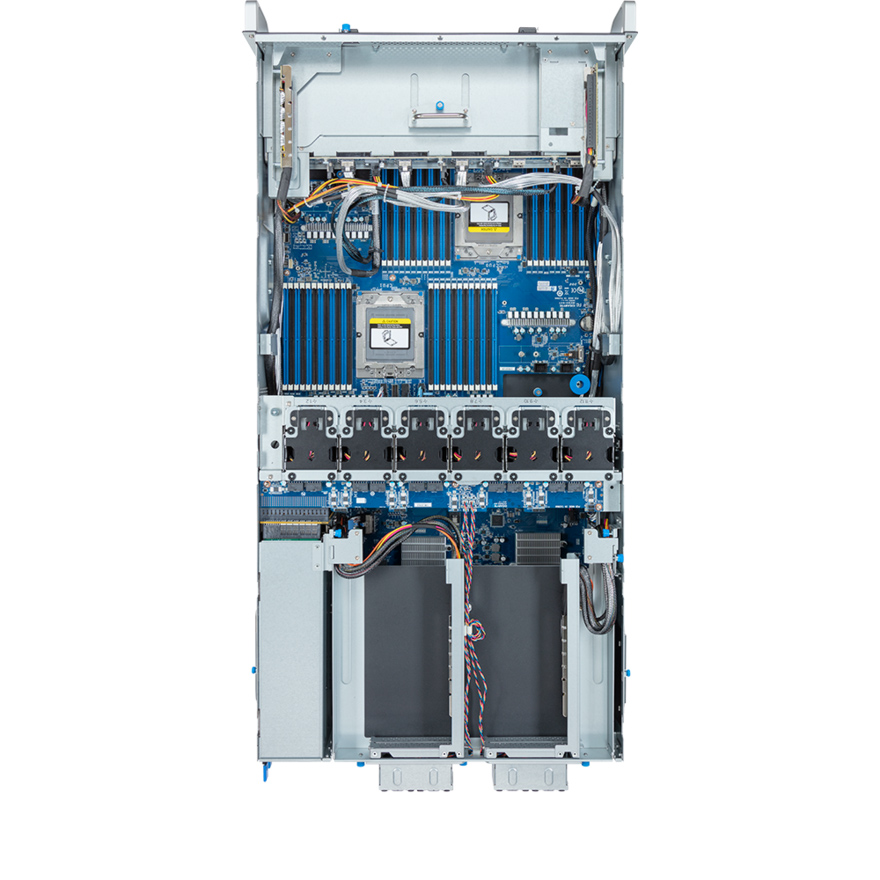

Colfax CX41060g-EK9 4U Rackmount Server




  • 2x AMD EPYC™ 9004/9005 Series Processors
  • 10x NVIDIA GPUs
  • 48x DDR5 DIMM Sockets
  • 4x 2.5" SATA Drive Bays
  • 8x 2.5" Gen4 NVMe Drive Bays

Features

  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • 10x NVIDIA GPUs
  • 48x DIMM Sockets Support DDR5 ECC RDIMM

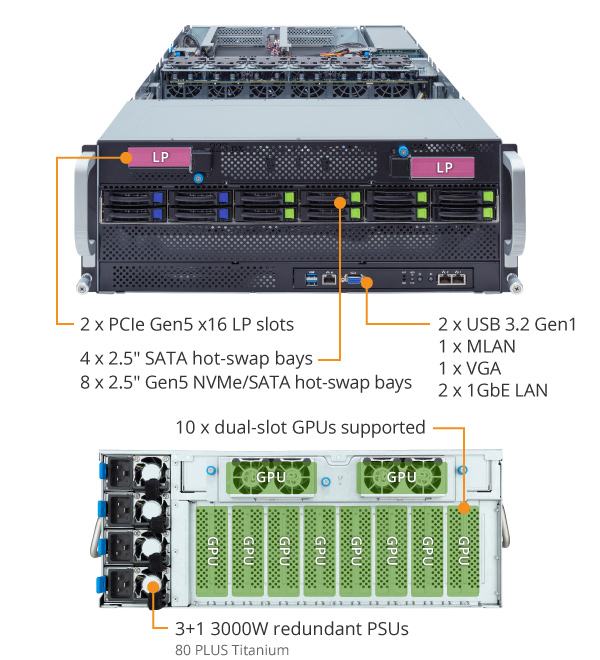

  • 2x PCIe 5.0 x16 MD2 Low-Profile Slots (Front)
  • 4x 2.5" SATA Drive Bays
  • 8x 2.5" SATA/Gen4 NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • 2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 1x Dedicated Management Port
  • 3+1 3000 Watts RPSU, 80 PLUS Titanium
  • Dual ROM Architecture Supported





GIGABYTE Management Console

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server - A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI - A command-line interface for monitoring and managing remotely.
  • GSM Agent - A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile - A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin - An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.






Technical Specifications

Enclosure • 4U
• Dimension (W x H x D) 17.64" x 6.93" x 34.65" (448 x 176 x 880 mm)

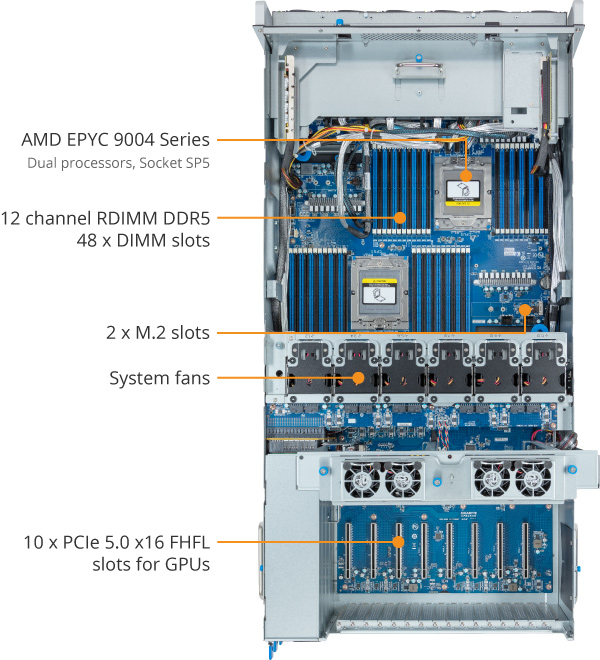

CPU • Socket SP5
• Dual AMD EPYC™ 9004/9005 Series Processors
• Supports CPU cTDP up to 300W at ambient 35°C*

* cTDP supported up to 400W under limited thermal conditions.
Memory • 48x DIMM sockets
• DDR5 memory supported only
• 12-channel memory architecture
• Supports up to 128GB RDIMM / 256GB 3DS RDIMM modules
• Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
Expansion Slots • 10x PCIe 5.0 x16 for double-slot GPUs (5 x from PEX_0, 5 x from PEX_1)
• 2x Low-profile PCIe 5.0 x16 MD2 expansion slots on front side (1 x from CPU_0, 1 x from CPU_1)

M.2
• 2 x M.2 slots:
- M-key
- PCIe Gen3 x4 from CPU_0
- PCIe Gen3 x4 from CPU_1
- Supports 2280/ 22110 cards
Storage • 12x 2.5" hot-swappable drive bays
- 4x 2.5" SATA Drive Bays
- 8x 2.5" SATA/Gen4 NVMe Drive Bays
Networking • 2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2) (Front)
• 1x 10/100/1000 management LAN
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM

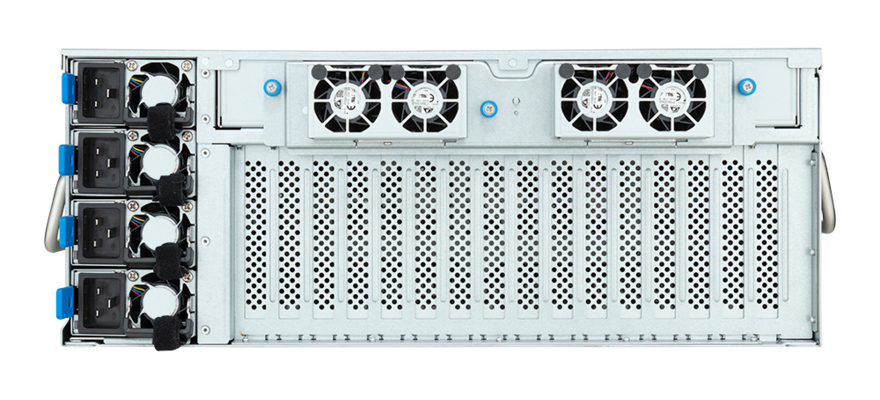

Power Supply • 3+1 3000W (240V) redundant power supply
• AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
• DC Input:
- 240Vdc/ 15.5A
• DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 200-220V
+12.2V/ 240A
+12Vsb/ 3A
• 80 PLUS Titanium
System Cooling • 6x 60x60x38mm (23,000rpm)
Internal I/O • 1x TPM header
Front I/O • 2 x USB 3.2 Gen1
• 1 x VGA
• 2 x RJ45
• 1 x MLAN
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x Reset button
• 1 x NMI button
• 1 x System status LED
• 1 x HDD access LED
Rear I/O N/A
Backplane I/O • Backplane P/N: 9CBP10C2NR-00
• Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2500
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings


Block Diagram
