Colfax CX41060t-XK8 4U Rackmount Server




  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 10x NVIDIA Ampere Architecture GPUs
  • 12x 3.5" Hot-Swap SATA Drive Bays (4x NVMe)

Features

  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 10x NVIDIA Ampere Architecture GPUs
  • 32x DIMM Sockets Supporting ECC DDR4 RDIMM and LRDIMM
  • Expansion Slots:
    - 10x PCIe 4.0 x16 Slots (FHFL, Double Width)
    - 1x PCIe 4.0 x16 Slot (FHFL, Single Width)
    - 2x PCIe 4.0 x16 Slots (FHHL, Front)
    - 1x OCP Gen3 4.0 x16 Mezzanine Slot
  • 12x 3.5" Hot-Swap SATA Drive Bays (4x NVMe)
  • 3+1 1600 Watts RPSU, 80 PLUS Platinum
  • Integrated ASPEED AST2600 BMC w/IPMI, iKVM and Redfish Support



Technical Specifications

Enclosure • 4U rackmount
• Dimension (D x W x H) 32.68" x 17.26" x 6.9" (830 x 438.4 x 176mm)
CPU • Dual Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• Max TDP up to 270W
Memory • 32 DIMM sockets
• 8 Channels per CPU / 2 DIMM slots per Channel
• Supports DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS
• Memory Voltage - 1.2V
Chipset • PCH - Intel® C621A
• Switch IC - 2 PLX PEX88096
CPU-GPU Link Topology • Dual-Root - All GPUs connected to CPUs evenly
I/O Expansion • 10x PCIe 4.0 x16 Slots (FHFL, Double Width)
• 1x PCIe 4.0 x16 Slot (FHFL, Single Width)
• 2x PCIe 4.0 x16 Slots (FHHL, Front)
• 1x OCP Gen3 4.0 x16 Mezzanine Slot
Storage • 12x 3.5" Hot-Swap SATA Drive Bays (4x NVMe)
Networking • Realtek RTL8211E PHY controller - 1 GbE dedicated for IPMI
Video • Integrated ASPEED AST2600 controller
• Connector type - D-Sub 15-pin
• Resolution - Up to 1920x1200
Power Supply • Input Range - AC 100-127V/12A / AC 200-240V/9.48A
• Frequency - 50-60 Hertz
• Output Watts - 4800Watts
• Efficiency - 80PLUS Platinum
• Redundancy - 3+1
System Cooling • 8 hot-swap 8cm fans
Front Panel I/O
• (1) VGA port / (2) USB 3.0 ports / (1) COM Port
Buttons
• (1) RST / (1) UID / (1) PWR w/ LED
LEDs
• (1) HDD / (1) ID / (1) Warning / (2) LAN
I/O Ports • 4 USB 3.0 ports (2x front + 2x rear)
• 1 GbE port dedicated for IPMI
• 1 DB-9 COM port (front)
• 1 D-Sub 15-pin port (front)
System Monitoring • Chipset - Aspeed AST2600
• Voltage - Monitors voltage for CPU, memory, chipset & power supply
• Temperature - Monitors temperature for CPU & system environment
• LED - Over temperature warning indicator / Fan & PSU fail LED indicator
• Others - Watchdog timer support
Server Management • Onboard Chipset - Aspeed AST2600
• AST2600 IPMI Feature - IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
• AST2600 iKVM Feature - 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
BIOS • AMI 32MB SPI Flash ROM
• Hardware Monitor / Boot from USB device / PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP / Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5

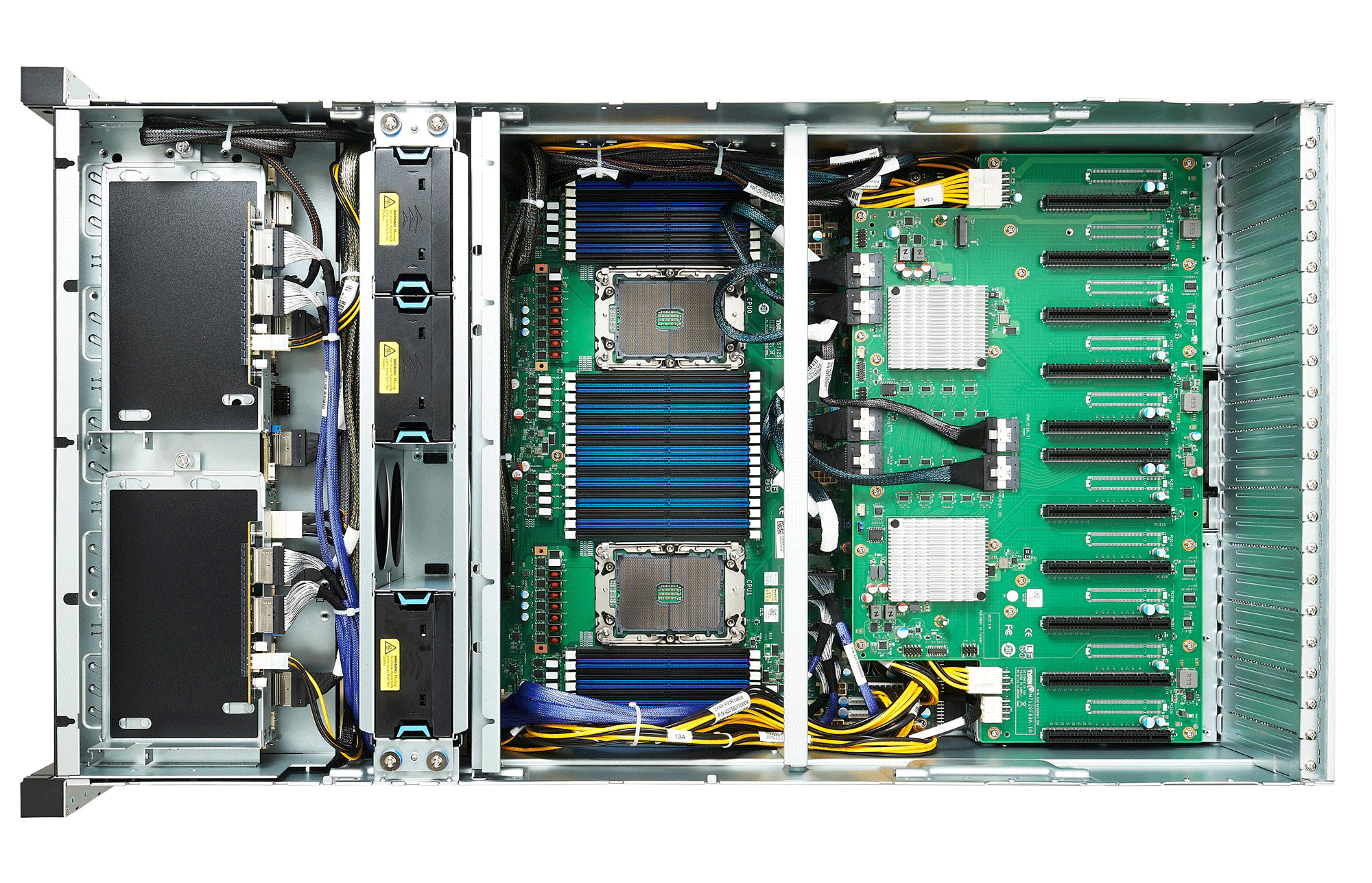

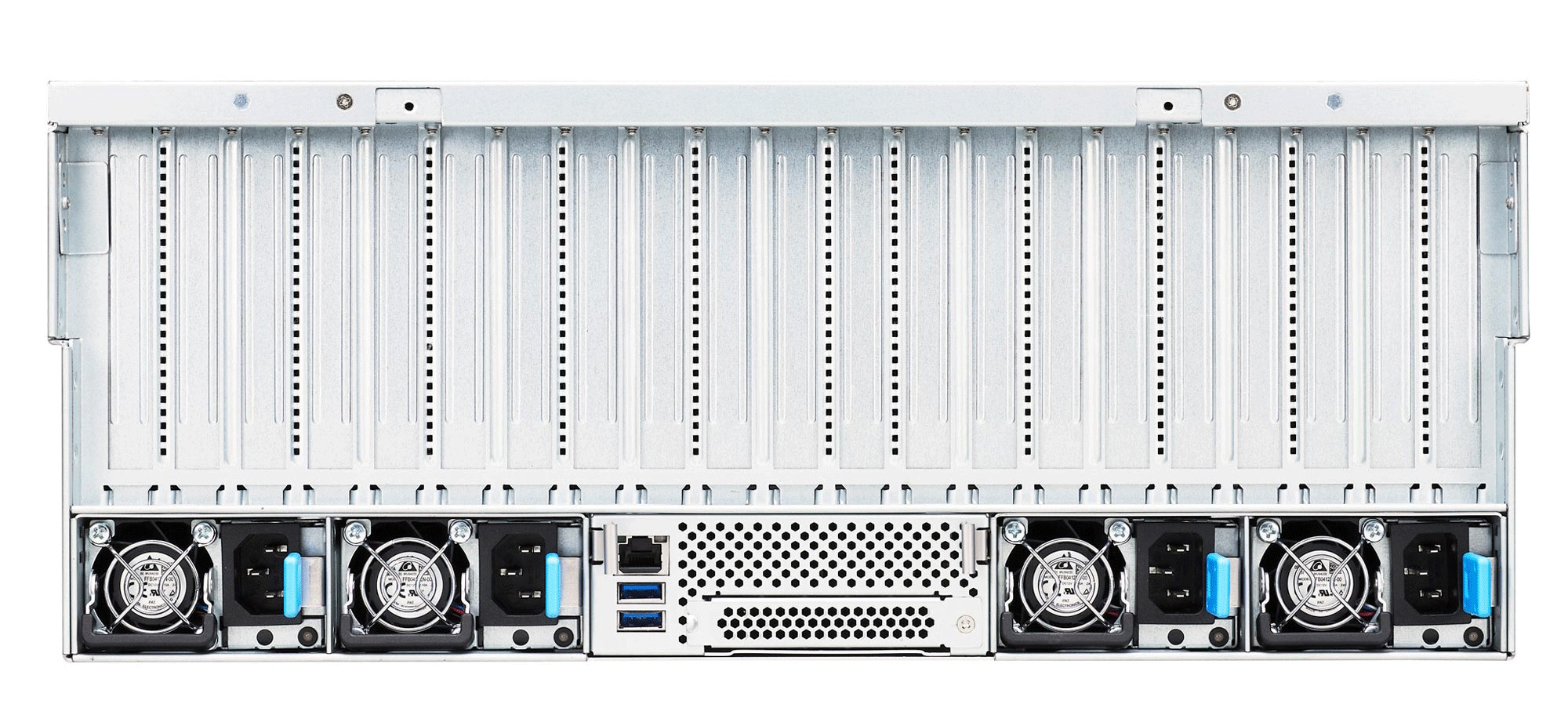

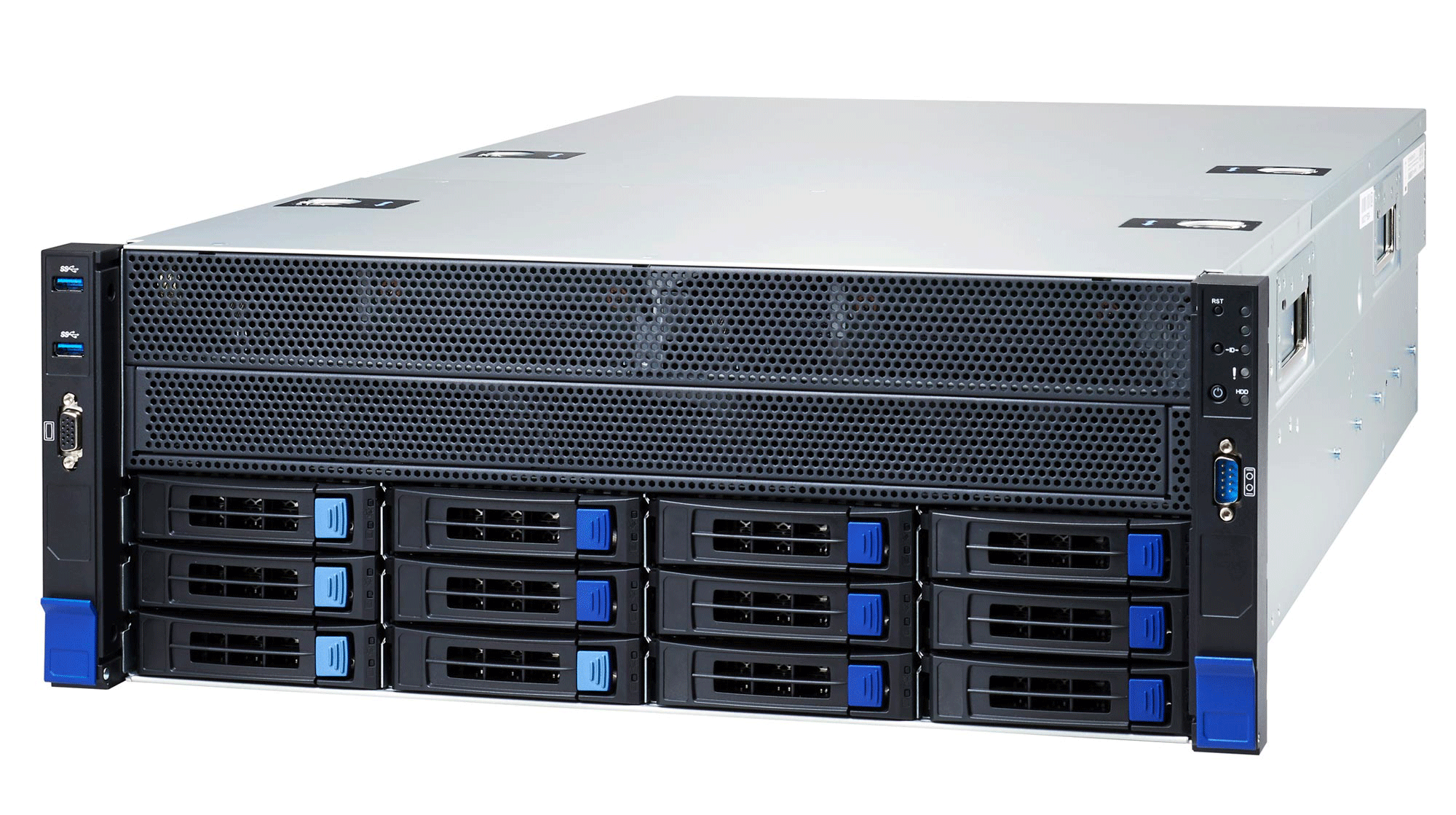

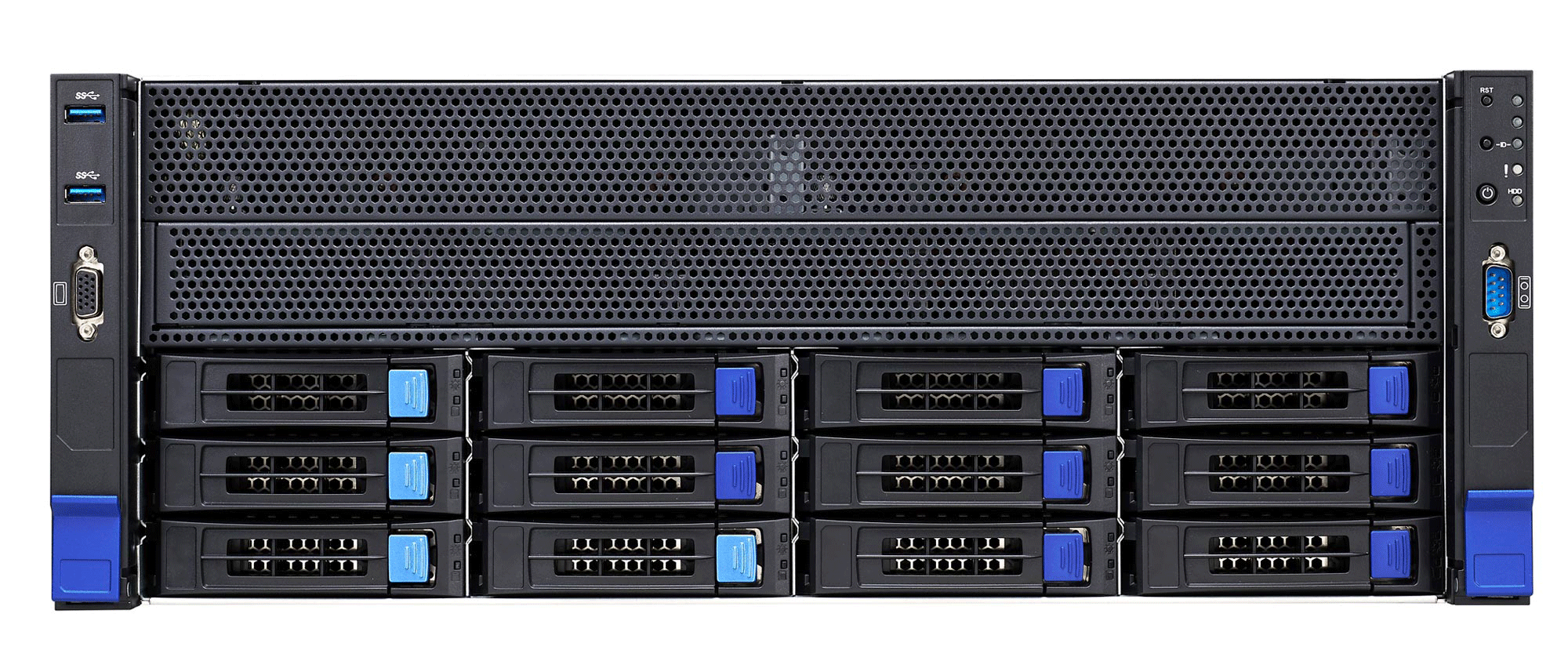

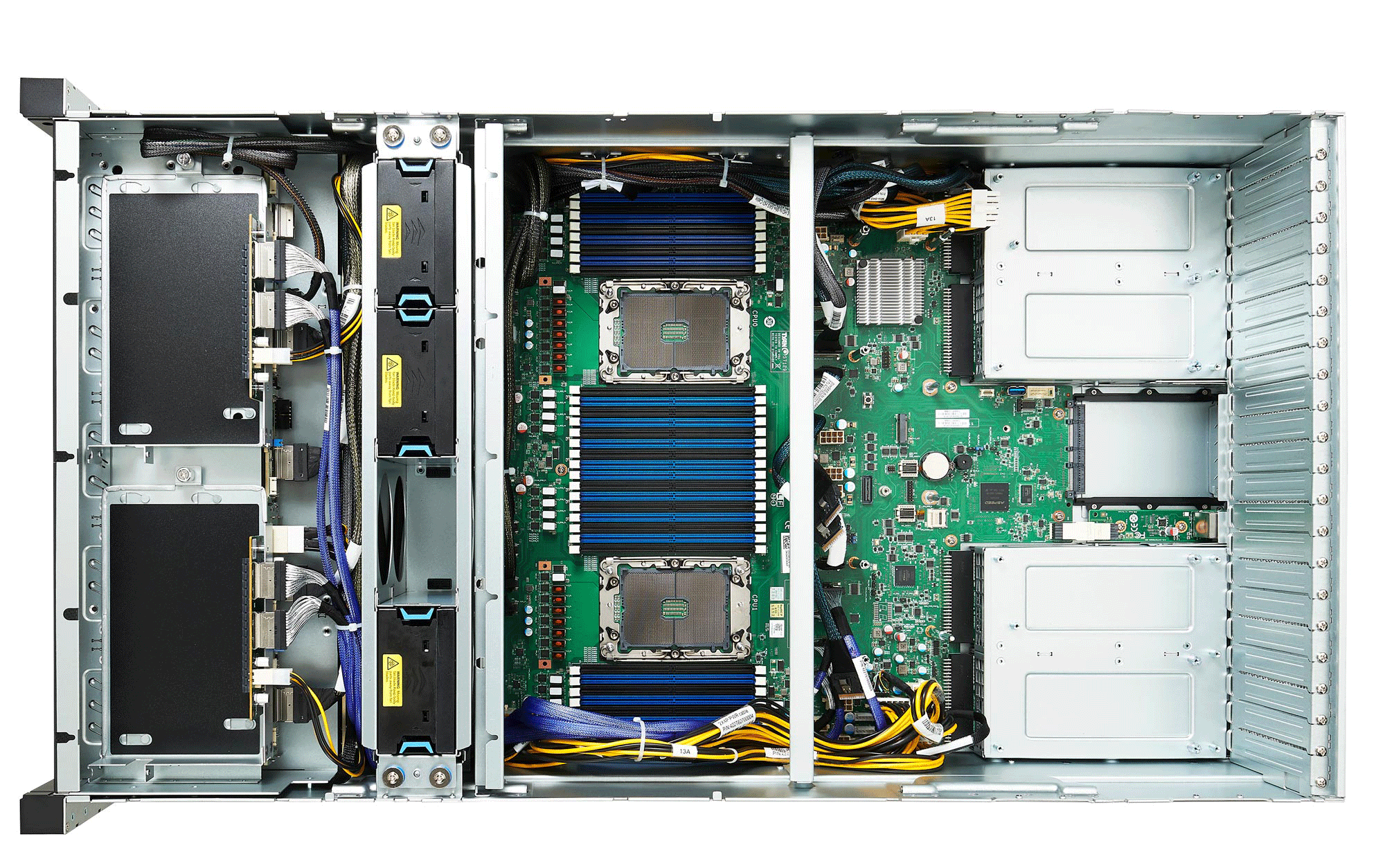

Images


$8,288.67


  Qty.Colfax CX41060t-XK8 4U Rackmount Server, Cost As Configured $8,288.67
Base Platform 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 16    1
CPU 1 - Socket 3 of 16    1
CPU 1 - Socket 4 of 16    1
CPU 1 - Socket 5 of 16    1
CPU 1 - Socket 6 of 16    1
CPU 1 - Socket 7 of 16    1
CPU 1 - Socket 8 of 16    1
CPU 1 - Socket 9 of 16    1
CPU 1 - Socket 10 of 16    1
CPU 1 - Socket 11 of 16    1
CPU 1 - Socket 12 of 16    1
CPU 1 - Socket 13 of 16    1
CPU 1 - Socket 14 of 16    1
CPU 1 - Socket 15 of 16    1
CPU 1 - Socket 16 of 16    1
CPU 2 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 16    1
CPU 2 - Socket 3 of 16    1
CPU 2 - Socket 4 of 16    1
CPU 2 - Socket 5 of 16    1
CPU 2 - Socket 6 of 16    1
CPU 2 - Socket 7 of 16    1
CPU 2 - Socket 8 of 16    1
CPU 2 - Socket 9 of 16    1
CPU 2 - Socket 10 of 16    1
CPU 2 - Socket 11 of 16    1
CPU 2 - Socket 12 of 16    1
CPU 2 - Socket 13 of 16    1
CPU 2 - Socket 14 of 16    1
CPU 2 - Socket 15 of 16    1
CPU 2 - Socket 16 of 16    1
SATA/NVM-E Drive 1    1

Set next    items (  ) like this
SATA/NVM-E Drive 2    1
SATA/NVM-E Drive 3    1
SATA/NVM-E Drive 4    1
SATA Disk Drive 1    1

Set next    items (  ) like this
SATA Disk Drive 2    1
SATA Disk Drive 3    1
SATA Disk Drive 4    1
SATA Disk Drive 5    1
SATA Disk Drive 6    1
SATA Disk Drive 7    1
SATA Disk Drive 8    1
Nvidia GPU 1    1

Set next    items (  ) like this
Nvidia GPU 2    1
Nvidia GPU 3    1
Nvidia GPU 4    1
Nvidia GPU 5    1
Nvidia GPU 6    1
Nvidia GPU 7    1
Nvidia GPU 8    1
Nvidia GPU 9    1
Nvidia GPU 10    1
Ethernet HBA 1
Infiniband HBA 1
OCP 3.0 Networking 1
TPM Module 1
Operating System 1
   Colfax CX41060t-XK8 4U Rackmount Server, Cost As Configured $8,288.67
