Colfax CX4860s+-EK8 4U Rackmount Server



  • 2x AMD EPYC™ 7002/7003 Processors
  • 8x NVIDIA A30/A40/A100 Tensor Core GPUs
  • 32x DDR4 DIMM Sockets
  • 2x 2.5" SATA + 4x U.2 NVMe Drive Bays

Features

  • 2x AMD EPYC™ 7002/7003 Series Processors
  • 8x NVIDIA A30/A40/A100 Tensor Core GPUs
  • 32x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • Expansion Slots
    - 9 PCI-E 4.0 x16 Slots (FH, FL)
    - Option: 10 PCI-E 4.0 x16 Slots without NVMe Devices
  • 24x 2.5" Hot-Swap Drive Bays
    - 2x 2.5" SATA supported natively*
    - 4x 2.5" NVMe Gen4 supported natively
  • Integrated 2x Gigabit LAN Ports + Management LAN
  • 2000W (2+2) Redundant Power Supplies**, Titanium Level


* 2x drives in RAID 1 only via onboard Marvell 9230
** Full redundancy based on configuration and application load



Technical Specifications

CPU • Socket SP3
• Dual AMD EPYC™ 7002/7003 Series Processors (TDP up to 280W)
Memory • 32 DIMM Sockets
• Supports up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
• Memory Type 3200MHz ECC DDR4 RDIMM/LRDIMM
I/O Expansion • 9 PCI-E 4.0 x16 slots (FH, FL)
OR 10 PCI-E 4.0 x16 Slots without NVMe Devices
Onboard Devices IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2500 BMC
Input / Output SATA
• 24x SATA3 (6Gbps) ports
LAN
• 2 RJ45 Gigabit Ethernet ports (rear)
• 1 RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (rear)
VGA
• 1 VGA port
COM Port
• 1 COM port (header)
Chassis Form Factor • 4U Rackmount
• Dimension (HxWxD): 7.0" (178mm) x 17.2" (437mm) x 29" (737mm)
Power Supply • 2000W Redundant Power Supplies with PMBus*
• Total Output Power
- 1000W: 100 – 127Vac
- 1800W: 200 – 220Vac
- 1980W: 220 – 230Vac
- 2000W: 230 – 240Vac
- 2000W: 220 – 240Vac (UL only)
• Input
- 100-127Vac / 12-9A / 50-60Hz
- 200-220Vac / 10-9.8A / 50-60Hz
- 220-230Vac / 10-9.8A / 50-60Hz
- 230-240Vac / 10-9.8A / 50-60Hz
- 220-240Vac / 11-10A / 50-60Hz (UL only)
• +12V
- Max: 83A / Min: 0A (100-127Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 166A / Min: 0A (230-240Vac)
- Max: 166A / Min: 0A (220-240Vac) (UL only)
• 12V sb
- Max: 3.5A / Min: 0A
• 80PLUS Titanium Certified

* Full redundancy based on configuration and application load
Storage • 24x 2.5" hot-swap drive bays
- 2x 2.5" SATA supported natively*
- 4x 2.5" NVMe Gen4 supported natively

* 2x drives in RAID 1 only via onboard Marvell 9230
System Cooling • 8x 11.5K RPM heavy duty fans
BIOS • AMI 32Mb SPI Flash EEPROM

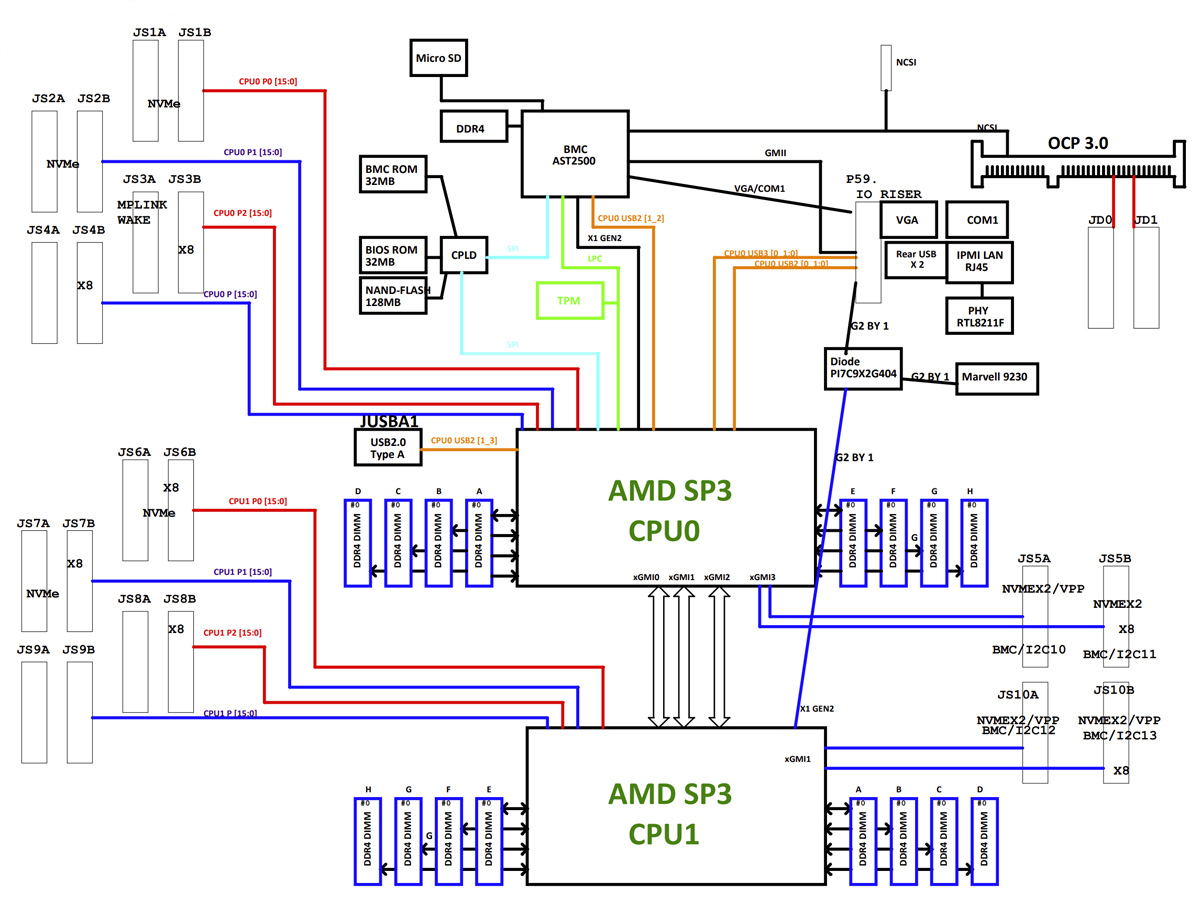

Block Diagram

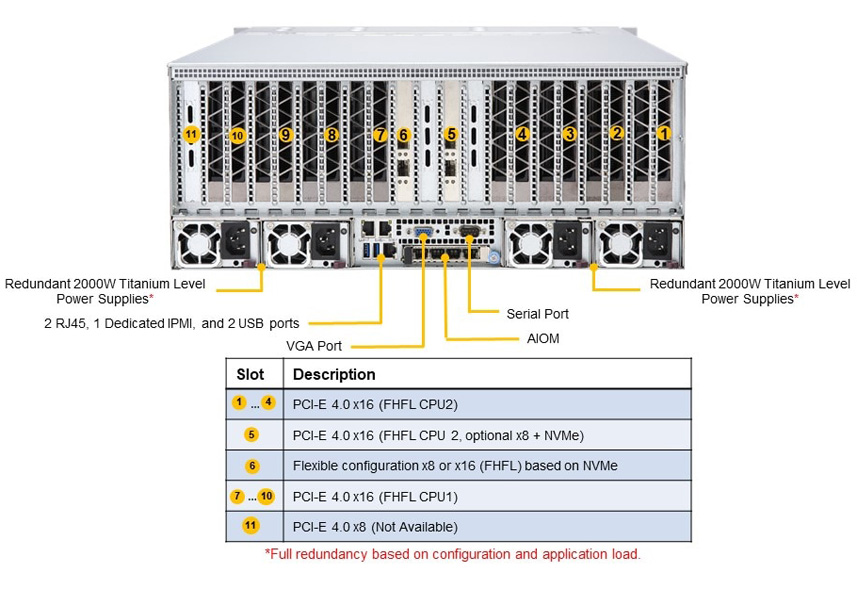

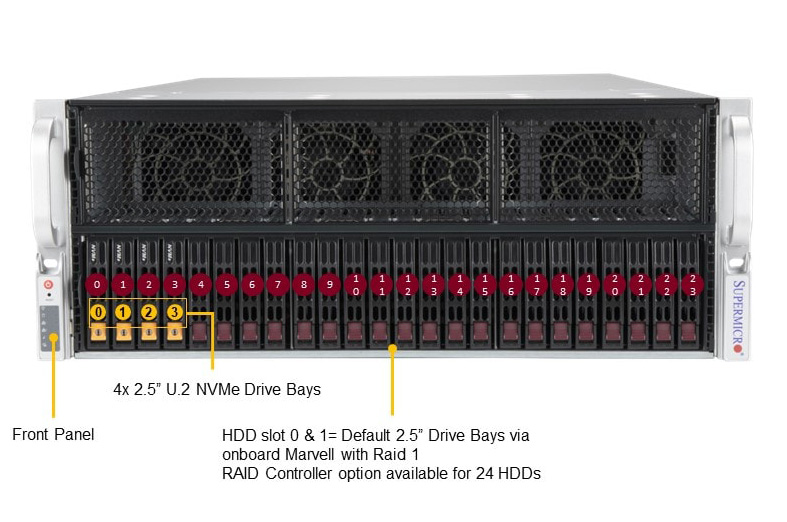

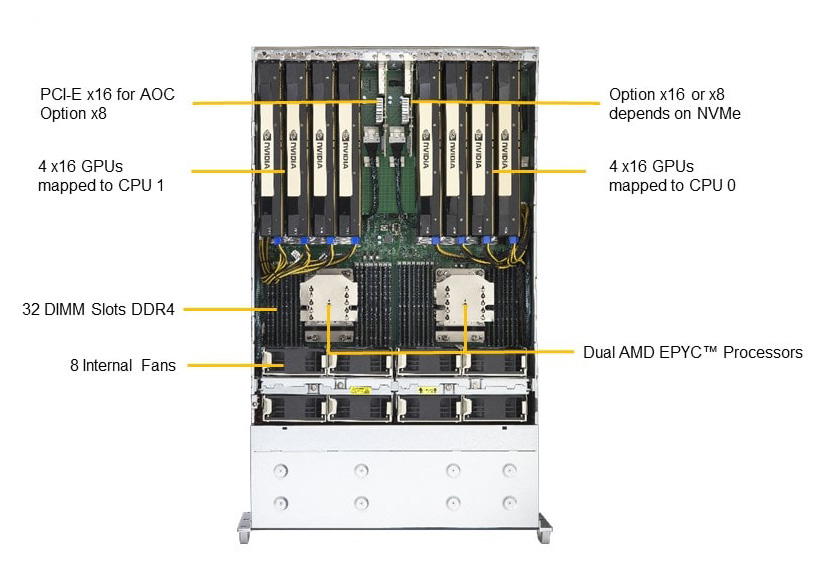

Images
