Colfax CX5860g-EK9 5U Rackmount Server

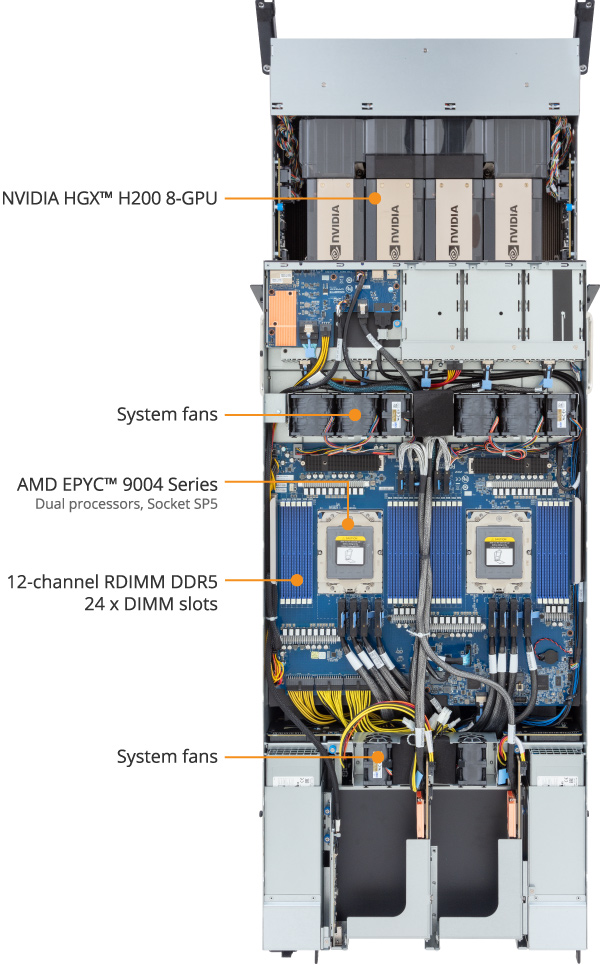

  • NVIDIA HGX™ H200
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 8 x LP PCIe Gen5 x16 slots
  • 5+1 3000W 80 PLUS Titanium redundant power supplies

Features

  • 5U Rackmount
  • 2x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processors
  • NVIDIA HGX™ H200 8-GPU (Supports NVIDIA® NVLink® and NVSwitch™ Technology)
  • 24x DIMM Sockets Support DDR5 ECC RDIMM
  • Expansion Slots
    - 8 PCIe 5.0 x16 Low-Profile Slots
    - 4 PCIe 5.0 x16 FHHL Slots
  • 8x 2.5" Gen5 NVMe Drive Bays
  • 2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
  • 1x Dedicated Management Port
  • 5+1 3000W 80 PLUS Titanium redundant power supplies
  • Dual ROM Architecture Supported




Technical Specifications

Enclosure • 5U
• Dimension (W x H x D) 17.64" x 8.65" x 37.2" (447 x 219.7 x 945 mm)
CPU • Socket SP5 (2x LGA 6096)
• 2x AMD EPYC™ 9004/9005 Series Processors
• Dual processor, cTDP up to 400W
   • At 25°C ambient, cTDP up to 500W
Memory • 24x DIMM sockets
• DDR5 memory supported only
• 12-Channel memory per processor architecture
• Memory speed: Up to 4800 MT/s
Expansion Slots • 8x PCIe 5.0 x16 low-profile slots (from PEX89104)
• 4x PCIe 5.0 x16 FHHL slots (from PEX89048)

M.2
• 1x M.2 slot
- M-key
- PCIe Gen3 x1 from CPU_0
- Supports 2280/22110 cards
• 1x M.2 slot
- M-key
- PCIe Gen3 x4 from CPU_1
- Supports 2280/22110 cards
Storage • 8x 2.5" hot-swappable Gen5 NVMe drive bays
- NVMe from PEX89104
Networking Front
• 2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
• 1x 10/100/1000 Mbps management LAN

Rear (MLAN board - CDB66):
• 1x 10/100/1000 Mbps management LAN

Note: When both MLAN ports are connected with cables, the front MLAN port will be set as the default
Video • Integrated in ASPEED AST2600 controller
• 2D Video Graphic Adapter with PCIe bus interface
• Resolution - up to 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply
5+1 3000W 80 PLUS Titanium redundant power supplies
  • AC Input:
    • 115–127V~ / 14.2A, 50–60Hz
    • 200–220V~ / 15.8A, 50–60Hz
    • 220–240V~ / 14.9A, 50–60Hz
  • DC Input (Only for China):
    • 240Vdc / 14A
  • DC Output:
    • Max 1450W / 115–127V~
      • +54V / 26.6A
      • +12Vsb / 3A
    • Max 2900W / 200–220V~
      • +54V / 53.4A
      • +12Vsb / 3A
    • Max 3002.4W / 220–240V~ or 240Vdc Input
      • +54V / 55.6A
      • +12Vsb / 3A
System Cooling Motherboard
• 2 x 40x40x56mm (32,000rpm)
• 4 x 60x60x56mm (24,000rpm)

PCIe Slots
• 4 x 40x40x28mm (25,000rpm)
• 2 x 40x40x56mm (32,000rpm)

GPU Tray
• 6 x 60x60x76mm (21,700rpm)
• 11 x 80x80x80mm (17,000rpm)
Front I/O • 2 x USB 3.2 Gen1 ports (Type-A)
• 1 x VGA port
• 2 x RJ45 ports
• 1 x MLAN port
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x Reset button
• 1 x NMI button
• 1 x Storage activity LED
• 1 x HDD access LED
Rear I/O • 1 x MLAN
Backplane I/O • Speed and bandwidth: PCIe Gen5 x4
TPM • 1x TPM header with SPI interface
• Optional TPM2.0 kit
Server Management • Onboard Chipset - Aspeed AST2600
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings


Block Diagram

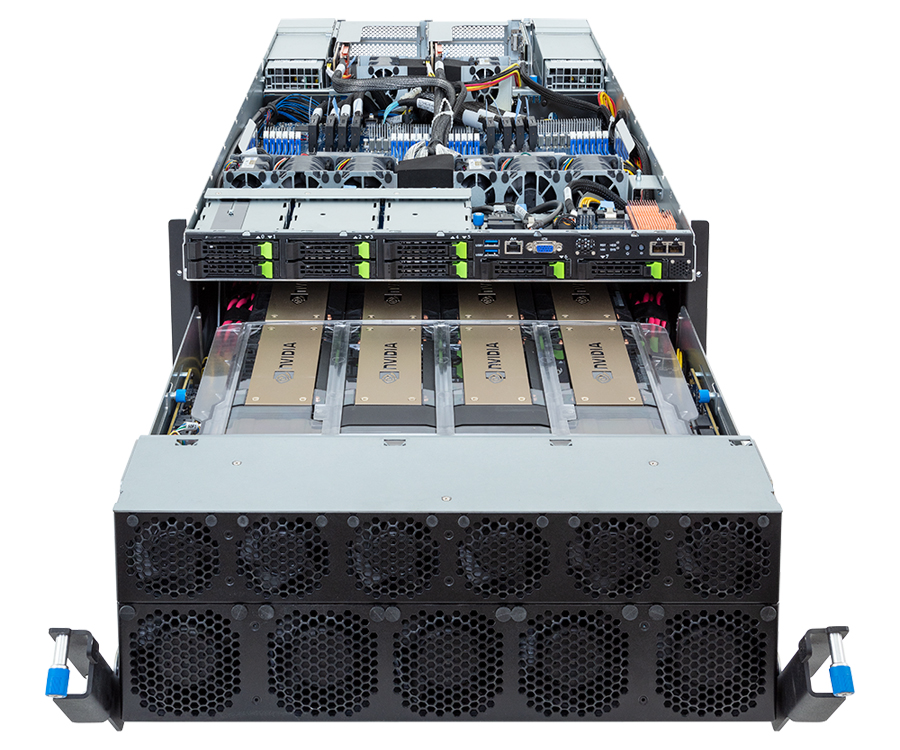

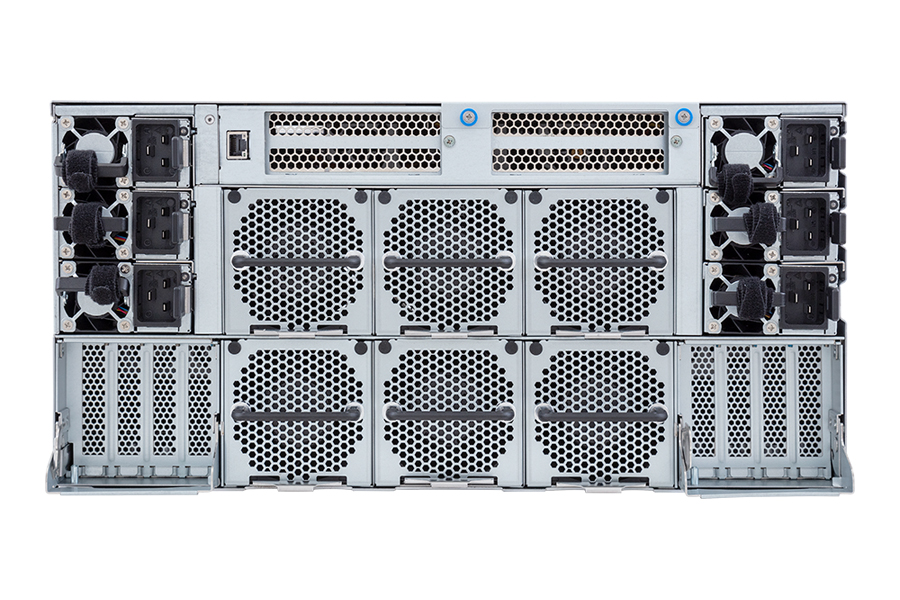

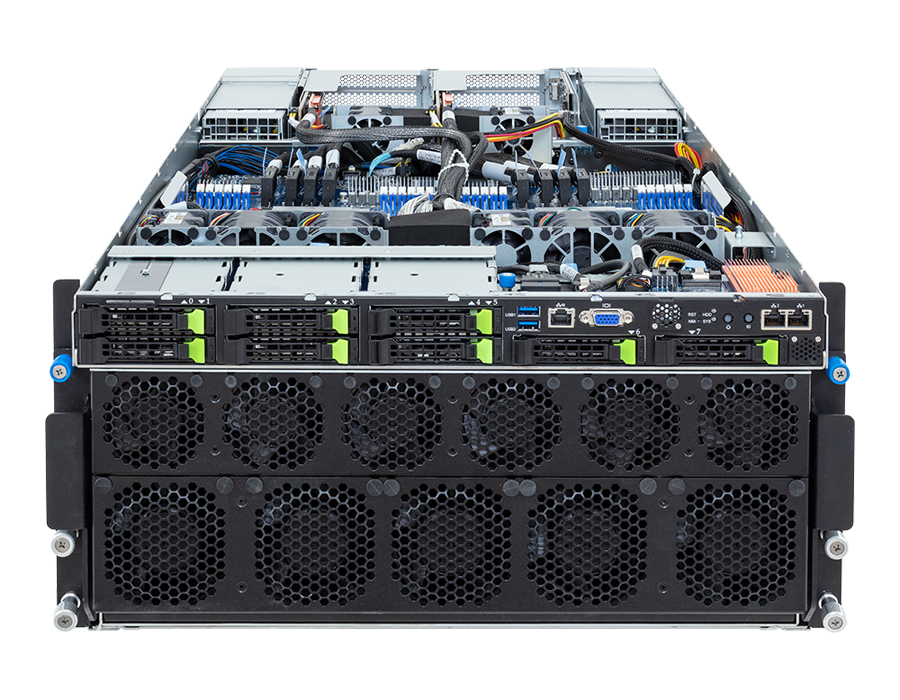

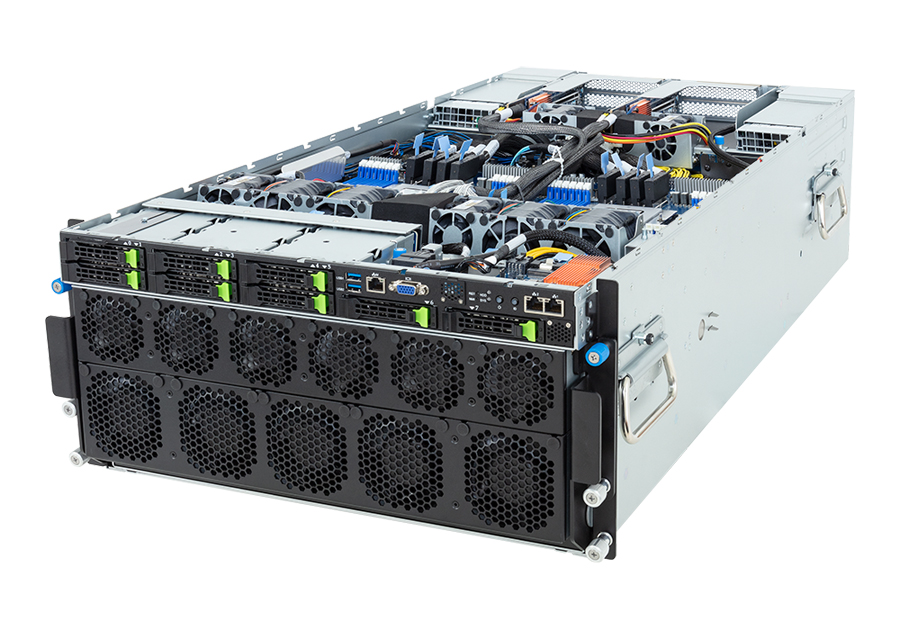

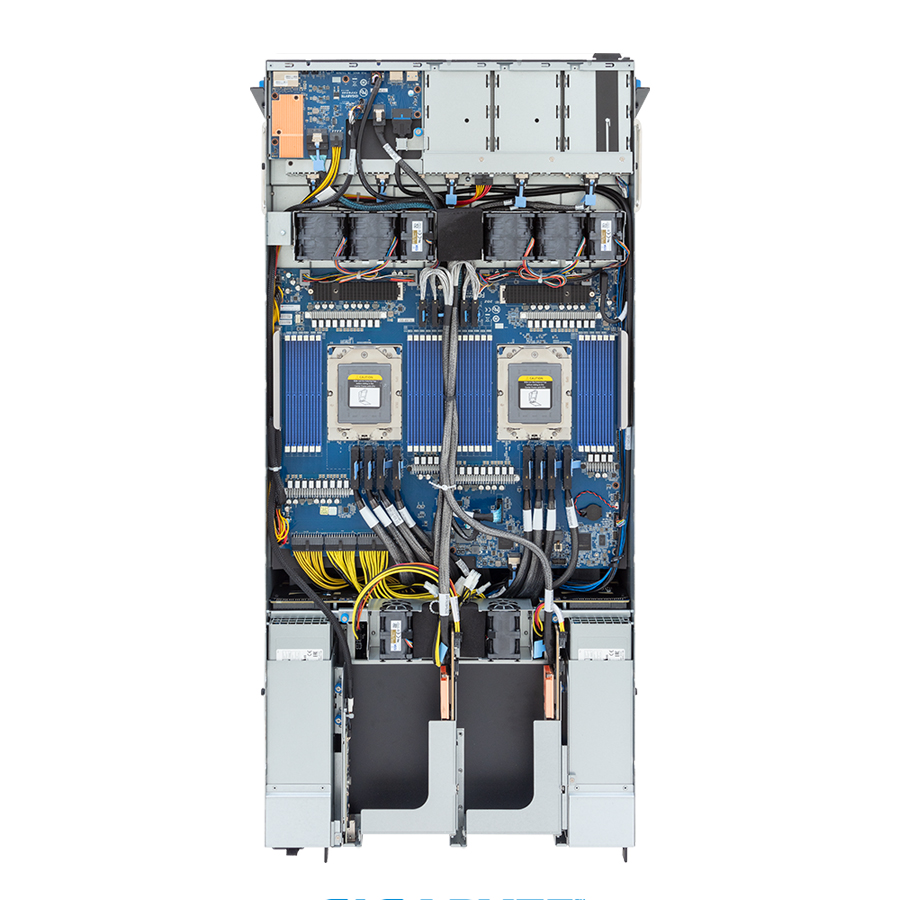

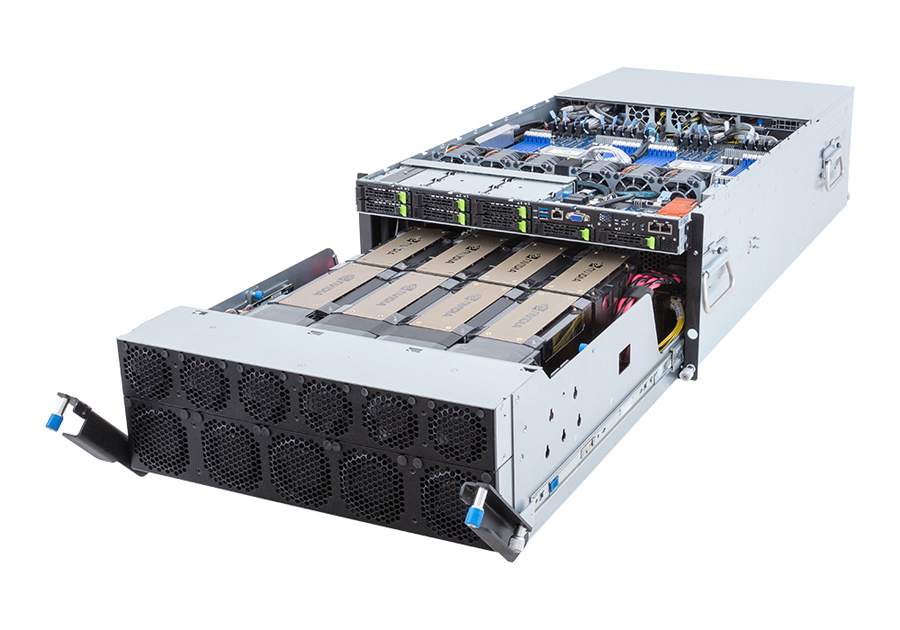

Images
$290,027.50


  Qty.Colfax CX5860g-EK9 5U Rackmount Server, Cost As Configured $290,027.50
