Colfax CX8860r-X67B3 8U Rackmount Server




  • 2x Intel® Xeon® 6700P/6700E/6500P Series Processors
  • NVIDIA HGX™ B300 8-GPU Baseboard (Blackwell)
  • 32x DDR5 RDIMMs Slots
  • 12x Hot-Swap 2.5" NVMe Drive Bays (PCIe 5.0 x4)
  • 1x M.2 Slot (PCIe 5.0 x2) and 2x M.2 Slots (PCIe 5.0 x4)
  • 6+6 Redundant 3000W 80 PLUS Titanium CRPS Power Supplies

Features

  • NVIDIA HGX™ B300 NVL8 8-GPU Baseboard NVIDIA Blackwell Architecture Technical Brief
    - Form Factor: SXM
    - 288GB of HBM3e GPU Memory (2.3TB Aggregate)
    - Up to 8TB/s of Memory Bandwidth (Up to 64TB/s Aggregate)
    - 5th Generation NVIDIA NVLink™ and NVSwitch™
    - 1.8TB/s GPU-to-GPU Bandwidth (14.4TB/s Aggregate)
  • 2x Intel® Xeon® 6700P-Series, 6500P-Series, or 6700E-Series Processors (Socket E2 / LGA 4710)
  • 32x DIMM Slots (16 per CPU) Supporting DDR5 RDIMM, RDIMM-3DS, and MRDIMM
  • 4x PCIe 5.0 x16 FHHL Slots
  • 12x Hot-Swap 2.5" NVMe Drive Bays (PCIe 5.0 x4)
  • 1x M.2 Slot (PCIe 5.0 x2) and 2x M.2 Slots (PCIe 5.0 x4)
  • 8x 800Gb/s OSFP Ports via NVIDIA ConnectX-8 SuperNICs
  • 2x 1GbE RJ45 Ports via Intel® i350-AM2
  • Remote Management via IPMI
  • 6+6 Redundant 3000W 80 PLUS Titanium CRPS Power Supplies



Technical Specifications

Enclosure • 8U Rackmount
• Dimensions (W x H x D): 17.6" x 13.9" x 36.6" (448 x 353.6 x 930 mm)
GPU • NVIDIA HGX™ B300 NVL8 8-GPU Baseboard with NVIDIA NVLink™
CPU • Dual Socket E2 (LGA 4710)
• Supports Intel® Xeon® 6700P-Series, 6500P-Series, and 6700E-Series Processors
Memory • 32x DIMM Slots (16 per CPU; 2 DPC)
• Supports DDR5 RDIMM, RDIMM-3DS, and MRDIMM
Expansion Slots • 4x PCIe 5.0 x16 Slots (FHHL)
Storage • 12x Hot-Swap 2.5" NVMe Drive Bays (PCIe 5.0 x4)
M.2
• 1x M.2 Slot (PCIe 5.0 x2)
• 2x M.2 Slots (PCIe 5.0 x4)
Networking • 8x 800Gb/s OSFP Ports via NVIDIA ConnectX-8 SuperNICs
• 2x 1GbE RJ45 Ports via Intel® i350-AM2
Power Supply • 6+6 Redundant 3000W CRPS Power Supplies
• 80 PLUS Titanium
Graphics • ASPEED AST2600 Graphics Controller
• 512MB DDR4 Video Memory
Front Panel • 8x 800Gb/s OSFP Ports via NVIDIA ConnectX-8 SuperNICs
• 4x USB 3.2 Gen 1 Type-A Ports
• 1x DB15 VGA Port
• 2x 1GbE RJ45 Ports
• 1x Dedicated IPMI Management Port
• Power Button with LED, UID Button with LED, Reset Button, and NMI Button
• System Fault and HDD Activity LEDs
Rear I/O • 2x USB 3.2 Gen 1 Type-A Ports
• 1x DB15 VGA Port
• 2x 1GbE RJ45 Ports
• 1x Dedicated IPMI Management Port
Server Management • Remote Management via IPMI

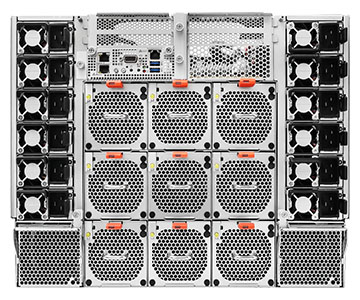

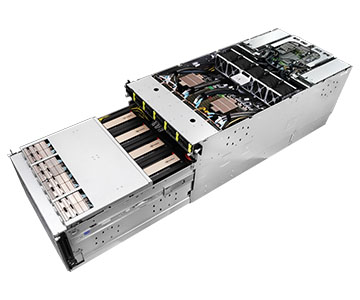

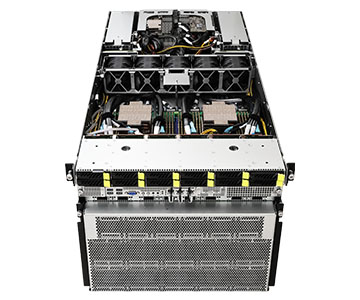

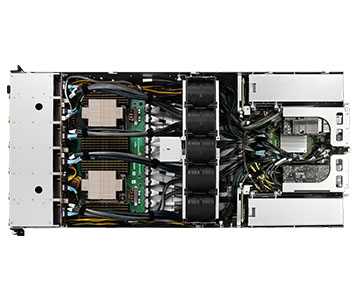

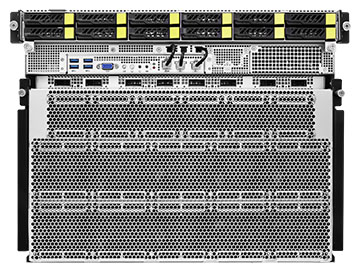

Images
$494,198.50


  Qty.Colfax CX8860r-X67B3 8U Rackmount Server, Cost As Configured $494,198.50
