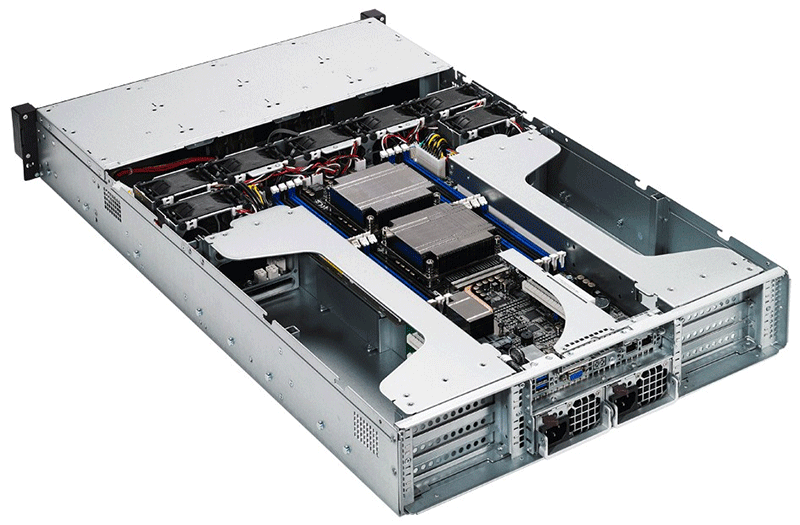

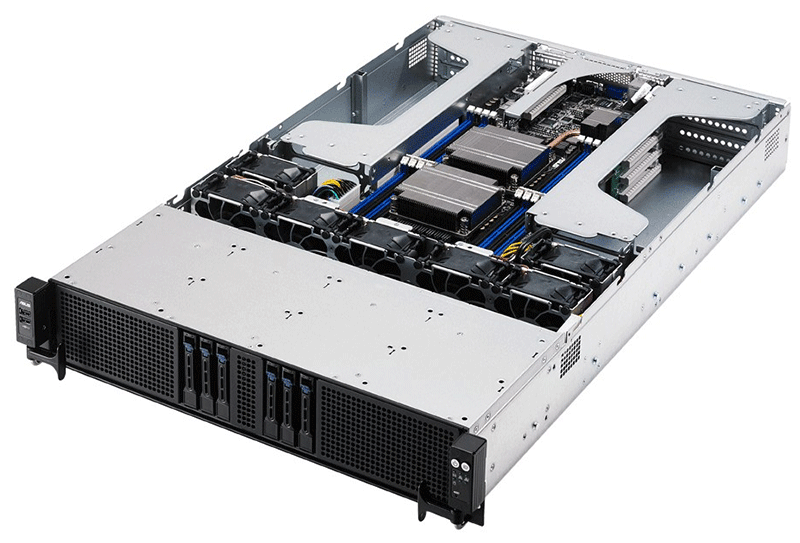

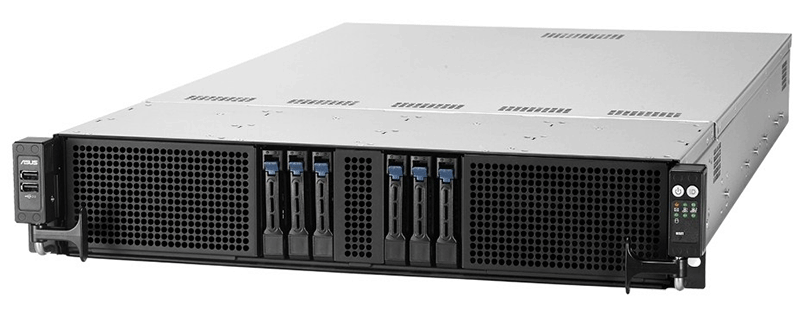

Colfax CX2475a-XK6 2U Rackmount Server

2U Rackmount
Dual Intel® Xeon® Processors E5-2600 v3/v4 Product Family
Up to 4 NVIDIA Tesla GPUs
Intel C612 Chipset
16 Memory Sockets Support Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)
Expansion Slots:
- 8 PCIe 3.0 x16 Slots (4 at x16 Link or 8 at x8 Link)
- 1 PCI-E 3.0 x24 Riser Card Supports 1 PCI-E 3.0 x16 Slot (x8 Gen3 Link) for Low-Profile Card and 1 PCI-E 3.0 x8 Slot (x8 Gen3 Link) for Asus Proprietary Card
6x 2.5" Hot-Swap Drive Bays
RAID:
- Optional ASUS PIKE II 3008 8-Port SAS 12Gb/s RAID Controller Supports RAID 0,1,1E,10
- Optional ASUS PIKE II 3108 8-Port SAS 12Gb/s RAID Controller Supports RAID 0,1,10,5,50,6,60
Integrated 2x Intel® I210AT GbE + 1 x Mgmt LAN
1+1 Redundant 1620W 80PLUS Platinum Power Supplies

Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.


CPU	• 2 x Socket R3 (LGA 2011-3) • Supports Intel® Xeon® processor E5-2600 v3/v4 product family
Memory	• Total Slots: 16 (4-channel per CPU, 8 DIMMs per CPU) • Capacity: Maximum up to 1024GB LRDIMM • Memory Type: - DDR4 2133 /1866/1600/1333 RDIMM* - DDR4 2133 /1866/1600/1333 LRDIMM* • Memory Size: - 32GB, 16GB, 8GB, 4GB RDIMM - 64GB, 32GB LRDIMM * 2133MT/s @1DPC only
Chipset	• Intel® C612 PCH
Expansion Slots	• 8 PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) • 1 PCI-E 3.0 x24 riser card supports: - 1 Half-lenth/Low-profile PCI-E 3.0 x16 slot (Gen3 x8 Link) - 1 PCI-E 3.0 x8 slot for Asus proprietary card (x8 Gen3 Link)
Drive Bays	• 6x 2.5" hot-swap HDD Bays

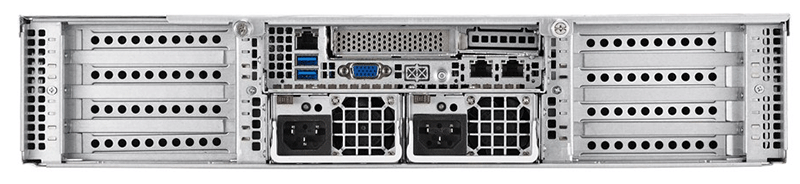

Onboard I/O	• 3 x RJ-45 ports (One for ASMB8-iKVM) • 1 x External Serial Port • 2 x USB 3.0 ports (Front x 0, Rear x 2) • 2 x USB 2.0 ports (Front x 2, Rear x 0) • 1 x VGA port
Network	• 2 x Intel® I210AT + 1 x Mgmt LAN
Integrated Graphics	• Aspeed AST2400 with 32MB VRAM
Power Supply	• 1+1 Redundant 1620W 80+ platinum efficiency redundant power supplies
System Management	• Asus ASMB8-iKVM for KVM-over-Internet
Dimensions	• 3.43" x 17.48" x 29.53" (HxWxD)

$400.00

	Qty.	Colfax CX2475a-XK6 2U Rackmount Server, Cost As Configured $400.00
Base Platform	1
Primary CPU	1
Secondary CPU	1
CPU 1 - Socket 1 of 8	1	Set next items ( ) like this
CPU 1 - Socket 2 of 8	1
CPU 1 - Socket 3 of 8	1
CPU 1 - Socket 4 of 8	1
CPU 1 - Socket 5 of 8	1
CPU 1 - Socket 6 of 8	1
CPU 1 - Socket 7 of 8	1
CPU 1 - Socket 8 of 8	1
CPU 2 - Socket 1 of 8	1	Set next items ( ) like this
CPU 2 - Socket 2 of 8	1
CPU 2 - Socket 3 of 8	1
CPU 2 - Socket 4 of 8	1
CPU 2 - Socket 5 of 8	1
CPU 2 - Socket 6 of 8	1
CPU 2 - Socket 7 of 8	1
CPU 2 - Socket 8 of 8	1
Disk Drive 1	1	Set next items ( ) like this
Disk Drive 2	1
Disk Drive 3	1
Disk Drive 4	1
Disk Drive 5	1
Disk Drive 6	1
Disk Controller	1
Tesla GPU 1	1	Set next items ( ) like this
Tesla GPU 2	1
Tesla GPU 3	1
Tesla GPU 4	1
Ethernet HBA	1
Infiniband HBA	1
Operating System	1
		Colfax CX2475a-XK6 2U Rackmount Server, Cost As Configured $400.00
