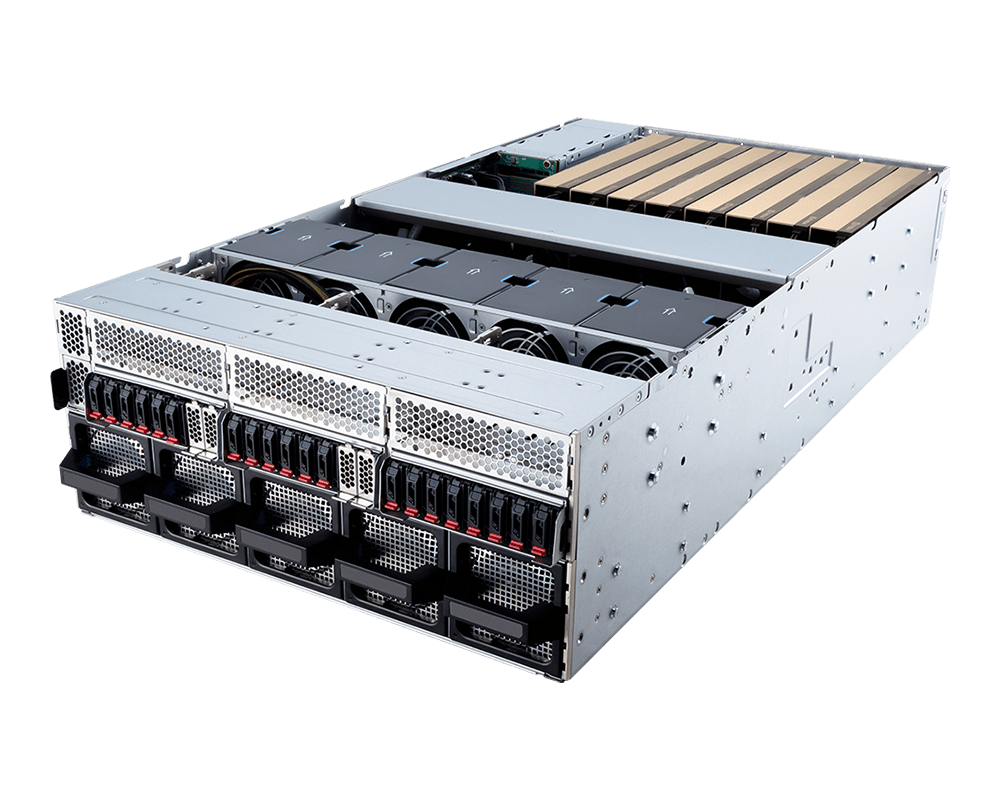

Colfax CX4860m-NVMe5-S20-X6RTX 4U MGX™ Rackmount Server




  • 4U Server with NVIDIA MGX™ Architecture
  • Dual Intel® Xeon® 6500/6700 Series Processors, TDP up to 350W
  • 32 x DDR5 RDIMM, 8 channels per CPU (2DPC), up to 6400 MT/s (1DPC) and 5200 MT/s (2DPC)
  • 20 x Front Hot-Swap E1.S PCIe 5.0 x4 NVMe Drive Bays
  • 2 x PCIe 5.0 x2 NVMe M.2 Ports (2280/22110)
  • Max 13 x PCIe 5.0 x16 Expansion Slots, supporting up to 8 x NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition GPUs
  • 2 x 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI Supported)
  • 1 x 1000Base-T Dedicated Server Management Port with ASPEED AST2600, IPMI 2.0 & DMTF Redfish Support
  • Dual BIOS & BMC TPM 2.0 Onboard
  • Hardware Root of Trust Support (Optional)

Features

  • 4U Server with NVIDIA MGX™ Architecture
  • Dual Intel® Xeon® 6500/6700 Series Processors, TDP up to 350W
  • 32 x DDR5 RDIMM, 8 channels per CPU (2DPC), up to 6400 MT/s (1DPC) and 5200 MT/s (2DPC)
  • 20 x Front Hot-Swap E1.S PCIe 5.0 x4 NVMe Drive Bays
  • 2 x PCIe 5.0 x2 NVMe M.2 Ports (2280/22110)
  • Max 13 x PCIe 5.0 x16 Expansion Slots, supporting up to 8 x NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition GPUs
  • 2 x 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI Supported)
  • 1 x 1000Base-T Dedicated Server Management Port with ASPEED AST2600, IPMI 2.0 & DMTF Redfish Support
  • Dual BIOS & BMC TPM 2.0 Onboard
  • Hardware Root of Trust Support (Optional)



Technical Specifications

Enclosure • 4U Rackmount
• Model: S5063G480RAE20
• Dimension (W x H x D): 17.26" x 6.88" x 31.5" (438.5 x 175 x 800 mm)
• Net Weight: 49.5 lbs (22.45 kg)
CPU • Dual Socket LGA-4710 (Socket E2)
• Intel® Xeon® 6500P/6700P/6700E Series Processors
• Supports CPU TDP up to 350W (Air Cooled)
Memory • 32x DIMM slots (16 per CPU)
• Supported speeds: 5200MT/s (2DPC), 6400MT/s (1DPC)
Expansion Slots • 8x PCIe 5.0 x16 FHFL double wide slots (through PCIe switch)
• 4x PCIe 5.0 x16 FHFL single wide slots (through PCIe switch)
• 1x PCIe 5.0 x16 FHFL single wide slot (from CPU0)
Storage • 20x front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
M.2:
• 2x PCIe 5.0 x2 NVMe slots (M.2 2280/22110)
Networking • 2x 10GBase-T Ethernet ports (Intel X710-AT2)
• 1x 1GBase-T dedicated management port (BMC/IPMI)
Video • ASPEED AST2600 BMC onboard video
Power Supply • 3+1 Redundant 3200W CRPS 80 PLUS Titanium
Rating:
• AC Input: 100-127Vac, 16A, 50-60Hz
• Output: Max 1200W, DC +12V/106.6A, +12Vsb/3A
• AC Input: 200-219Vac, 16A, 50-60Hz
• Output: Max 3000W, DC +12V/246A, +12Vsb/3A
• AC Input: 220-240Vac, 16A, 50-60Hz
• Output: Max 3200W, DC +12V/262.3A, +12Vsb/3A
• DC Input: 240V, 16A
• Output: Max 3200W
System Cooling • 10x 8080 Hot-swap system fans

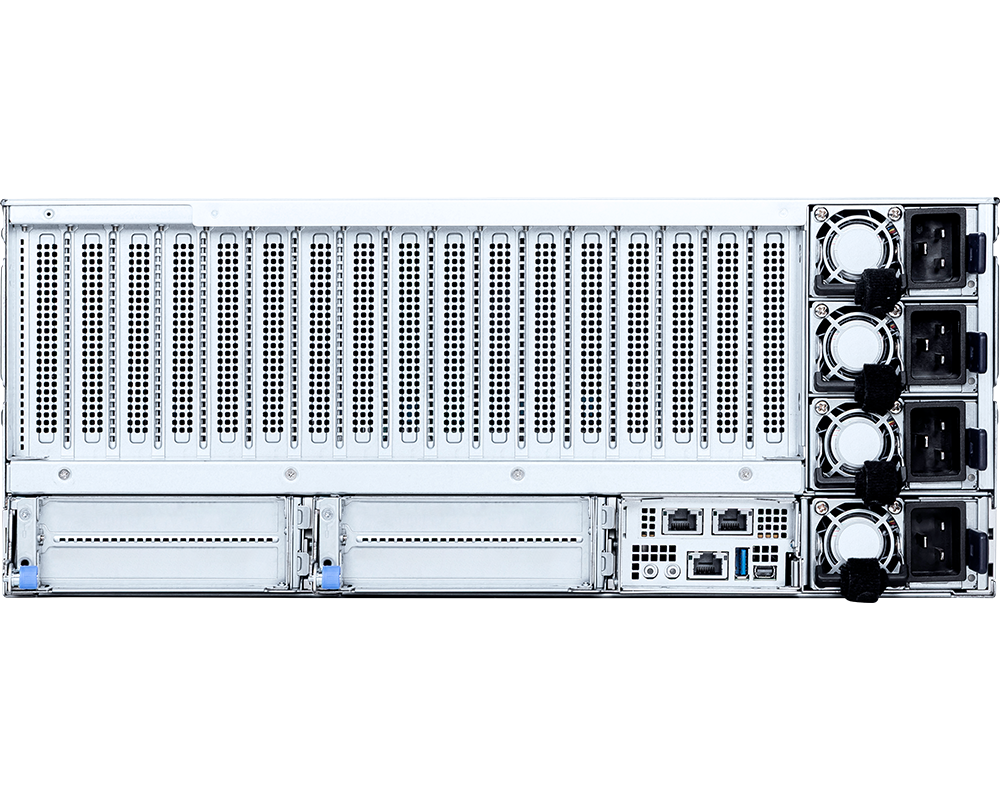

Rear I/O • 1x 1000Base-T Dedicated Server Management port
• 2x 10GBase-T Ethernet ports
• 1x USB 3.0/2.0 Type-A port
• 1x Mini Display port
• 1x Power LED button
• 1x UID LED button
Security • TPM 2.0
• Optional Hardware Root of Trust
• Secure Boot
• BMC Security Features
Server Management • ASPEED AST2600 BMC with IPMI 2.0
• DMTF Redfish API Support
Environmental • Operating Temp: 10°C to 35°C (50°F to 95°F)
• Non-Operating Temp: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 8% to 90% (non-condensing)
• Non-Operating Humidity: 5% to 95% (non-condensing)

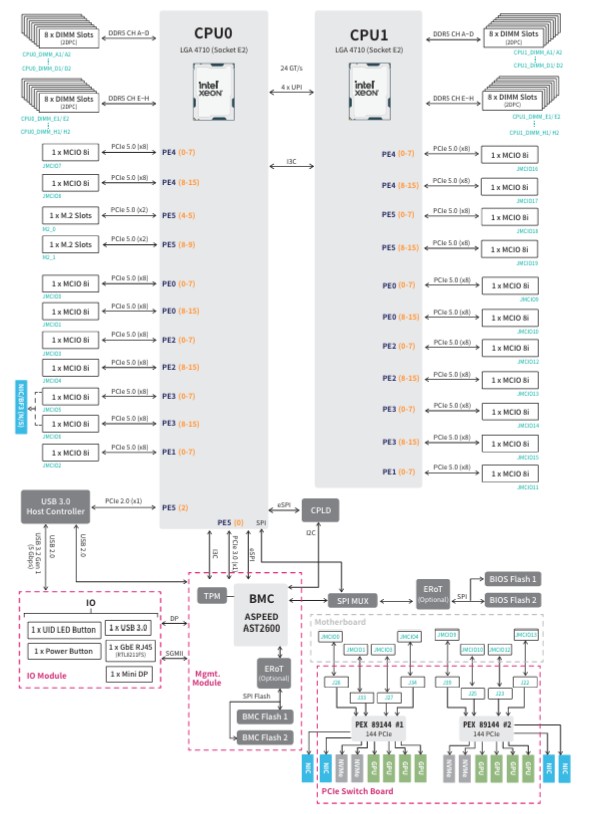

Block Diagram


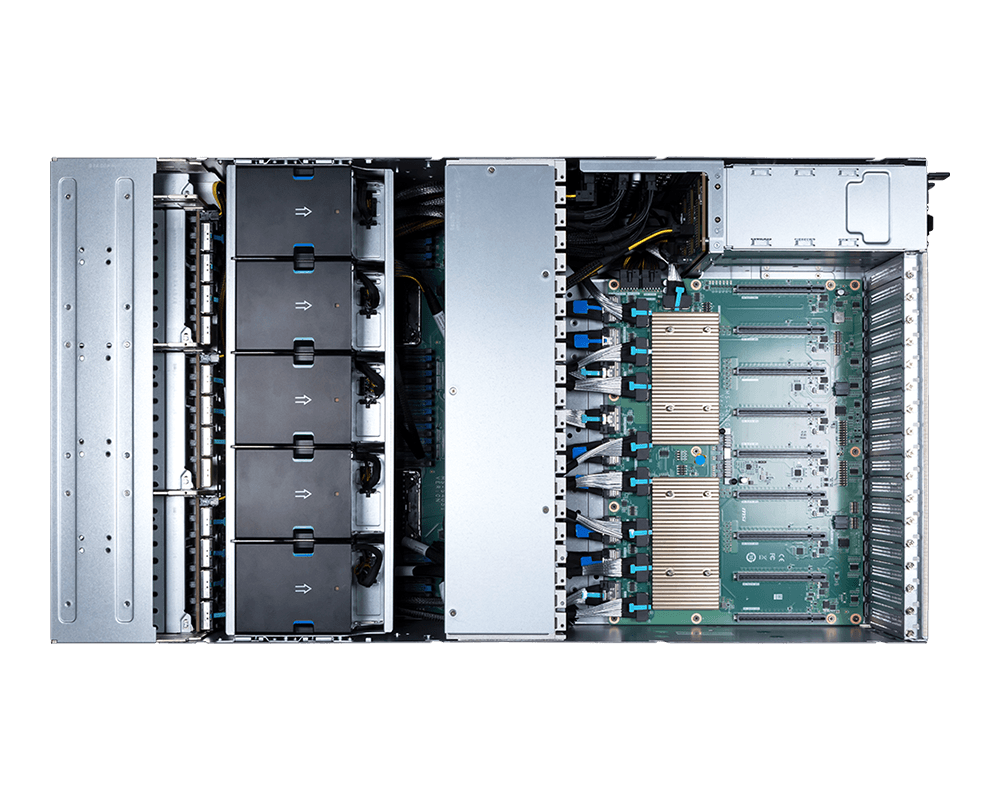

Images
