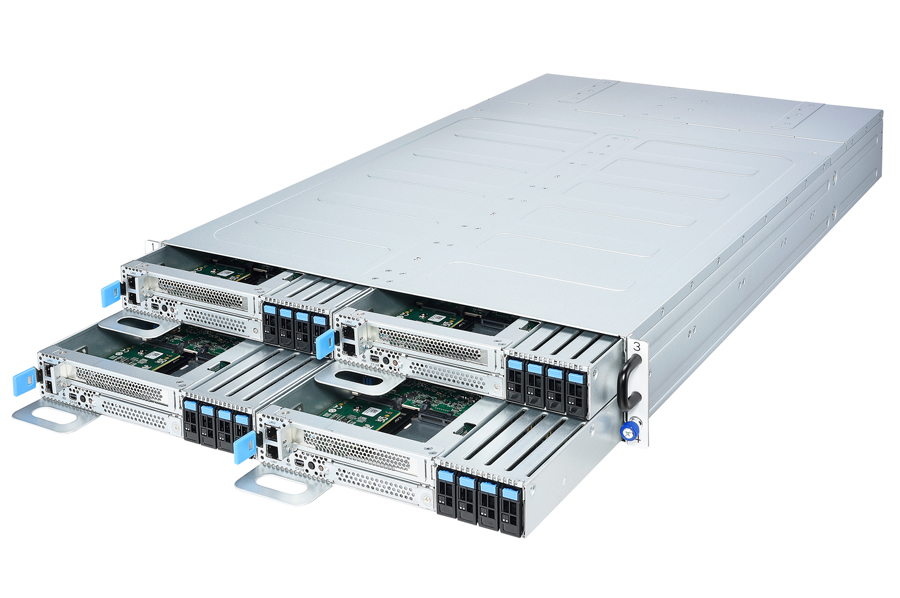

Colfax CX21475t-E1S-E9 2U Rackmount Server



  • Hot-Swappable 4-Nodes in 2U
  • Total 4x AMD EPYC™ 9004/9005 Series Processors
  • Total 64x DIMMS
  • Total 16x Hot-Swap E1.S NVMe Drive Bays

Features

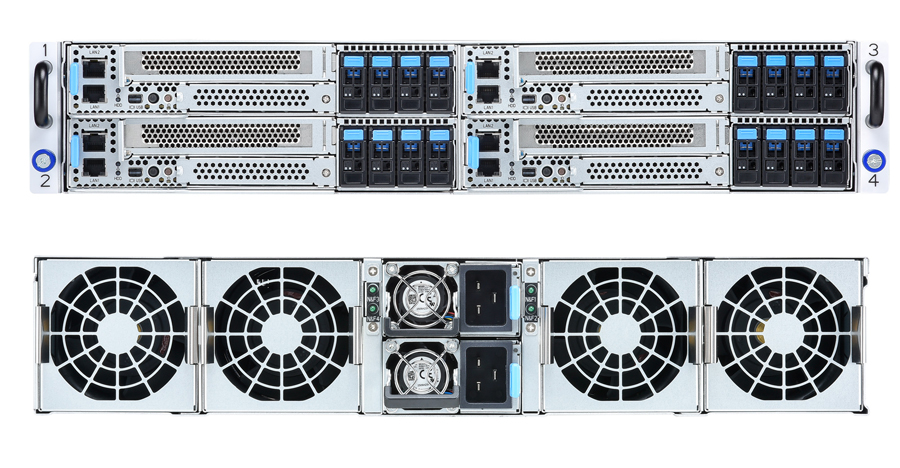

  • 2U, 4 Hot-Swap Nodes, Front I/O
  • 1+1 2700 Watts CRPS

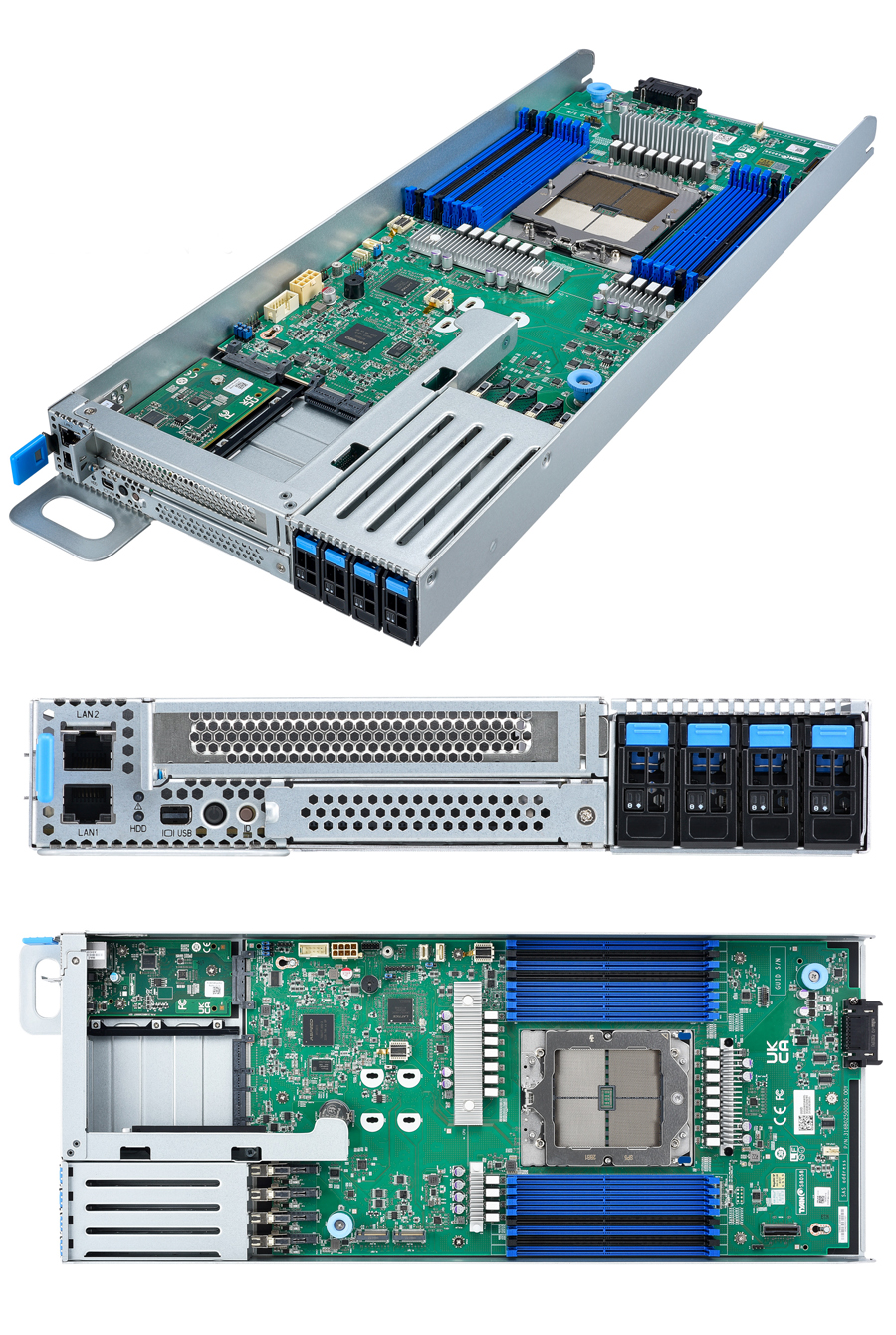

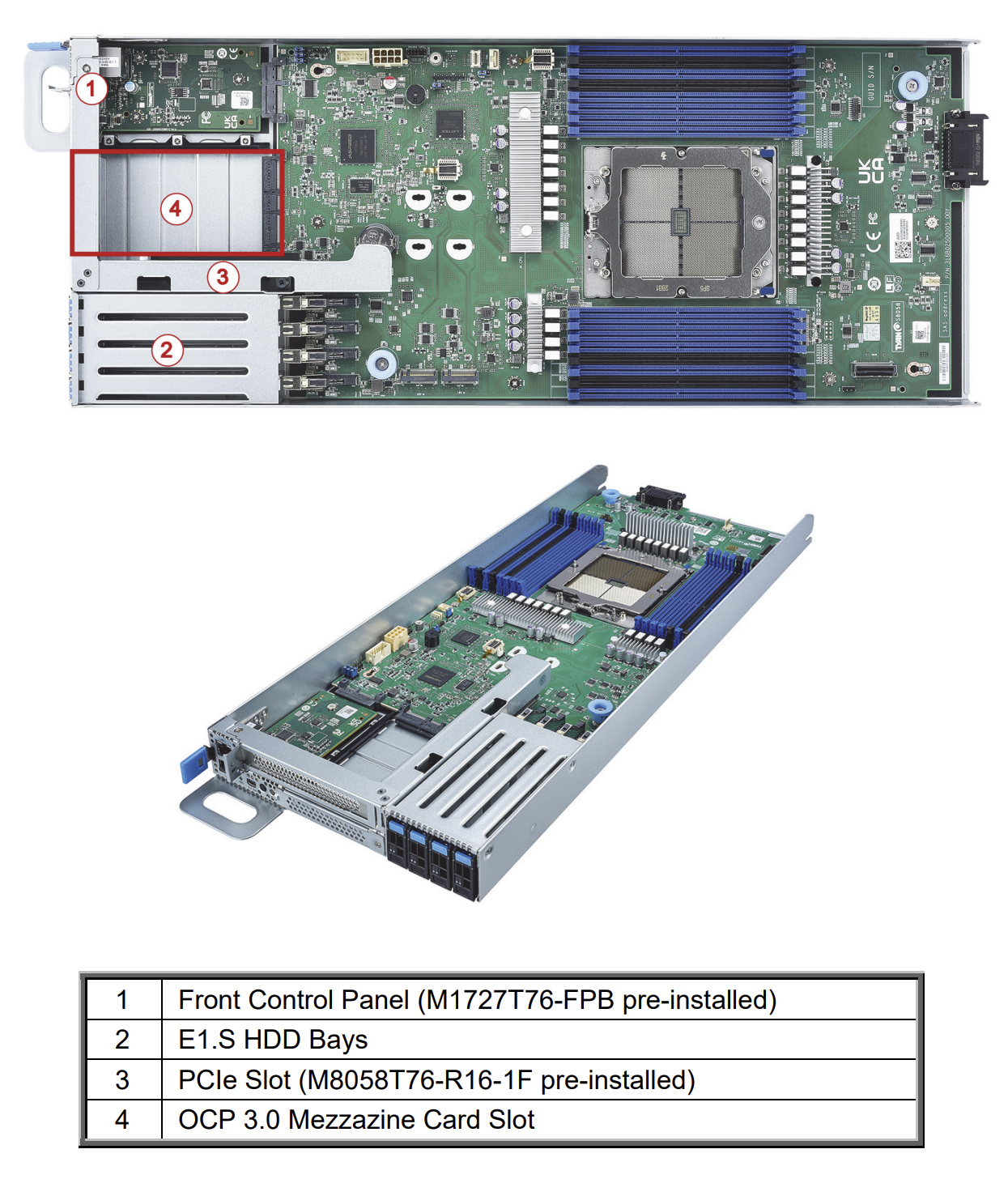

Each node supports the following:

  • 1x AMD EPYC™ 9004 (Model Specs) / 9005 (Model Specs) Series Processor
  • 16x DIMM Sockets Supporting ECC DDR5 RDIMM
  • 1 FH/HL PCIe 5.0 x16 Slot
  • 1 PCIe Gen5 x16 OCP 3.0 Mezzanine Slot
  • 4x Hot-Swap E1.S NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • Single 1GbE Port + Dedicated Management Port








Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimension (D x W x H): 29.92" x 17.64" x 3.39" (760 x 448 x 86mm)
CPU / Node • Socket SP5
• Single AMD EPYC™ 9004/9005 Series Processor
• Max up to 360W (TDP)
Memory / Node • 16 DIMM sockets
• 12 Channels per CPU
• Supports up to 2048GB RDIMM / 3DS RDIMM
• RDIMM DDR5 4800 MHz (1DPC) / 3600MHz (2DPC) / 3DS RDIMM DDR5 3600MHz (2DPC)
• Memory Voltage - 1.1V
I/O Expansion / Node • 1 FH/HL PCIe 5.0 x16 Slot
• 1 PCIe Gen5 x16 OCP 3.0 Mezzanine Slot
Drives / Node • 4x hot-swap E1.S NVMe drives
• 2x M.2 NVMe 22110/2280 SSDs
Storage / Node NVMe
• Connector (M.2) - 2 22110/2280 (by PCIe Gen4 interface)
Networking / Node • Ports: 1 1GbE port + 1 GbE dedicated for IPMI
• Controller: Intel I210-AT
• PHY: Realtek RTL8211FD-CG
Graphic / Node • Chipset - Aspeed AST2600
• Connector type - D-Sub 15-pin port via dongle cable
• Resolution - Up to 1920x1200
I/O Ports / Node • 1 USB 3.2 Gen1 conn. / 2 USB 2.0 ports via dongle cable (front)
• 1 1GbE port, 1 GbE dedicated for IPMI
• 1 header (COM1)
• 1 D-Sub 15-pin port via dongle cable

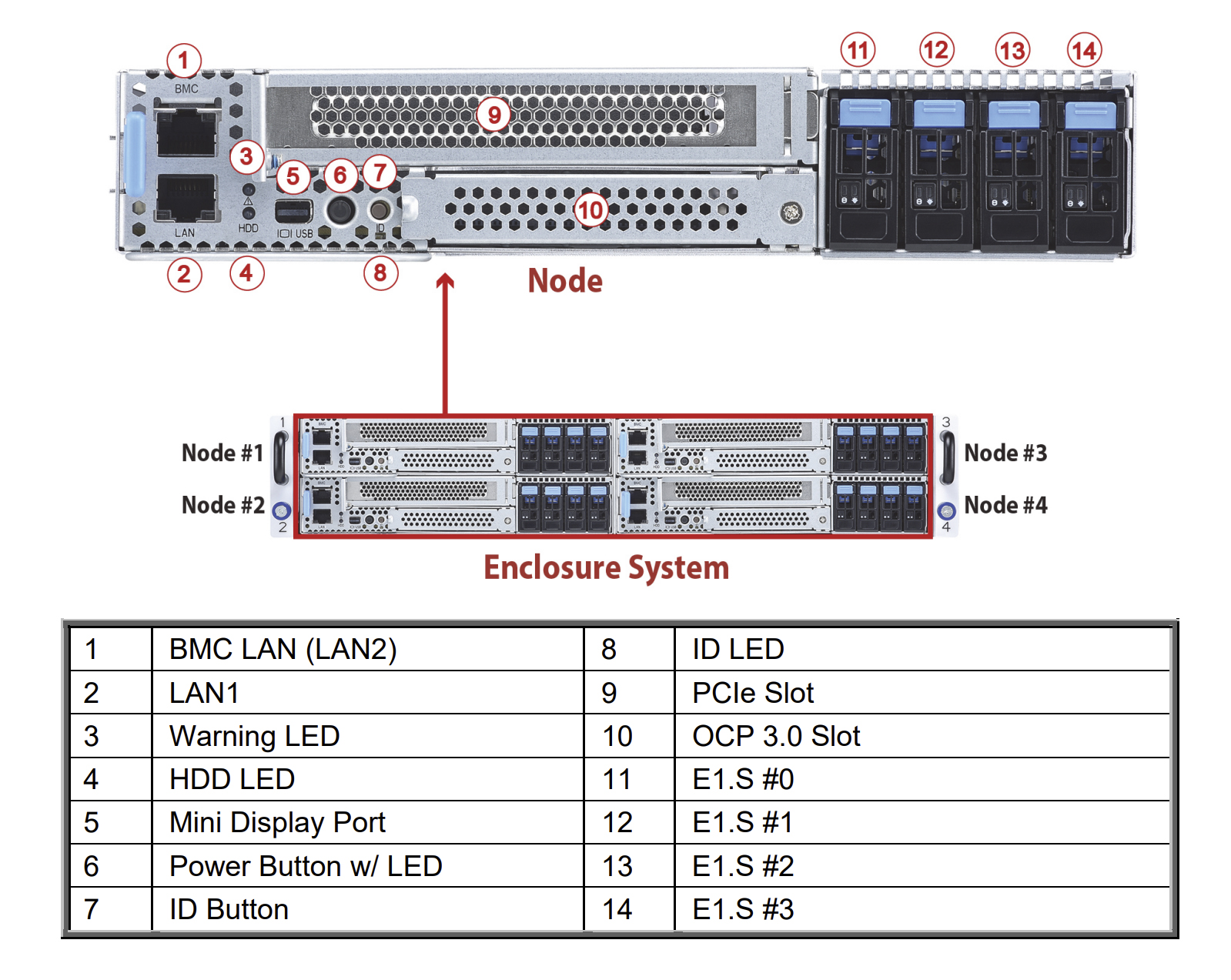

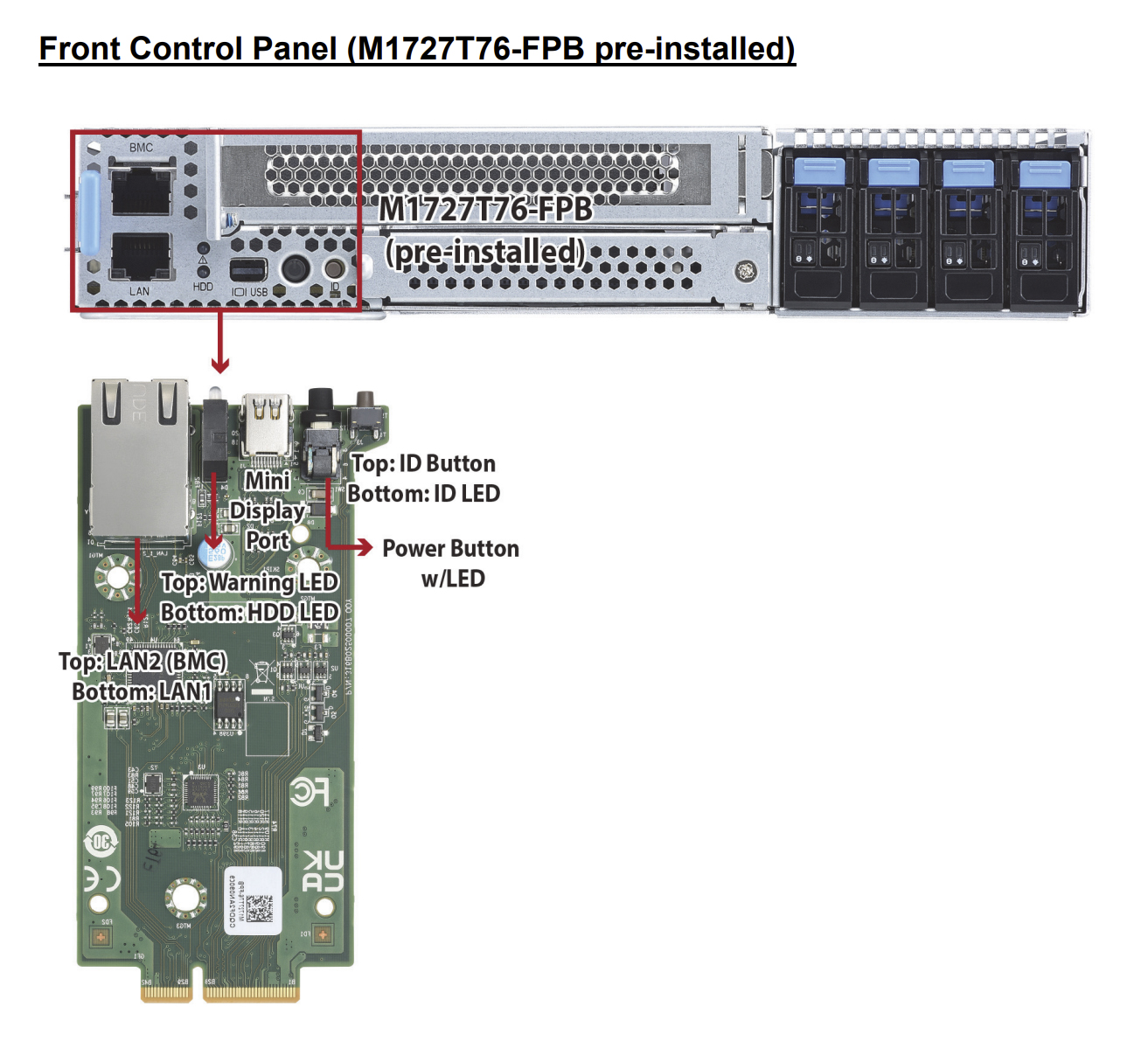

Front Panel / Node Buttons
• 1 PWR w/ LED / 1 UID
LEDs
• 1 Warning / 1 HDD
System Monitoring / Node • Chipset - Aspeed AST2600
• Voltage - Monitors voltage for CPU, memory, chipset & power supply
• Temperature - Monitors temperature for CPU & system environment
• LED - Over temperature warning indicator / Fan & PSU fail LED indicator
• Others - Watchdog timer support
Server Management / Node • Onboard Chipset - Aspeed AST2600
• AST2600 IPMI Feature - IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
• AST2600 iKVM Feature - 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
BIOS / Node • AMI / 32MB
• Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI S0, S5. S3
Power Supply • Type - CRPS
• Input Range - AC 100-127V/14A / AC 200-240V/15.5A
• Frequency - 50-60 Hz
• Output Watts - 2700 Watts
• Efficiency - 80 Plus Titanium
• Redundancy - 1+1
System Cooling • 4x 8cm fans

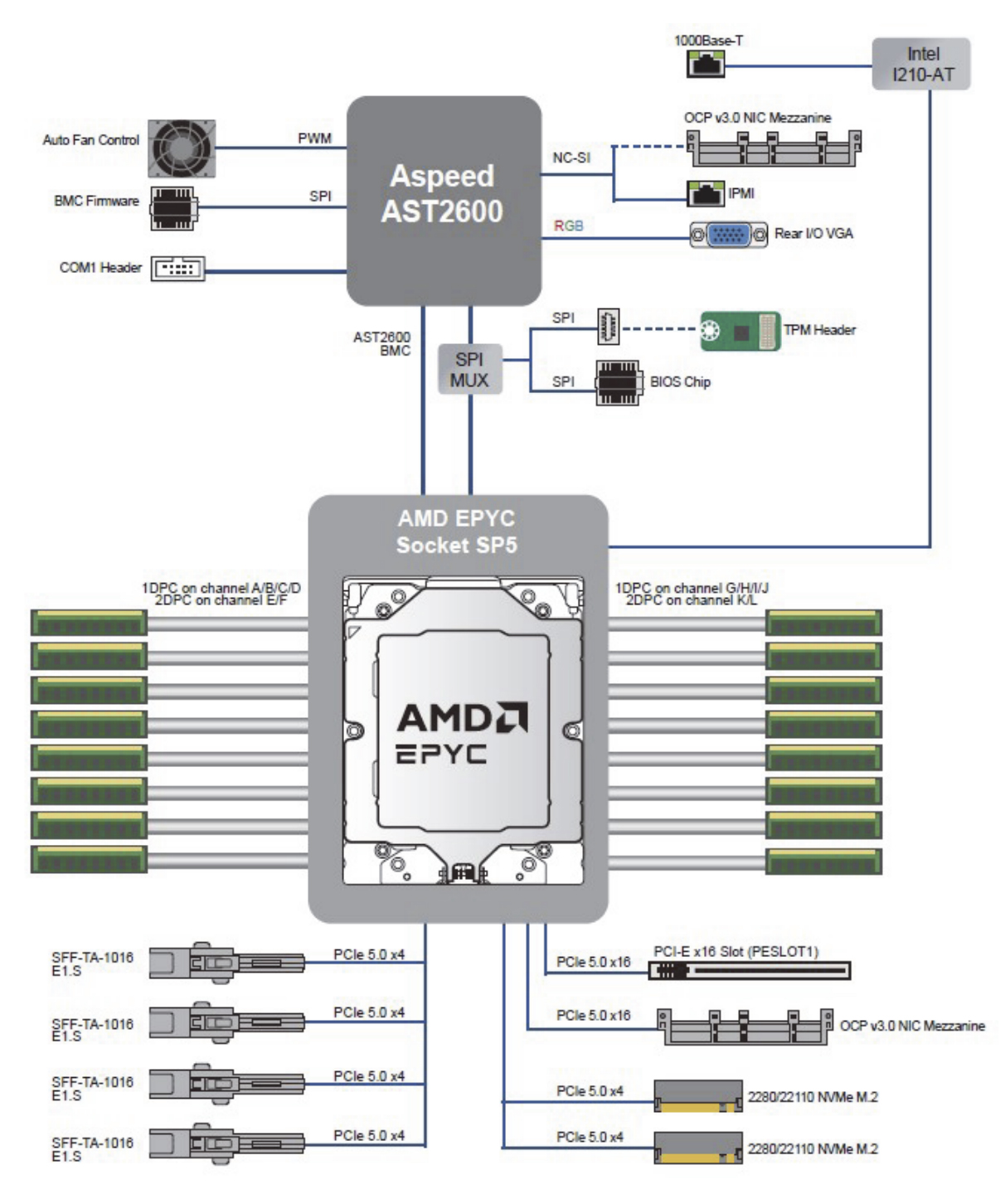

Block Diagram


Images

Customize the Chassis below or -->
To review or customize any node in this solution, please select the node from the drop-down list



$8,329.03


  Qty.Colfax CX21475t-E1S-E9 2U Rackmount Server, Cost As Configured $8,329.03
