Colfax CX41060s-XK8 4U Rackmount Server




  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 10x NVIDIA Ampere Architecture GPUs or NVIDIA® RTX™ GPUs
  • 8x 2.5" Hot-Swap SATA + 8x 2.5" NVMe Drive Bays

Features

  • 4U Rackmount
  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 10x NVIDIA Ampere Architecture GPUs or NVIDIA® RTX™ GPUs
  • Intel C621A Chipset
  • 32x DDR4 Memory Sockets Support RDIMM or LRDIMM
  • Expansion Slots
    - 10 PCI-E 4.0 x16 Slots (Double-Wide)
    - 1 PCI-E 4.0 x16 Slot (Single-Wide)
    - 1x OCP Gen3 4.0 x16 Mezzanine Slot
  • 8x 2.5" Hot-Swap SATA + 8x 2.5" NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • Dual Port 1GbE Controller
  • 2000W Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimensions: Height 7.0" (178mm), Width 17.2" (437mm), Depth 29" (737mm)
CPU • Dual Socket P+ (LG-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• TDP up to 270W
GPU CPU-GPU Interconnect
• PCI-E 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
• N/A
Memory • 32x DDR4 DIMM slots
• Supports up to 8TB: 32x 256 GB DRAM
• Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A chipset
I/O Expansion • 10 PCI-E 4.0 x16 (double-width) slots
• 1 PCI-E 4.0 x16 (single-width) slots
• 1 OCP Gen3 4.0 x16 Mezzanine Slot
Onboard Devices SATA
• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• Dual-port 1GbE from Intel® i350
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 8x SATA 3.0 ports (6Gbps)
LAN
• 2x RJ45 1GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 5 USB 3.2 Gen2 ports (2 rear + 2 via header + 1 Type A)
Video
• 1x VGA connector
Serial Port
• 1x COM port (header)
Power Supply • 2000W Redundant Power Supplies with PMBus
AC Input
• 1000W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2000W: 220-240Vac / 50-60Hz
• 2000W: 230-240Vac / 50-60Hz
• 2000W: 230-240Vdc (For CCC Only)
+12V
• MMax: 83A / Min: 0A (100Vac-127Vac)
• Max: 150A / Min: 0A (200Vac-220Vac)
• Max: 165A / Min: 0A (220Vac-230Vac)
• Max: 166A / Min: 0A (230Vac-240Vac)
12Vsb
• Max: 3.5A / Min: 0A
Certification
• 80PLUS Titanium Certified
Drive Bays • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe dedicated)
M.2
• 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling • 8 heavy duty fans with optimal fan speed control
BIOS Type • AMI 32Mb SPI Flash ROM

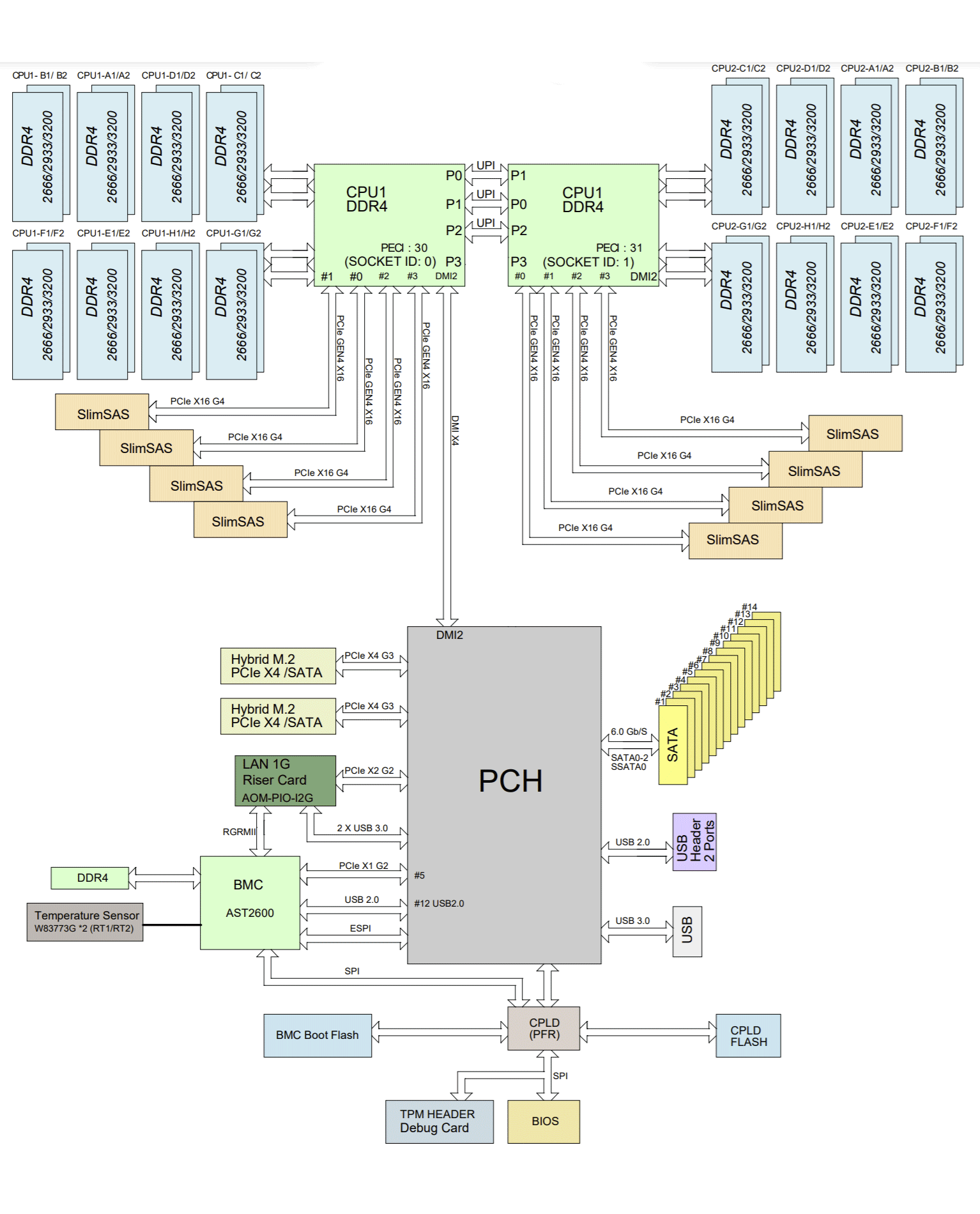

Block Diagram

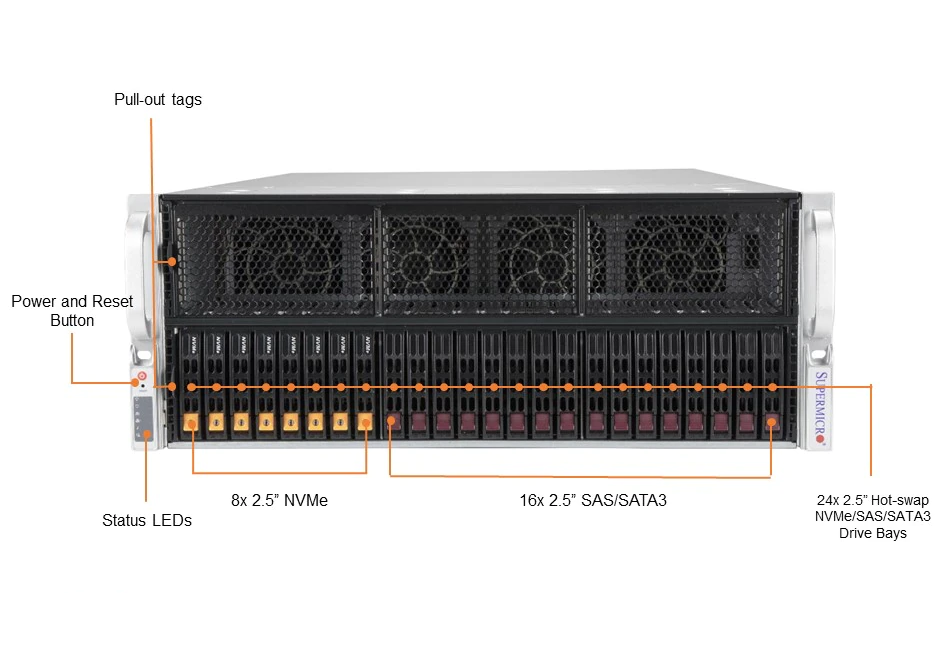

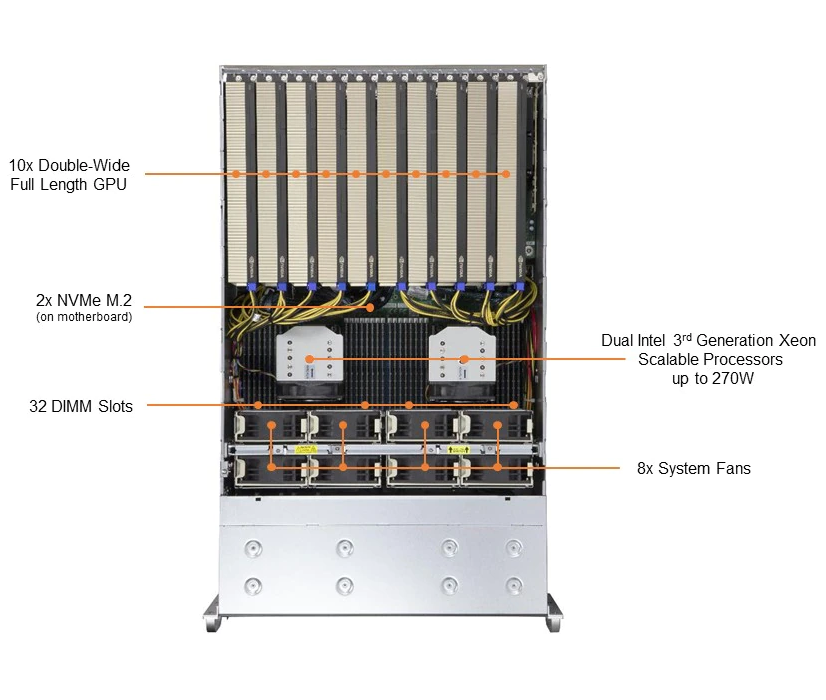

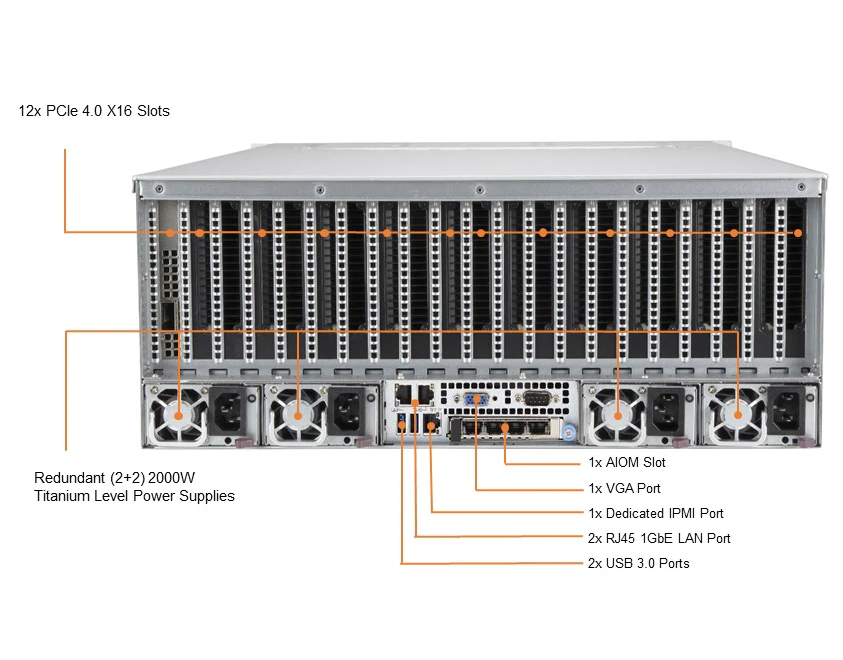

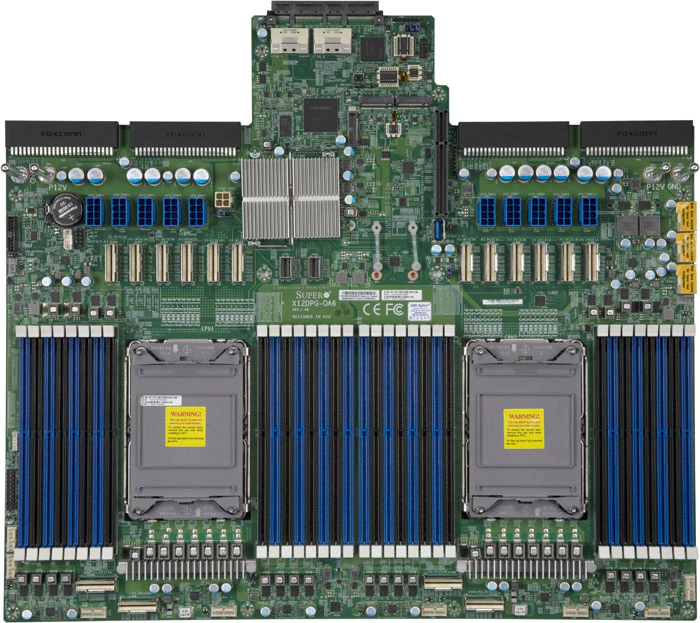

Images
