Colfax CX4880s-EK8 4U Rackmount Server



  • 2x AMD EPYC™ 7002/7003 Processors
  • 8x NVIDIA HGX™ A100 GPUs
  • 32x DDR4 DIMM Sockets
  • 6x U.2 NVMe Drive Bays

Features

  • 2x AMD EPYC™ 7002/7003 Series Processors
  • 8x NVIDIA HGX™ A100 GPUs (A100 40GB SXM4 GPUs with NVIDIA® NVLink® interconnect and PCIe Gen4 to host CPUs)
  • 32x DIMM Sockets Support DDR4 ECC RDIMM/LRDIMM
  • Expansion Slots
    - 8 PCI-E 4.0 x16 Slots (LP) (via RDMA for IB EDR)
    - 1 PCI-E 4.0 x16 Slot (LP) (Front)
    - 1 PCI-E 4.0 x8 Slot (LP) (Front)
  • 6x 2.5" U.2 NVMe Drive Bays
    - 4x 2.5" Connected to PCIe Switch
    - 2x 2.5" from CPUs
  • 2x M.2 NVMe SSDs
  • Integrated Management LAN
  • 3000W (2+2) Redundant Power Supplies*, Titanium Level


* Full redundancy based on configuration and application load



Technical Specifications

CPU • Socket SP3
• Dual AMD EPYC™ 7002/7003 Series Processors
• TDP up to 280W
GPU • SXM Multi-GPU Board 8-GPU
• HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)
• PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect
• NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect
Memory • 32 DIMM Sockets
• Supports up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
• Memory Type 3200MHz ECC DDR4 RDIMM/LRDIMM
I/O Expansion • 8 PCI-E 4.0 x16 via PCI-E switch - supporting HGX A100 8-GPUs 1:1 connection to 8 NICs
• 1 PCI-E 4.0 x16 (LP)
• 1 PCI-E 4.0 x8 (LP)
Onboard Devices Chipset
• System on Chip (SoC)
SATA
• SATA3 (6Gbps)
Network Controllers
• Provided via AIOM
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 4x SATA3 (6Gbps) ports
LAN
• Provided by AIOM
• 1 RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (front)
VGA
• 1 VGA Connector (front)
COM Port
• 1 COM port (header)
Storage • 6x 2.5" hot-swap U.2 NVMe drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA)
Power Supply • 3000W Redundant Level Power Supplies*
• 80PLUS Titanium Certified

* Full redundancy based on configuration and application load
System Cooling • 4x hot-swap 11.5K RPM heavy duty fans
BIOS • AMI 256Mb SPI Flash ROM
Chassis Form Factor • 4U Rackmount
• Dimension (HxWxD): 6.9" (174mm) x 17.6" (446mm) x 35.4" (900mm)

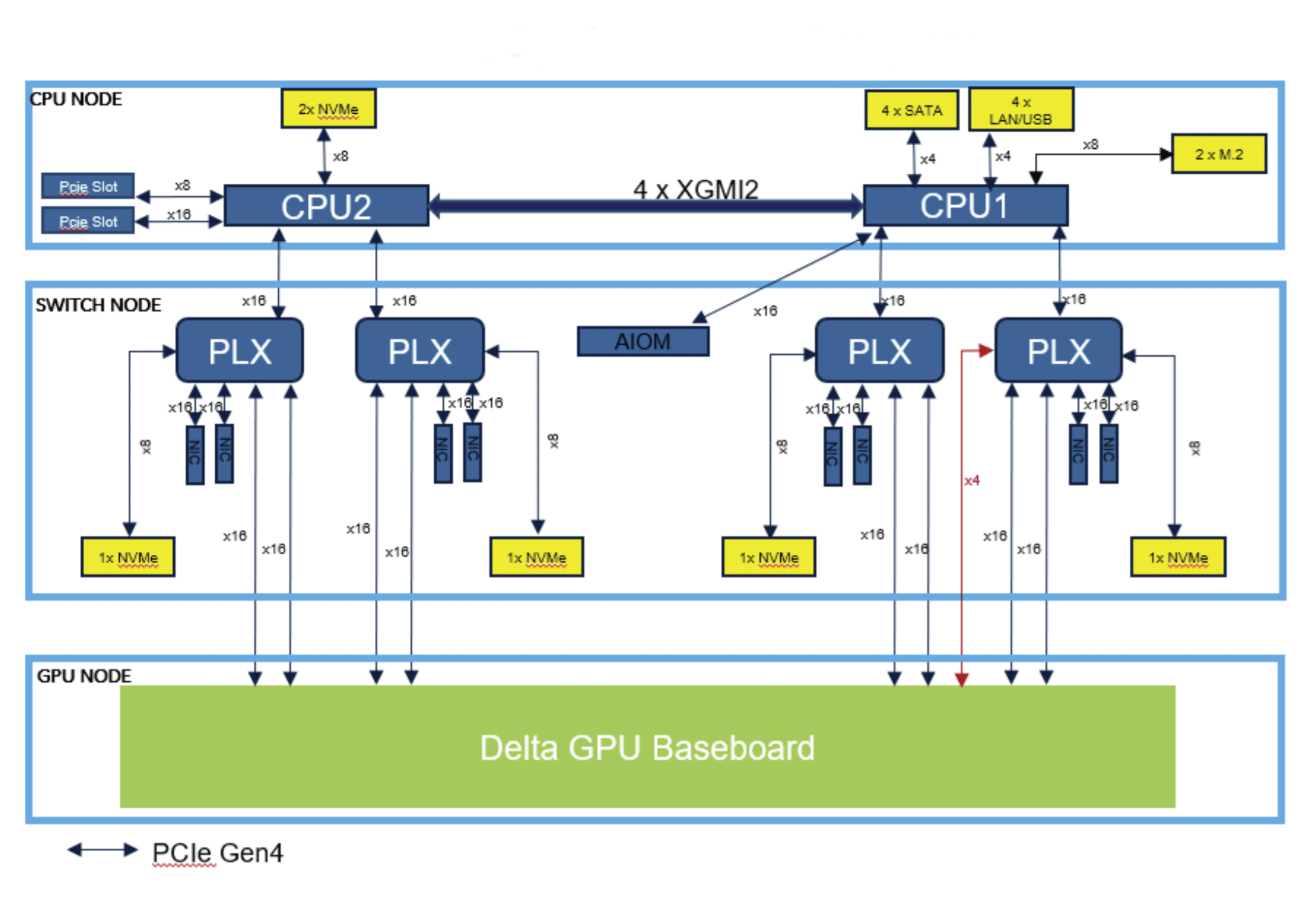

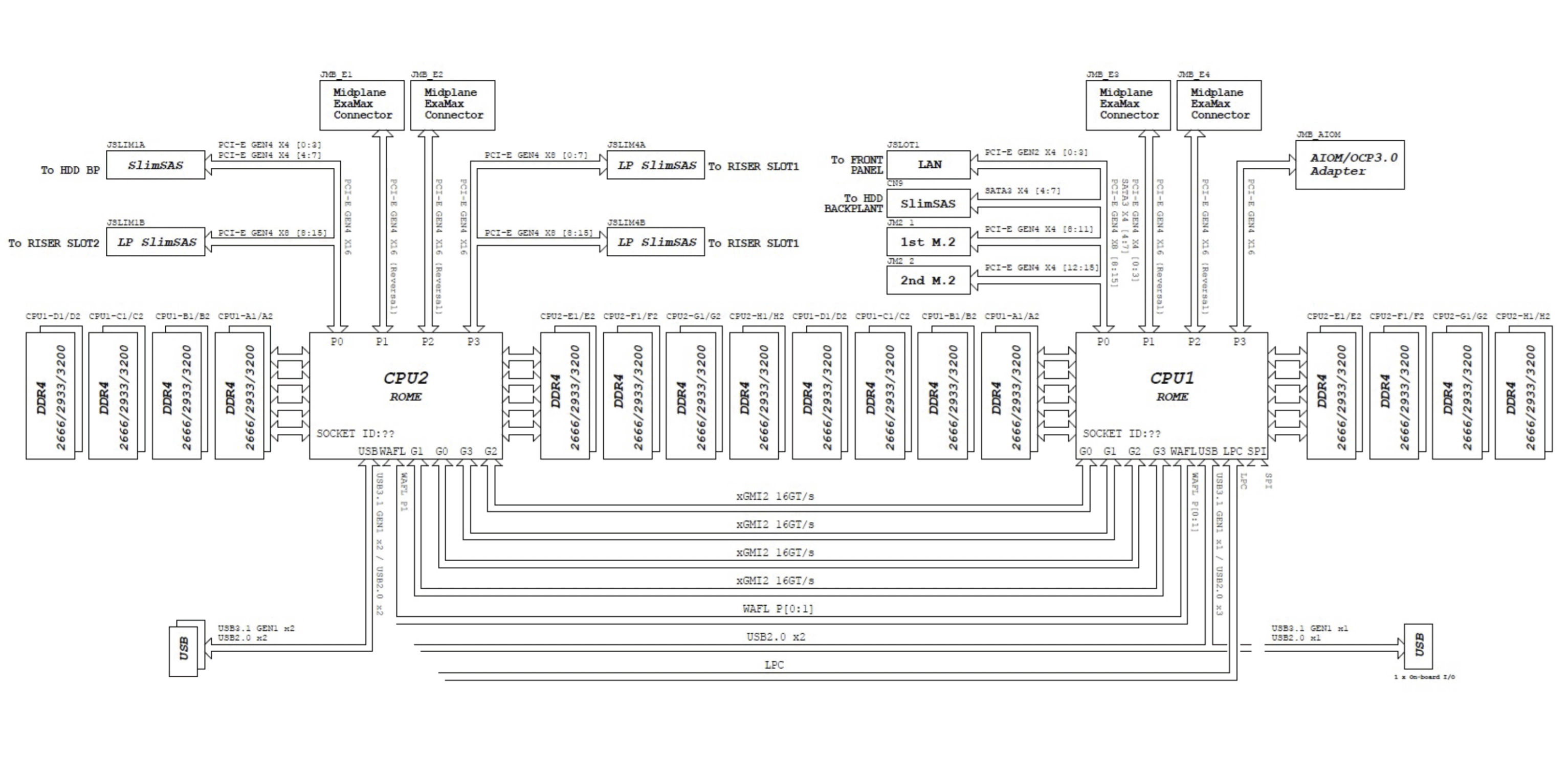

Block Diagram

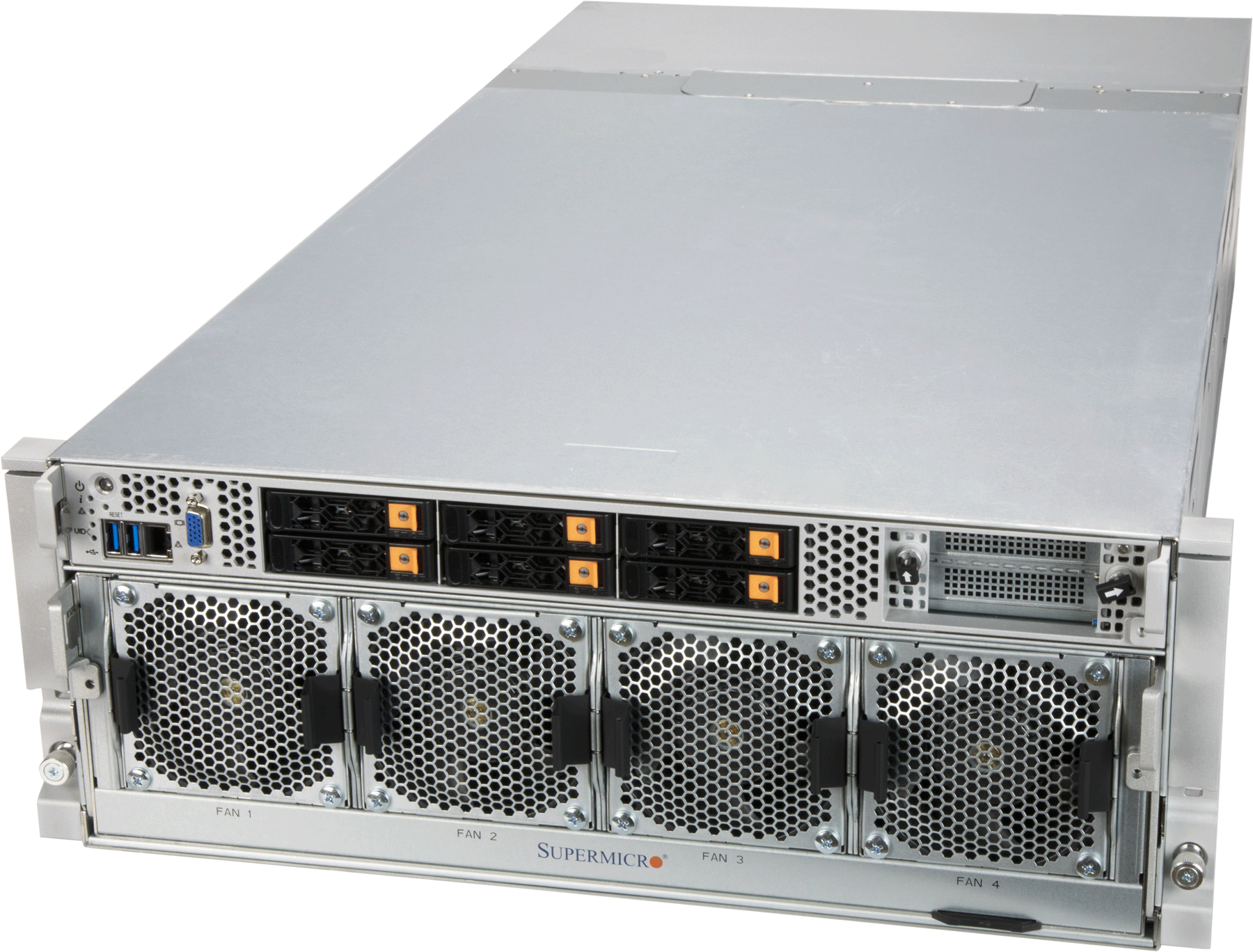

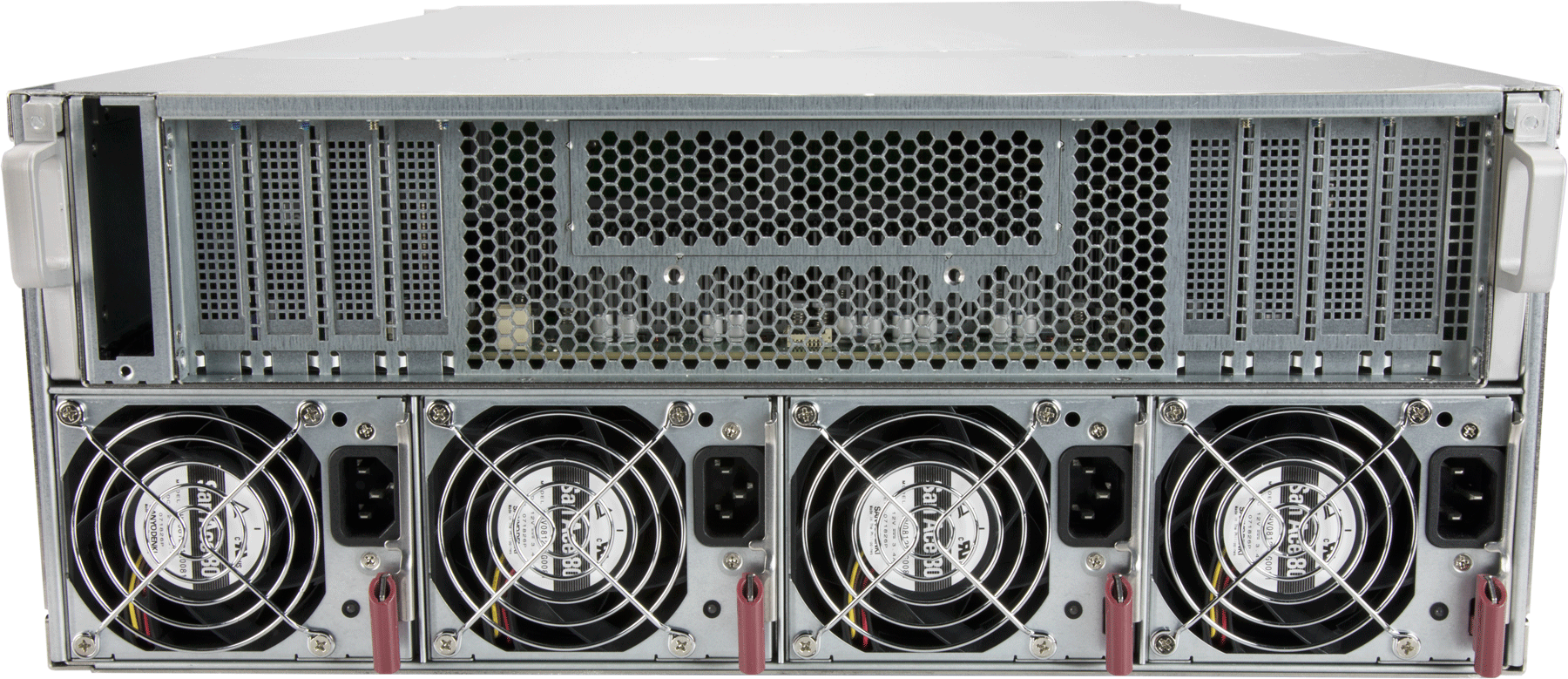

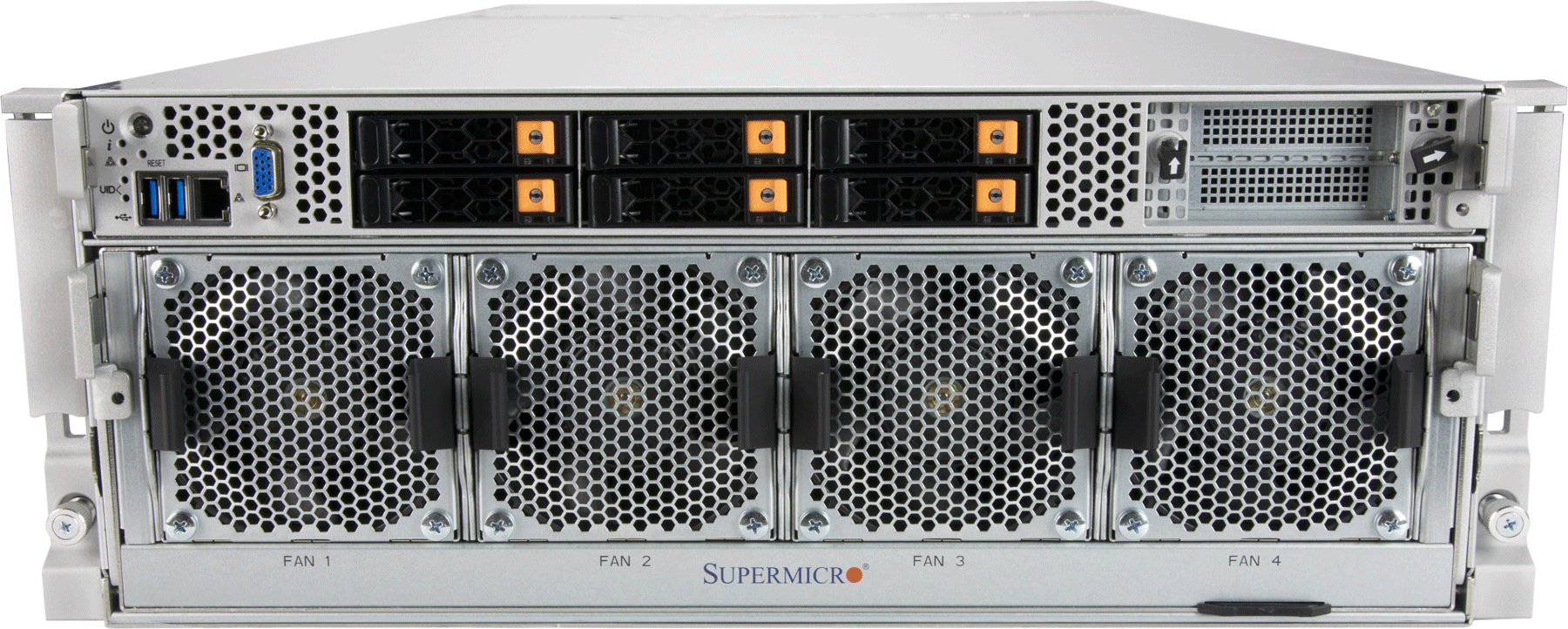

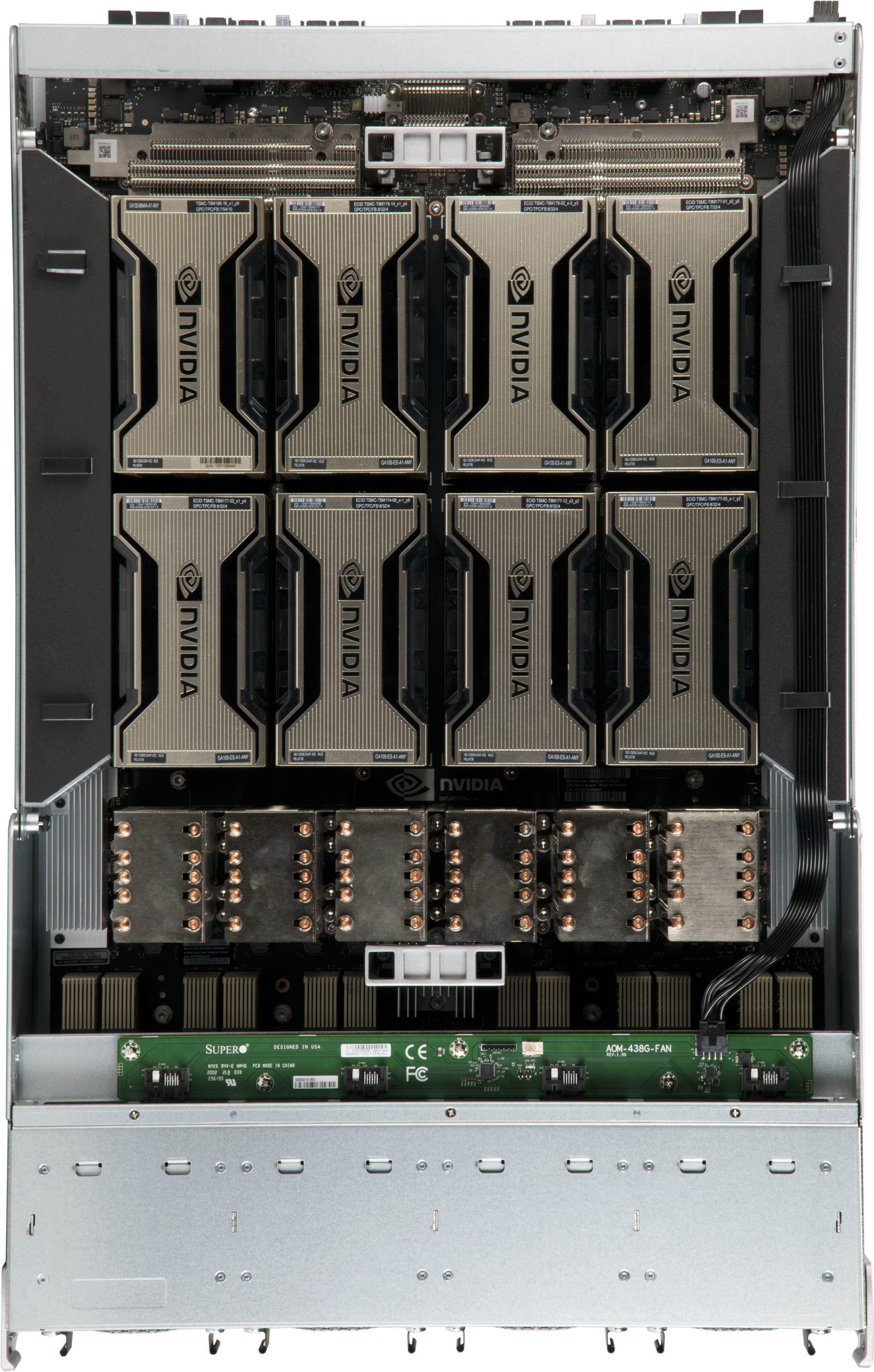

Images


$113,840.34


  Qty.Colfax CX4880s-EK8 4U Rackmount Server, Cost As Configured $113,840.34
