Colfax CX4880s-XK8 4U Rackmount Server




  • 2x 3rd Gen Intel® Xeon® Scalable Processors

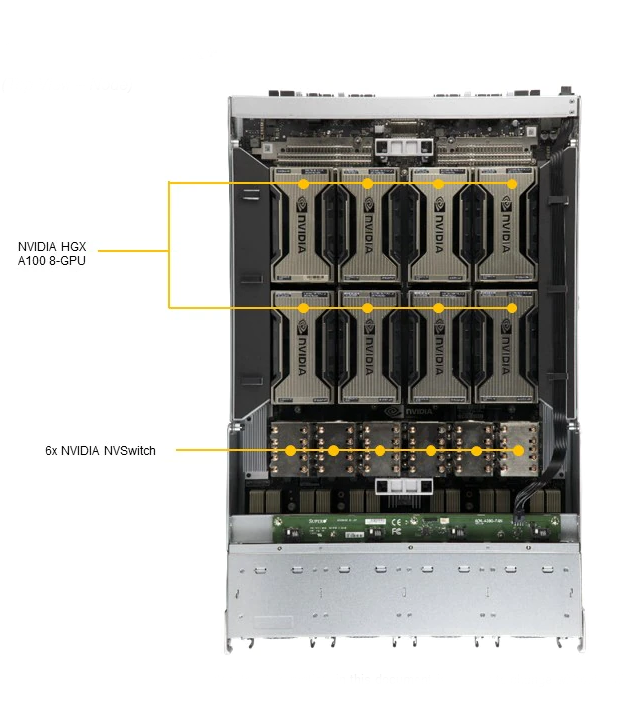

  • NVIDIA HGX™ A100 8-GPU
  • 10x 2.5" U.2 NVMe Drive Bays (4 Rear)

Features

  • 4U Rackmount
  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • NVIDIA HGX™ A100 8-GPU (8x A100 40GB/80GB SXM4 GPUs with NVIDIA® NVLink® Interconnect and PCIe Gen4 to host CPUs)
  • Intel C621A Chipset
  • 32x DDR4 Memory Sockets Support RDIMM or LRDIMM
  • Expansion Slots
    - 10 PCI-E 4.0 x16 Slots (LP)
    - 1x AIOM or OCP Gen3 4.0 x16 Mezzanine Slot
  • 10x 2.5" U.2 NVMe Drive Bays (4 Rear)
  • 2x M.2 NVMe SSDs
  • Flexible Networking Options with AIOM
  • 3000W Redundant Power Supplies
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Chassis Form Factor • 4U Rackmount
• Dimensions: Height 6.9" (174mm), Width 17.6" (446mm), Depth 35.4" (900mm)
CPU • Dual Socket P+ (LG-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processors
• TDP up to 270W
GPU CPU-GPU Interconnect
• PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
• NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect
Memory • 32x DDR4 DIMM slots
• Supports up to 8TB: 32x 256 GB DRAM
• Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Chipset • Intel® C621A chipset
I/O Expansion • 10 PCI-E 4.0 x16 slots (LP)
• 1 AIOM or OCP Gen3 4.0 x16 Mezzanine Slot
Onboard Devices SATA
• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
• Provided via AIOM
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 8x SATA 3.0 ports (6Gbps)
LAN
• Provided by AIOM
• 1x RJ45 Dedicated IPMI LAN port
USB
• 2 USB 3.0 ports (front)
Video
• 1x VGA connector
Serial Port
• 1x COM port (header)
Power Supply • 4x 3000W Redundant Power Supplies
AC Input
• 2880W: 200-207Vdc / 15.7A-16A / 50-0Hz
• 3000W: 207.1-240Vdc / 14.5A-16A / 50-0Hz
• 3000W: 240Vdc / 15A Max (CQC only)
Certification
• 80PLUS Titanium Certified

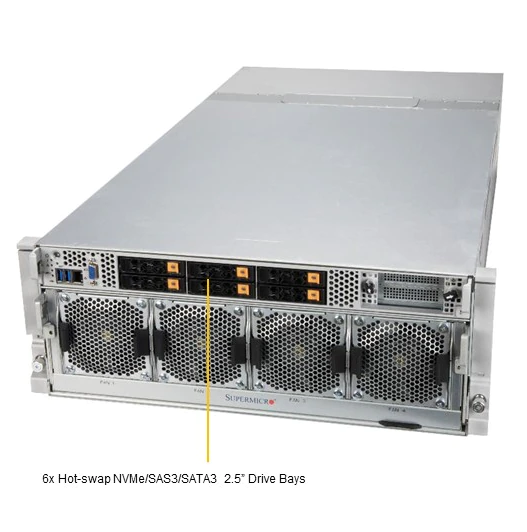

Drive Bays Front
• 6x 2.5" hot-swap NVMe/SATA/SAS drive bays
Rear
• 1U 4-slot SFF backplane supports 4x NVMe/SATA/SAS storage devices
M.2
• 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling • 4 heavy duty fans with optimal fan speed control
BIOS Type • AMI 32Mb SPI Flash ROM

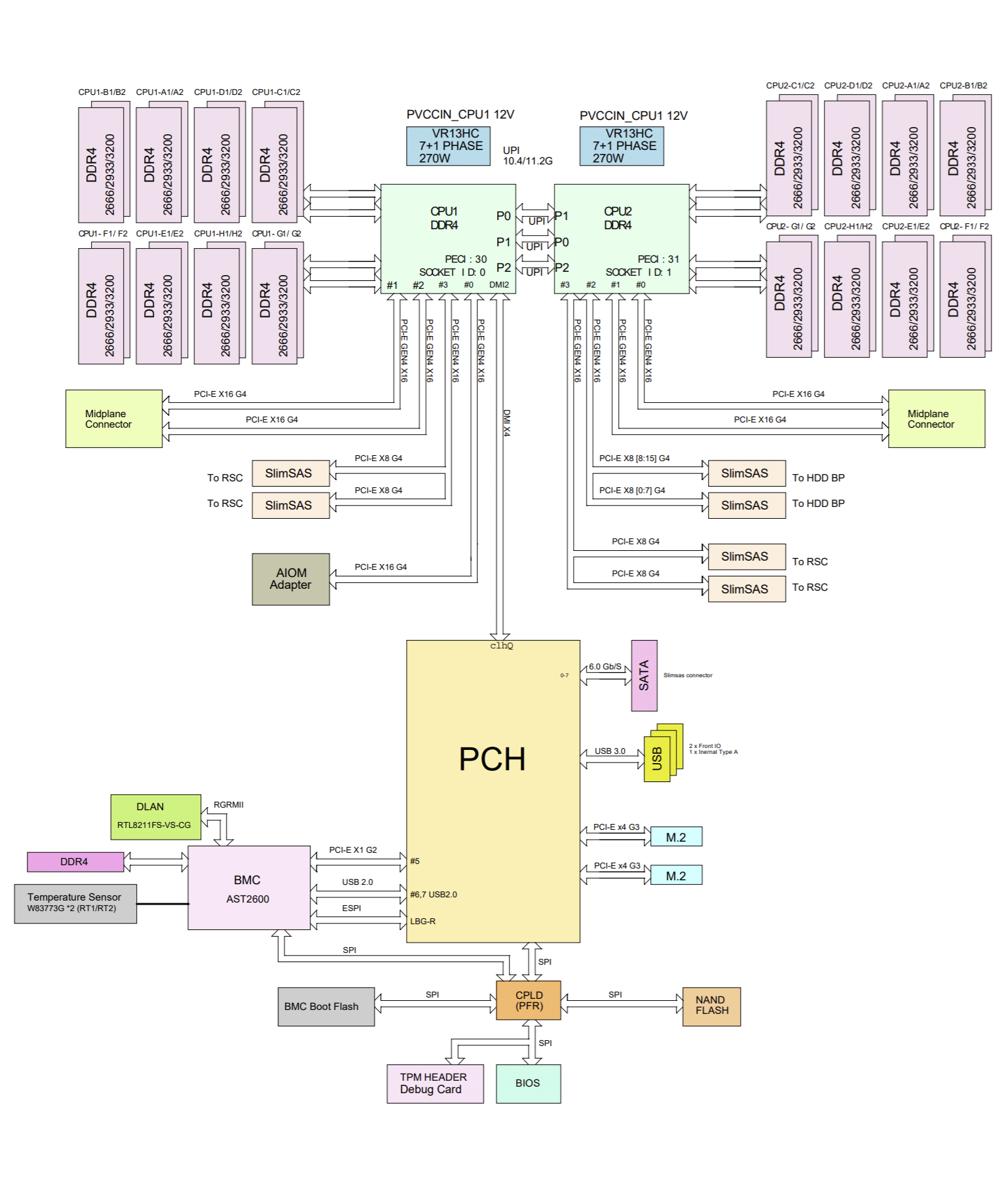

Block Diagram


Images


$156,803.61


  Qty.Colfax CX4880s-XK8 4U Rackmount Server, Cost As Configured $156,803.61
Base Platform 1
Nvidia A100 1
Primary CPU 1
Secondary CPU 1
CPU 1 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 1 - Socket 2 of 16    1
CPU 1 - Socket 3 of 16    1
CPU 1 - Socket 4 of 16    1
CPU 1 - Socket 5 of 16    1
CPU 1 - Socket 6 of 16    1
CPU 1 - Socket 7 of 16    1
CPU 1 - Socket 8 of 16    1
CPU 1 - Socket 9 of 16    1
CPU 1 - Socket 10 of 16    1
CPU 1 - Socket 11 of 16    1
CPU 1 - Socket 12 of 16    1
CPU 1 - Socket 13 of 16    1
CPU 1 - Socket 14 of 16    1
CPU 1 - Socket 15 of 16    1
CPU 1 - Socket 16 of 16    1
CPU 2 - Socket 1 of 16    1

Set next    items (  ) like this
CPU 2 - Socket 2 of 16    1
CPU 2 - Socket 3 of 16    1
CPU 2 - Socket 4 of 16    1
CPU 2 - Socket 5 of 16    1
CPU 2 - Socket 6 of 16    1
CPU 2 - Socket 7 of 16    1
CPU 2 - Socket 8 of 16    1
CPU 2 - Socket 9 of 16    1
CPU 2 - Socket 10 of 16    1
CPU 2 - Socket 11 of 16    1
CPU 2 - Socket 12 of 16    1
CPU 2 - Socket 13 of 16    1
CPU 2 - Socket 14 of 16    1
CPU 2 - Socket 15 of 16    1
CPU 2 - Socket 16 of 16    1
M.2 NVMe Drive 1    1

Set next    items (  ) like this
M.2 NVMe Drive 2    1
NVM-E Drive 1    1

Set next    items (  ) like this
NVM-E Drive 2    1
NVM-E Drive 3    1
NVM-E Drive 4    1
NVM-E Drive 5    1
NVM-E Drive 6    1
Rear NVM-E Cage 1
Rear NVM-E Drive 1    1

Set next    items (  ) like this
Rear NVM-E Drive 2    1
Rear NVM-E Drive 3    1
Rear NVM-E Drive 4    1
Supermicro LAN AOC 1
Ethernet HBA 1
Infiniband HBA 1    1

Set next    items (  ) like this
Infiniband HBA 2    1
Infiniband HBA 3    1
Infiniband HBA 4    1
Infiniband HBA 5    1
Infiniband HBA 6    1
Infiniband HBA 7    1
Infiniband HBA 8    1
TPM 1
Operating System SW 1
   Colfax CX4880s-XK8 4U Rackmount Server, Cost As Configured $156,803.61
