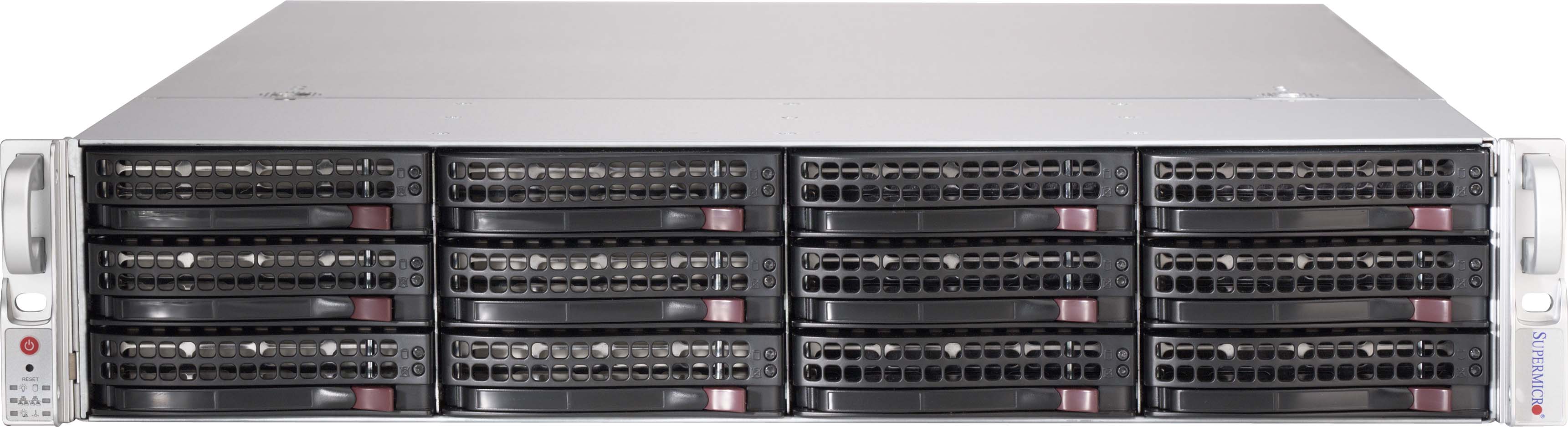

Colfax CX21220s-JBOD

12x 3.5" Hot-Swap Drive Bays
Single or Dual Expander Supports SAS3 (12Gb/s)
4x (Single Expander) or 8x (Dual Expander) Mini-SAS HD ports for Internal / External Cascading Expander Combination
1x IPMI port for Remote System Power On/Off and System Monitoring
Supports NTP for Time Synchronization & RTC Battery Backup
600W (1+1) 94% Efficient Platinum Level Power Supplies
3x Hot-Swap Cooling Fans


Chassis Form Factor	• 2U Rackmount • Dimensions: Height 3.5" (89mm), Width 17.2" (437mm), Depth 25.5" (647 mm)
Storage	• 12x 3.5" hot-swap HDD bays
Qualified SAS Controllers	• AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
Backplane	• 12-port 2U SAS3 12Gbps single-expander backplane OR • 12-port 2U SAS3 12Gbps dual-expander backplane (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
System Cooling	• 3 x 80x38mm hot-swap cooling fans
Power Supply	• 600W / 650W 1U Redundant Power Supply Total Output Power and Input • 600W with Input 100 - 127Vac • 650W with Input 200 - 240Vac • 650W with Input 200 - 240Vdc AC Input Frequency • 50-60Hz +12V • Max: 50A (100Vac - 127Vac) • Max: 54.16A (200Vac - 240Vac) • Max: 54.16A (200 - 240) +5Vsb • Max: 4A / Min: 0A Power Distributor • PDB-PT826-8824 • O/P: 12V/135A • +5V Max: 40A • +3.3V Max: 24A • -12V Max: 0.6A Certification • 80 PLUS Platinum Level Certified
Front Panel	Buttons • Power On/Off button • System Reset button • Unit Identification (UID) button LEDs • 1x Network activity LED

$2,184.13

	Qty.	Colfax CX21220s-JBOD 2U Rackmount JBOD, Cost As Configured $2,184.13
Base Platform	1
Disk Drive 1	1	Set next items ( ) like this
Disk Drive 2	1
Disk Drive 3	1
Disk Drive 4	1
Disk Drive 5	1
Disk Drive 6	1
Disk Drive 7	1
Disk Drive 8	1
Disk Drive 9	1
Disk Drive 10	1
Disk Drive 11	1
Disk Drive 12	1
Ext RAID Controller	1
Ext SAS Cable 1	1	Set next items ( ) like this
Ext SAS Cable 2	1
Ext SAS Cable 3	1
Ext SAS Cable 4	1
		Colfax CX21220s-JBOD 2U Rackmount JBOD, Cost As Configured $2,184.13
