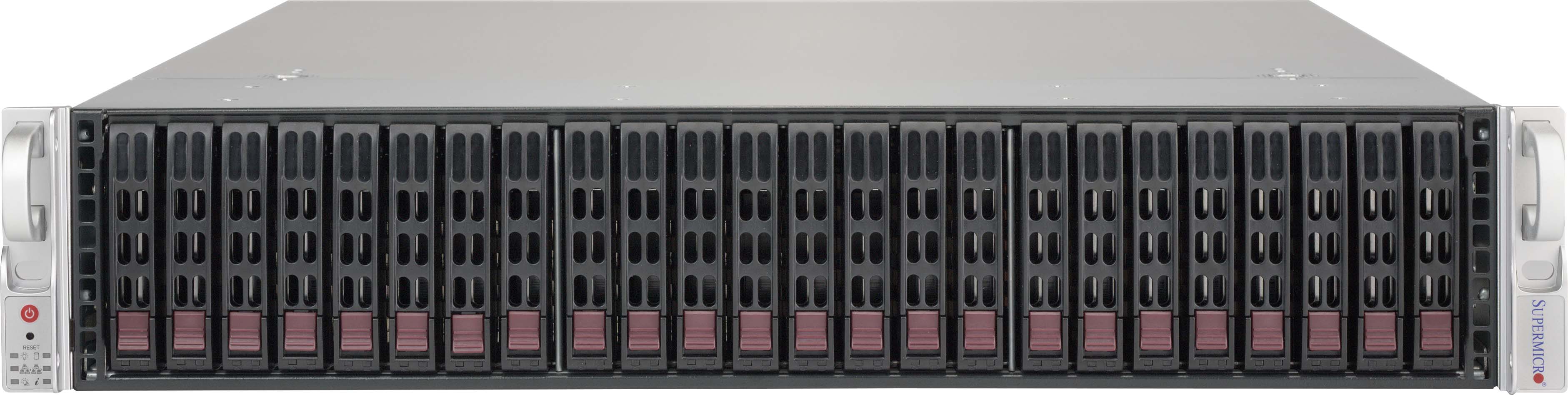

Colfax CX22412s-JBOD




  • 24x 2.5" Drive Bays
  • Single or Dual SAS (12 Gb/s) Expander
  • High Efficiency Redundant Power

Features

  • 24x 2.5" Hot-Swap Drive Bays
  • Single or Dual Expander Supports SAS3 (12Gb/s)
  • 4x (Single Expander) or 8x (Dual Expander) Mini-SAS HD ports for Internal / External Cascading Expander Combination
  • 1x IPMI Port for Remote System Power on/off and System Monitoring
  • Supports NTP for Time Synchronization & RTC Battery Backup
  • 600W (1+1) 94% Efficient Platinum Level Power Supplies
  • 3x Hot-Swap Cooling Fans




Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimensions: Height 3.5" (89mm), Width 17.2" (437mm), Depth 24.8" (630mm)
Storage • 24x 2.5" hot-swap drive bays
Backplane • 24-port 2U SAS3 12Gb/s single expander backplane
OR
• 24-port 2U SAS3 12Gb/s dual expander backplane (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
System Cooling • 3x 80x38mm hot-swap cooling fans
Power Supply • 600W / 650W 1U Redundant Power Supply
Total Output Power and Input
• 600W with Input 100 - 127Vac
• 650W with Input 200 - 240Vac
• 650W with Input 200 - 240Vdc
AC Input Frequency
• 50-60Hz
+12V
• Max: 50A / Min: 0A (100Vac - 127Vac)
• Max: 54.16A / Min: 0A (200Vac - 240Vac)
• Max: 54.16A / Min: 0A (200Vdc - 240Vdc) (for CCC only)
+5Vsb
• Max: 4A / Min: 0A
Power Distributor
• PDB-PT216-2824
• O/P: 12V/100
• +5V Max: 30A
• +3.3V Max: 24A
• -12V Max: 0.6A
Certification
• 80 PLUS Platinum Level Certified
Front Panel Buttons
• Power On/Off button
• System Reset button
• Unit Identification (UID) button
LEDs
• 1x Network activity LED

Images


$2,544.73


  Qty.Colfax CX22412s-JBOD, Cost As Configured $2,544.73
Base Platform 1
Front Disk Drive 1    1

Set next    items (  ) like this
Front Disk Drive 2    1
Front Disk Drive 3    1
Front Disk Drive 4    1
Front Disk Drive 5    1
Front Disk Drive 6    1
Front Disk Drive 7    1
Front Disk Drive 8    1
Front Disk Drive 9    1
Front Disk Drive 10    1
Front Disk Drive 11    1
Front Disk Drive 12    1
Front Disk Drive 13    1
Front Disk Drive 14    1
Front Disk Drive 15    1
Front Disk Drive 16    1
Front Disk Drive 17    1
Front Disk Drive 18    1
Front Disk Drive 19    1
Front Disk Drive 20    1
Front Disk Drive 21    1
Front Disk Drive 22    1
Front Disk Drive 23    1
Front Disk Drive 24    1
Ext SAS Controller 1
Ext SAS Cable 1    1

Set next    items (  ) like this
Ext SAS Cable 2    1
Ext SAS Cable 3    1
Ext SAS Cable 4    1
Ext SAS Cable 5    1
Ext SAS Cable 6    1
Ext SAS Cable 7    1
Ext SAS Cable 8    1
   Colfax CX22412s-JBOD, Cost As Configured $2,544.73
