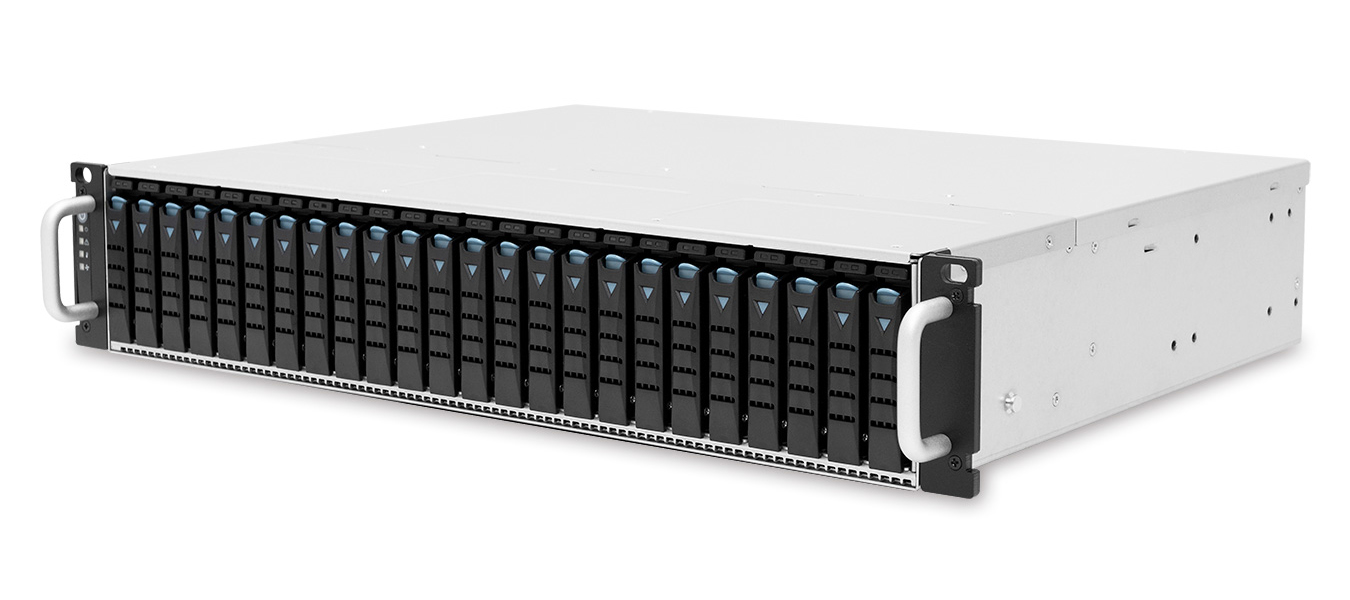

Colfax CX22424c-JBOD




  • 24x 2.5" KIOXIA PM7 Series 24G SAS SSDs
  • Single or Dual SAS-4 (24G) Expander
  • High Efficiency Redundant Power

Models

  • CX22424c-E1-JBOD: Single Expander
  • CX22424c-E2-JBOD: Dual Expanders

Features

  • Short Depth (13.6 inches / 345 mm)
  • 24x 2.5" Hot-Swap KIOXIA PM7 Series 24G SAS SSDs
  • Single or Dual Expander Supports SAS-4
  • 4x Mini-SAS HD (SFF-8674) Ports per Expander Module (backward compatible with SFF-8644 SAS 12G)
  • 1x BMC LAN Port per Expander Module
  • 800W (1+1) Hot-Swap Redundant Power Supplies
  • 2x Hot-Swap Cooling Fans


KIOXIA PM7-V Series (2.5-inch)

Enterprise SAS Mixed Use SSD
KIOXIA PM7-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-V offers 3 DWPD (Drive Writes Per Day) with capacities up to 12.8 TB.

  • 24G SAS interface with single/dual-port support
  • Capacities from 1.6 TB to 12.8 TB
  • Up to 720K random read IOPS (4 KiB) in dual-port mode
  • 2.5-inch form factor, 15 mm thickness
  • 3 DWPD with 100 % Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF

Download Product Brief


KIOXIA PM7-R Series (2.5-inch)

Enterprise SAS Read Intensive SSD
KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

  • 24G SAS interface with single/dual-port support
  • Capacities from 1.92 TB to 30.72 TB
  • Up to 720K random read IOPS (4 KiB) in dual-port mode
  • 2.5-inch form factor, 15 mm thickness
  • 1 DWPD with 100 % Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF

Download Product Brief


PM7-V Series

PM7-R Series

Product Category

Enterprise Mixed Use SSD

Enterprise Read Intensive SSD

Key Applications

> Web servers
> Data warehousing
> Streaming media

> Web servers
> Data warehousing
> Streaming media
> Video on demand (VOD)

DWPD

3

1

Interface

SAS-4, 22.5 Gbit/s

SAS-4, 22.5 Gbit/s

Flash Memory Type

BiCS FLASH™ TLC

BiCS FLASH™ TLC

Storage Capacity (GB)

12,800 / 6,400 / 3,200 / 1,600

30,720 / 15,360 / 7,680 / 3,840 / 1,920

Security Option

SIE, SED, FIPS SED

SIE, SED, FIPS SED

Form Factor

2.5-inch

2.5-inch







Technical Specifications

Chassis Form Factor • 2U Rackmount
• Dimensions: Height 3.4" (87.5mm), Width 17.2" (438mm), Depth 13.6" (345mm)
Mounting • Standard 20" tool-less rail (Optional)
Expander
Number of Expanders • Single/Dual
Expander Chip • LSI SAS4X40
Host/Expansion Interface • 4x Mini-SAS HD (SFF-8674) ports per expander module (backward compatible with SFF-8644 SAS12G)
Drives Supported
# of Drives • 24x 2.5" hot-swap
Drive Interface • 24Gb & 12Gb SAS if using dual expanders
• 24Gb & 12Gb & 6Gb SAS/SATA if using single expander
Administration / Management
Admin/Firmware Upgrade • In-band & Serial port interface
• IEM port
LED Indicators, Audible Alarm • Yes
Hot-Swap and Redundancy
Disk Drives • 24x hot-swap
Cooling • 2x 60x56mm hot-swap fans
Power Supply • 800W 1+1 hot-swap redundant 80 Plus Titanium
Power Entry • Dual AC Inlet
Expander Modules • Dual expanders (Optional)
Electrical and Environmental
Universal A/C Input • 100~127V~, 50/60Hz, 10A
• 200~240V~, 50/60Hz, 5A
Operating Environment • Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-Operating Environment • Storage temperature: -20° ~ 60°C
• System relative humidity: 10% - 90%

Images
