Western Digital Ultrastar Edge-MR Ruggedized Edge Server




High Performance Edge Server Designed for Harsh Environments
Extreme environments demand extreme performance. Deploy remote data capture and analytics right where you need them and extend your field of operation with the Western Digital Ultrastar® Edge-MR militarized and ruggedized server. This high-performance edge server delivers data center cloud-like services even in disconnected locations. Gain a tactical edge by processing data close to where it’s generated for reduced latency and better, faster decision-making capabilities. The ruggedized housing is designed and tested to MIL-STD-810-G CHG-1 standards for shock and vibration, and even when operating it meets IP32 ingress protection.

Inquire for Pricing

Download Product Brief


Highlights

  • Extreme performance with 40 CPU cores and 512GB memory
  • Graphical processor unit for AI/ML tasks
  • Over 60TB of Ultrastar NVMe™ flash storage
  • High-performance 100GbE networking
  • Militarized and ruggedized for extreme environments

Applications and Workloads

  • Seismic Data
  • Scientific Exploration
  • Government, Military
  • Public Cloud Providers - IaaS & PaaS


Technical Specifications

Physical Dimensions • Height: 292mm (11.5")
• Width: 609.6mm (24")
• Depth: 952.5mm (37.5")
Weight • 32.35kg (71.1lbs)
Max Drives • 8 Ultrastar DC SN640 NVMe SSDs
• 7.68TB per SSD, 1 DW/D, ISE (Instant Secure Erase)
Boot Drives • 2 M.2 NVMe 1TB SSDs
CPU • 2 Intel® Xeon® Gold 6230T, 2.1GHz, 20 cores each, 125W TDP
Memory • 512GiB DDR4 Installed (8x 64GiB DIMMs)
GPU • NVIDIA® Tesla® T4
Networking • Dual 10GBase-T RJ-45
• Mellanox® ConnectX®-5 100GbE QSFP28
I/O • 1 Serial DB9 Console Port
Power Supply • 850W
• 100-240V AC input, auto-ranging
• 80 Plus Platinum
Cooling Fans • 4 60mm fans
Management • IPMI 2.0 system management
• Dedicated DB9 Serial management port
Environmental • Operating Temperature: 0°C to 43°C
• Non-op Temperature: -5°C to 63°C
• Operating Altitude: 3,050m (10,000ft)
Ingress Protection • IP32 (Operating)
Physical Security • FIPS140-2 Level 2

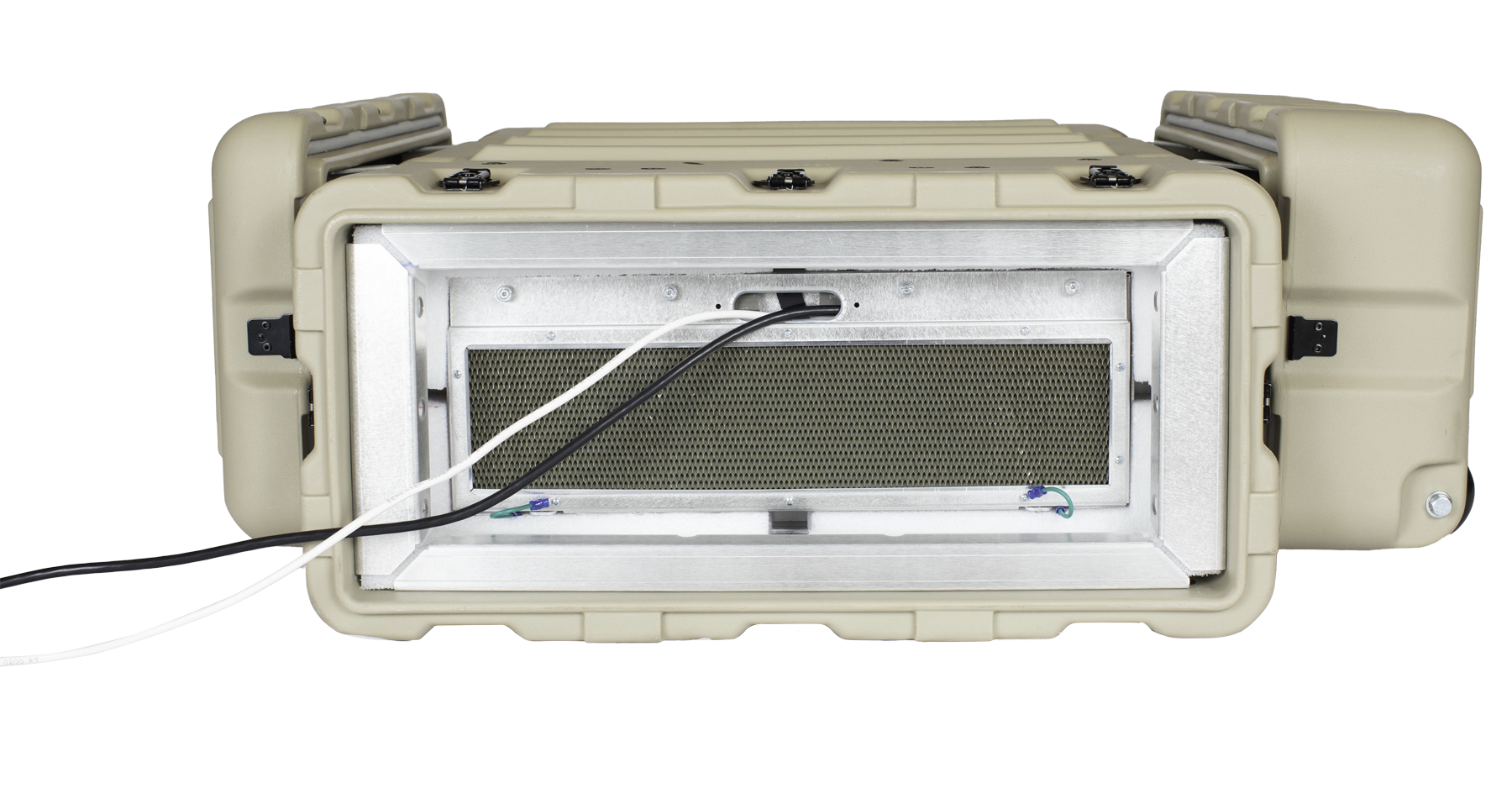

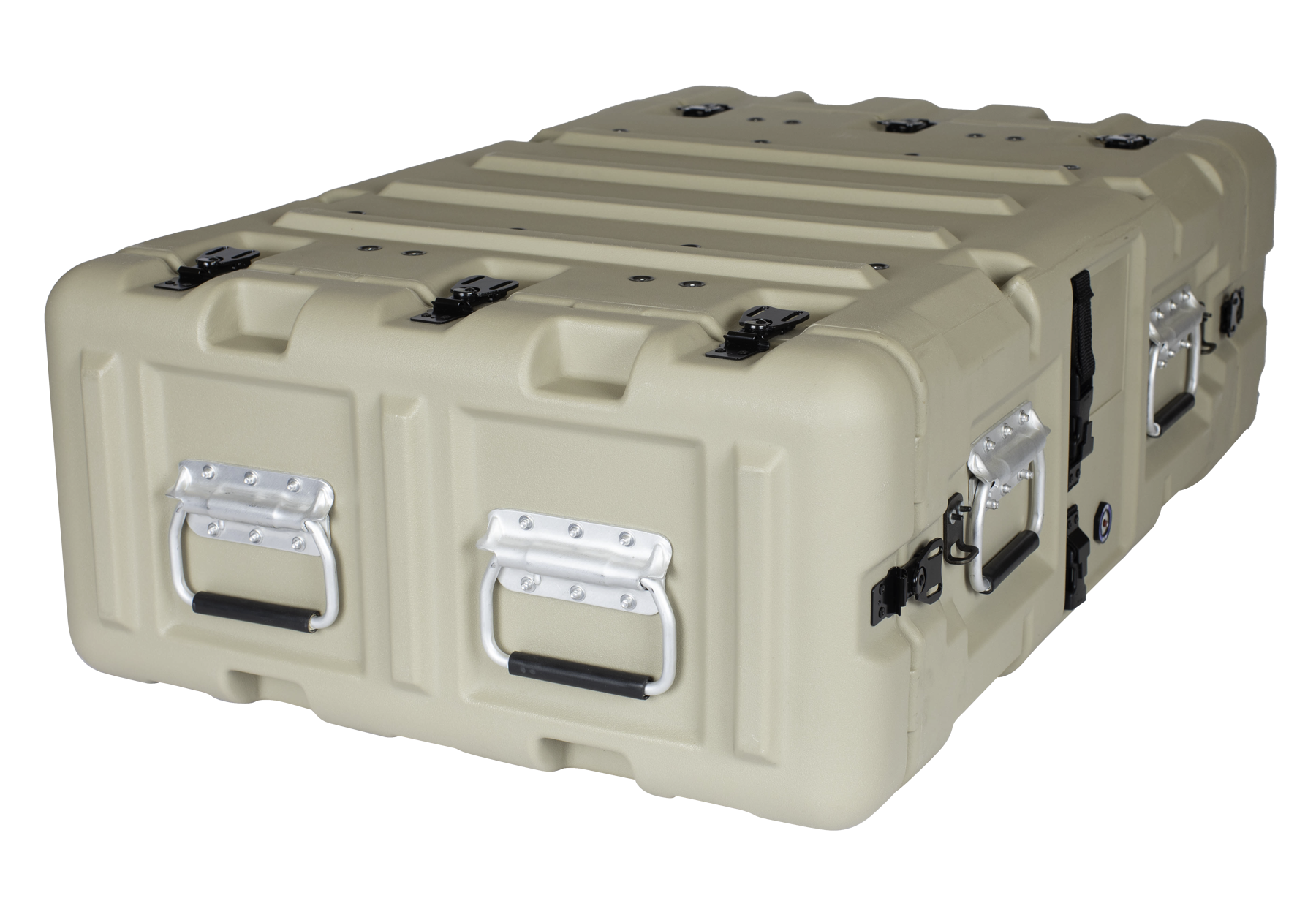

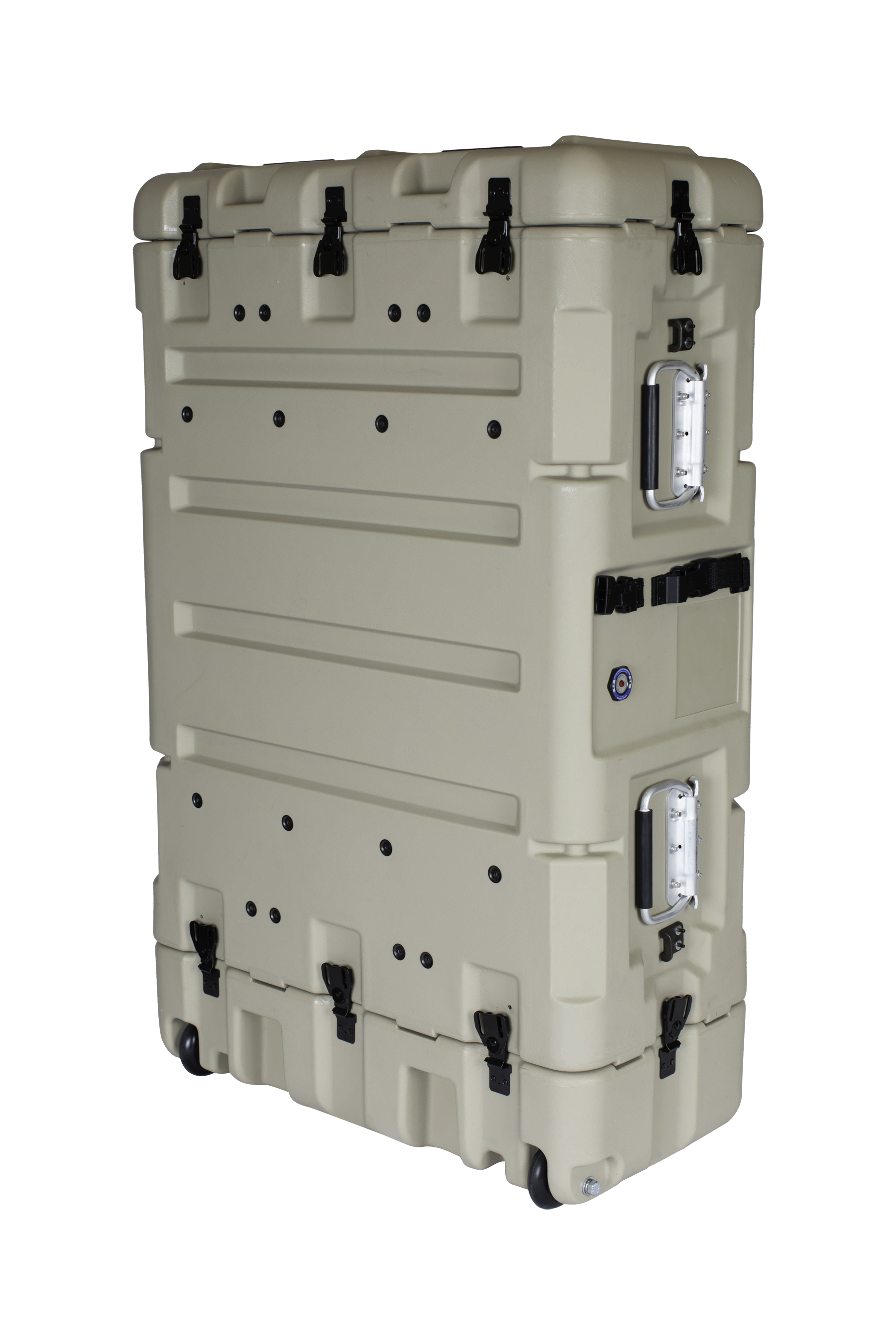

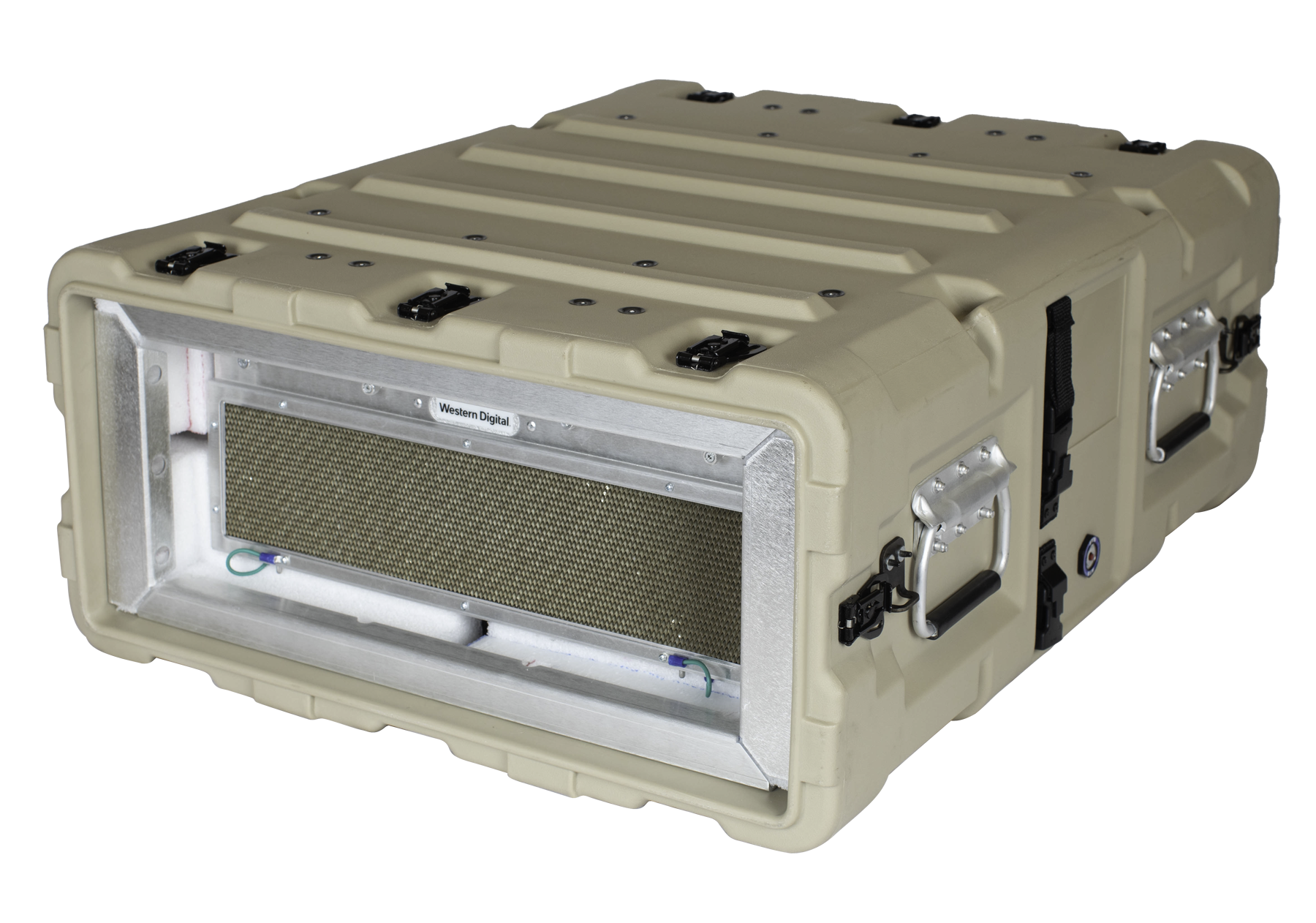

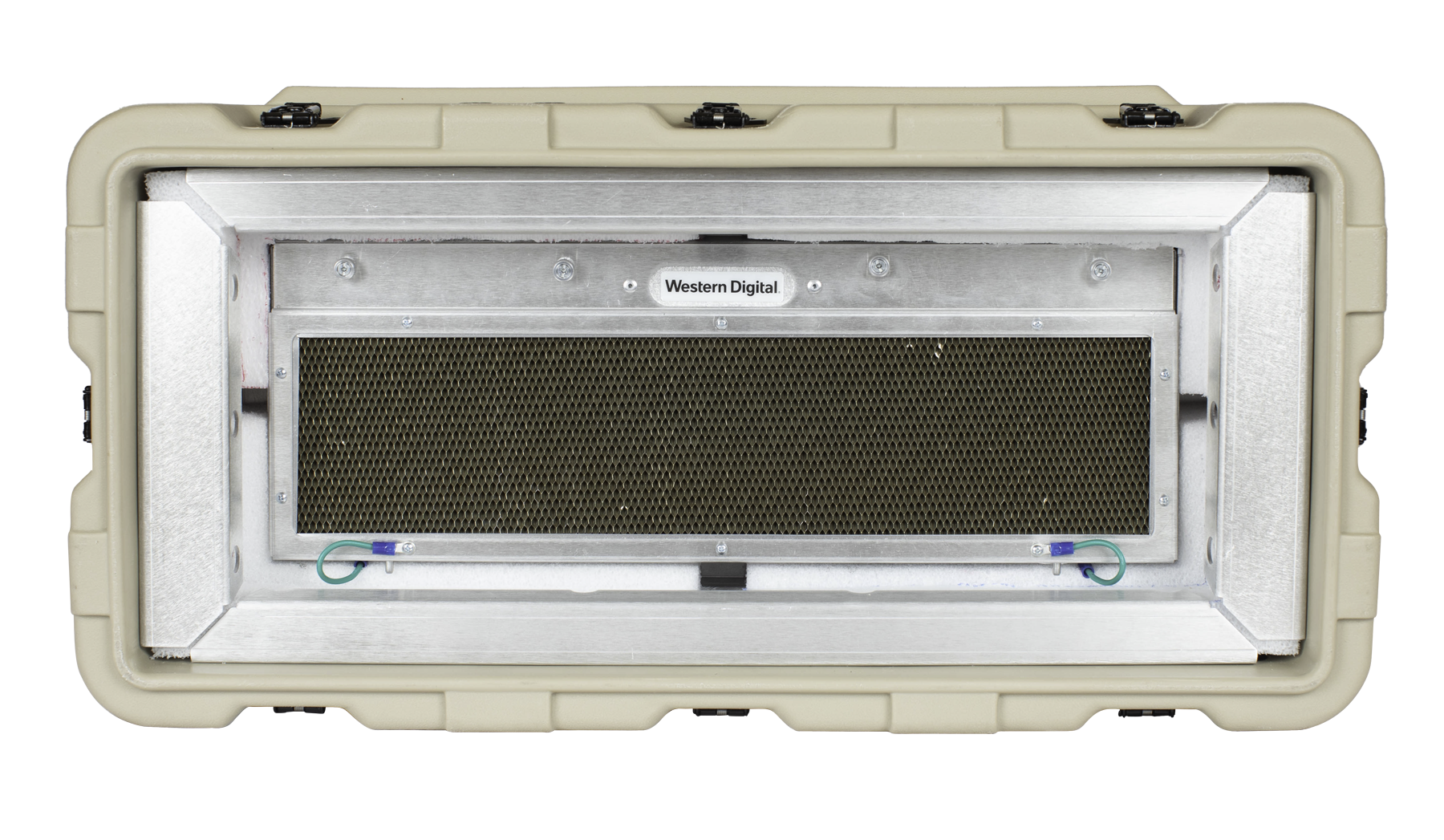

Images
