NVIDIA DGX A100


ESSENTIAL BUILDING BLOCK OF THE AI DATA CENTER




NVIDIA DGX™ A100 is the universal system for all AI workloads, offering unprecedented compute density, performance, and flexibility in a 5 petaFLOPS AI system. NVIDIA DGX A100 features the world’s most advanced accelerator, the NVIDIA A100 Tensor Core GPU, enabling enterprises to consolidate training, inference, and analytics into a unified, easy-to-deploy AI infrastructure that includes direct access to NVIDIA AI experts.


NVIDIA DGX A100
The Challenge of Scaling Enterprise AI

Every business needs to transform using artificial intelligence (AI), not only to survive, but to thrive in challenging times. However, the enterprise requires a platform for AI infrastructure that improves upon traditional approaches, which historically involved slow compute architectures that were siloed by analytics, training, and inference workloads. The old approach created complexity, drove up costs, constrained speed of scale, and was not ready for modern AI. Enterprises, developers, data scientists, and researchers need a new platform that unifies all AI workloads, simplifying infrastructure and accelerating ROI.

The Universal System for Every AI Workload
DGX A100 sets a new bar for compute density, packing 5 petaFLOPS of AI performance into a 6U form factor, replacing legacy compute infrastructure with a single, unified system. DGX A100 also offers the unprecedented ability to deliver fine-grained allocation of computing power, using the Multi-Instance GPU capability in the NVIDIA A100 Tensor Core GPU, which enables administrators to assign resources that are right-sized for specific workloads. This ensures that the largest and most complex jobs are supported, along with the simplest and smallest. Running the DGX software stack with optimized software from NGC, the combination of dense compute power and complete workload flexibility make DGX A100 an ideal choice for both single node deployments and large scale Slurm and Kubernetes clusters deployed with NVIDIA DeepOps.

Inquire for Pricing

Download Datasheet

Download User Guide



SPECIFICATIONS

GPUs 8x NVIDIA A100 Tensor Core GPUs
GPU Memory 320 GB total
Performance 5 petaFLOPS AI
10 petaOPS INT8
NVIDIA NVSwitches 6
System Power Usage 6.5kW max
CPU Dual AMD Rome 7742, 128 cores total, 2.25 GHz (base), 3.4 GHz (max boost)
System Memory 1 TB
Storage OS: 2x 1.92TB M.2 NVME drives
Internal Storage: 15TB (4x 3.84TB) U.2 NVME drives
Network 8x Single-Port Mellanox ConnectX-6 VPI
- 200Gb/s HDR InfiniBand
1x Dual-Port Mellanox ConnectX-6 VPI
- 10/25/50/100/200Gb/s Ethernet

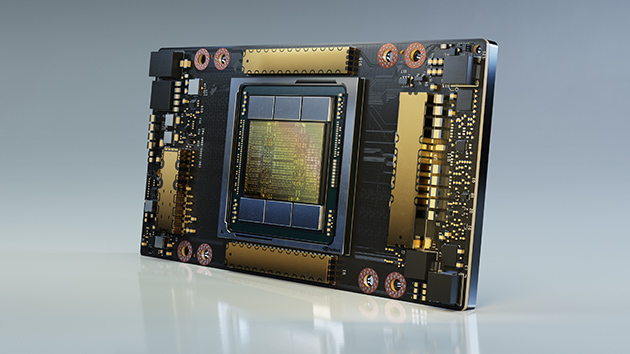

NVIDIA A100 TENSOR CORE GPU
Unprecedented Acceleration at Every Scale

The NVIDIA A100 Tensor Core GPU delivers unprecedented acceleration at every scale for AI, data analytics, and high-performance computing (HPC) to tackle the world’s toughest computing challenges. As the engine of the NVIDIA data center platform, A100 can efficiently scale to thousands of GPUs or, with NVIDIA Multi-Instance GPU (MIG) technology, be partitioned into seven GPU instances to accelerate workloads of all sizes. And third-generation Tensor Cores accelerate every precision for diverse workloads, speeding time to insight and time to market.

Download Ampere Architecture Whitepaper

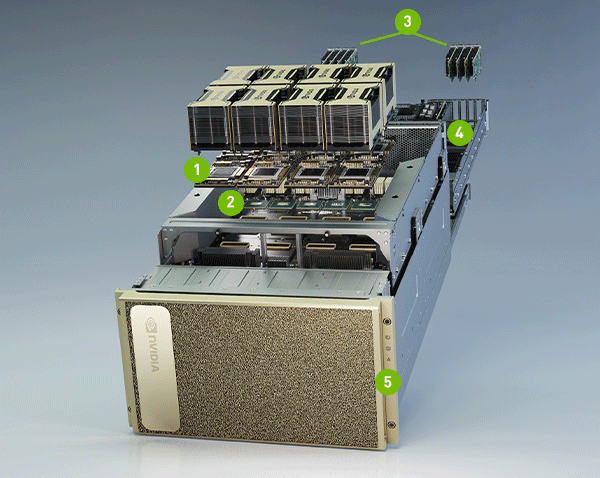

Explore the powerful components of DGX A100

Explore the powerful components of DGX A100

1 8X NVIDIA A100 GPUS WITH 320 GB TOTAL GPU MEMORY
12 NVLinks/GPU, 600 GB/s GPU-to-GPU Bi-directonal Bandwidth.

2 6X NVIDIA NVSWITCHES
4.8 TB/s Bi-directional Bandwidth, 2X More than Previous Generation NVSwitch.

3 9x MELLANOX CONNECTX-6 200Gb/S NETWORK INTERFACE
450 GB/s Peak Bi-directional Bandwidth.

4 DUAL 64-CORE AMD CPUs AND 1 TB SYSTEM MEMORY
3.2X More Cores to Power the Most Intensive AI Jobs.

5 15 TB GEN4 NVME SSD
25GB/s Peak Bandwidth, 2X Faster than Gen3 NVME SSDs.

NVIDIA DGX A100 Warranty and Support

WARRANTY - 3 Years

SUPPORT1,2,3 - 3 or 5 Years

What's Included in NVIDIA DGX Systems Support

  • Access to the latest software updates and upgrades
  • Direct communication with NVIDIA technical experts
  • A private NGC™ container repository for accessing NVIDIA-optimized AI software with powerful sharing and collaboration features for your organization
  • A searchable knowledge base with how-to articles, application notes, and product documentation
  • Rapid response and timely issue resolution through a support portal and 24x7 phone access
  • Lifecycle support for NVIDIA DGX systems AI software
  • Remote hardware support, including diagnostic tools to bring systems back to fully functional
  • Onsite hardware support and replacement, including advanced return merchandise authorization (RMA) for the next business day

For complete details of these services, view the "DGX Systems Appliance Support Services Terms and Conditions" and the End-User License Agreement (EULA).
NVIDIA DGX A100 Onsite Spares Service Program Datasheet
NVIDIA DGX A100 Media Retention Datasheet

1 - 3 or 5 Years Support is required when ordering a NVIDIA DGX A100.
2 - Installation Service is required when ordering a NVIDIA DGX A100.
3 - Additional Media Retention (CMR or SDMR) Services may be purchased in addition to the equivalent Support Services
