Seagate® Exos™ AP 5U84


The datasphere’s affordable application platform for growth, performance, and high capacity.

Minimize your TCO and store up to 1.344PB1 of data with an enclosure that leads the industry in both density and cost-for-performance while enabling easy change in functionality by swapping to EBOD expansion controllers or hardware-based RAID controllers.

More Information

Product Highlights

  • Maximize your investment with this low-TCO integrated compute and high-density storage system
  • Leverage industry-leading CPU technology

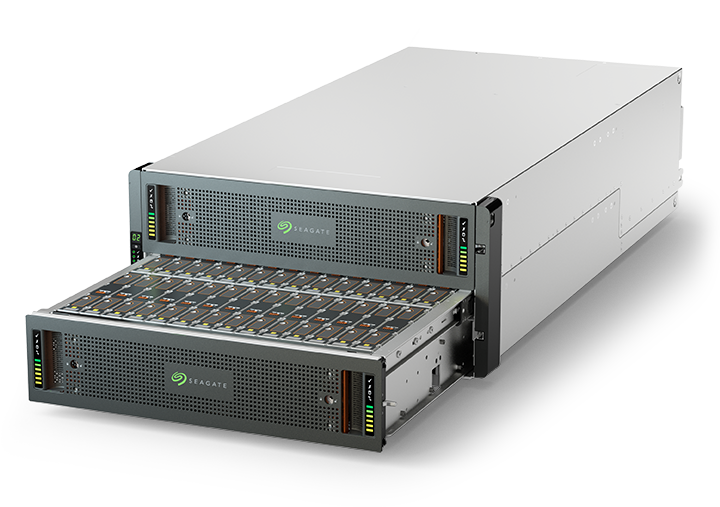

  • Efficiently manage your data center with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
  • Future-proof your data center with support for current and next-generation HDDs and SSDs
  • Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology

Key Advantages

Reduce Data Center Footprint
Build a space-saving private cloud with this all-in-one high-density, high-capacity building block. With this high-performance solution, you’ll never sacrifice fast input/output data speeds. Future-proofed, this Exos supports a variety of deployments. Modular, interchangeable components mean easy upgrades and fast innovations.

Deliver a Versatile Architecture Built to Grow
Minimize your TCO and store up to 1.344PB1 of data with an enclosure that leads the industry in both density and cost-forperformance while enabling easy change in functionality by swapping to EBOD expansion controllers or hardware-based RAID controllers. This flexible enclosure includes support and capabilities to manage cables, universal ports, self-configuration controls, and standardized zoning.

Ensure Applications Have Access to Critical Data or Create Powerful Multi-Node Configurations
Dual controller redundancy, inter-controller communication and multi-controller drive access safeguards your data with powerful redundancy. Additionally, split the chassis into two nodes to yield powerful multi-node architecture in a single chassis.

Reduce Touch Points Between Storage Modules and Storage Server
This enclosure is suited for both high-capacity and transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and need faster response times for optimal data availability. Recognize cost savings through high performance while reducing power consumption with 80 PLUS Platinum certified adaptive cooling technology.

Build In Security at the Foundation of the Data Life Cycle
Protect your most valuable business assets with Seagate Secure™ SSDs and hard drives.

1 When using Seagate 16TB drives

NOTE: When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual data rates may vary depending on operating environment and other factors, such as chosen interface and disk capacity.

Technical Specifications

Controller Specifications
Controller • One or two AP-BV-1 Controllers, redundancy optional
CPU Per Controller • AMD SP3 7292P EPYC CPU (8,12,16 Core)
Memory Per Controller • 4 x DDR4 - 3200MHz DIMM slots - 8,16,32,64 GB DIMM support
Internal Boot Drive Per Controller • Dual NVMe M.2 Board with Single or Dual M.2 NVMe SSD for Redundant Boot/Logs
Onboard I/O Per Controller • On-board Mellanox CX4 Dual Port 10/25GbE I/O 2 x 1GbE onboard connections (Management / Data)
PCIe Expansion Per Controller • One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot, and one OCP v2.0 Gen 4x8 host interface slot
Storage Infrastructure • 2x Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports
Inter-Controller Link • PCI Express Gen 3 x16 NTB Inter-controller Interface
Chassis Specifications
Redundant Drive Path • Yes (SAS only)
Host/Expansion I/O Ports • Two ×4 mini-SAS HD Expansion I/O connectors
Management/Status Reporting • Redfish API + IPMI & SES
Device Support • 12Gb/s SAS drives
Max Drives Per Enclosure • 84 × 3.5-in LFF drive slots
Hot-Swappable Components • HDDs and SSDs (in chassis data slots), power supply units (PSU), cooling modules, side-plane expanders, and controllers
Physical • Height: 220mm / 8.65 in (5 EIA units) | Width: 483mm / 19 in (IEC rack compliant) | Depth: 933mm / 36.75 in | Weight: 135kg / 298 lb (with drives, no rail kit)
Power Requirements
Input Power Requirements • 180VAC-264VAC, 50Hz/60Hz
Max Power Output per PSU • 2200W
Environmental Requirements
Operating / Nonoperating Altitude • –100m to 3000m (–330 ft to 10,000 ft) / –100m to 12,192m (–330 ft to 40,000 ft)
Operating / Nonoperating Temperature • ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C/300m above 900m, 20°C/hr max rate of change / –40°C to +70°C (–40°F to +158°F)
Operating / Nonoperating Humidity • –12°C DP and 10% RH to 21°C DP and 80% RH, Max DP 21°C / 5% to 100% noncondensing
Operating / Nonoperating Shock • 5 Gs 10ms half sine (X, Y, and Z axes), 20 Gs 10ms half sine (X and Y axes)
Operating / Nonoperating Vibration • 0.21 Gs rms (5Hz to 500Hz) / 1.04 Gs rms (2Hz to 200Hz)
