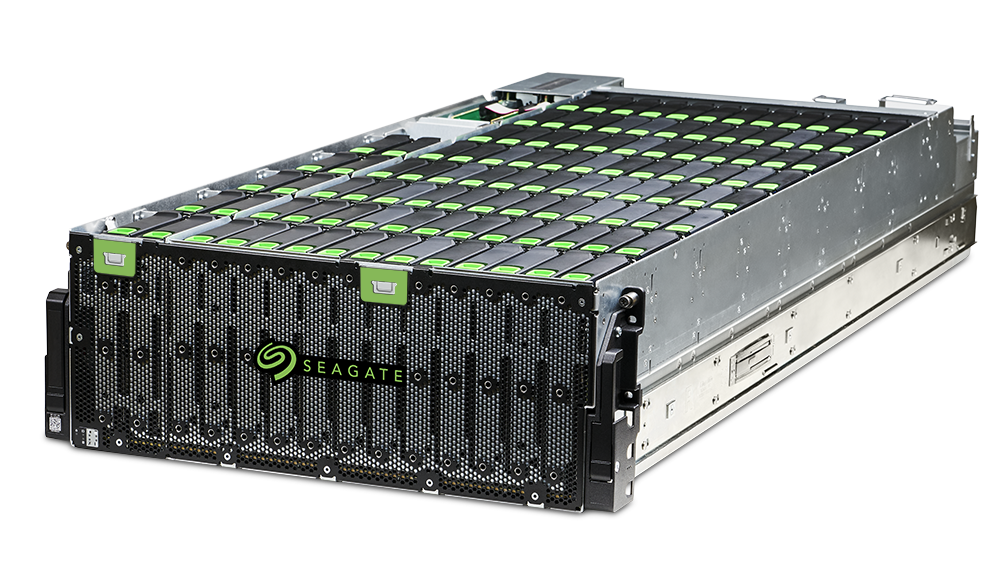

Seagate Exos® CORVAULT™ 4U106


Seagate Exos® CORVAULT™ is a high-performing block storage system with multi-petabyte capacity, five-nines availability, hyperscale efficiencies, and breakthrough self-healing, sustainable technology.

More Information

2 Models:

  • Model No: R4106I212000001 - System Capacity: 2.0PB, no expansion
  • Model No: R4106I190800002 - System Capacity: 1.8PB, no expansion

Key Specs

  • Form Factor
    - 4U Rack Mount, 1.2 Meter Deep
  • Host Interface
    - 12Gb SAS, Mini-SAS HD
    - 4 Ports on Each Controller
    - 8 Ports per System
  • Data Protection

Product Highlights

  • Effortlessly deploy petabyte storage
  • Lower TCO with maximum space utilization
  • The most-efficient petabyte-capacity block storage
  • Minimize Infrastructure costs and reduce data center carbon footprints
  • Superiour data availability, durability and performance
  • Self-healing data protection with Seagate Autonomic Distributed Allocation Protection Technology (ADAPT)
  • Self-healing hard drives with Seagate Autonomous Drive Regeneration (ADR)

Key Advantages

Hyperscale Efficiency: Hyperscale capacity and sustainability while lowering TCO with maximum space usage and less power per petabytes.

Sustainability and Cost Savings: Reduces the carbon footprint of data centers with architectures requiring less compute and networking resources.

High Capacity: Most-efficient petabyte-capacity block storage —maximum data density for optimal data center usage.

Superior Data Availability: Provides five-nines data availability, durability, and performance needed for reliable data storage.

System Data Protection: Protects data via Seagate Autonomic Distributed Allocation Protection Technology (ADAPT) for rapid rebuilds, storage efficiency, improved sustainability, and reduced downtime.

Self-Healing Hard Drives: Minimizes e-waste, maintenance, and human intervention by renewing errant drives with ADAPT and autonomous drive regeneration (ADR).

Simplicity: Allows simple installation, configuration, and management with enterprise storage that’s like a single hard drive with petabytes capacity.

High Disk System Performance: Ensures continuous data access with responsive low latency performance.

Maximum Security: Self-encrypts data automatically via Seagate Secure™ for maximum protection, reduced privacy concerns, and supports cryptographical erase.

Dependable Technology: Provides a well-designed data storage solution with Seagate’s proven innovation, expertise, and supply chain.

* Input Power Requirements - 200V-240V AC

See How It Works

Watch now and discover how CORVAULT helps you harness multi-petabyte capacity, five-nines reliability, hyperscale efficiency, and self-healing technology.

NOTE: When referring to drive capacity, one gigabyte, or GB, equals one billion bytes, one terabyte, or TB, equals one trillion bytes and one petabyte or PB equals thousand trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual data rates may vary depending on operating environment and other factors, such as chosen interface and disk capacity.

Technical Specifications

Standard Model Number • R4106I212000001 - 2.0PB, no expansion
• R4106I190800002 - 1.8PB, no expansion
System Performance • 12 GB/s sequential read throughput
• 10 GB/s sequential write throughput
Device Support • Up to 106 Exos® self-encrypting SAS HDDs
System Data Protection • Seagate ADAPT erasure coding
Disk Drive Self Healing Technology • Autonomous Drive Regeneration (ADR)
Controllers • Redundant, active-active, VelosCT Controllers
Hot-Swappable Components • Hard Drives, controllers, fans, power supplies, expander cards
Host I/O Ports • Four mini-SAS-3 HD ports on each controller
Physical • 4U
• Height: 176.4mm / 6.94 in | Width: 441mm / 17.36 in | Depth: 1139 mm / 44.84 in | Weight: 131.5kg / 290 lb
Interface Types • 10/100/1000 Ethernet
Management Consoles • Web-based GUI or Command Line Interface (CLI)
Management Software • Seagate Systems storage management console | One-button configuration | Remote diagnostics | Non disruptive updates
Power Requirements — AC Input
Input Power Requirements • 200V-240V AC, 50Hz-60Hz
Power Consumption • Max: 2000W
Environmental / Temperature Ranges
Operating / Non-Operating Temperature • 5°C to 35°C (41°F to 95°F, derated by 1°C per 300m above 900m) / –40°C to +70°C (–40°F to +158°F) (max rate of change: 20°C)
Operating / Non-Operating Humidity • –12°C DP/10 to 80% (max) (noncondensing) / –12°C DP/5 to 100% (max) (noncondensing)
Operating / Non-Operating Shock • 3.0 g, 11 ms (per axis) / 20.0 g, 7ms, 10 shock pulses (2 shocks per axis X, Y in positive and negative direction, and 2 shocks in positive Z axis) OR ISTA 3H (mounted in a rack, horizontal impact on all sides, 4-in drop tests)
Operating / Non-Operating Vibration • 0.18Grms, 5 Hz to 500 Hz, 30 min per axis / 0.54 Grms 6Hz to 200 Hz (ISTA 3E)
