OpenFlex Data24 4100 Series NVMe-oF Storage Platform



  • High density and capacity
  • Low latency
  • Single Port SSDs
    		•

    Features

    Western Digital’s OpenFlex Data24 4100 series is a next-generation NVMe-oF storage platform that delivers near-local NVMe performance through a high-performance Ethernet fabric. Building on the foundation of previous Data24 platforms, the 4100 extends NVMe flash performance to shared storage environments while maintaining ultra-low latency and high throughput. Using Western Digital RapidFlex™ NVMe-oF controllers, the platform enables direct, high-bandwidth connectivity for multiple hosts without oversubscription.

    The OpenFlex Data24 4100 series incorporates Western Digital’s RapidFlex A2000 Fabric Bridge devices to provide 12 ports of 100GbE connectivity, supporting both RoCE (RDMA over Converged Ethernet) and TCP transports. This flexibility allows deployment in RDMA-optimized data centers or in environments where TCP is preferred for ease of integration.

    The platform delivers true PCIe Gen4 performance end-to-end, ensuring that the full capability of each NVMe SSD is exposed to the Ethernet fabric. The system supports PCIe Gen4 NVMe SSDs from Western Digital and qualified third-party vendors.

    • Up to 1474.56TB1 in 2U
    • 24 single-port PCIe Gen4 NVMe SSDs
    • 12 × 100GbE fabric ports (RoCE or TCP)
    • End-to-end PCIe Gen4 throughput
    • No oversubscription between SSD bandwidth and network fabric
    • RESTful API support for simplified management
    • Vertically integrated design: WD SSDs, RapidFlex fabric bridges, and chassis
    • N+2 fan redundancy (no hot-swappable fan modules required)
    • Connects directly to host Ethernet NICs or via an Ethernet switch


    Benefits

    • Enables multiple servers to share NVMe flash storage with near-local performance
    • Optional Device Sharing mode using NVMe Non-Transparent Bridging (NTB)
    • Low-latency NVMe-oF fabric fully utilizes SSD IOPS and throughput
    • Efficient use of high-capacity NVMe SSDs at low latency
    • Balanced architecture prevents oversubscription and preserves NVMe performance
    • Built on open, standards-based NVMe-oF composability
    • Ideal high-performance replacement for external SAS storage




    1 One terabyte (TB) equals one trillion bytes. Actual user capacity may vary depending on operating environment.


    Technical Specifications

    Form Factor • 2U
    Front Drive Bays • Up to 24 x U.2 NVMe SSDs
    Power Supply • 2x 800W Titanium 100-240VAC, CRPS, Hot Plug
    Fabric Adapter Slots • 12x 100 GbE ports
    Fabric Adapter(s) • Western Digital RapidFlex A2000 NVMe-oF Fabric Bridge ASICs
    Cabling • Passive (1 – 5M) and Active Optical (5 – 20M)
    Platform Management • ARM based BMC

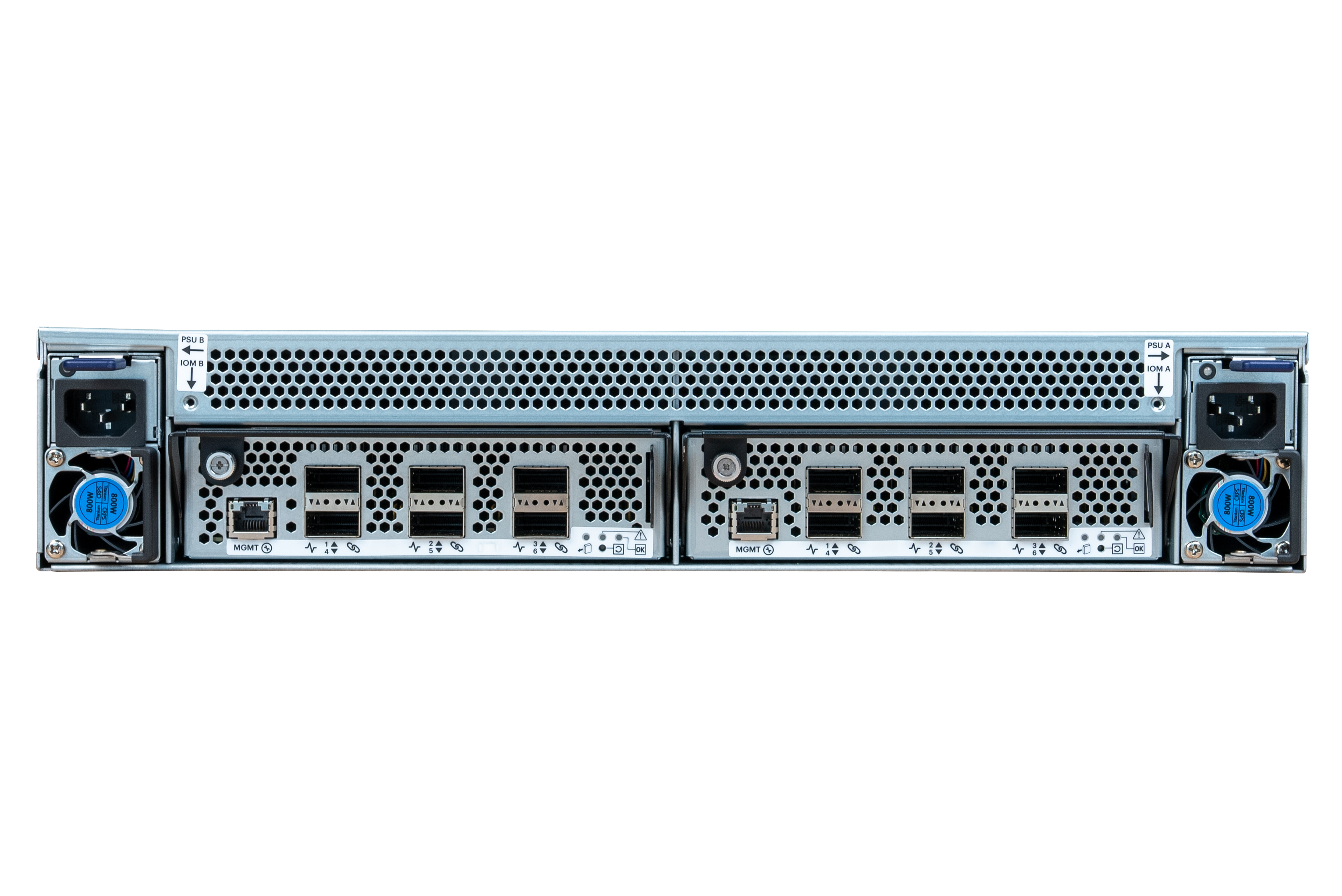

    Rear I/O • 1G-BASE-T Management Port (RJ-45)
    HA Redundancy • Single IOM
    Environmental • 10oC – 35oC
    Chassis Dimensions
    (Height x Width x Depth)     		• 85.5 x 491.1 x 628.65 mm
    • 3.37 x 19.37 x 24.75 in
    Weight • Maximum 18.25kg / 40.2lbs


    Hardware

    • 24 single port high-performance SSDs
    • Wide range of NVMe SSD capacity and endurance options
    - Ultrastar® DC SN655: 1DWPD: Up to 61.44 TB
    • 3 RapidFlex A2000 fabric bridge devices / IOM
    • OpenFlex inspired composability in a mainstream 2U24
    • Chassis depth - fits most commonly used short depth racks


    1 One terabyte (TB) is equal to one trillion bytes. Actual user capacity may be less due to operating environment
