Colfax ProEdge™ EX930 Pedestal Server/Workstation



  • 1x AMD EPYC™ 7002/7003 Series Processor
  • 1x NVIDIA RTX™ or NVIDIA® Txxx GPU
  • On-board Video
  • 8x DIMMs
  • 4x 3.5" Internal + 4x 2.5" Internal Drive Bays
  • 2x M.2 SSDs

Features

  • 1x AMD EPYC™ 7002/7003 Series Processor
  • 1x NVIDIA RTX™ or NVIDIA® Txxx GPU
  • On-board Video
  • 8x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 5 x PCI-E 4.0 x16
    - 2 x PCI-E 4.0 x8
  • Storage
    - 4x 3.5" Internal + 4x 2.5" Internal Drive Bays
    - 2x M.2 PCIe 4.0 x4 SSDs
  • Integrated 2x 1GbE LAN Ports
  • 1x RJ45 Dedicated IPMI LAN Port
  • 900W Single Power Supply (80PLUS Gold Certified)



Technical Specifications

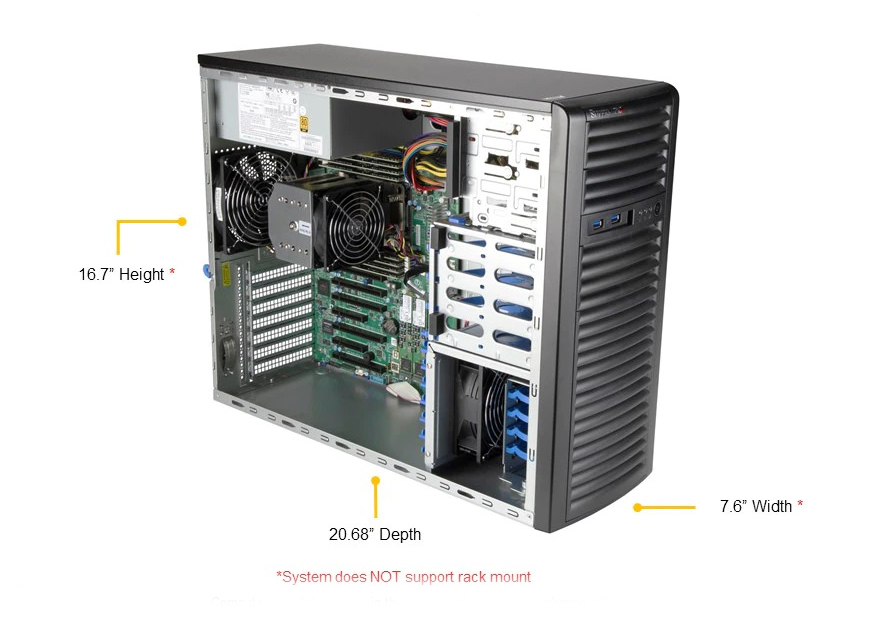

Form Factor & Dimensions • Mid-Tower
• Height 16.7" (424mm) x Width 7.6" (193mm) x Depth 20.68" (525mm)
CPU • Single Socket SP3
• Supports 1x AMD EPYC™ 7002/7003 Series Processor
• TDP up to 280W
Memory • 8x DDR4 DIMM slots
• Supports up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Expansion Slots • Slot 1: PCI-E 4.0 x16
• Slot 2: PCI-E 4.0 x8
• Slot 3: PCI-E 4.0 x16
• Slot 4: PCI-E 4.0 x8
• Slot 5: PCI-E 4.0 x16
• Slot 6: PCI-E 4.0 x16
• Slot 7: PCI-E 4.0 x16
On-board Devices Network Controllers
• Dual Gigabit LAN via Broadcom BCM5720
• Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
VGA
• ASPEED AST2500 BMC
I/O SATA
• 8 SATA3 (6Gbps) ports
LAN
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 6x USB 3.0 ports (2 headers, 4 rear) VGA
• 1x VGA port
Others
• 1x COM port (rear)
• 2x SATA DOM power connectors
• 1x TPM 2.0 header
Drive Bays / Storage • 4x 3.5" internal + 4x 2.5" internal drive bays
• 2x 5.25" peripheral drive bays
• 2x M.2 PCI-E 4.0 x4 (2280, 22110)
Front Panel Buttons
• Power On/Off button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LED
• System Information LED
Ports
• 2x USB 3.0 Ports
Power Supply • 900W AC multi output power supply
• AC Voltage
- 100-240 V, 50-60 Hz, 10-6 Amp
• +5V Standby
- 3 Amp
• +12V1
- 25 Amp • +12V2
- 25 Amp
• +12V3
- 25 Amp
• +12V4
- 25 Amp
• +5V
- 25 Amp
• +3.3V
- 25 Amp
• -12V
- 0.5 Amp
• 80PLUS Gold Certified

Note:
• Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.
Cooling • 2x 12cm exhaust fans
• Optional additional 12cm rear exhaust fan
BIOS • 256Mb SPI Flash with AMI BIOS

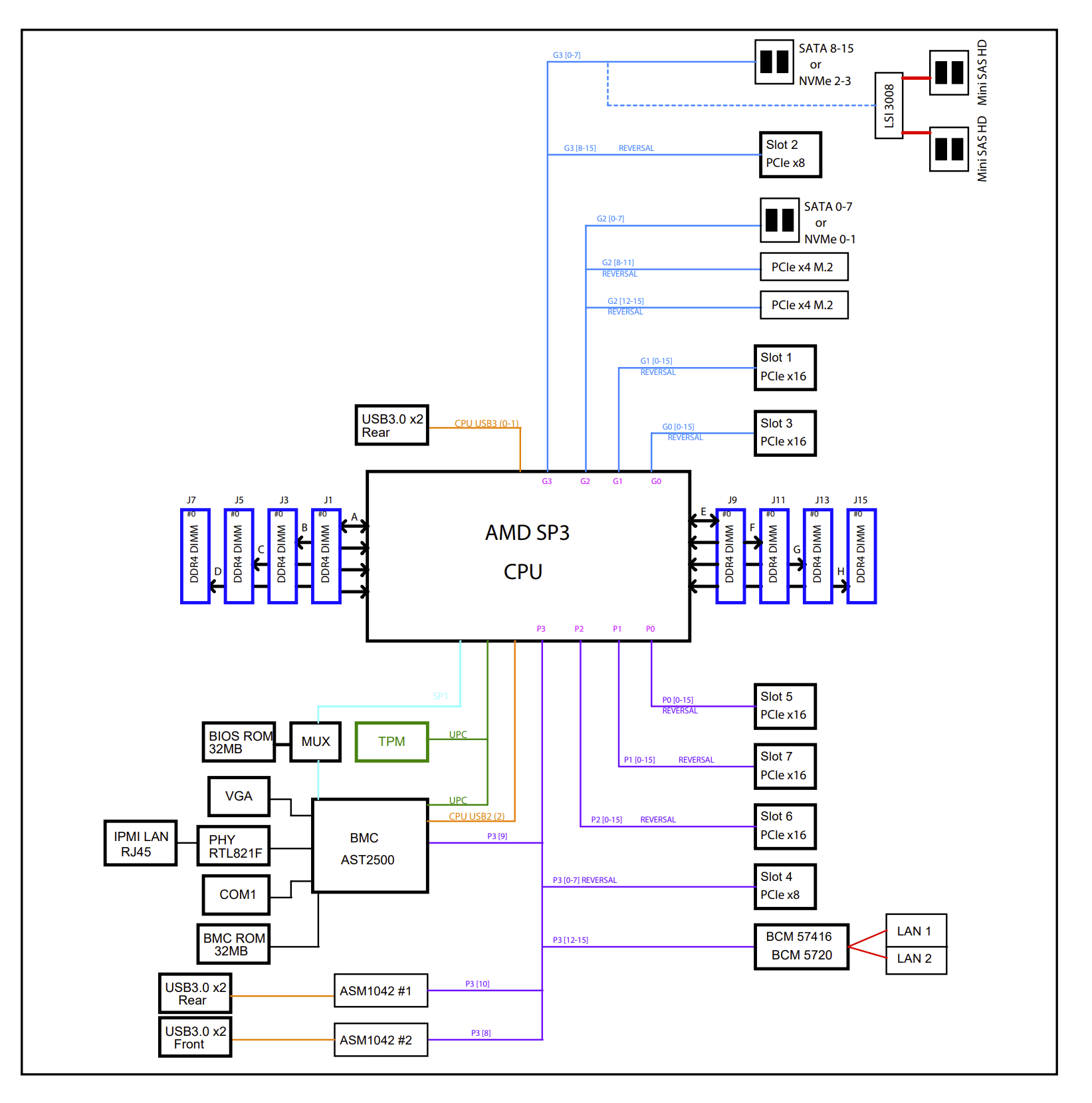

Block Diagram

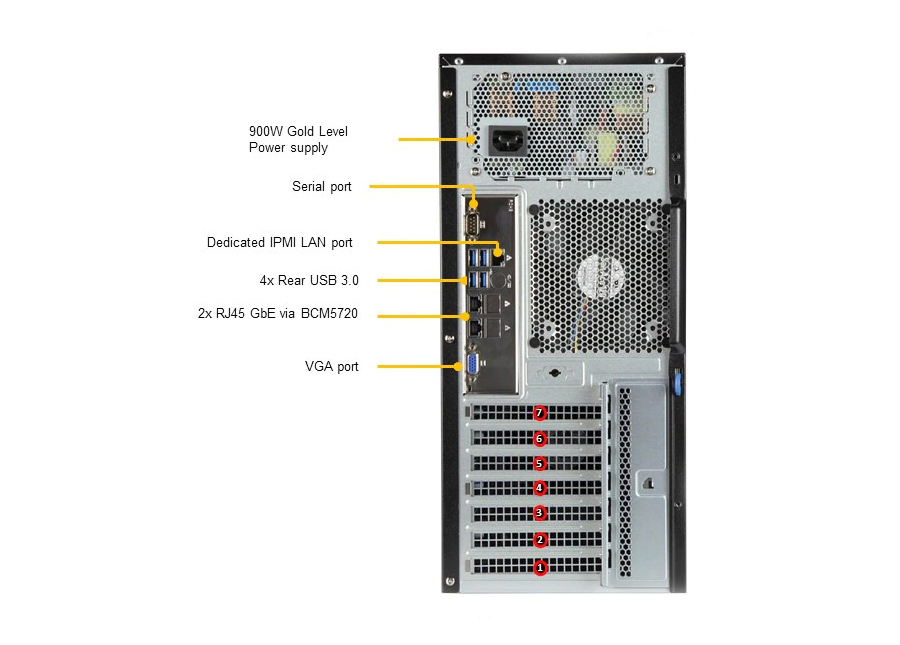

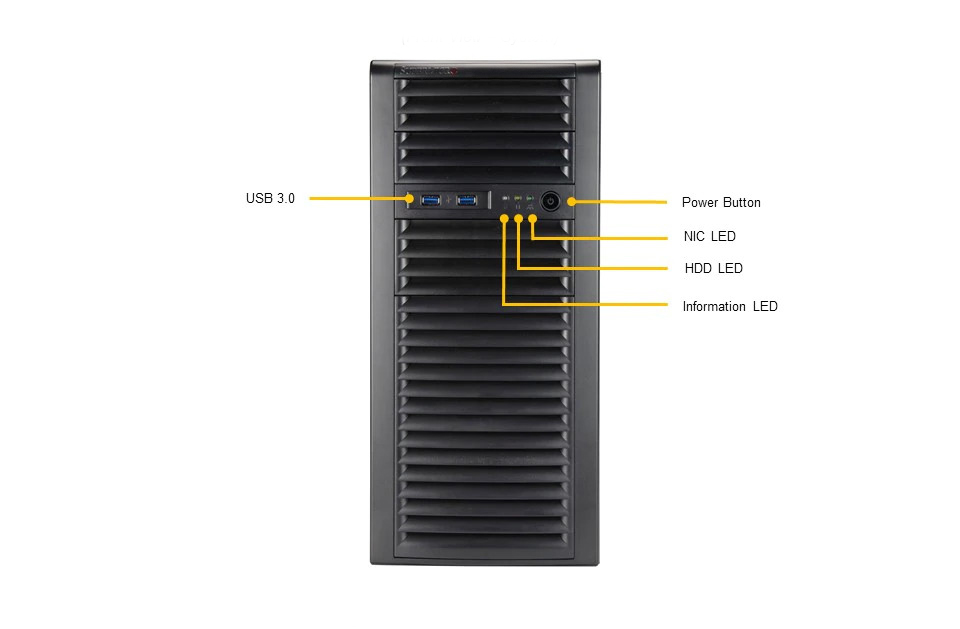

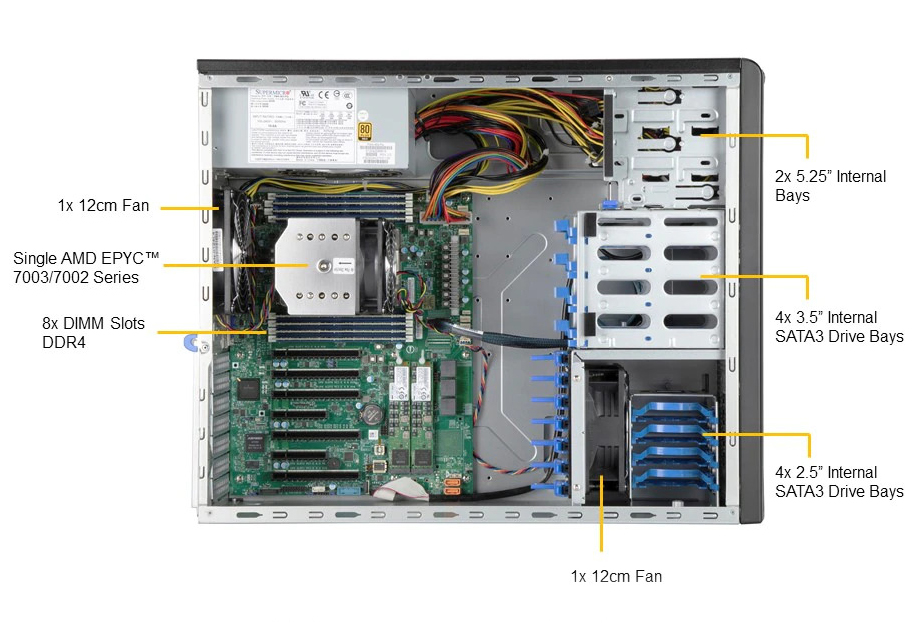

Images
