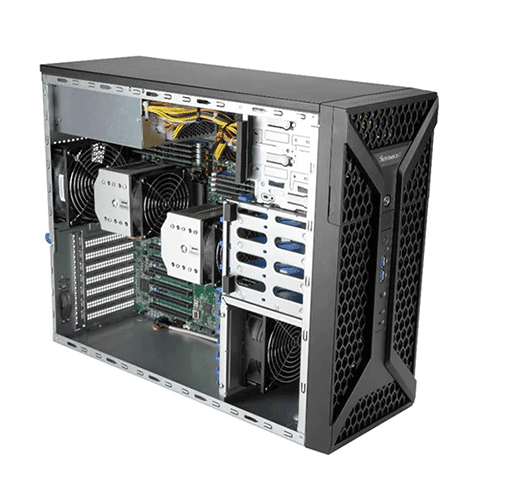

Colfax ProEdge™ IX6300 Workstation



  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • 16x DIMMs
  • 4x 3.5" Fixed Drive Bays
  • 5 PCI-E 4.0 x16 FHFL Slots

Features

  • 2x 3rd Gen Intel® Xeon® Scalable Processors
  • Intel C621A Chipset
  • 16x DIMMS, Supports DDR4 ECC RDIMMM/LRDIMM
  • Expansion Slots
    - 5 x PCI-E 4.0 x16 (FHFL)
    - 1 x PCI-E 4.0 x8 (FHHL)
  • Storage
    - 4x 3.5" Fixed Internal Drive Bays
    - 2x U.2 NVMe SSDs
    - 2x M.2 NVMe SSDs
  • 2x 5.25" Peripheral Drive Bays
  • Integrated 2x 1 Gigabit Ethernet Ports
  • 1200W High-Efficiency Power Supply, 80PLUS Platinum



Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

Dimensions • Height 16.7" (424mm) x Width 7.6" (193mm) x Depth 20.68" (525.3mm)

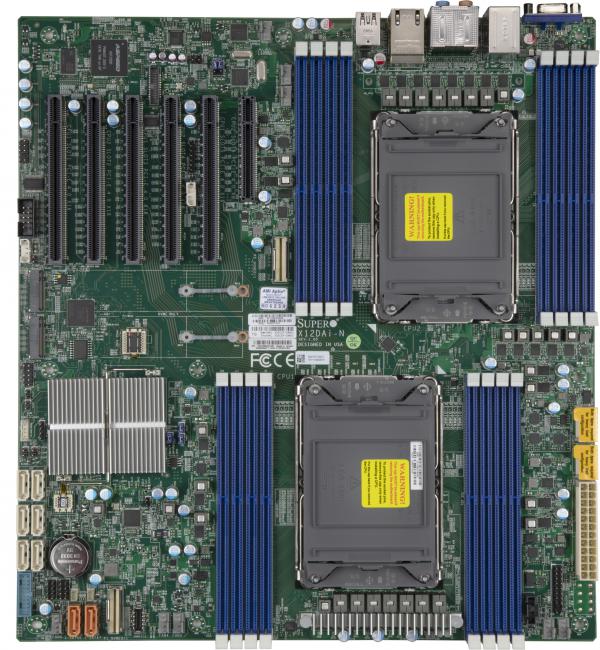

CPU • Dual Socket P+ (LGA-4189)
• Supports 3rd Gen Intel® Xeon® Scalable processor
• TDP up to 270W
Memory • 16x DIMM Sockets
• Supports up to 4TB 3DS LRDIMM/RDIMM, LRDIMM/RDIMM DDR4 (288-pin) ECC memory with speeds of 3200/2933/2666 MHz
Chipset • Intel® C621A
Expansion Slots PCI-Express
• 5x PCI-E 4.0 x16 slots
• 1x PCI-E 4.0 x8 slot
M.2
• 2x M.2 slots
• Interface: PCIe 4.0 x4
• Form Factor: M-Key 2280, 22110
On-board Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Dual LAN with Intel® i210 Gigabit Ethernet Controller
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

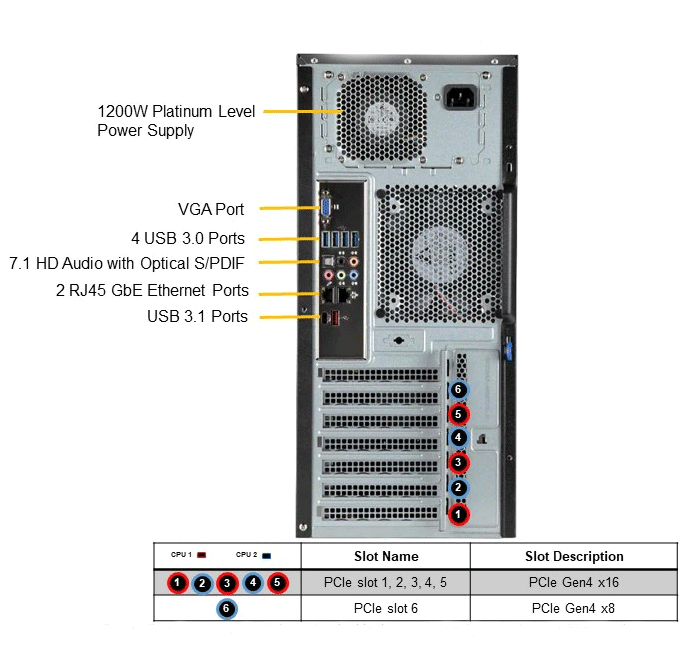

I/O SATA
• 8x SATA3 (6Gbps) ports
LAN
• 2x RJ45 Gigabit Ethernet LAN ports
USB
• 6x USB 3.0 ports (4 rear + 2 front)
• 2 USB 3.1 ports (rear)
Audio
• 7.1 HD Audio with optical S/PDIF
Video
• 1x VGA port
Serial Port / Header
• 1x COM port (header)
DOM
• 2x DOM (Disk on Module) ports
TPM
• 1x TPM 2.0 header

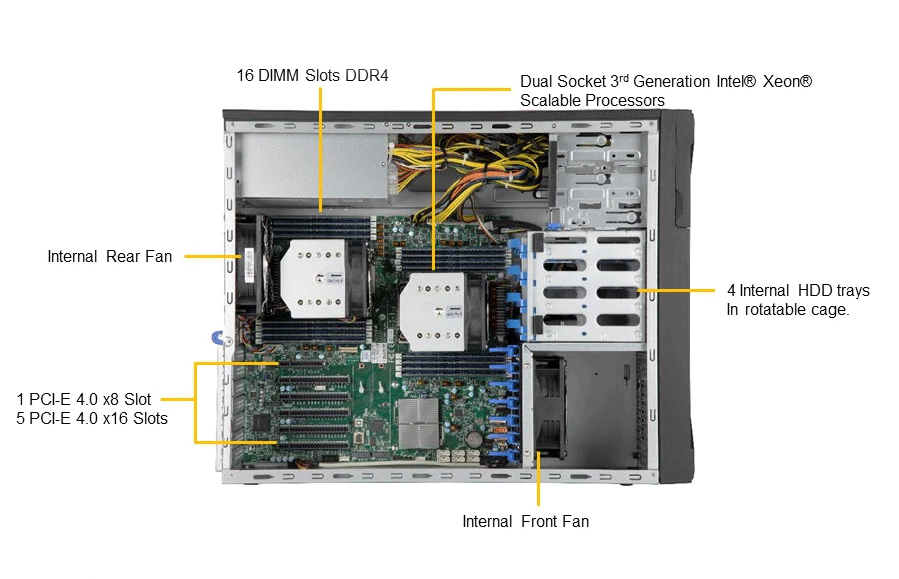

Drive Bays • 4x 3.5" fixed drive bays (90° rotatable drive cage)
• 2x 5.25" peripheral drive bays

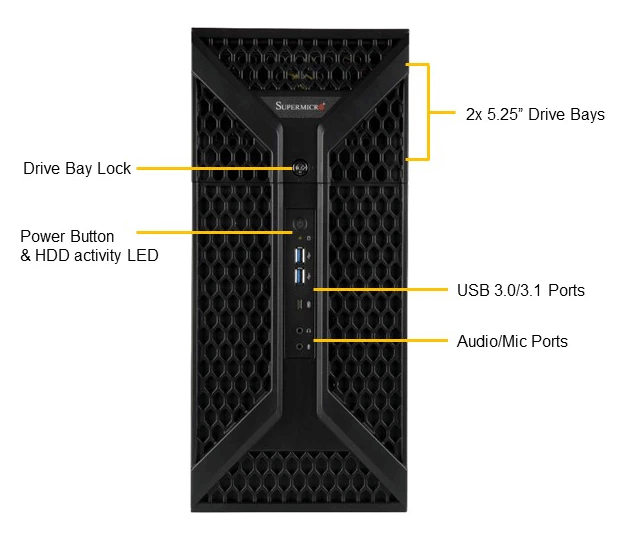

Front Panel Buttons
• Power On/Off button
LEDs
• Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
Ports
• 2x front USB 3.0 Ports
• 2x front HD/AC97 Audio Ports
Power Supply • 1200W PS2 multi output power supply with modular cable
• AC Input
- 100-240Vac / 8A Max / 50-60Hz
• Output Type
- Modular Cable Output
• 80PLUS Platinum Certified
Cooling • 2x 12cm heavy duty fans with optimal fan speed control
BIOS • AMI 32MB SPI FLASH ROM

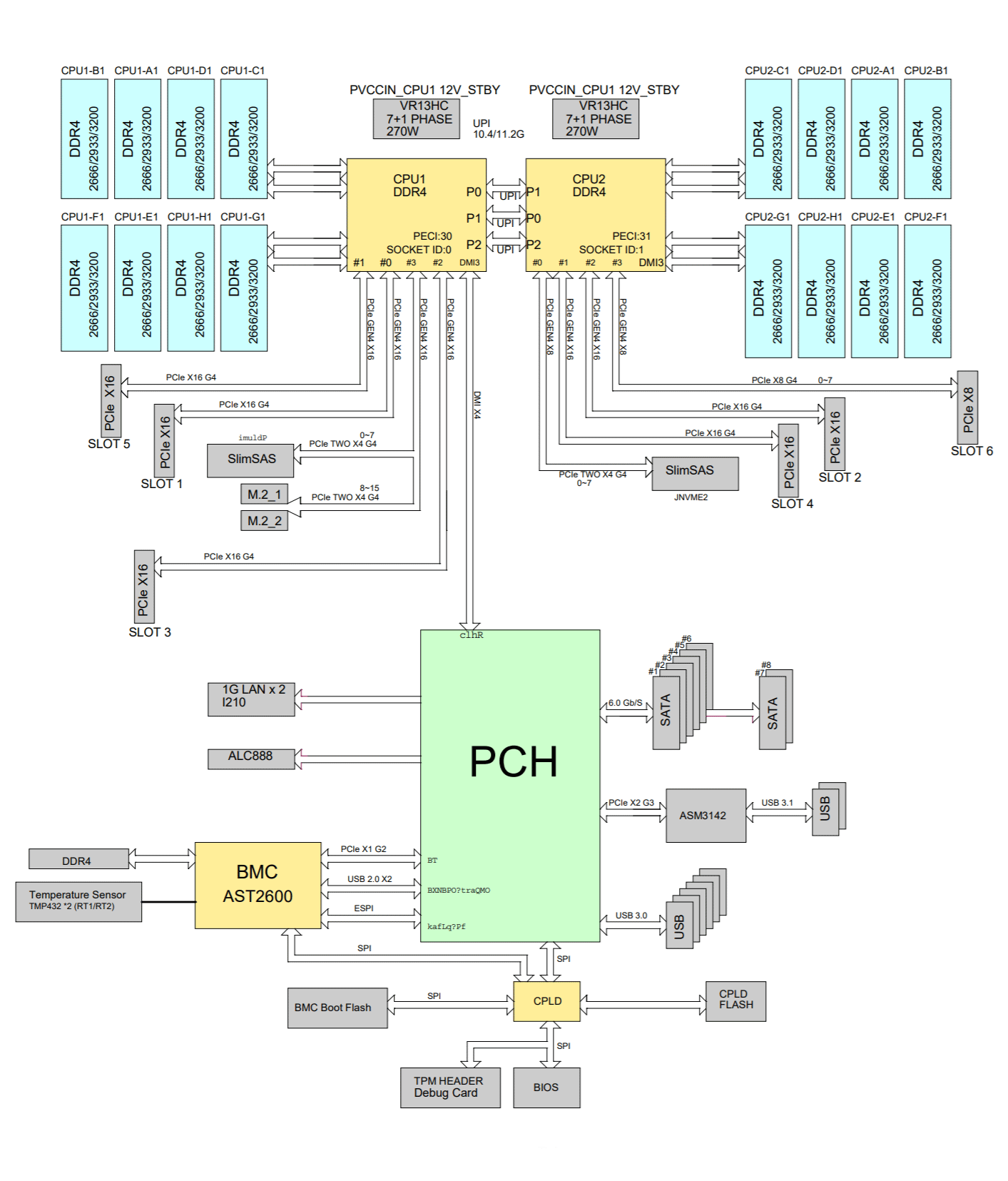

Block Diagram


Images
