Colfax ProEdge™ RX7200 Workstation



  •

Features

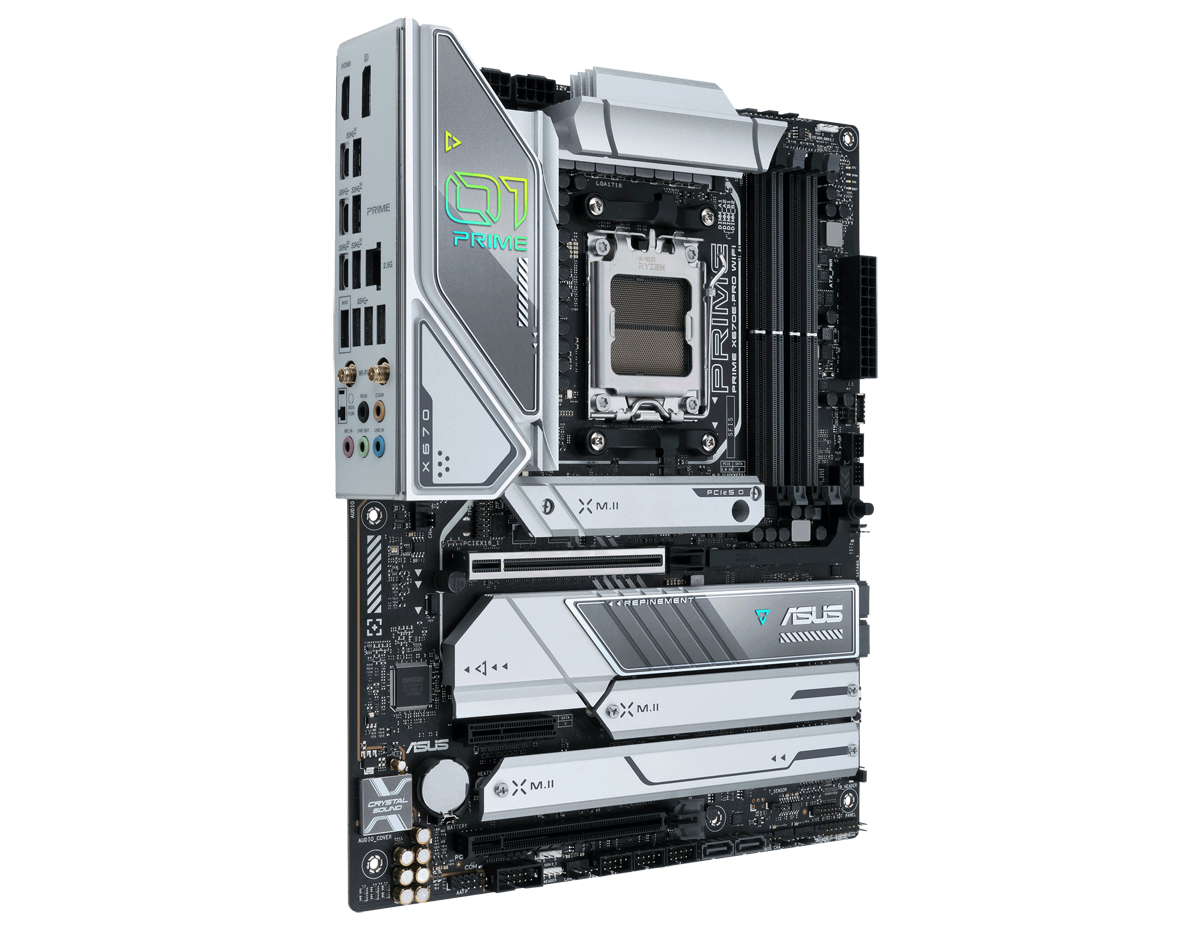

ASUS PRIME X670E-PRO WIFI Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors with 14+2 team power stages (70A), DDR5 and PCIe 5.0 and fast connectivity including USB 3.2 Gen 2x2 Type-C®, 2.5 Gb Ethernet, plus WiFi 6E.


  •

AMD Ryzen™ 7000 Series Processors

Model

# of Cores / Threads

L3 Cache

Base Clock

Default TDP

AMD Ryzen™ 9 7950X

16/32

64MB

4.5GHz

170W

AMD Ryzen™ 9 7900X

12/24

64MB

4.7GHz

170W

AMD Ryzen™ 7 7700X

8/16

32MB

4.5GHz

105W

AMD Ryzen™ 5 7600X

6/12

32MB

4.7GHz

105W


Click here for Complete Ryzen 7000 Series Comparison

AMD X670E Chipset

Features dual-channel DDR5 memory, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe.

Click here for AMD Socket AM5 Chipset Comparison

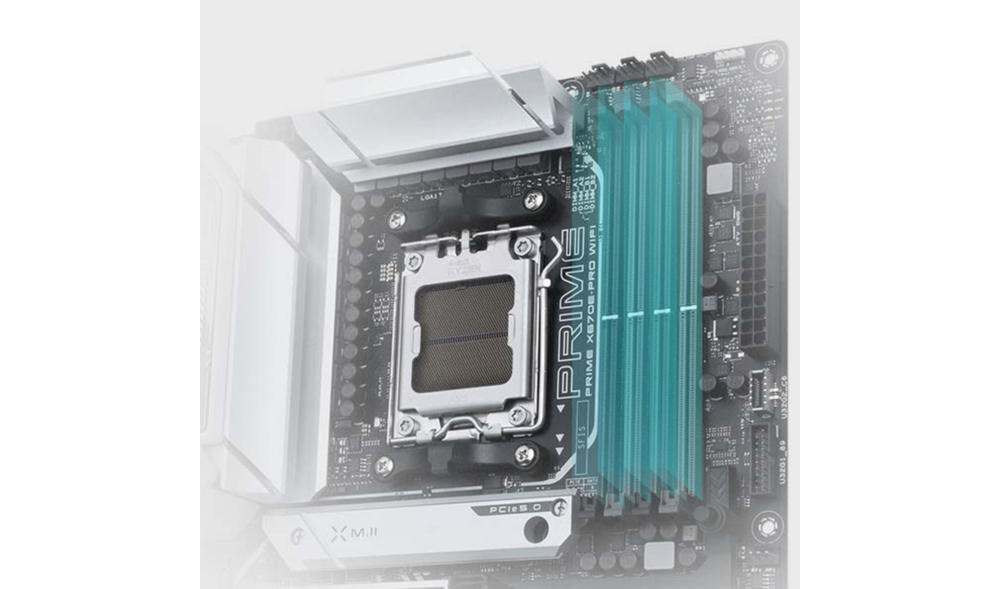

Unleashing DDR5 Performance

DDR5 memory brings the latest cutting-edge technology for next-gen workstation platforms. Taking speed, capacity and reliability even further, DDR5 arrives with an arsenal of enhanced features, like on-die ECC (ODECC) for improved stability at extreme speeds, dual 32-bit subchannels for increased efficiency and an on-module power management integrated circuit (PMIC) to provide juice where it’s needed most.

AMD EXPO™ Certified

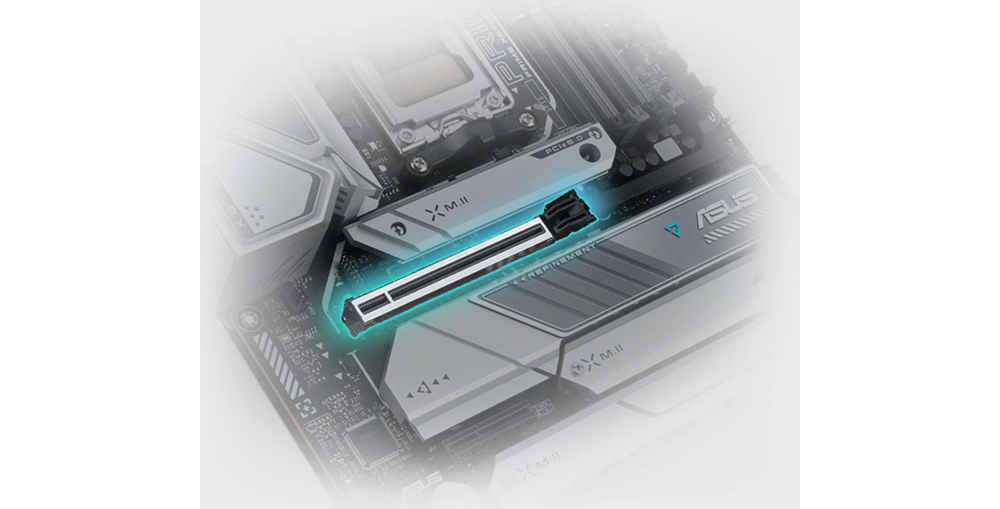

PCIe® 5.0 Slot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

Integrated Graphics

1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4)
1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1)

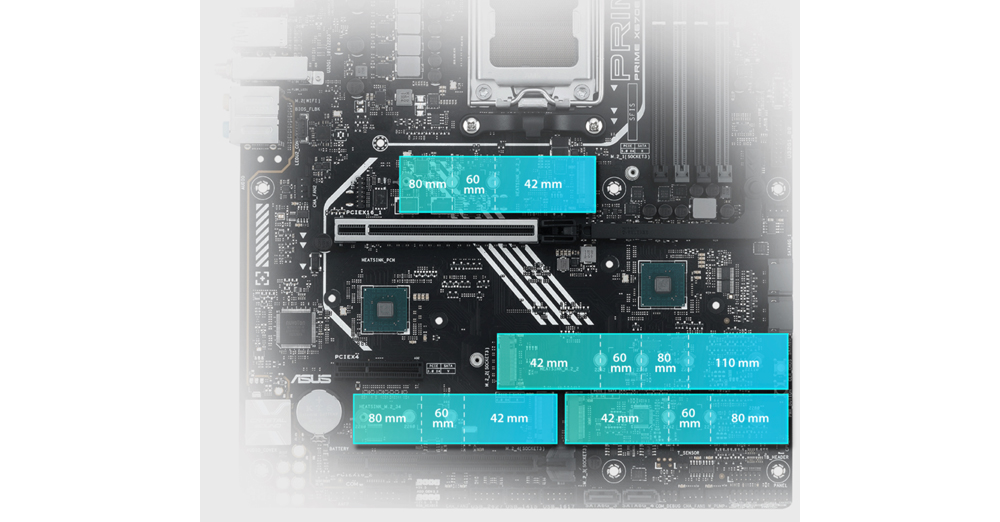

Four M.2 Slots (with 1 PCIe® 5.0)

Four M.2 slots support can provide NVMe SSD RAID for incredible performance potential. Moreover, one M.2 slot supports PCIe 5.0 with data transfer speeds of up to 128 Gbps, enabling quicker operating system boot-up and file management.

WiFi 6E

Onboard WiFi 6E* technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

* Actual speed varies, and depends on networking conditions.
* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

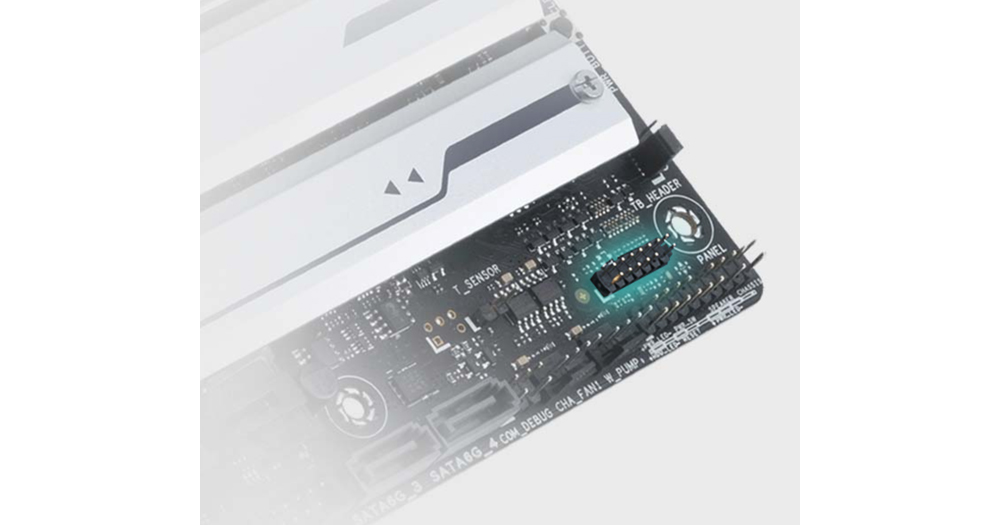

USB4® Support

The workstation features USB4® support via a Thunderbolt™ (USB4®) header. With an add-on card*, it can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.


Technical Specifications

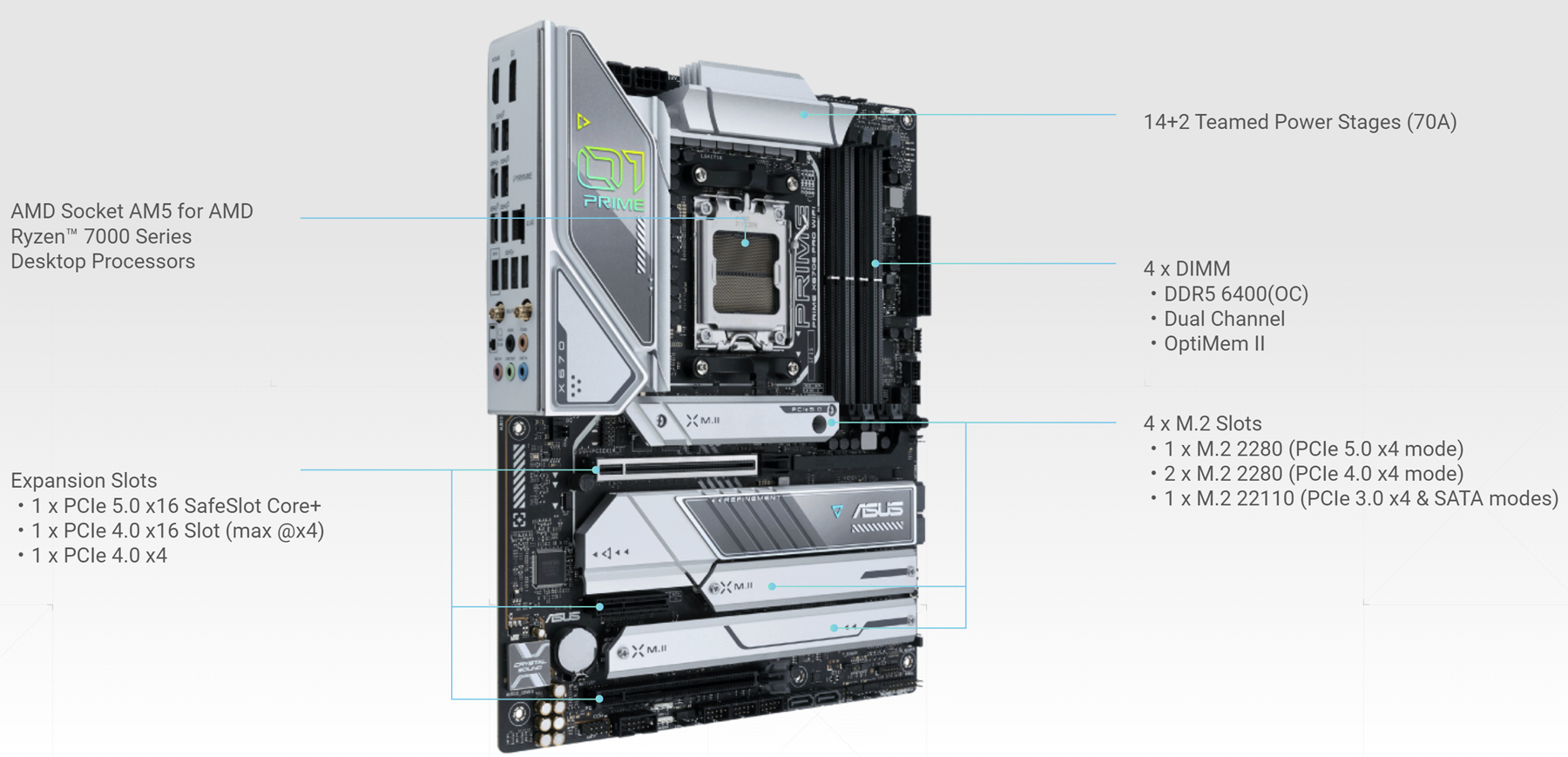

Motherboard • Asus PRIME X670E-PRO WIFI
CPU • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset AMD X670E
Memory • 4 x DIMM sockets (Max. 128GB)
• DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

* Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function

WARNING: Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by Colfax. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability.

Graphics • 1 x DisplayPort*
• 1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processor*
• 1 x PCIe 5.0 x16 slot

AMD X670E Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x4 slot
Integrated LAN • 1 x Realtek 2.5Gb Ethernet
Storage Supports total 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processor
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD X670E Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

* AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled
Wireless & Bluetooth • Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries
Audio • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports Rear USB: Total 10 ports
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Front USB: Total 9 ports
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

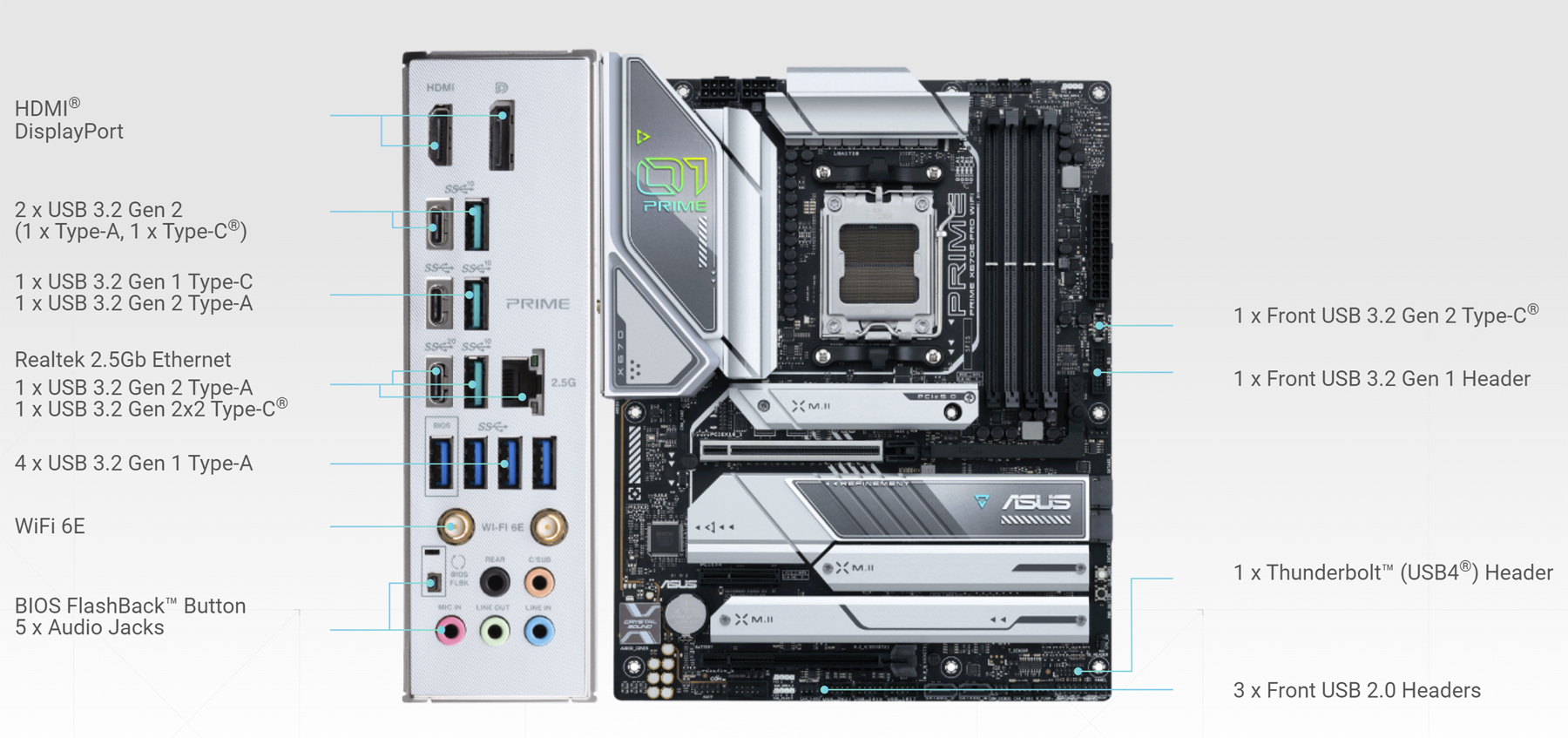

Back I/O Ports • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)
• 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™
Internal I/O Ports Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS button
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x Power button
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header

Images
