Colfax ProEdge™ RX7400 Workstation



  •

Features

ASUS ProArt X670E-Creator WiFi Motherboard

ASUS ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4®, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E


  •

AMD Ryzen™ 7000 Series Processors

Model

# of Cores / Threads

L3 Cache

Base Clock

Default TDP

AMD Ryzen™ 9 7950X

16/32

64MB

4.5GHz

170W

AMD Ryzen™ 9 7900X

12/24

64MB

4.7GHz

170W

AMD Ryzen™ 7 7700X

8/16

32MB

4.5GHz

105W

AMD Ryzen™ 5 7600X

6/12

32MB

4.7GHz

105W


Click here for Complete Ryzen 7000 Series Comparison

AMD X670E Chipset

Features dual-channel DDR5 memory, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe.

Click here for AMD Socket AM5 Chipset Comparison

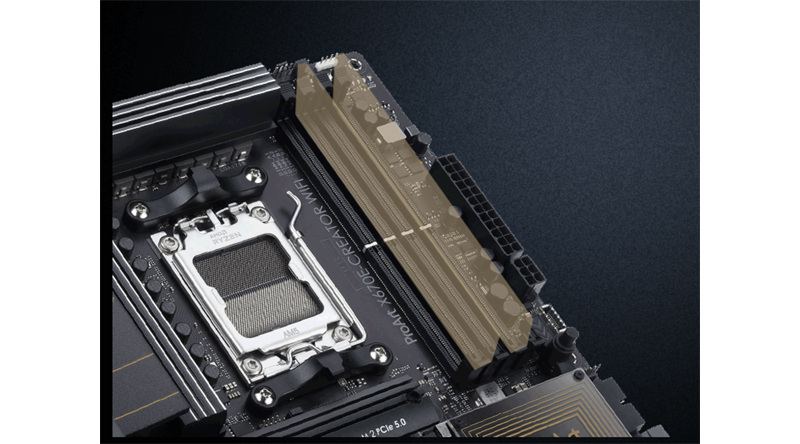

Unleashing DDR5 Performance

DDR5 memory brings the latest cutting-edge technology for next-gen workstation platforms. Taking speed, capacity and reliability even further, DDR5 arrives with an arsenal of enhanced features, like on-die ECC (ODECC) for improved stability at extreme speeds, dual 32-bit subchannels for increased efficiency and an on-module power management integrated circuit (PMIC) to provide juice where it’s needed most.

AMD EXPO™ Certified

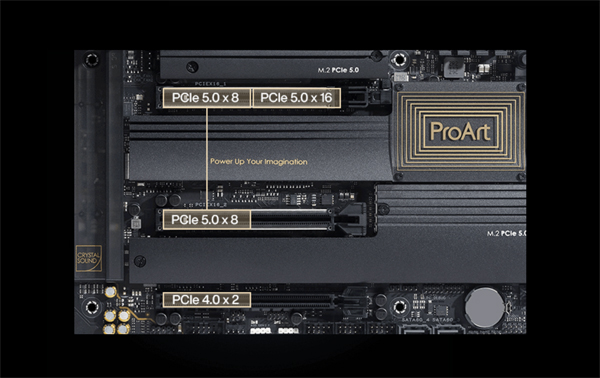

PCIe® 5.0 Slots

Both of the x16 expansion slots offer incredible speeds up to 64 GB/s for compatible devices. They are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

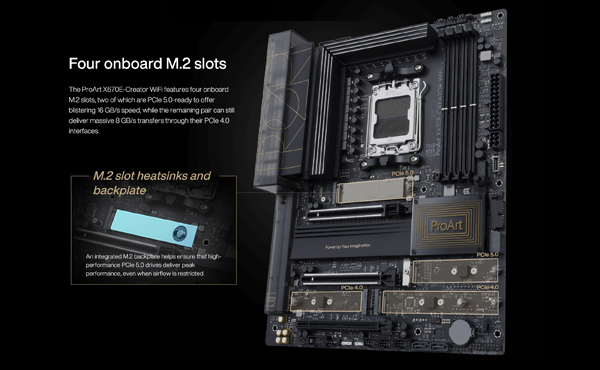

Four M.2 Slots

The workstation features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

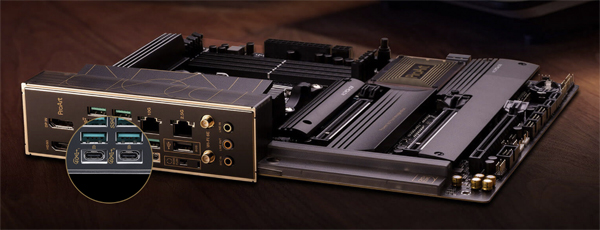

Dual USB4® Connectivity

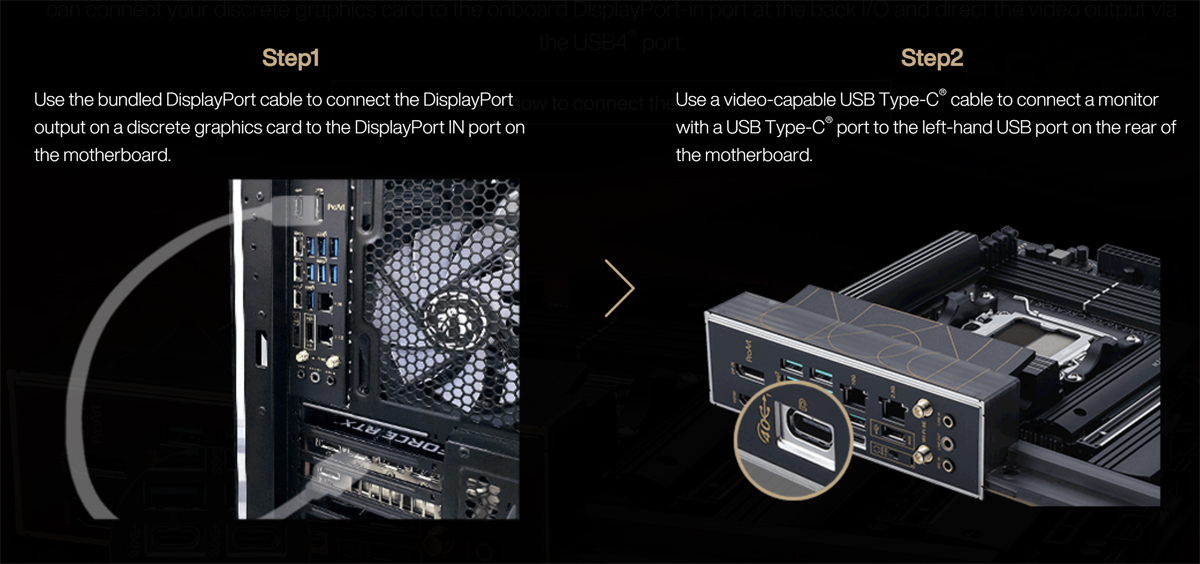

Get immersed in your creations with two USB4® ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4® port.

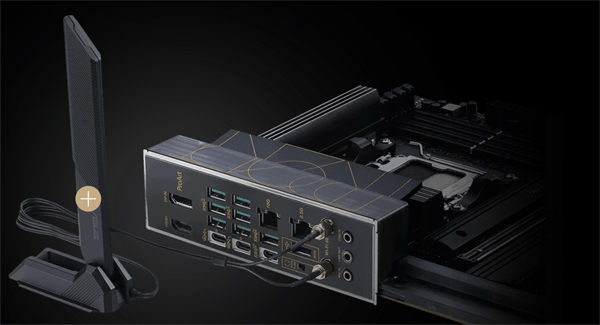

Ultrafast Networking

Onboard WiFi 6E* technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments. Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

* Actual speed varies, and depends on networking conditions.
* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.


Technical Specifications

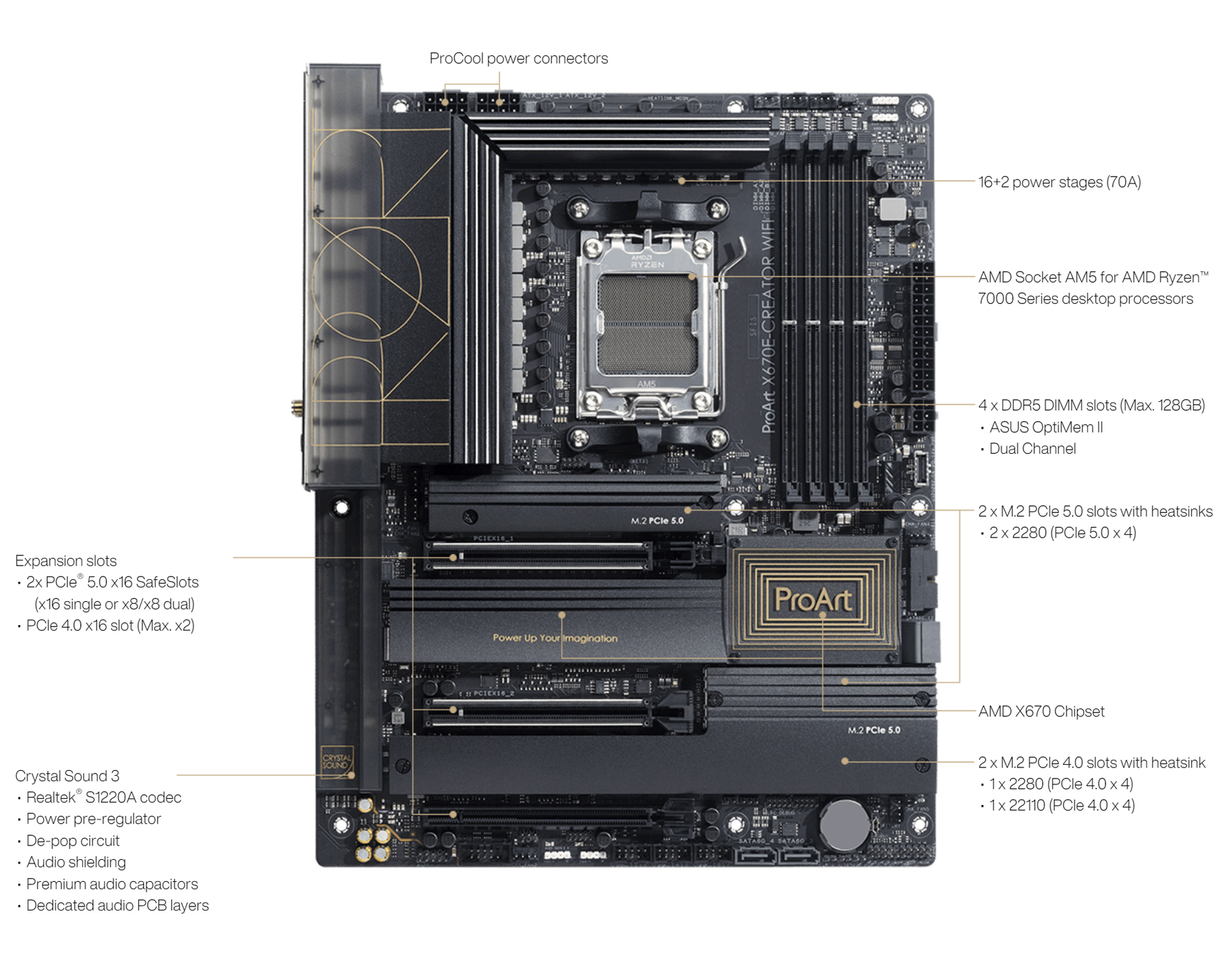

Motherboard • Asus ProArt X670E-Creator WiFi
CPU • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset AMD X670E
Memory • 4 x DIMM sockets (Max. 128GB)
• DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

* Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function

WARNING: Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by Colfax. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability.

Graphics • 1 x HDMI® port*
• 2 x USB4® ports support USB Type-C® display outputs**

* Supports 4K@60Hz as specified in HDMI 2.1
** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processor or graphic card resolution
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processor*
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

AMD X670E Chipset
• 1 x PCIe 4.0 x16 slot (supports x2 mode)**

** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3
Integrated LAN • 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
Storage Supports total 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processor
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670E Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

* AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.
Wireless & Bluetooth • Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries
Audio • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports Rear USB: Total 11 ports
• 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 7 x USB 3.2 Gen 2 ports (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
Front USB: Total 9 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

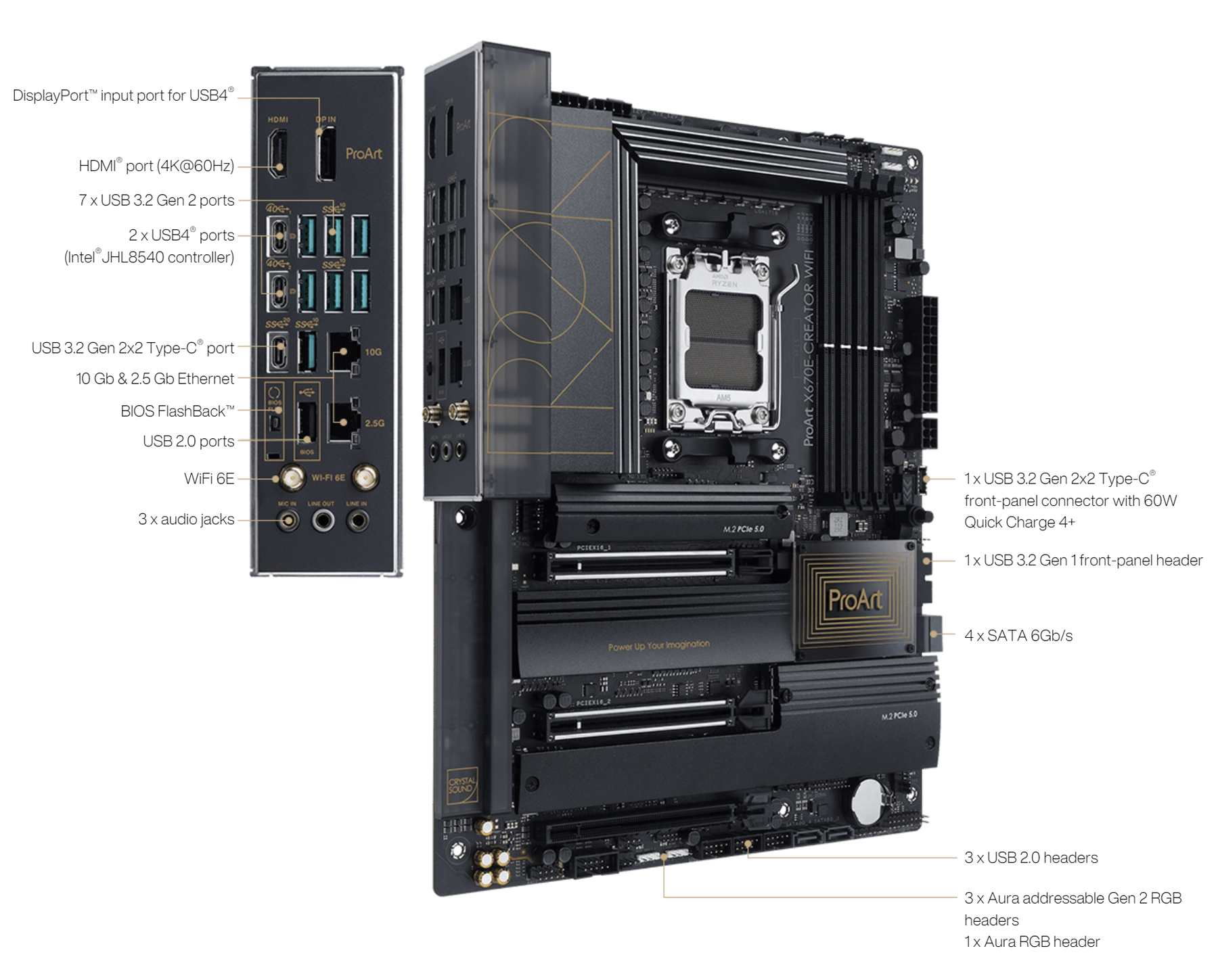

Back I/O Ports • 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 7 x USB 3.2 Gen 2 ports (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
Internal I/O Ports Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• 1 x 6-pin PCIe Power connector
Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS button
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header

Images




$1,232.79


  Qty.Colfax ProEdge™ RX7400 Workstation, Cost As Configured $1,232.79
Motherboard 1
Primary CPU 1
Memory Socket 1    1

Set next    items (  ) like this
Memory Socket 2    1
Memory Socket 3    1
Memory Socket 4    1
Chassis 1
Power Supply 1
Liquid Pump 1
M.2 NVMe Drive 1    1

Set next    items (  ) like this
M.2 NVMe Drive 2    1
SSD Drive 1    1

Set next    items (  ) like this
SSD Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Video Card 1
Mouse 1
Keyboard 1
LCD Panel 1
Operating System SW 1
   Colfax ProEdge™ RX7400 Workstation, Cost As Configured $1,232.79
