Colfax ProEdge™ RX7800 Workstation



  •

Features

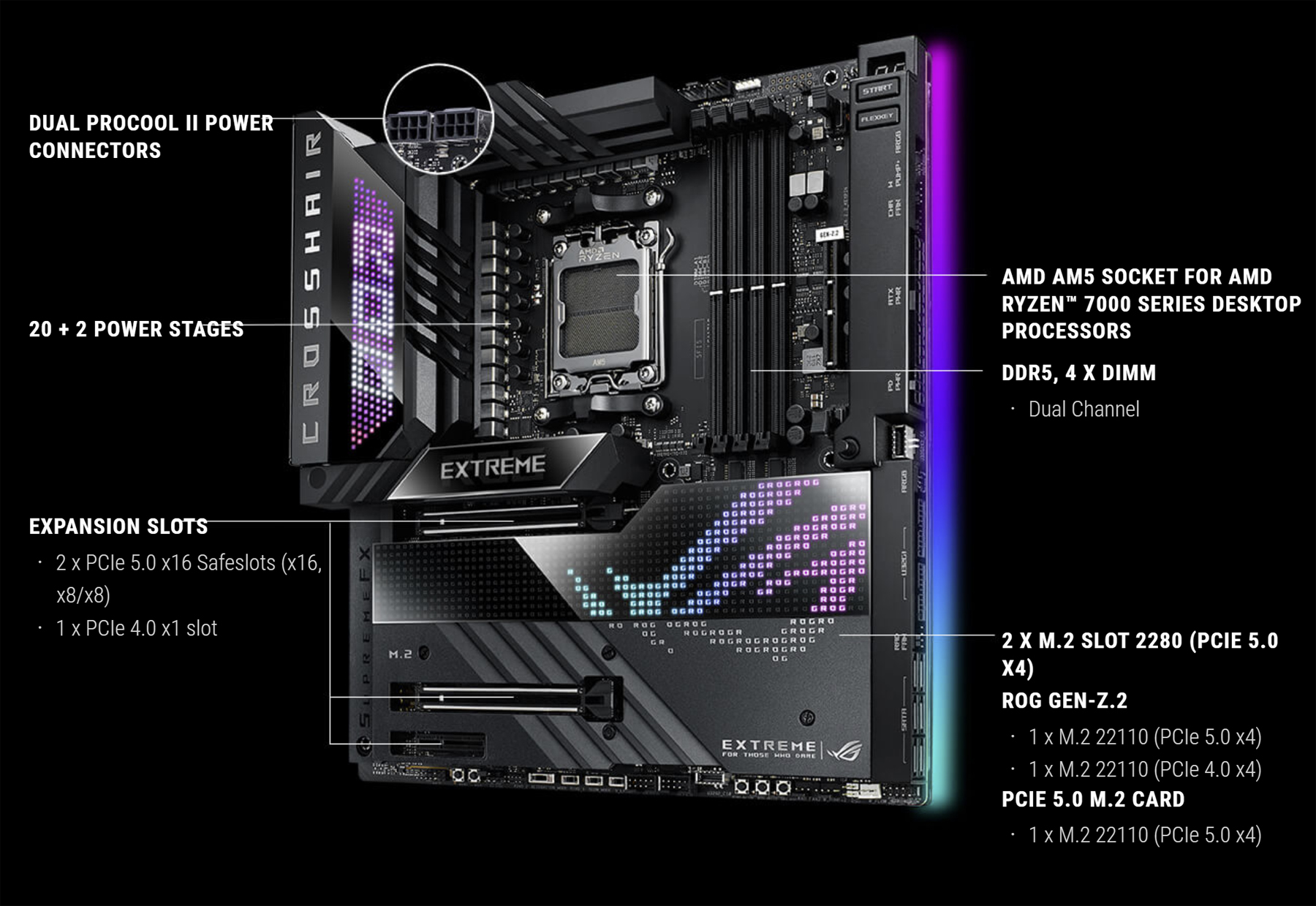

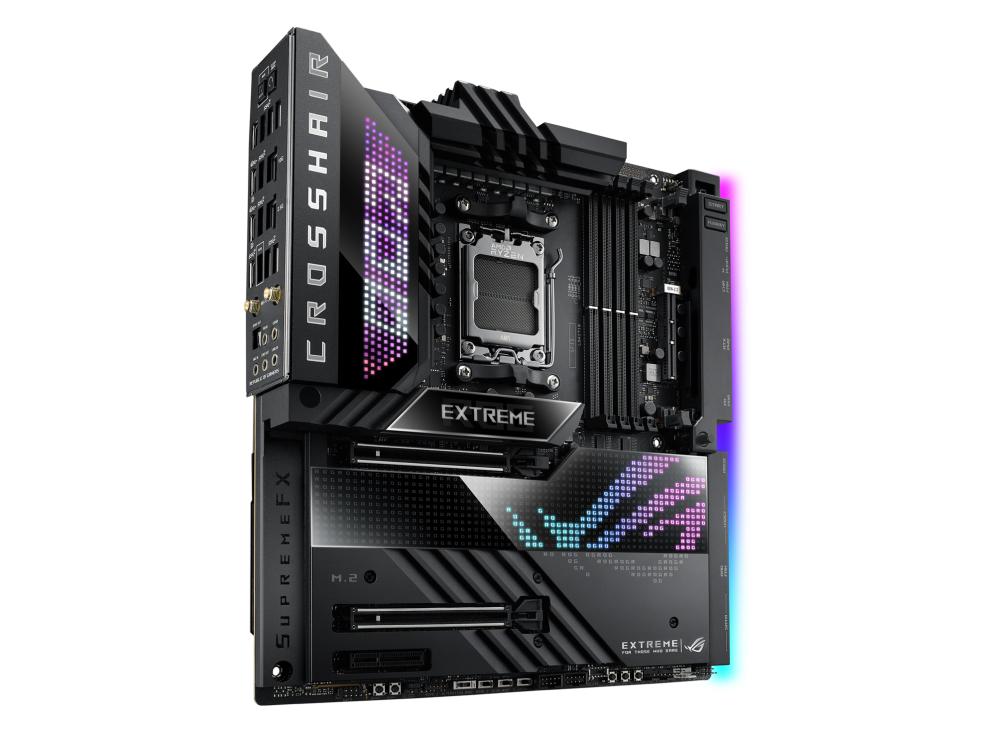

ASUS ROG Crosshair X670E Extreme Motherboard

Bringing a legacy of ROG greatness along with a flurry of the latest tech for fully loaded builds, the ROG Crosshair X670E Extreme comfortably eases AMD Ryzen™ 7000 Series processors through the toughest workloads. Embrace the AM5 era with the indomitable kingpin of the ROG stack.


  •

AMD Ryzen™ 7000 Series Processors

Model

# of Cores / Threads

L3 Cache

Base Clock

Default TDP

AMD Ryzen™ 9 7950X

16/32

64MB

4.5GHz

170W

AMD Ryzen™ 9 7900X

12/24

64MB

4.7GHz

170W

AMD Ryzen™ 7 7700X

8/16

32MB

4.5GHz

105W

AMD Ryzen™ 5 7600X

6/12

32MB

4.7GHz

105W


Click here for Complete Ryzen 7000 Series Comparison

AMD X670E Chipset

Features dual-channel DDR5 memory, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe.

Click here for AMD Socket AM5 Chipset Comparison

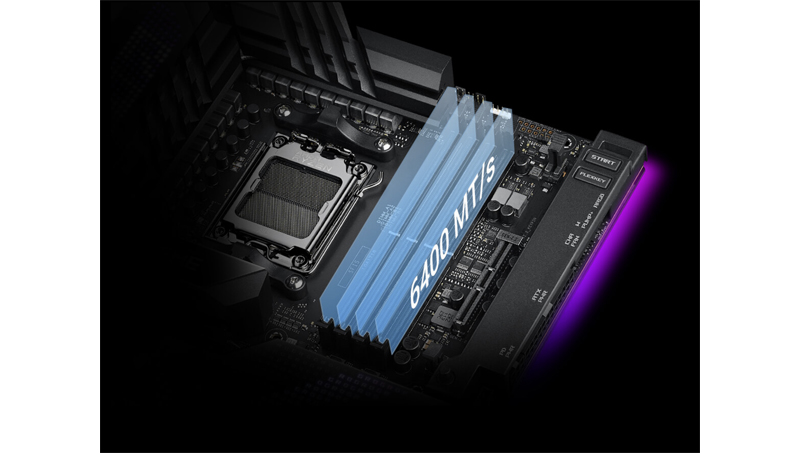

Unleashing DDR5 Performance

DDR5 memory brings the latest cutting-edge technology for next-gen workstation platforms. Taking speed, capacity and reliability even further, DDR5 arrives with an arsenal of enhanced features, like on-die ECC (ODECC) for improved stability at extreme speeds, dual 32-bit subchannels for increased efficiency and an on-module power management integrated circuit (PMIC) to provide juice where it’s needed most.

AMD EXPO™ Certified

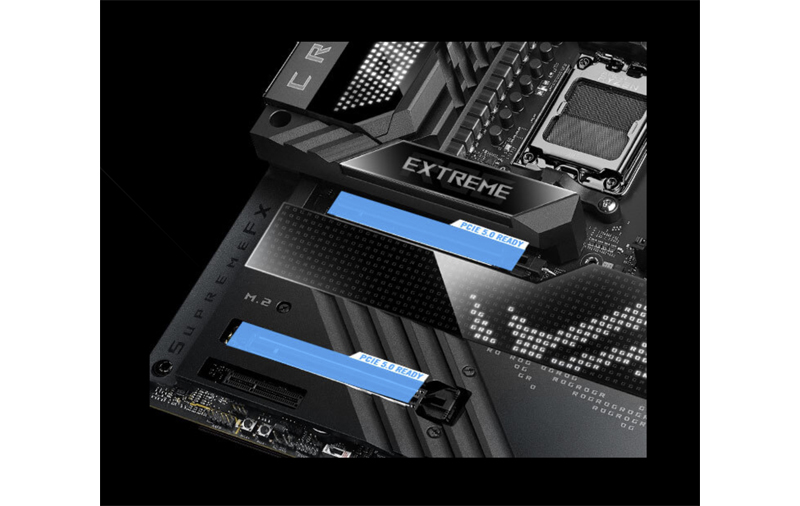

PCIe® 5.0 Slots

Both of the x16 expansion slots offer incredible speeds up to 64 GB/s for compatible devices. They are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

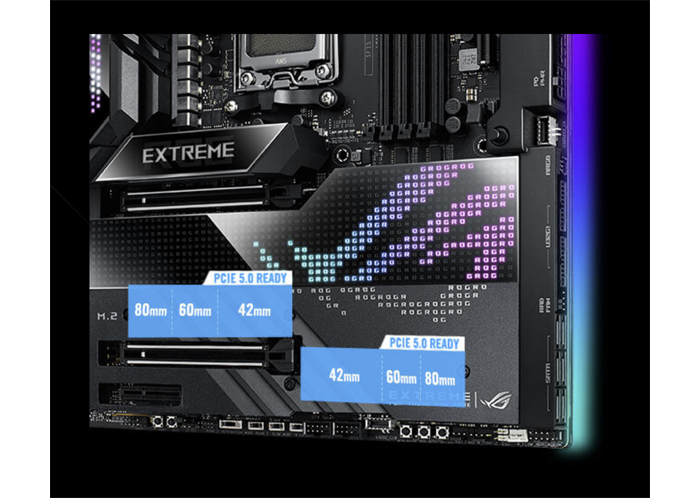

Two Onboard M.2 Slots

The workstation features two onboard M.2 slots, which are PCIe 5.0-ready to offer blistering 16 GB/s speed.

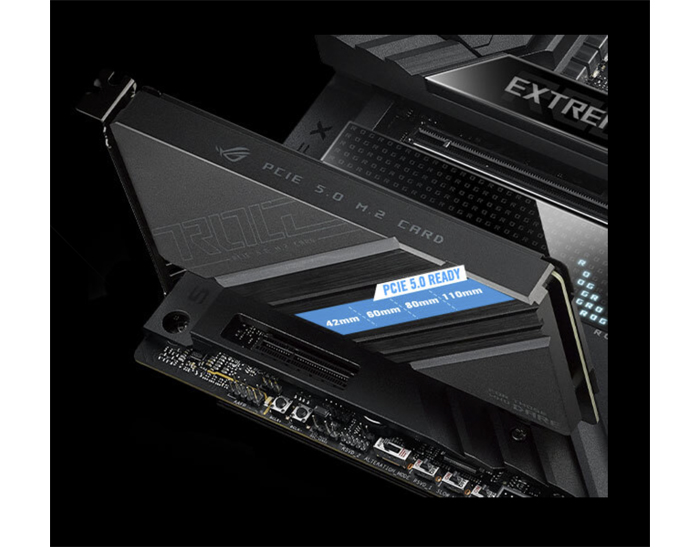

PCIe 5.0 M.2 Card

For even more storage, the bundled PCIe 5.0 M.2 Card features an additional Gen 5-ready slot, and boasts ample surface area for dissipating the heat of a full-size 22110 drive.

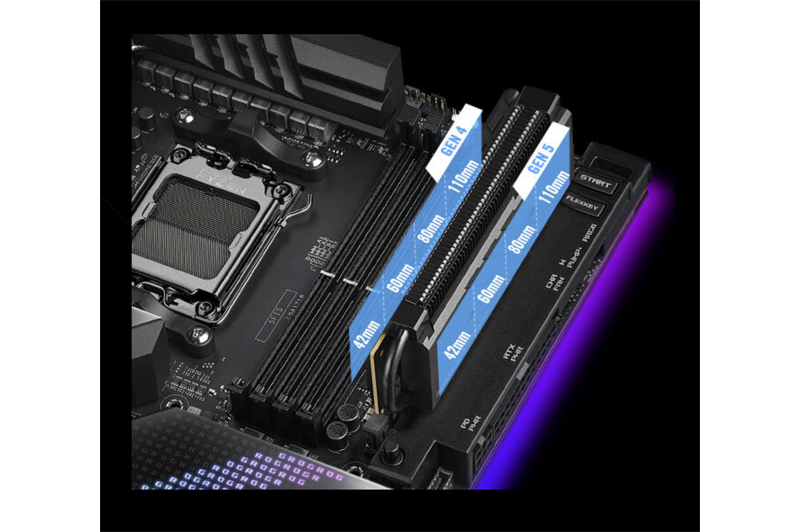

ROG GEN-Z.2 Module

The ROG GEN-Z.2 module features two M. 2 slots on either side, with one supporting Gen 4 speeds and the other Gen 5

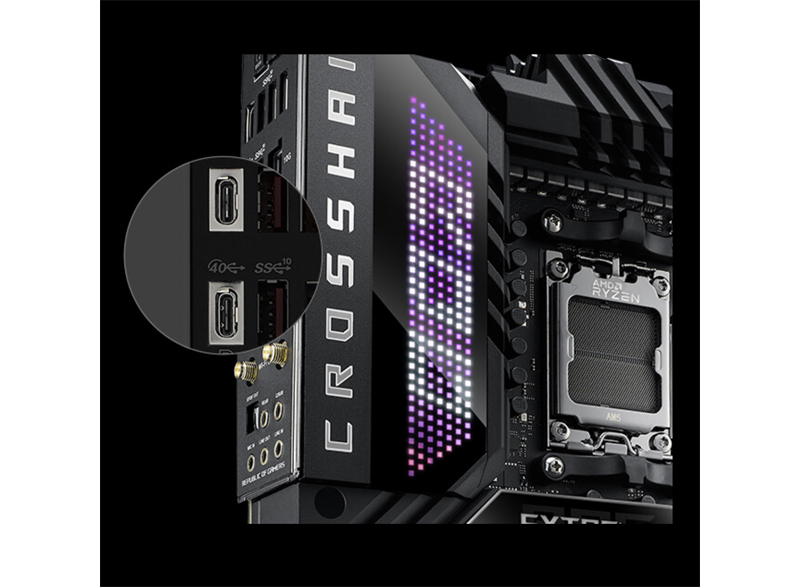

Dual USB4® Type-C® Ports

Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.

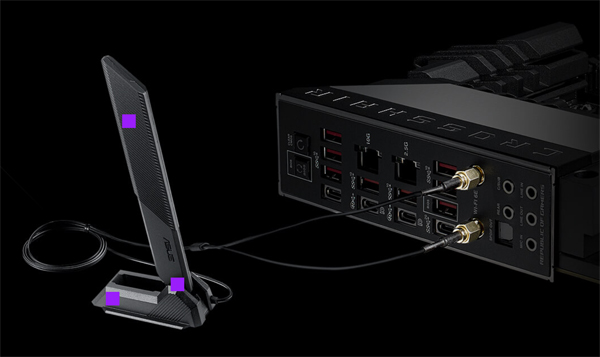

Ultrafast Networking

Onboard WiFi 6E* technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments. Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

* Actual speed varies, and depends on networking conditions.
* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.


Technical Specifications

Motherboard • Asus ROG CROSSHAIR X670E EXTREME
CPU • AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset AMD X670E
Memory • 4 x DIMM sockets (Max. 128GB)
• DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

* Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function

WARNING: Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by Colfax. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability.

Graphics • 2 x USB4® ports support USB Type-C® display outputs*

* VGA resolution support depends on processor or graphic card resolution
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processor*
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

AMD X670E Chipset
• 1 x PCIe 4.0 x4 slot

* When the PCIe 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
* When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4.
Integrated LAN • 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
Storage Supports total 5 x M.2 slots and 6 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processor
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
• GEN-Z.2_1 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
• PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
AMD X670E Chipset
• GEN-Z.2_2 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

* AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
** When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4.
*** Performance may very depending on the SSD’s firmware version, the system hardware and system configuration.
Wireless & Bluetooth • Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3**

* WiFi 6E 6GHz regulatory may vary between countries
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
• Audio Features
- SupremeFX Shielding Technology
- ESS® ES9218 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
USB Ports Rear USB: Total 12 ports
• 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
Front USB: Total 10 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

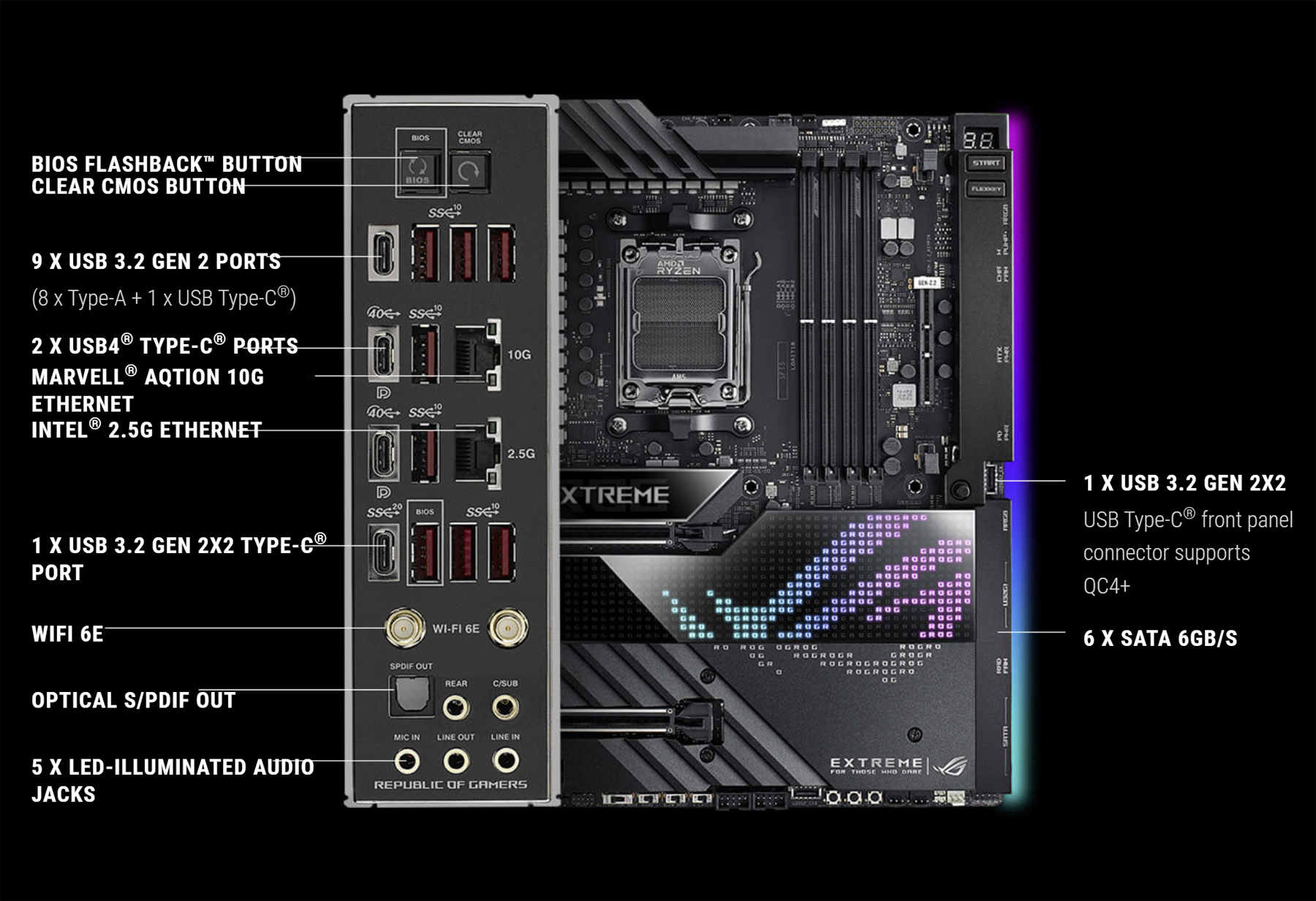

Back I/O Ports • 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x Marvell® AQtion 10Gb Ethernet port
• 5 x LED-illuminated audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

* The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Ports Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• 2 x 4-pin Radiator Fan headers
• 2 x W_PUMP+ headers
• 1 x WB_SENSOR header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 1 x 6-pin PCIe Graphics Card connector
Storage related
• 2 x M.2 slots (Key M)
• 1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
• 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
• 1 x Addressable Gen 2 header
• 1 x Alteration Mode Switch
• 1 x Aura RGB header
• 1 x BIOS Switch button
• 2 x BCLK button
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x LN2 Mode jumper
• 1 x Osc sence header
• 12 x ProbeIt Measurement Points
• 1 x ReTry button
• 1 x RSVD switch
• 1 x RSVD header
• 1 x Safe Boot button
• 1 x Slow Mode switch
• 1 x Start button
• 1 x V_Latch switch
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header
