Colfax ProEdge™ RX9200 Workstation



  •
  •

Features

  • Asus Prime X870-P WIFI (Download Manual)
  • Fractal Define 7 Compact Chassis
  • AMD Ryzen™ 9000 Series Processor (Click here for Specifications and Comparison)
  • AMD X870 Chipset (Click here for Specifications and Comparison)
  • 4x DIMMs Supports DDR5 ECC RDIMMM
  • Expansion Slots:
    - 1 PCIe 5.0 x16 Slot (x16 mode)
    - 3 PCIe 4.0 x16 Slots (x1 mode)1
  • 2x 3.5"/2.5" SATA HDDs
  • 3x M.2 NVMe SSDs (1 PCIe 5.0 x4 and 2 PCIe 4.0 x4)1
  • 1x 2.5GbE LAN Port
  • Graphics
    - 1x HDMI® Port2
    - 2x USB4® (40Gbps) Ports support USB Type-C® Display Outputs3
  • USB:
    Rear
    - 2x USB4® (40Gbps) Ports (2x USB Type-C®)
    - 1x USB 10Gbps Port (1x Type-A)
    - 3x USB 5Gbps Ports (3x Type-A)
    - 4x USB 2.0 Ports (4x Type-A)
    Front
    - 1x USB 10Gbps Connector (supports USB Type-C®)
    - 1x USB 5Gbps Header Supports 2 Additional USB 5Gbps Ports
    - 2x USB 2.0 Headers Support 4 Additional USB 2.0 Ports
  • Wireless and Bluetooth
    - Wi-Fi 74
    - 2x2 Wi-Fi 7 (802.11be)
    - Supports 2.4/5/6GHz frequency band5
    - Bluetooth v5.46


1 PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
2 Supports 4K@60Hz as specified in HDMI 2.1.
3 Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
4 Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
5 Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
6 The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.




Technical Specifications

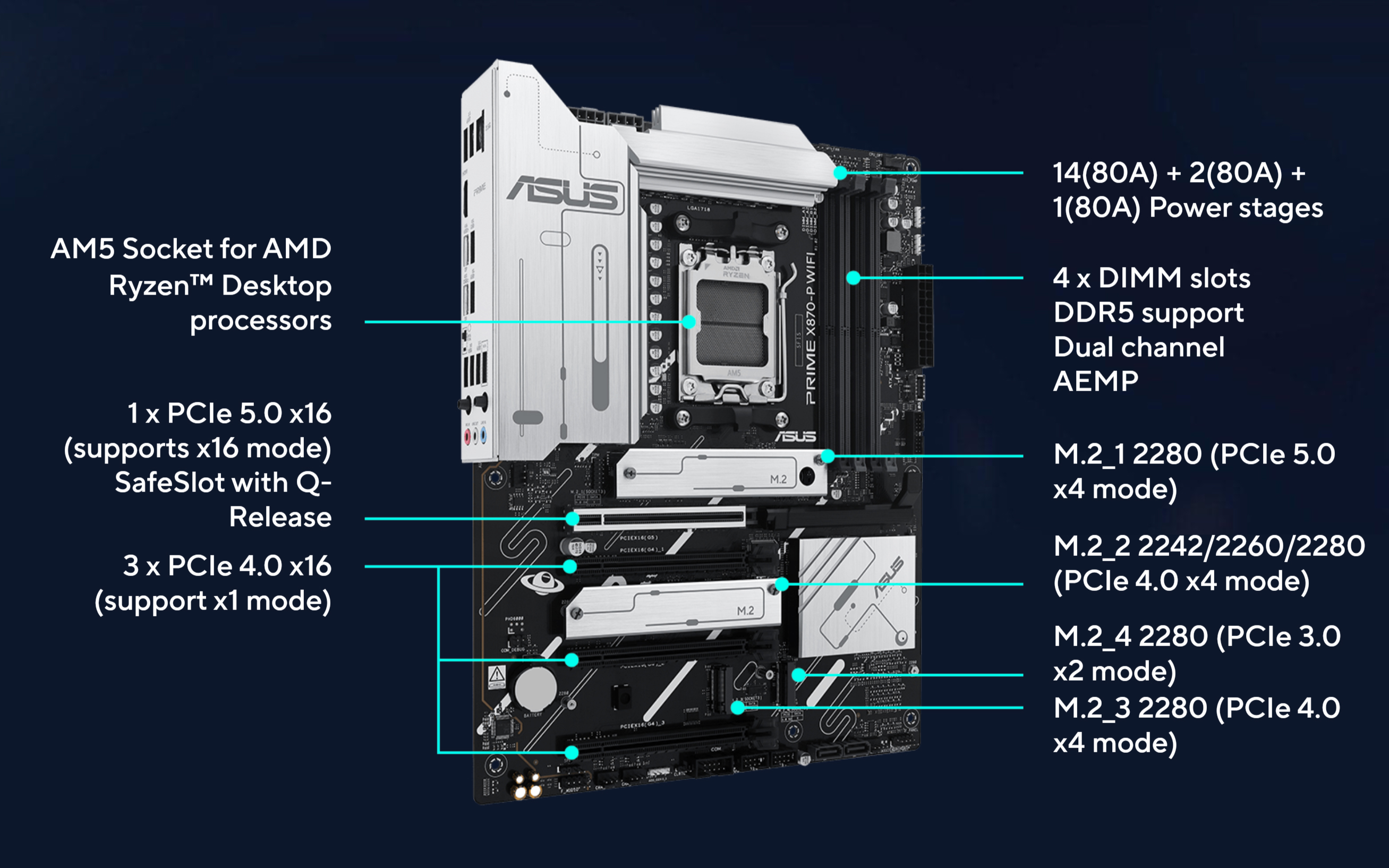

Motherboard • Asus Prime X870-P WIFI
CPU • AMD Socket AM5 for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Chipset • AMD X870
Memory • 4 x DIMM sockets (Max. 192GB)
• Supports up to 8000+MT/s(OC)
• ECC and Non-ECC Unbuffered DIMM**
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

* Non-ECC Unbuffered DDR5 memory supports On-Die ECC function

WARNING: Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by Colfax. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability.
Graphics • 1 x HDMI® port*
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs**

* Supports 4K@60Hz as specified in HDMI 2.1
** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots AMD Ryzen™ 9000/7000 Series Desktop Processor
• 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processor
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 Chipset
• 3 x PCIe 4.0 x16 slots (supports x1 mode)*

* PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Integrated LAN • 1 x Realtek 2.5Gb Ethernet
Storage Supports total 4 x M.2 slots and 2 x SATA 6Gb/s ports*

AMD Ryzen™ 9000/7000 Series Desktop Processor
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processor
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD X870 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
• 2 x SATA 6Gb/s ports****

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs
**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs
Wireless & Bluetooth • Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Bluetooth v5.4***

* Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
Audio • Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
• Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* HD audio module in the front panel is required to support 7.1 Surround Sound audio output
USB Ports Rear USB: Total 10 ports
• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
Front USB: Total 7 ports
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A

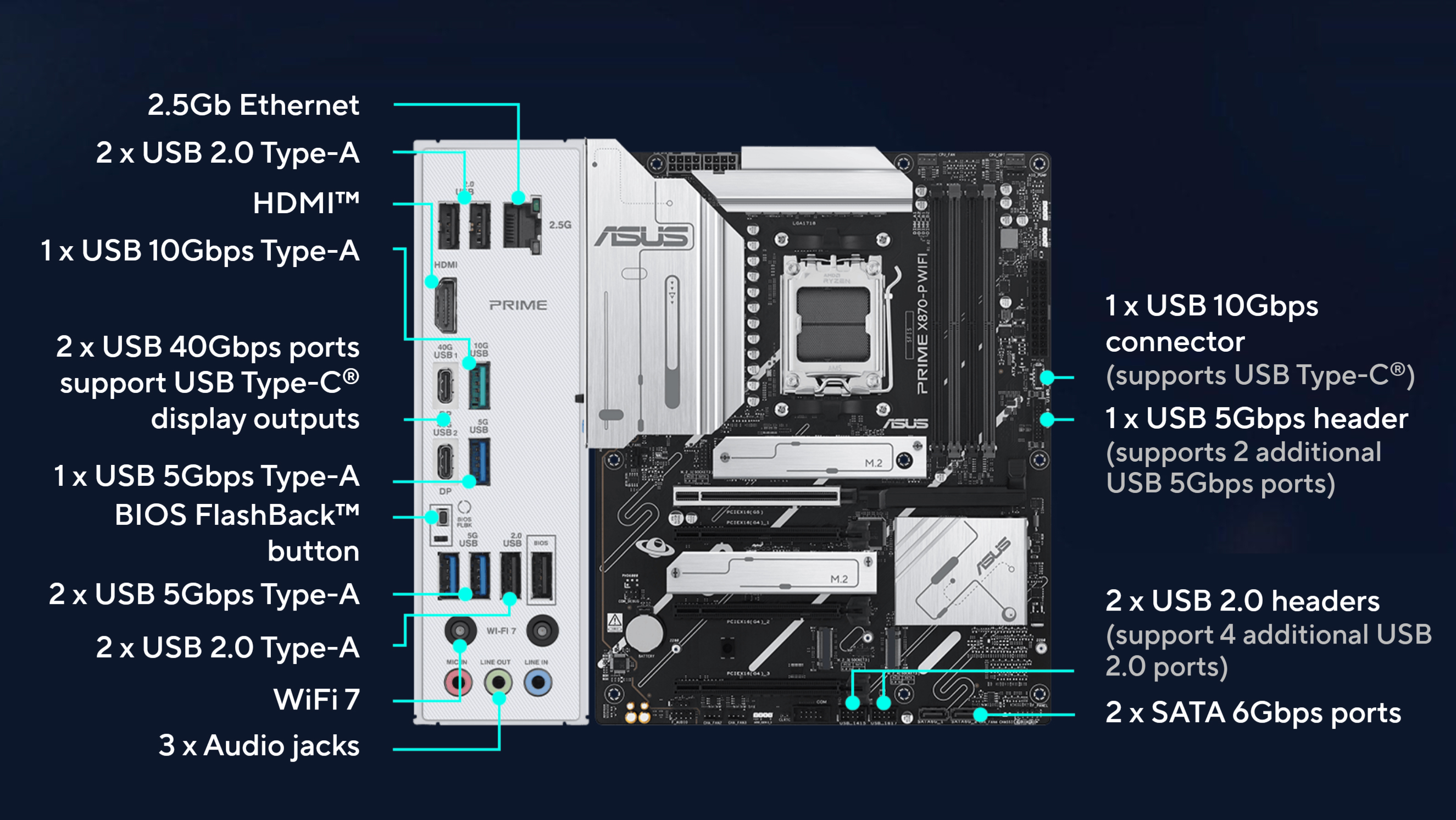

Back I/O Ports • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
Internal I/O Ports Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
Storage related
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
USB
• 1 x USB 10Gbps connector (supports USB Type-C®
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x SPI TPM header (14-1 pin)
• 1 x S/PDIF Out header
• 1 x 10-1 pin System Panel header
BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
Chassis Define 7 Compact

3.5"/2.5" drive mounts
• 2
Dedicated 2.5" drive mounts
• 2 trays included, 4 positions total
Expansion slots
• 7
Front interface
• 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts
• 7x 120 or 4x 140 mm and 2x 120 mm
Front fans
• 3x 120 or 2x 140 mm (1x Dynamic X2 GP-14 included)
Top fans
• 2x 120 or 2x 140 mm
Rear fan
• 1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan
• 1x 120 mm (requires removal of HDD cage)
Dust filters
• Top, 2x front, full length bottom
Fixed velcro straps
• Yes
Cable routing grommets
• Yes
Captive thumbscrews
• HDD brackets, SSD brackets, PSU bracket
Left side panel
• Industrial sound-damped steel
Right side panel
• Industrial sound-damped steel or Tempered glass

Compatibility

Motherboard compatibility
• ATX / mATX / Mini-ITX
Power supply type
• ATX
PSU max length
• 200 mm total (165 mm w/ HDD cage and front fan)
GPU max length
• 341 mm (360 mm without front fan)
CPU cooler max height
• 169 mm
Front radiator
• Up to 360/280 mm (max 145 mm width)
Top radiator
• Up to 240 mm
Rear radiator
• 120 mm
Bottom radiator
• 120 mm (requires removal of HDD cage)
Cable routing space
• 17-28 mm
Dimensions

Case dimensions (LxWxH)
• 427 x 210 x 474 mm
Case dimensions w/o feet/protrusions/screws
• 415 x 210 x 451 mm
Net weight
• Solid version: 8.61 kg, TG version: 8.76 kg

Images

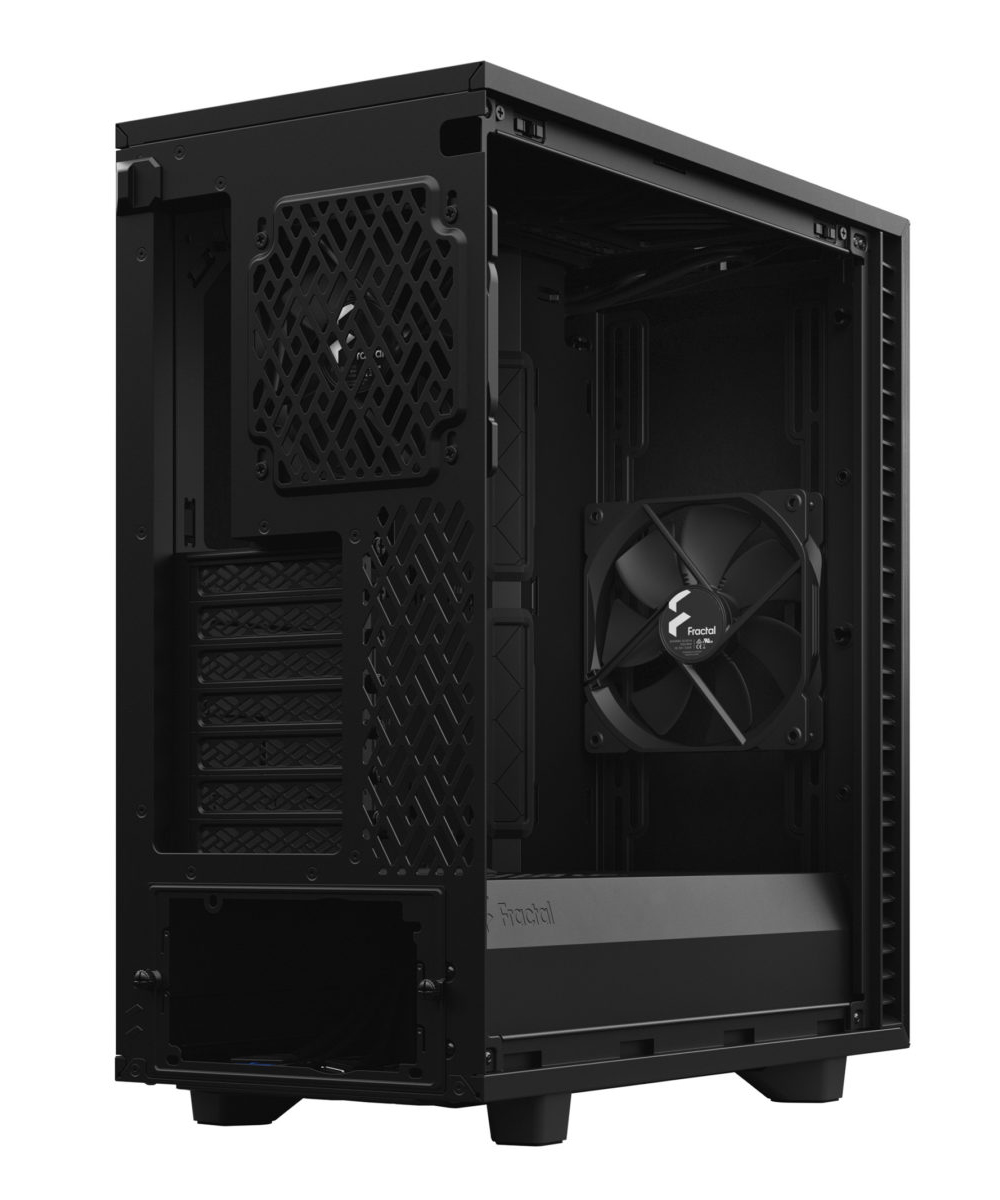

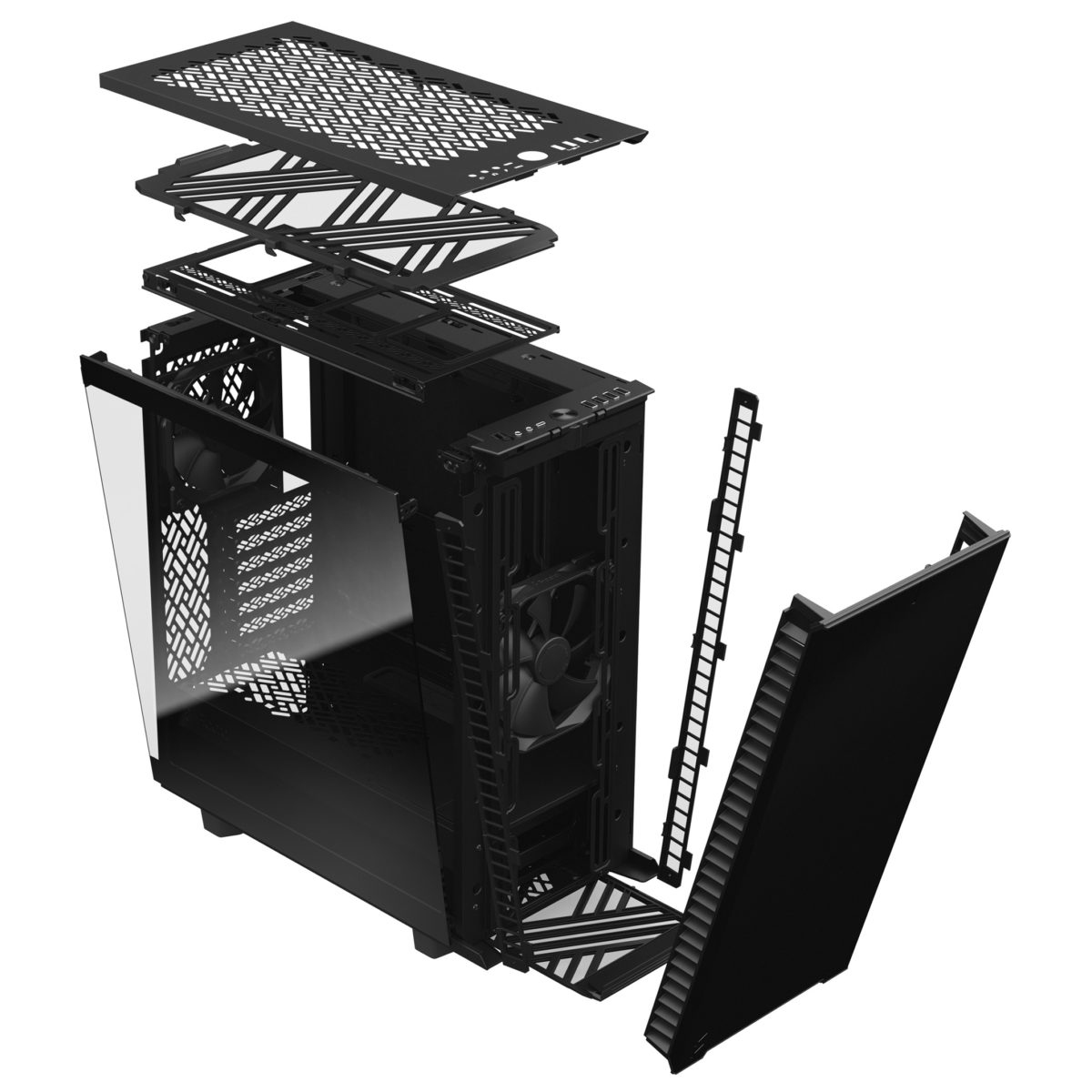

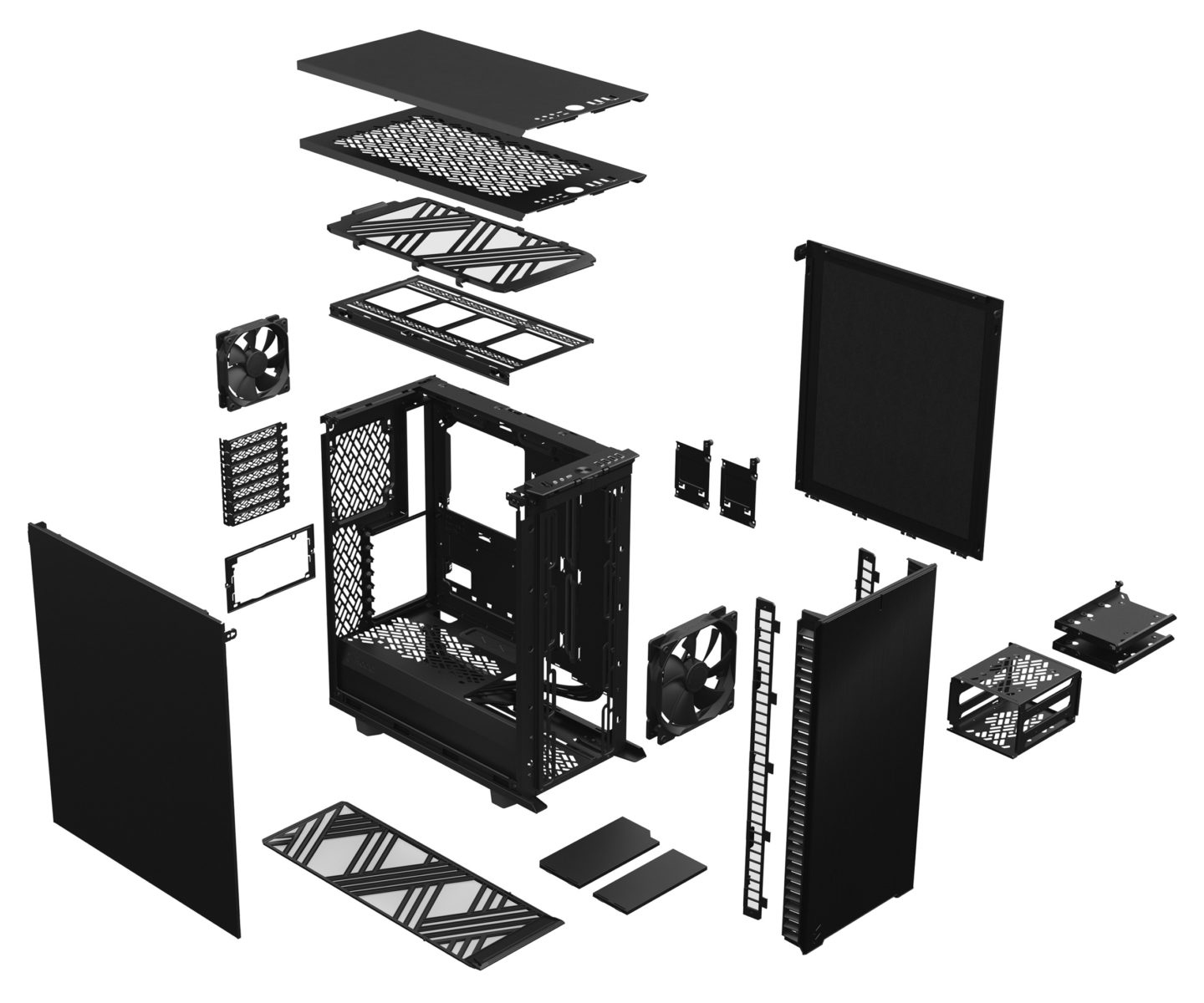

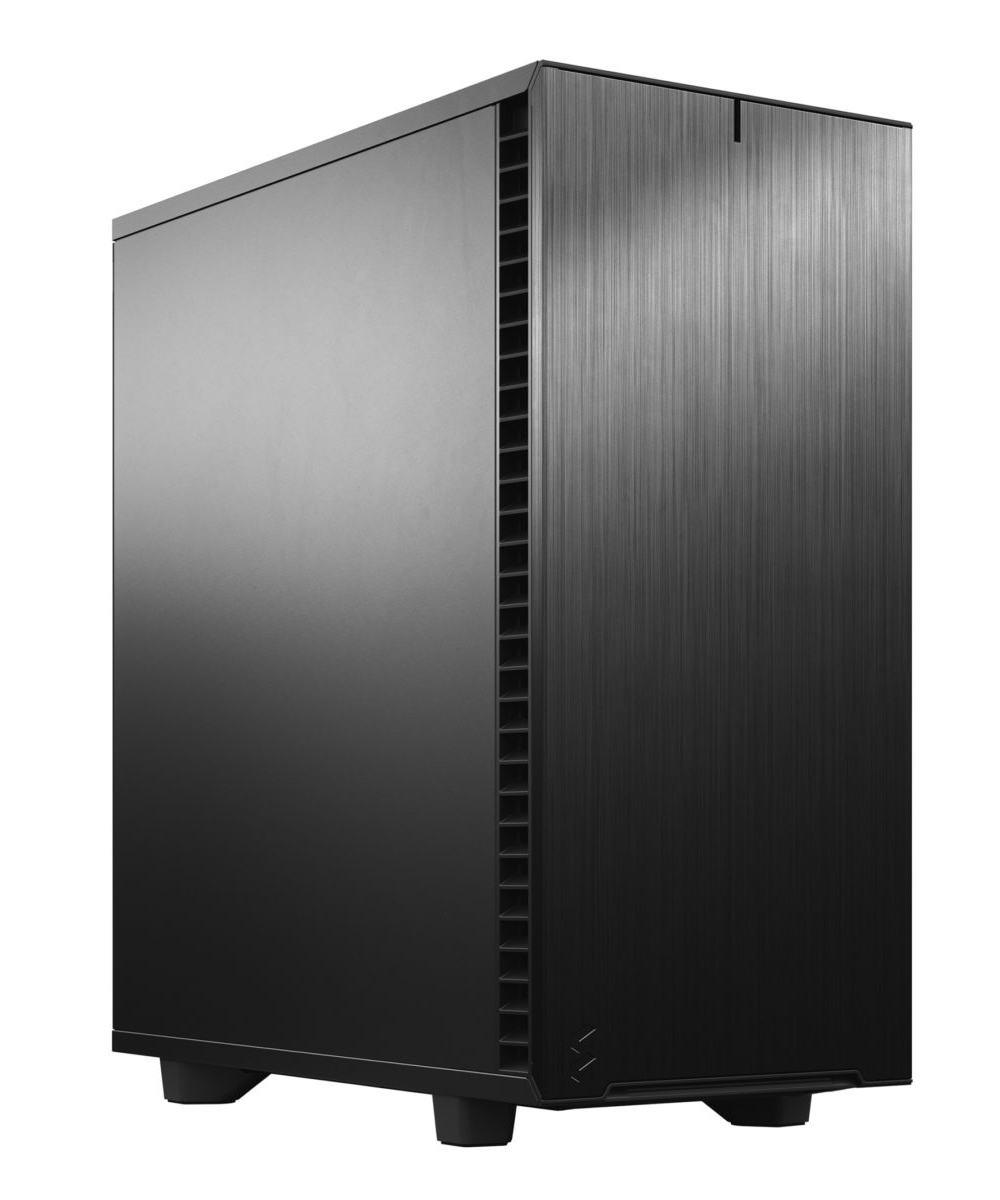

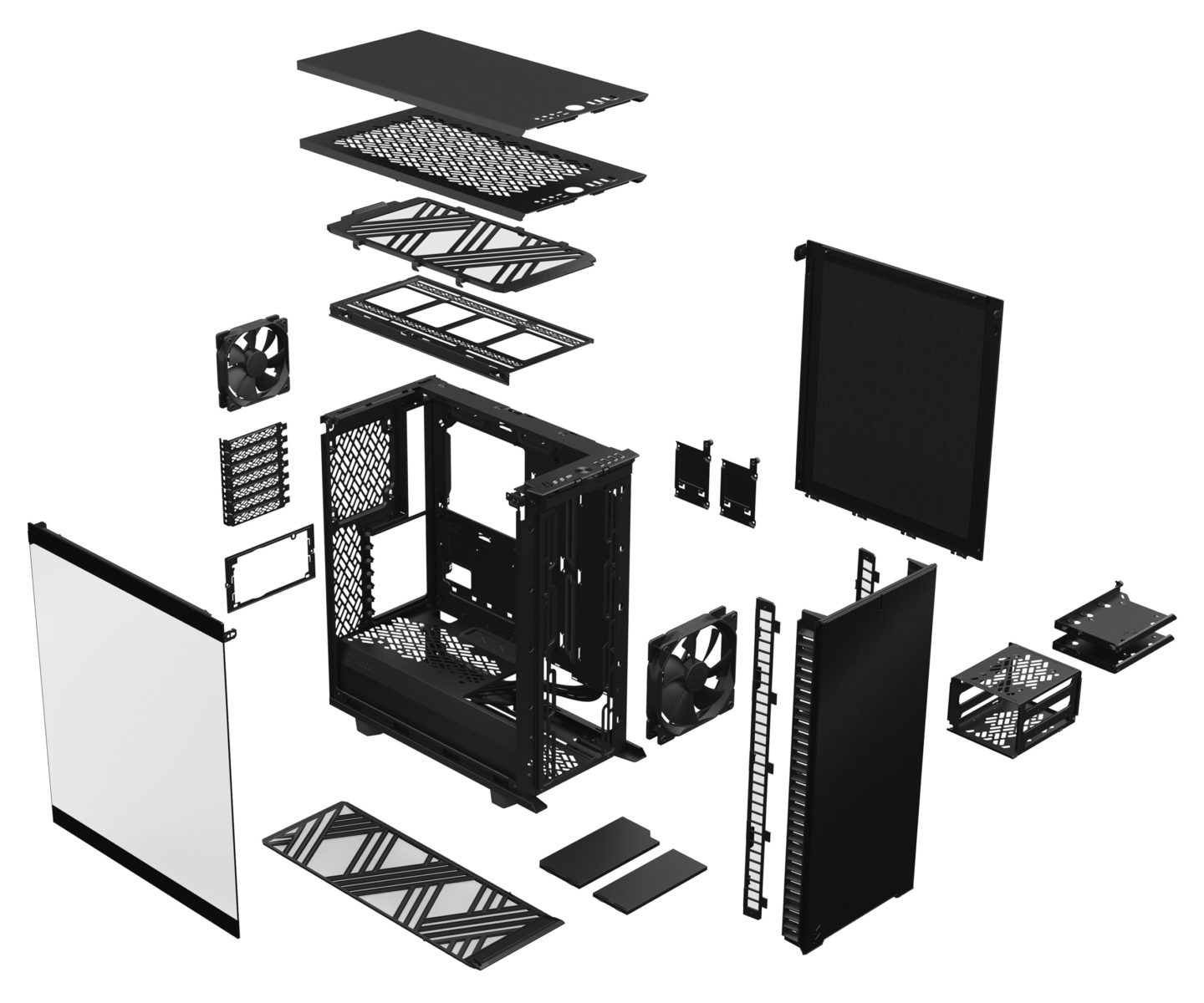

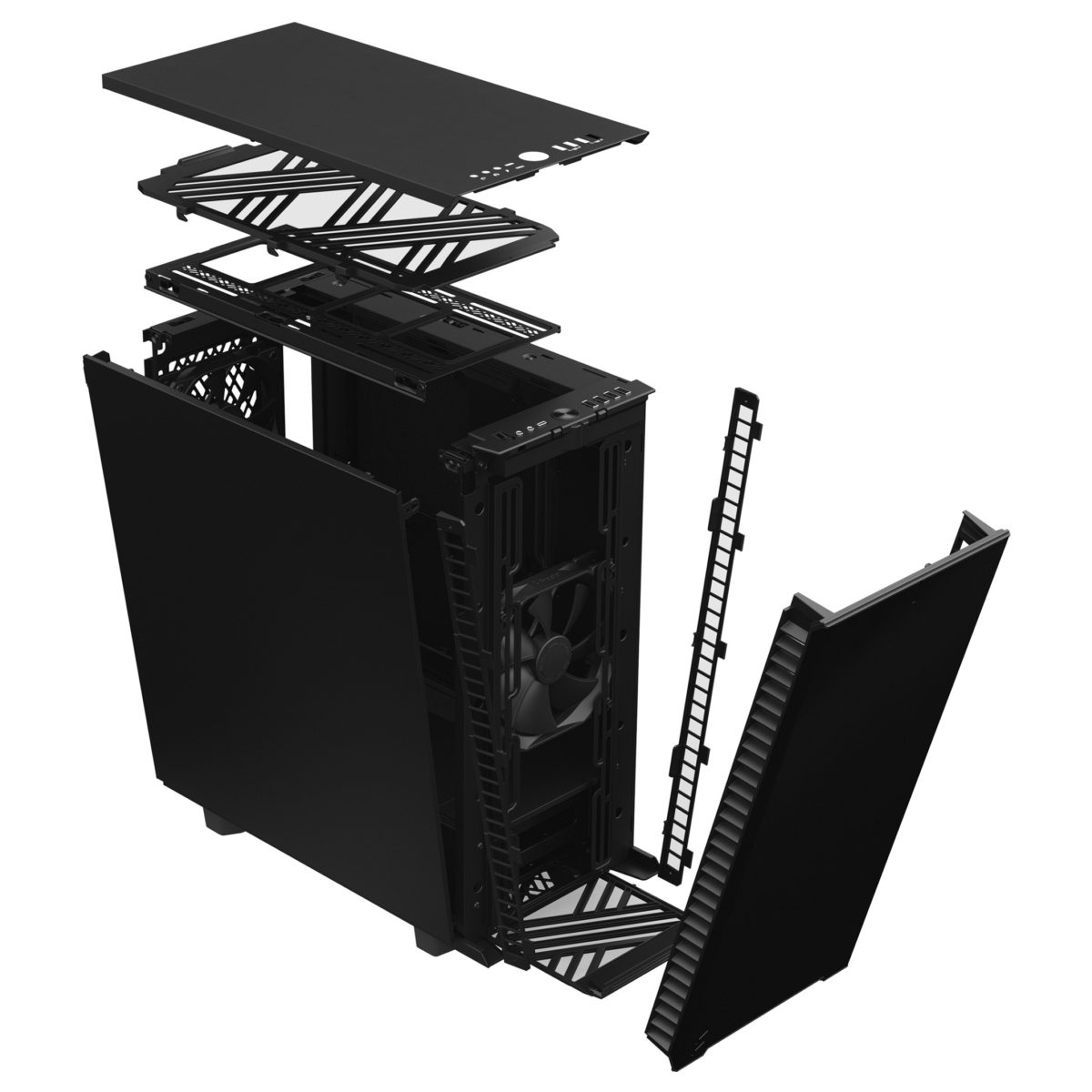

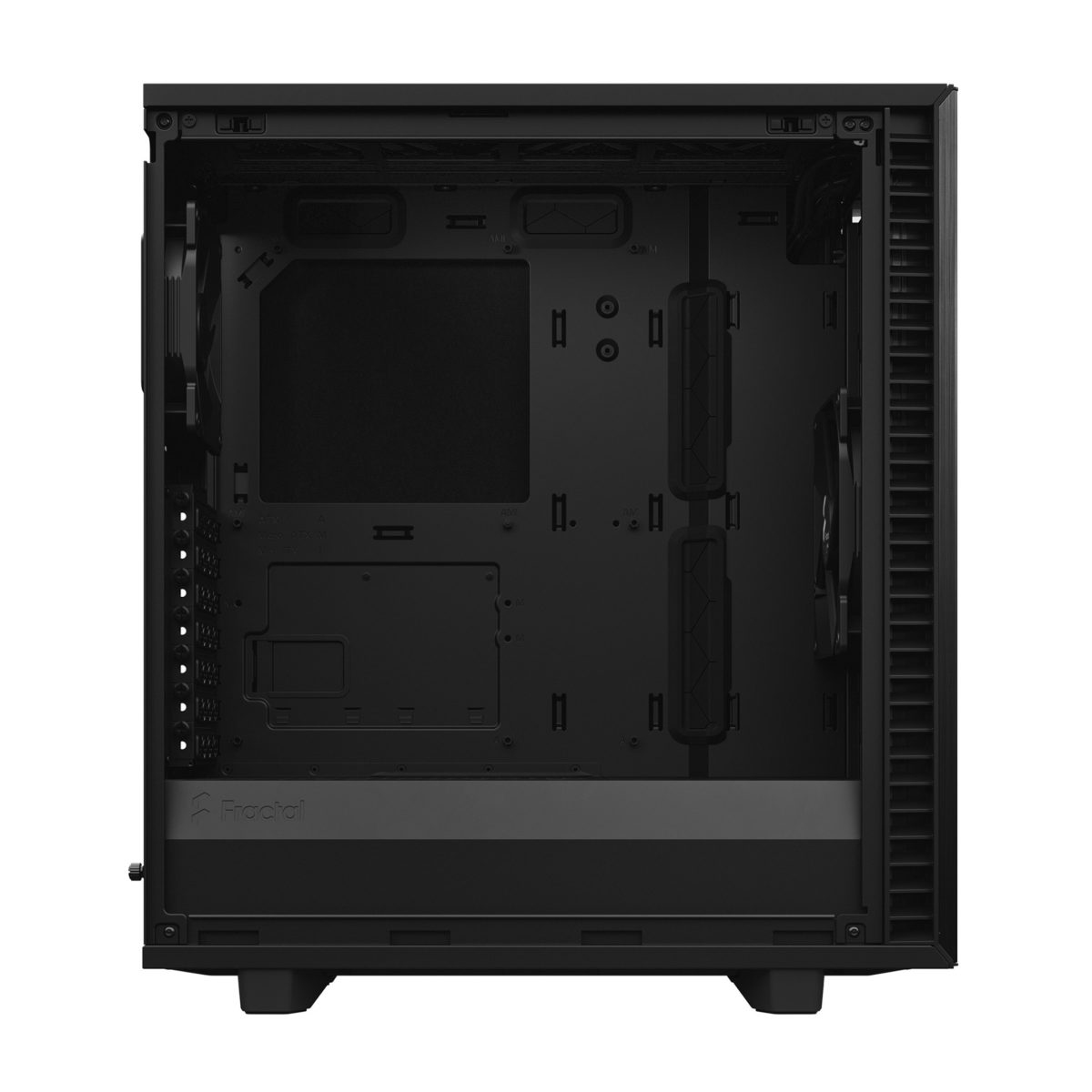

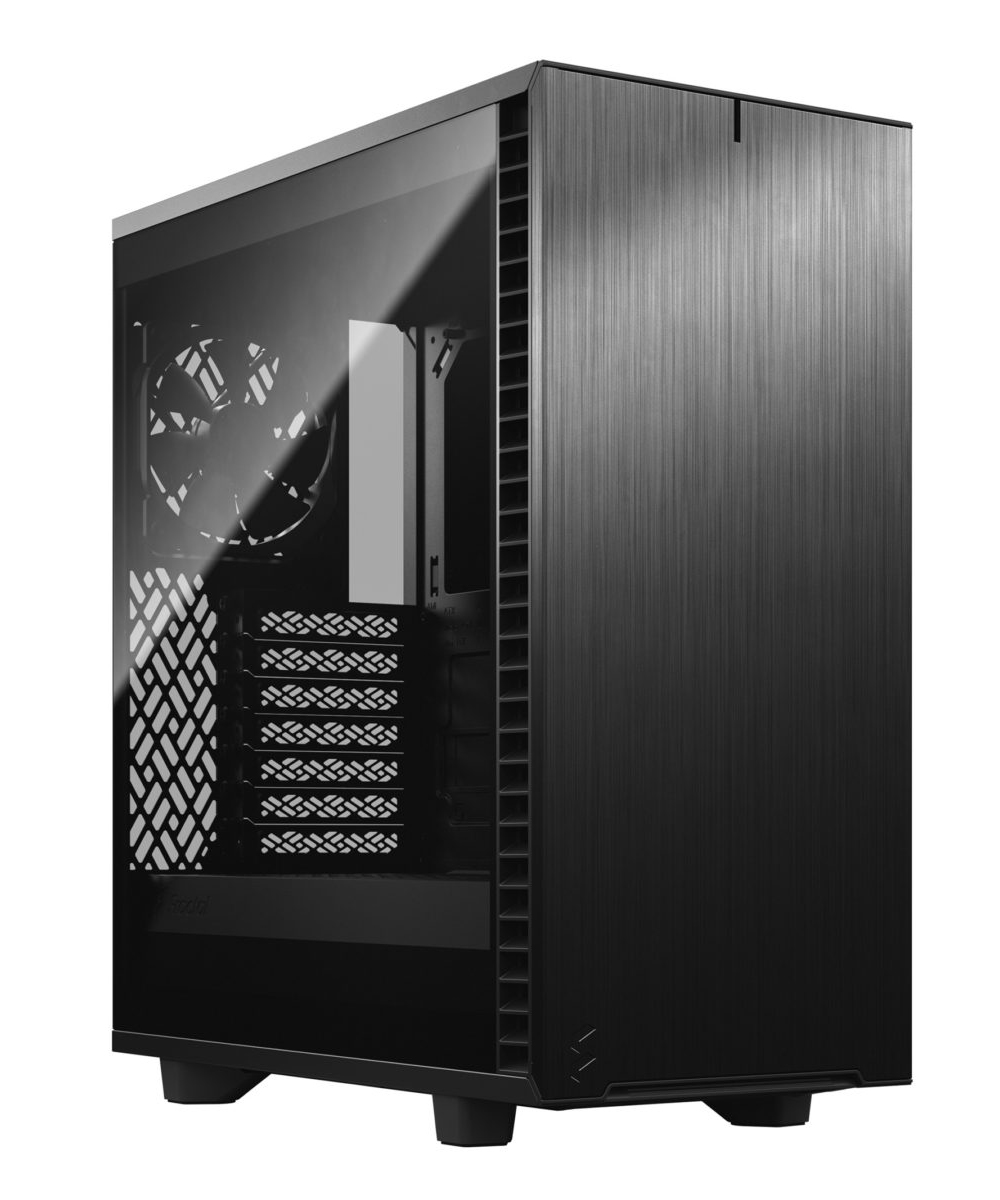

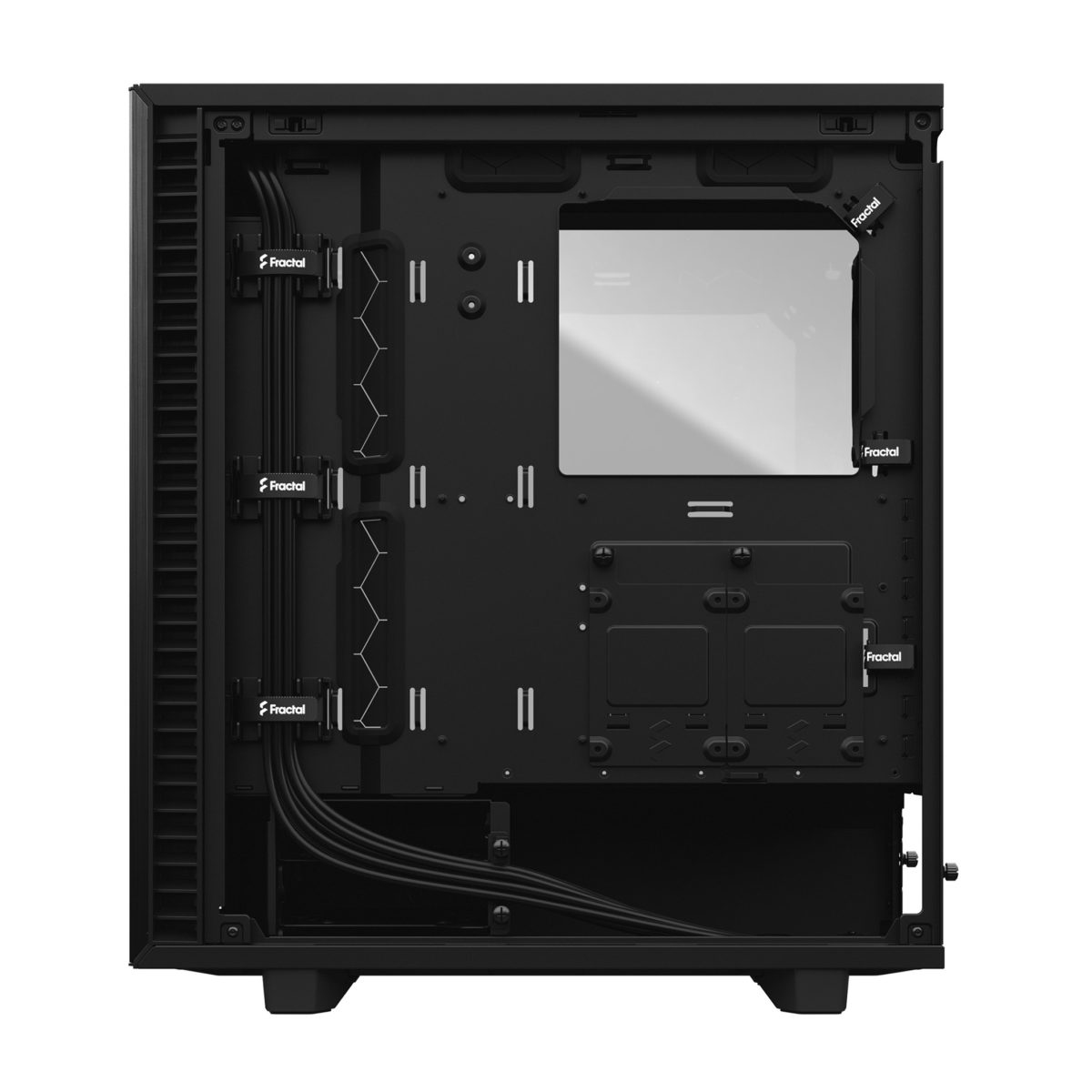

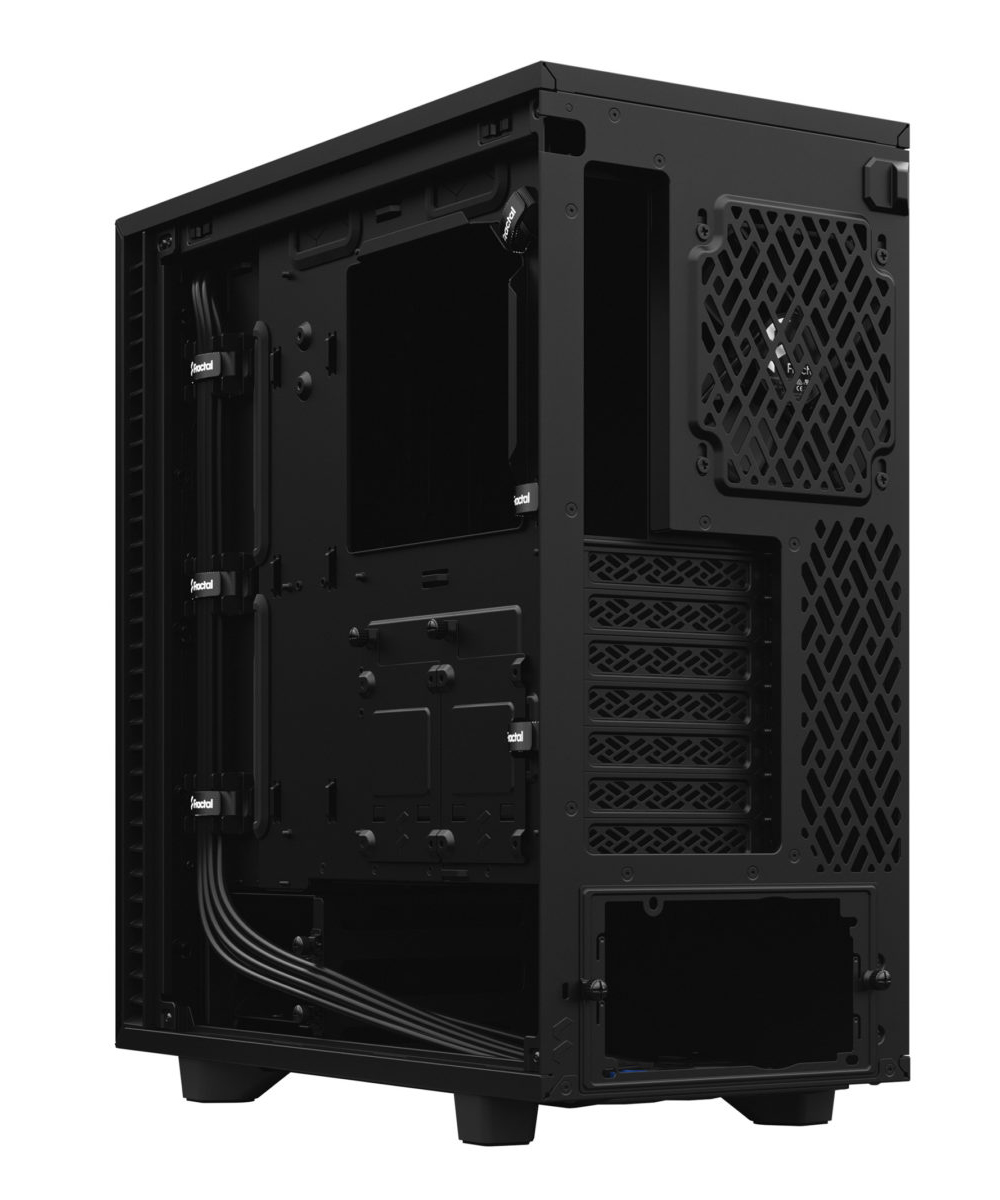

Chassis - Available in Black Dark/Light Tint and Black Solid
















$956.63


  Qty.Colfax ProEdge™ RX9200 Workstation, Cost As Configured $956.63
Motherboard 1
Primary CPU 1
Memory Socket 1    1

Set next    items (  ) like this
Memory Socket 2    1
Memory Socket 3    1
Memory Socket 4    1
Chassis 1
Power Supply 1
Liquid CPU Cooler 1
M.2 NVM-E Drive 1 (Gen 5) 1
M.2 NVM-E Drive 2 (Gen 4) 1
M.2 NVM-E Drive 3 (Gen 4) 1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Video Card 1
Mouse 1
Keyboard 1
Operating System SW 1
   Colfax ProEdge™ RX9200 Workstation, Cost As Configured $956.63
