Colfax ProEdge™ SXP9400 Workstation



  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • Up to 4x NVIDIA GPUs
  • 16x DIMMS Support DDR5 RDIMM
  • 8x 3.5" SATA/SAS/NVMe Drive Bays

Hardware Features

  • Pedestal or 4U Rackmount (w/Optional Rackmount Kit)
  • 2x 4th/5th Gen Intel® Xeon® Scalable Processors
  • Up to 4x NVIDIA GPUs
  • Intel C741 Chipset
  • 16x DIMMS, Supports DDR5 ECC RDIMMM
  • Expansion Slots:
    - 4 PCIe 5.0 x16 Slots (Double-Width)
    - 3 PCIe 5.0 x16 Slots (Single-Width)
  • 8x 3.5" Hot-Swap SATA/SAS/NVMe Drive Bays
  • 2x M.2 NVMe SSDs
  • 2x 10GBase-T LAN ports via Intel X550-AT2
  • 2000W Redundant Power Supply, 80PLUS Titanium
  • Integrated IPMI 2.0 with KVM and Dedicated LAN




Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries.

Technical Specifications

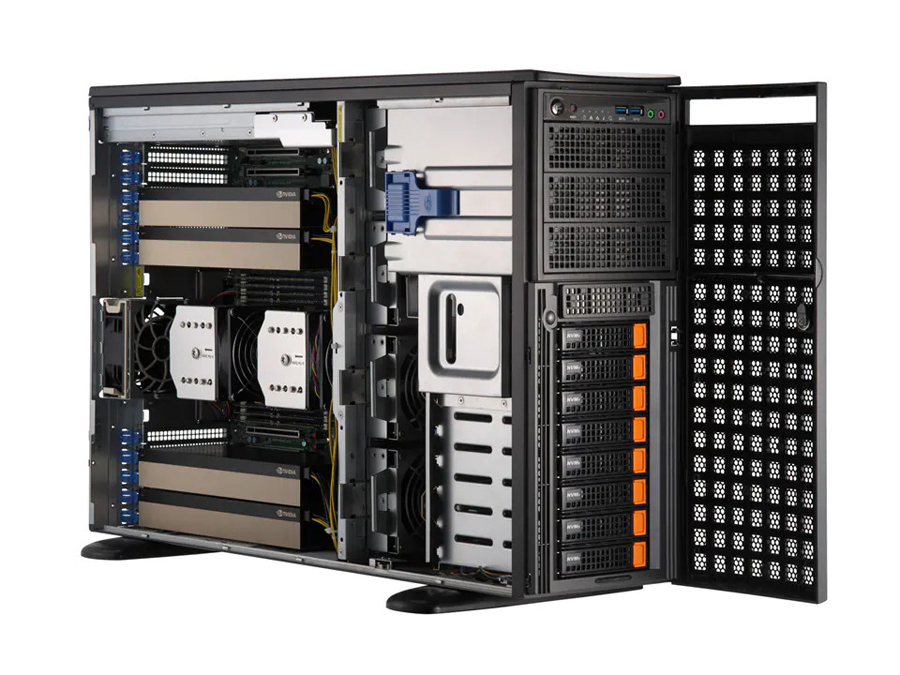

Chassis Form Factor • 4U Rackmountable / Tower
• Dimension (HxWxD): 7.0" (178mm) x 17.2" (437mm) x 29" (737mm)

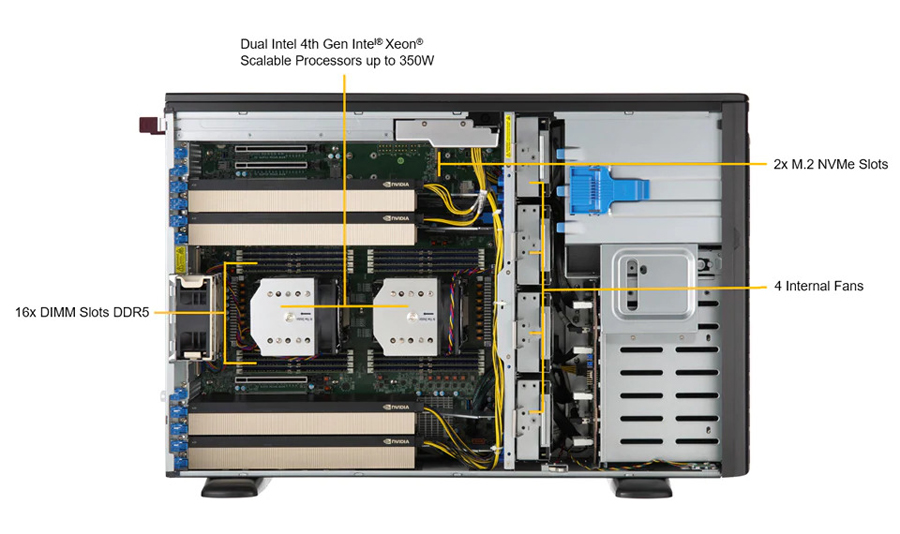

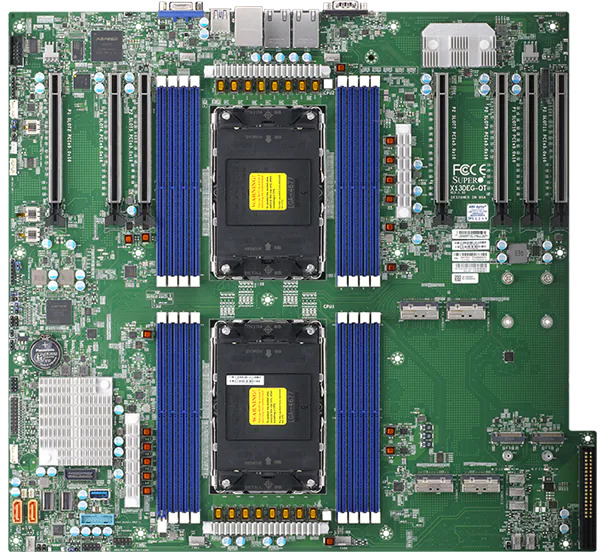

CPU • Dual Socket E (LGA-4677)
• Supports 4th Gen Intel® Xeon® Scalable processors
• TDP up to 350W
GPU CPU-GPU Interconnect
• PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
• NVIDIA® NVLink™ Bridge (optional)
Memory • 16 DIMM Sockets
• Supports up to 4TB: 16x 256 GB DRAM
• Memory Type: 4800MHz ECC DDR5 DRAM
Chipset • Intel® C741

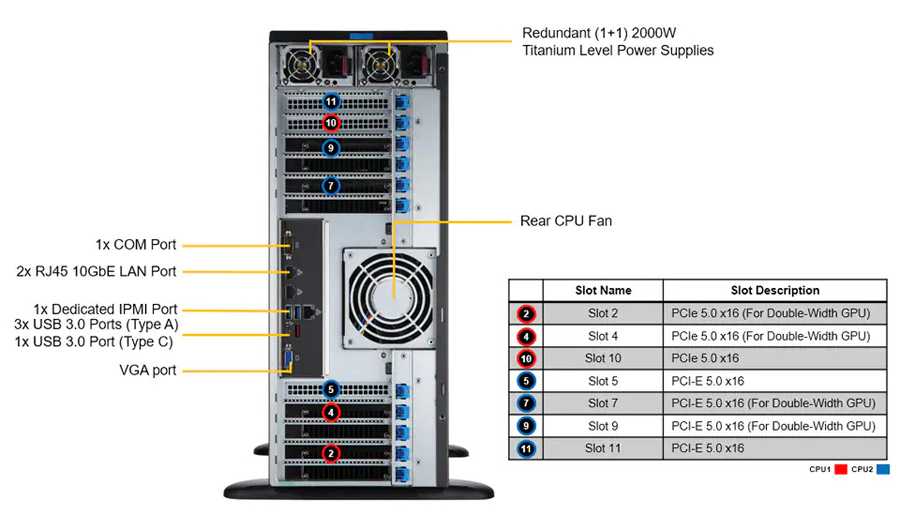

I/O Expansion PCI-Express
• 4 PCIe 5.0 x16 (double-width) slots
• 3 PCIe 5.0 x16 (single-width) slots
Onboard Devices SATA
• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
• Intel® X550-AT2 Dual Port 10GBase-T
IPMI
• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
VGA
• ASPEED AST2600 BMC
Input / Output SATA
• 10 SATA3 (6Gbps) ports
LAN
• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB
• 7x USB 3.2 Gen1 ports (1 rear type C; 2 via header; 3 rear type A; 1 Type A)
VGA
• 1x VGA port
Serial Port/Header
• 2 COM ports (1 rear, 1 header)
Power Supply • 2000W Redundant Power Supplies
• AC Input
- 100-127Vac / 50-60Hz
- 200-240Vac / 50-60Hz
• DC Input
- 2000W: 230-240Vdc
• +12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 166.7A / Min: 0A (200Vac-240Vac)
• 12V sb
- Max: 2.1A / Min: 0A
• 80PLUS Titanium Certified

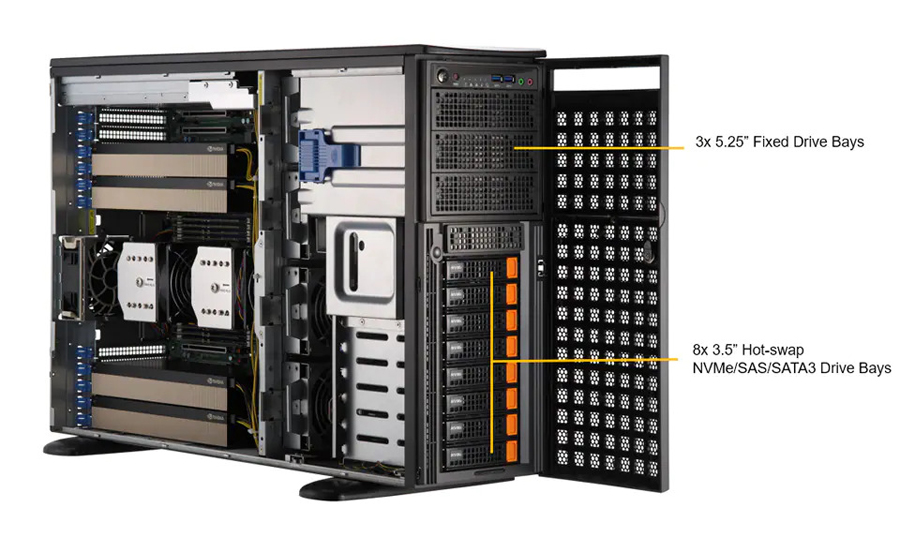

Storage • 8x 3.5" hot-swap NVMe/SATA/SAS drive bays

M.2
• M.2 Interface: 2 PCIe 5.0 x4
• Form Factor: 2280/22110
• Key: M-Key
System Cooling Fans
• 4 heavy duty fans with optimal fan speed control

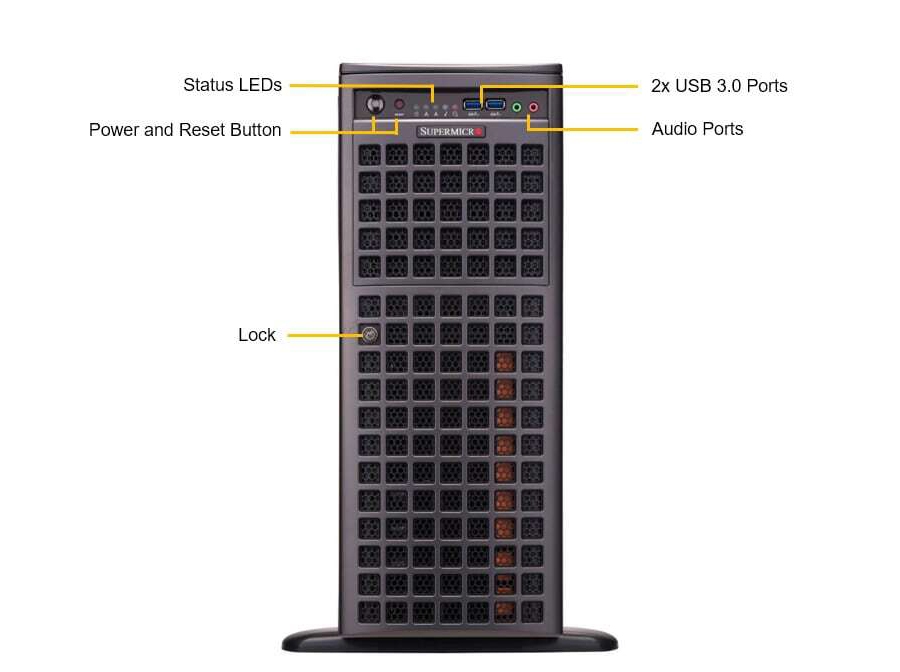

Front Panel Buttons
• Power On/Off button
• System reset button
LEDs
• Power status LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat & Power Fail LEDs
Ports
• 2 Front USB 3.0 ports
BIOS • AMI 32Mb SPI Flash ROM


Images
