Colfax ProEdge™ WX2400 Workstation



  • Intel® Xeon® W-2400 Processor
  • 8x DIMMs Supporting DDR5 Memory
  • 2x SATA HDDs/SSDs
  • 2x 2.5" NVMe SSDs
  • 1x M.2 NVMe SSD

Features

  • Asus Pro WS W790E-ACE Board
  • Intel® Xeon® W-2400 Processor
  • Intel® W790 Chipset
  • Noctua NH-U9 DX-4677 Premium CPU Cooler
  • 8x DIMMs Supports DDR5 ECC RDIMMM
  • 5 PCI-E 5.0 x16 Slots
  • 2x SATA HDDs/SSDs
  • 2x 2.5" NVMe SSDs
  • 1x M.2 NVMe SSD
  • 1x Marvell® AQtion 10Gb Ethernet & 1x Intel® 2.5Gb Ethernet
  • USB 3.2 Gen 2x2 Type-C®
  • Server-grade IPMI Remote Management


Technical Specifications

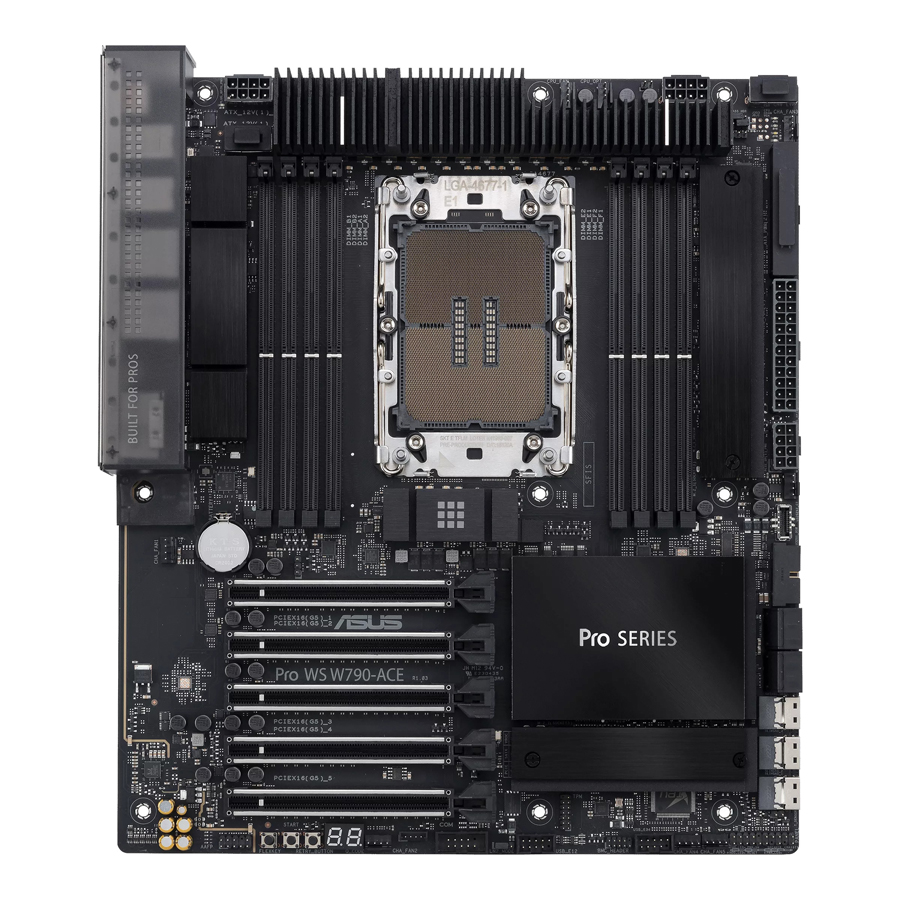

Motherboard • Asus Pro WS W790E-ACE
CPU • Socket LGA4677
• Intel® Xeon® W-3400 and W-2400 Series Processors
Chipset • Intel® W790
Memory • 8x DDR5 DIMM sockets (Max. 2048GB)
• 4800MHz ECC Registered Memory
• 8-channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots Intel® Xeon® W-3400 and W-2400 Series Processors
• 5x PCIe 5.0 slots (x16, x16, x16, x0/x8, x16/x8)
Integrated LAN • 1x Marvell® AQtion 10Gb Ethernet
• 1x Intel® 2.5Gb Ethernet
Storage Supports 2x M.2 slots, 4x SATA 6Gb/s ports and 3x SlimSAS ports

Intel® W790 Chipset
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• SlimSAS_1 slot supports PCIe 3.0 x4 mode NVMe device
• SlimSAS_2 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable.
• SlimSAS_3 slot supports PCIe 4.0 x4 mode NVMe device
• 4x SATA 6Gb/s port(s)
Audio • Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192 kHz playback
- Rear optical S/PDIF out port
- Premium audio capacitors

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
USB Ports Rear USB: Total 13 ports
• 1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
• 4x USB 3.2 Gen 2 ports (4x Type-A)
• 8x USB 2.0 ports (8x Type-A)
Front USB: Total 7 ports
• 1x USB 3.2 Gen 2 connector (suppports USB Type-C®)
• 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2x USB 2.0 headers support additional 4 USB 2.0 ports

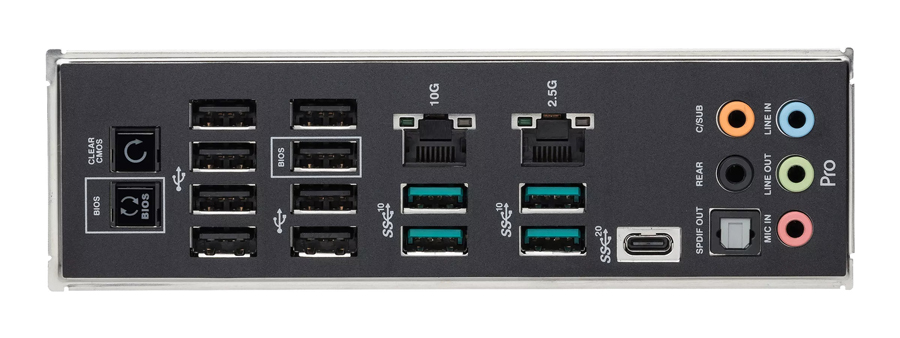

Back I/O Ports • 1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
• 4x USB 3.2 Gen 2 ports (4x Type-A)
• 8x USB 2.0 ports (8x Type-A)
• 1x Marvell® AQtion 10Gb Ethernet port
• 1x Intel® 2.5Gb Ethernet port
• 1x Optical S/PDIF out
• 5x Audio jacks
• 1x Clear CMOS button
• 1x USB BIOS FlashBack™ button
Internal I/O Ports Fan and Cooling related
• 1x 4-pin CPU Fan header
• 1x 4-pin CPU OPT Fan header
• 5x 4-pin Chassis Fan headers
• 1x W_PUMP+ header
Power related
• 2x 24-pin Main Power connectors
• 4x 8-pin +12V Power connectors
• 1x 8-pin PCIe Power connector
Storage related
• 2x M.2 slots (Key M)
• 3x SlimSAS connectors
• 4x SATA 6Gb/s ports
USB
• 1x USB 3.2 Gen 2 connector (supports Type-C)
• 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
• 1x BMC header
• 1x COM Port header
• 1x FlexKey button
• 1x Front Panel Audio header (AAFP)
• 1x LN2 Mode jumper
• 1x ReTry button
• 1x Start button
• 1x SPI TPM header (14-1pin)
• 1x VROC Key header
• 1x 20-3 pin System Panel header with Chassis intrude function
• 1x Thermal Sensor header

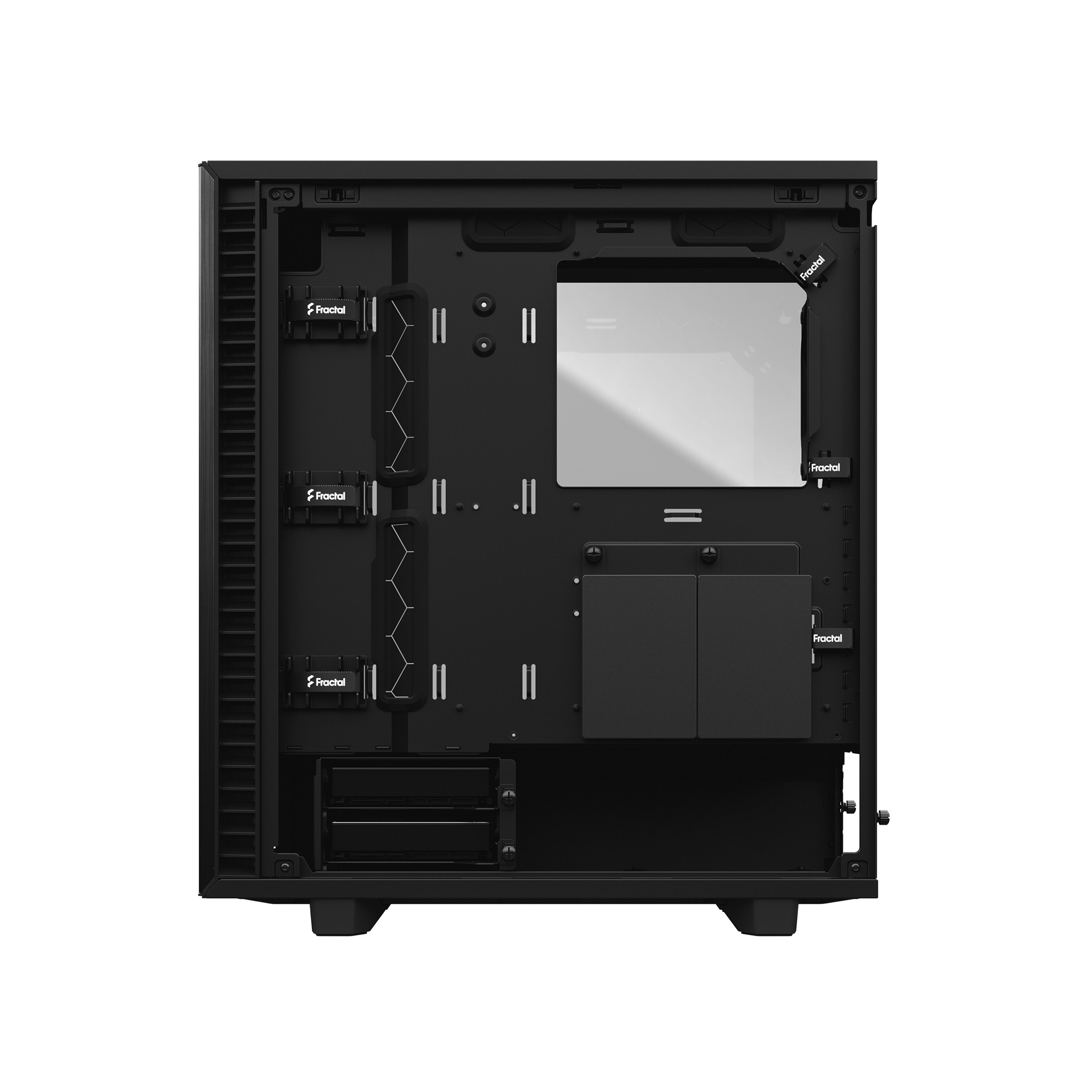

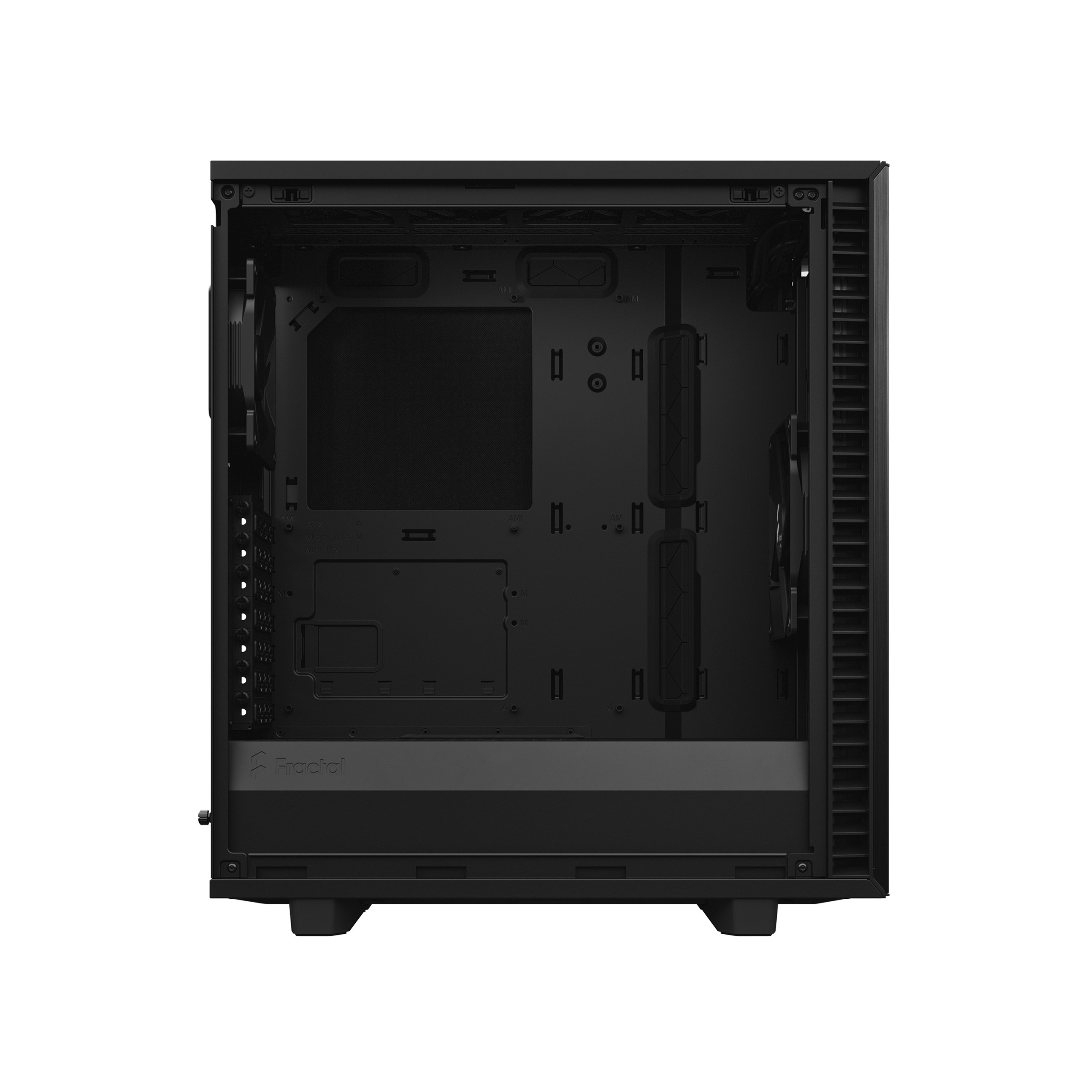

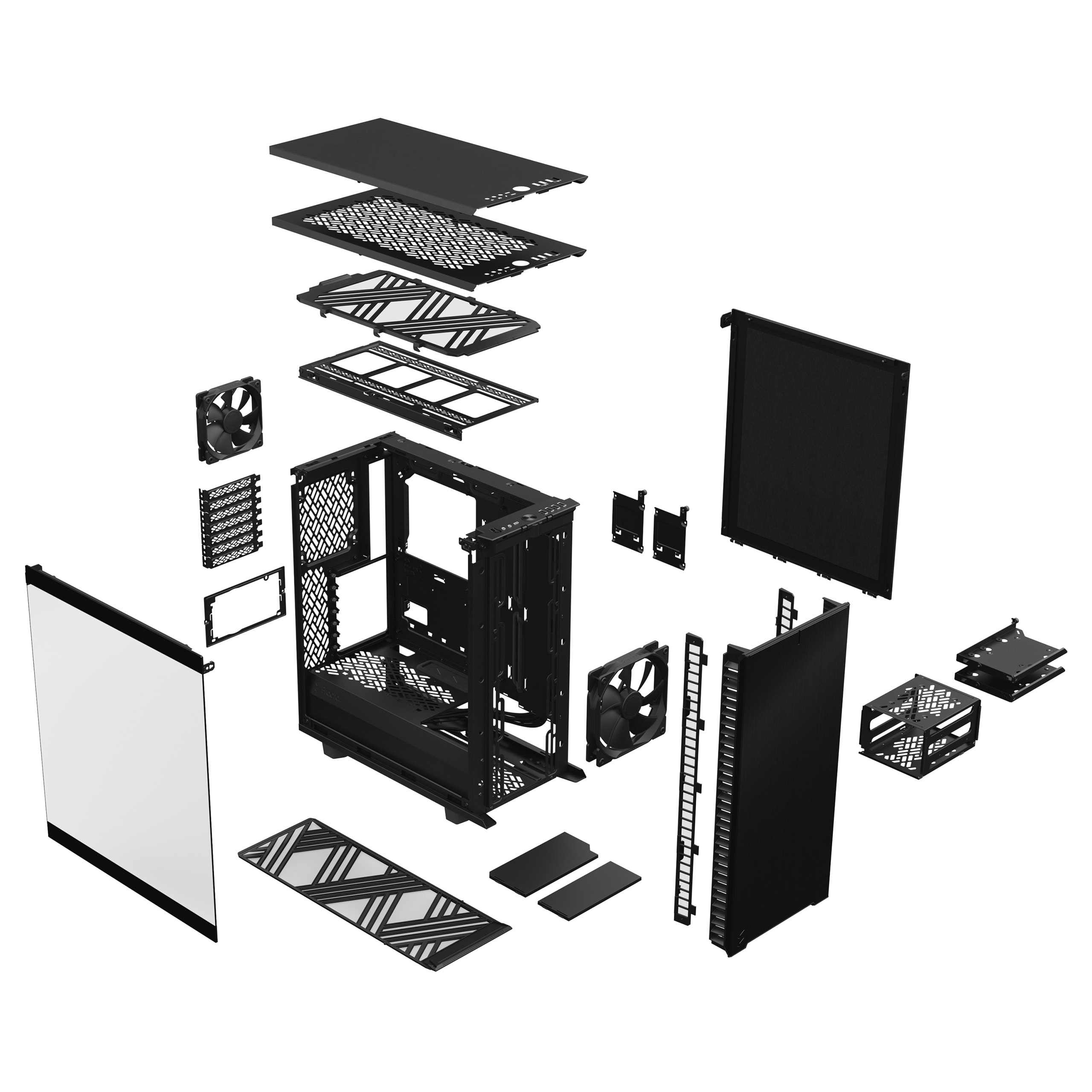

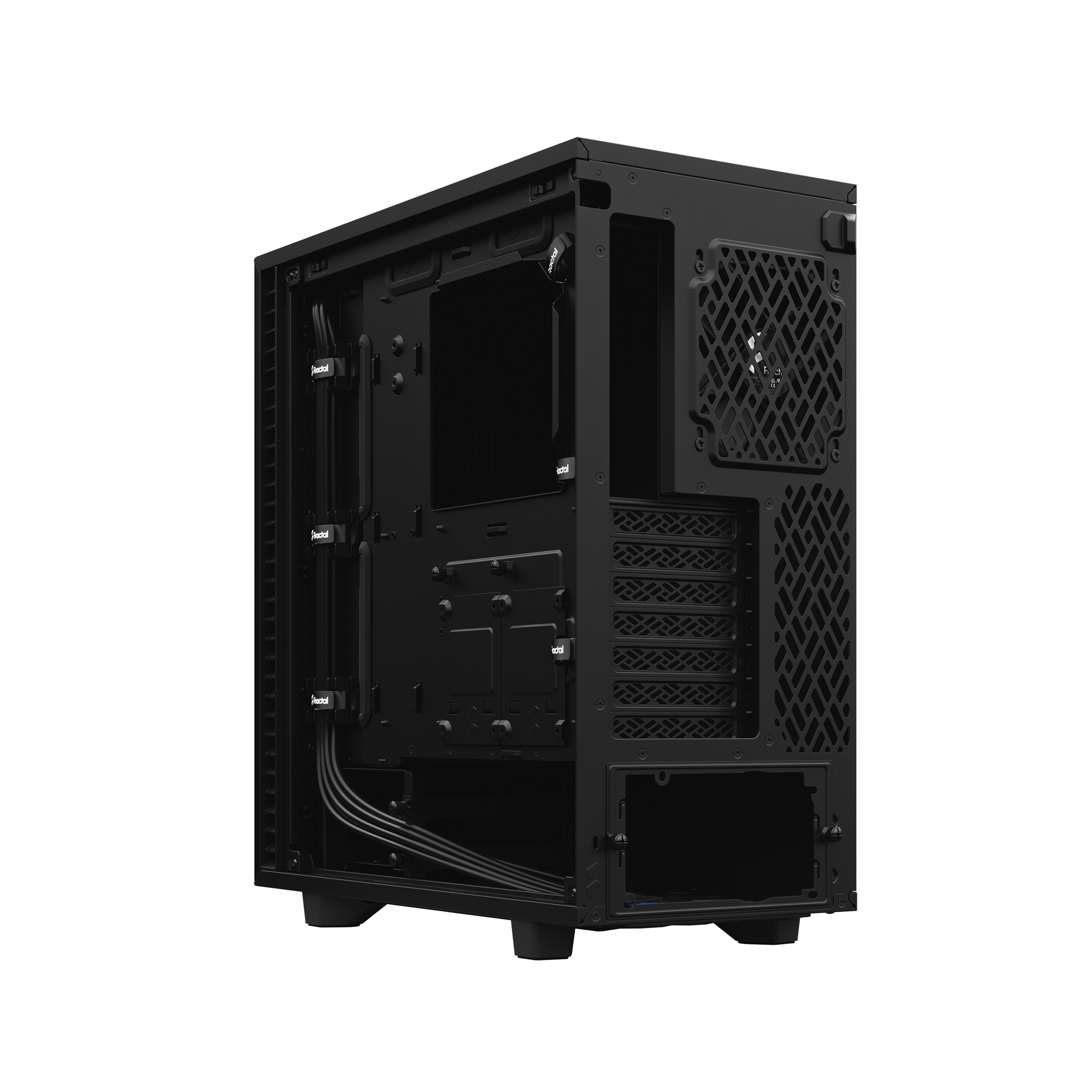

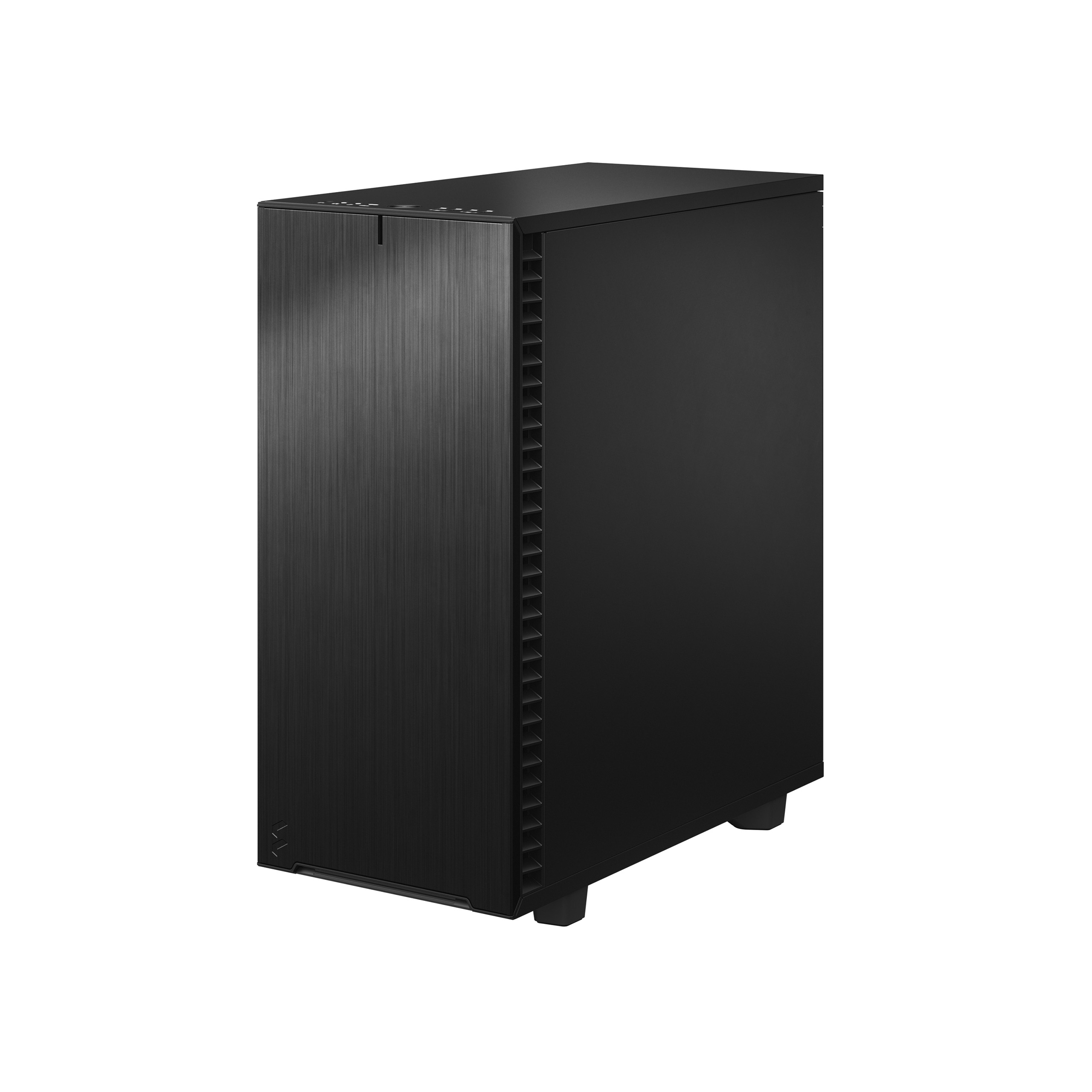

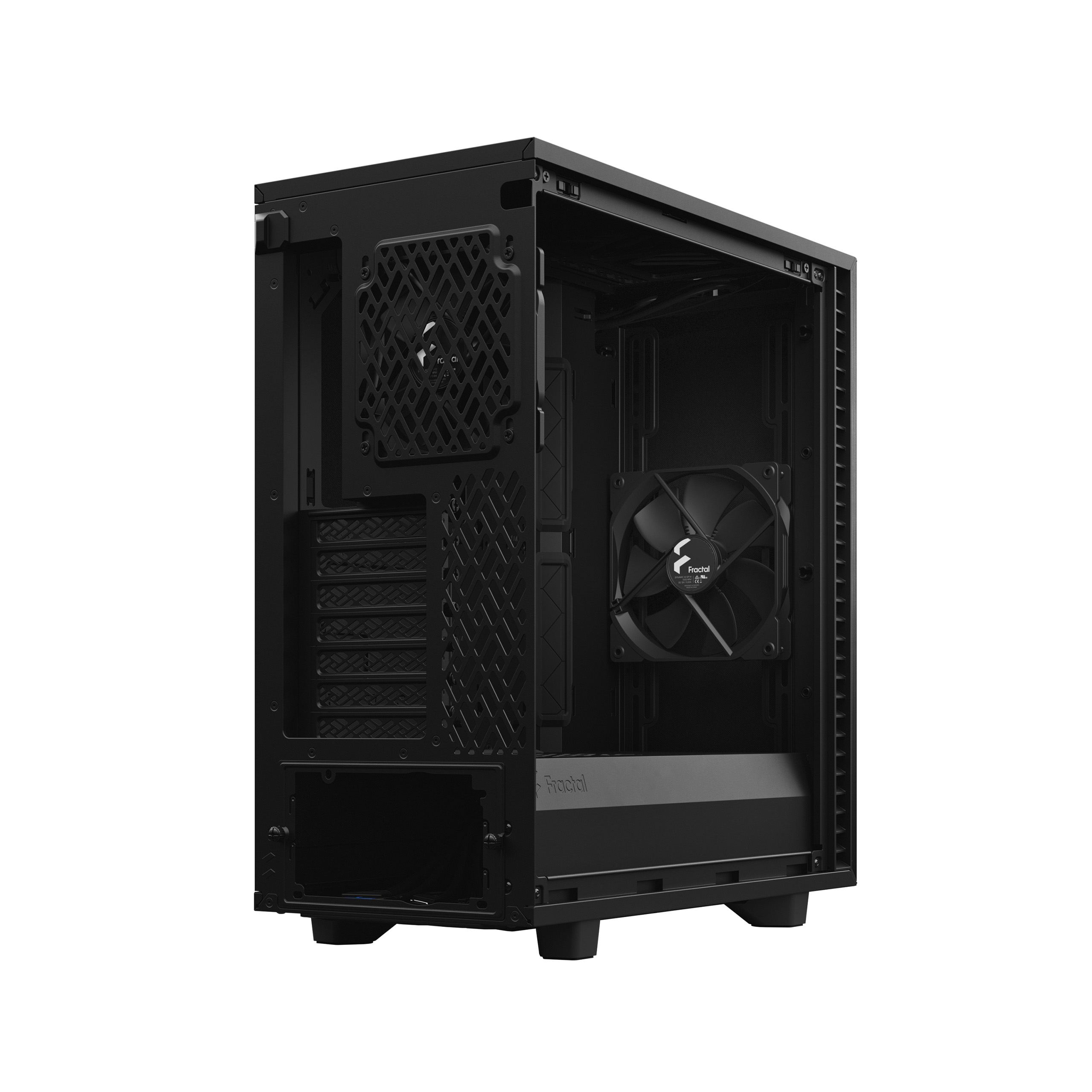

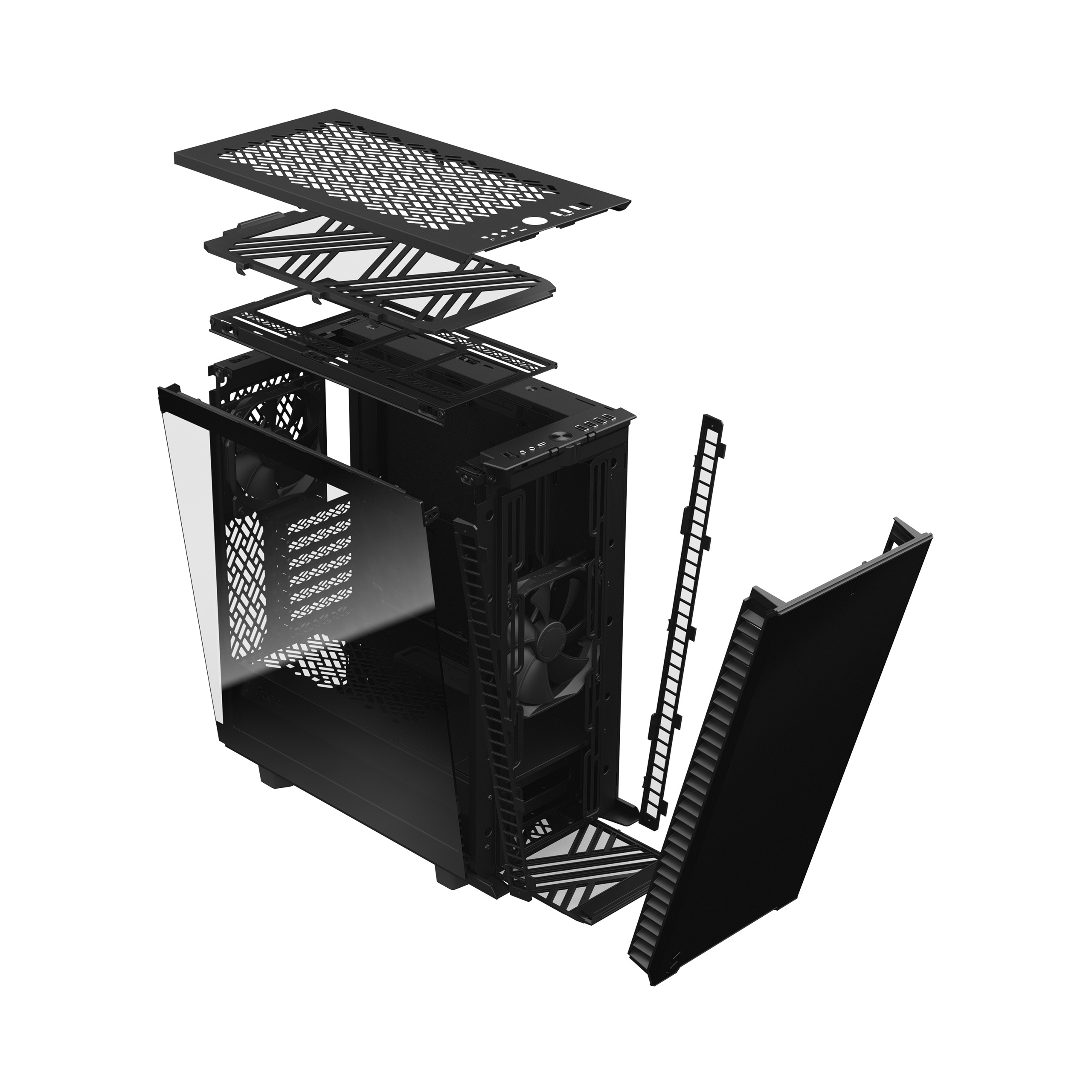

Chassis Define 7 Compact

3.5"/2.5" drive mounts
• 2
Dedicated 2.5" drive brackets
• 2 trays included, 4 positions total
Expansion slots
• 7
Front interface
• 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts
• 7x 120 or 4x 140 mm and 2x 120 mm
Front fan
• 3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)
Top fan
• 2x 120 or 2x 140 mm
Rear fan
• 1x 120 mm, (1x Dynamic X2 GP-12 included)
Bottom fan
• 1x 120 mm (requires removal of HDD cage)
Dust filters
• Top, 2x front, full length bottom
Fixed velcro straps
• Yes
Cable routing grommets
• Yes
Captive thumbscrews
• HDD brackets, SSD brackets, PSU bracket
Left side panel
• Industrial sound-damped steel or Tempered Glass
Right side panel
• Industrial sound-damped steel

Compatibility

Motherboard compatibility
• ATX / mATX / Mini-ITX
Power supply type
• ATX
PSU max length
• 200 mm total (165 mm w/ HDD cage and front fan)
GPU max length
• 341 mm (360 mm without front fan)
CPU cooler max height
• 169 mm
Front radiator
• Up to 360/280 mm (max 145 mm width)
Top radiator
• Up to 240 mm
Rear radiator
• 120 mm
Bottom radiator
• 120 mm (requires removal of HDD cage)
Cable routing space
• 17-28 mm
Dimensions

Case dimensions (LxWxH)
• 427 x 210 x 474 mm
Case dimensions w/o feet/protrusions/screws
• 415 x 210 x 451 mm
Net weight
• Solid version: 8.61 kg, TG Version: 8.76 kg

Images




$1,631.13


  Qty.Colfax ProEdge™ WX2400 Workstation, Cost As Configured $1,631.13
Motherboard 1
Primary CPU 1
AIO/Heat Sink 1
Chassis 1
Power Supply 1
Memory Socket 1 of 8    1

Set next    items (  ) like this
Memory Socket 2 of 8    1
Memory Socket 3 of 8    1
Memory Socket 4 of 8    1
Memory Socket 5 of 8    1
Memory Socket 6 of 8    1
Memory Socket 7 of 8    1
Memory Socket 8 of 8    1
M.2 Drive 1
U.2 Drive 1    1

Set next    items (  ) like this
U.2 Drive 2    1
Disk Drive 1    1

Set next    items (  ) like this
Disk Drive 2    1
Video Card 1
TPM 1
Asus ProArt LCD 1
Operating System SW 1
   Colfax ProEdge™ WX2400 Workstation, Cost As Configured $1,631.13
