Colfax ProEdge™ Z690 Workstation



  • 12th Gen Intel® Core™ Processor
  • 4x DIMMs Supporting DDR5 Memory
  • 2x HDDs/SSDs & 4x M.2 NVMe SSDs

Features

  • 12th Gen Intel® Core™ Processor
  • Intel® Z690 Chipset
  • 4x DIMMs Supporting Non-ECC, Unbuffered DDR5 Memory
  • Expansion Options
    12th Gen Intel® Core™ Processor
    - 1x PCIe 5.0/4.0/3.0 x16
    Intel® Z690 Chipset
    - 1x PCIe 3.0 x16 (x4 Mode)
    - 1x PCIe 3.0 x4
    - 2x PCIe 3.0 x1
  • Integrated Intel® HD Graphics Support:
    - 1x DisplayPort (Max. resolution 7680 x 4320 @ 60Hz*)
    - 1x HDMI (Max. resolution 4096 x 2160 @ 60Hz*)
    * Max Resolution (DP/HDMI) is the maximum resolution supported by the processor via the DP/HDMI interface (24bits per pixel & 60Hz). System or device display resolution is dependent on multiple system design factors; actual resolution may be lower on your system.
  • Up to 2 Fixed 3.5" SATA HDDs/SSDs
  • 4x M.2 NVMe SSDs
  • Realtek® ALC S1220A 7.1-Channel High Definition Audio
  • Integrated Intel® I225-V 2.5 Gigabit LAN
  • Thunderbolt™ 4 Support
  • Corsair 4000D AIRFLOW Tempered Glass / 4000D Tempered Glass Mid-Tower ATX Chassis



Technical Specifications

Motherboard • Asus PRIME Z690-A
CPU • Intel® Socket LGA1700 for 12th Generation Intel® Core™ Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel™ Turbo Boost Max Technology 3.0
Chipset Intel® Z690
Memory • 4x DDR4 DIMM sockets
• 6000/5800/5600/5400/5200/5000 (O.C.*) / 4800 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• OptiMem II

WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce system stability and useful life of the system, memory and processor; (ii) cause the processor and other system components to fail; (iii) cause reductions in system performance; (iv) cause additional heat or other damage; and (v) affect system data integrity. Colfax has not tested, and does not warranty, the operation of the memory beyond its specifications. Colfax assumes no responsibility that the memory, including if used with altered clock frequencies and/or voltages, will be fit for any particular purpose.

Expansion Slots 12th Gen Intel® Core™ Processor
• 1x PCIe 5.0/4.0/3.0 x16

Intel® Z690 Chipset
• 1x PCIe 3.0 x16 (x4 Mode)
• 1x PCIe 3.0 x4
• 2x PCIe 3.0 x1
Graphics • Integrated Graphics Processor:
- 1x DisplayPort (Max. resolution 7680 x 4320 @ 60Hz*)
- 1x HDMI (Max. resolution 4096 x 2160 @ 60Hz*)

* Max Resolution (DP/HDMI) is the maximum resolution supported by the processor via the DP/HDMI interface (24bits per pixel & 60Hz). System or device display resolution is dependent on multiple system design factors; actual resolution may be lower on your system.
Integrated LAN • Intel® I225-V 2.5Gb Ethernet Controller
Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

12th Gen Intel® Core™ Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z690 chipset:
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s port(s)

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Audio • Realtek® ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback*
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
USB Ports Rear USB Ports (Total 8)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB Ports (Total 7)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

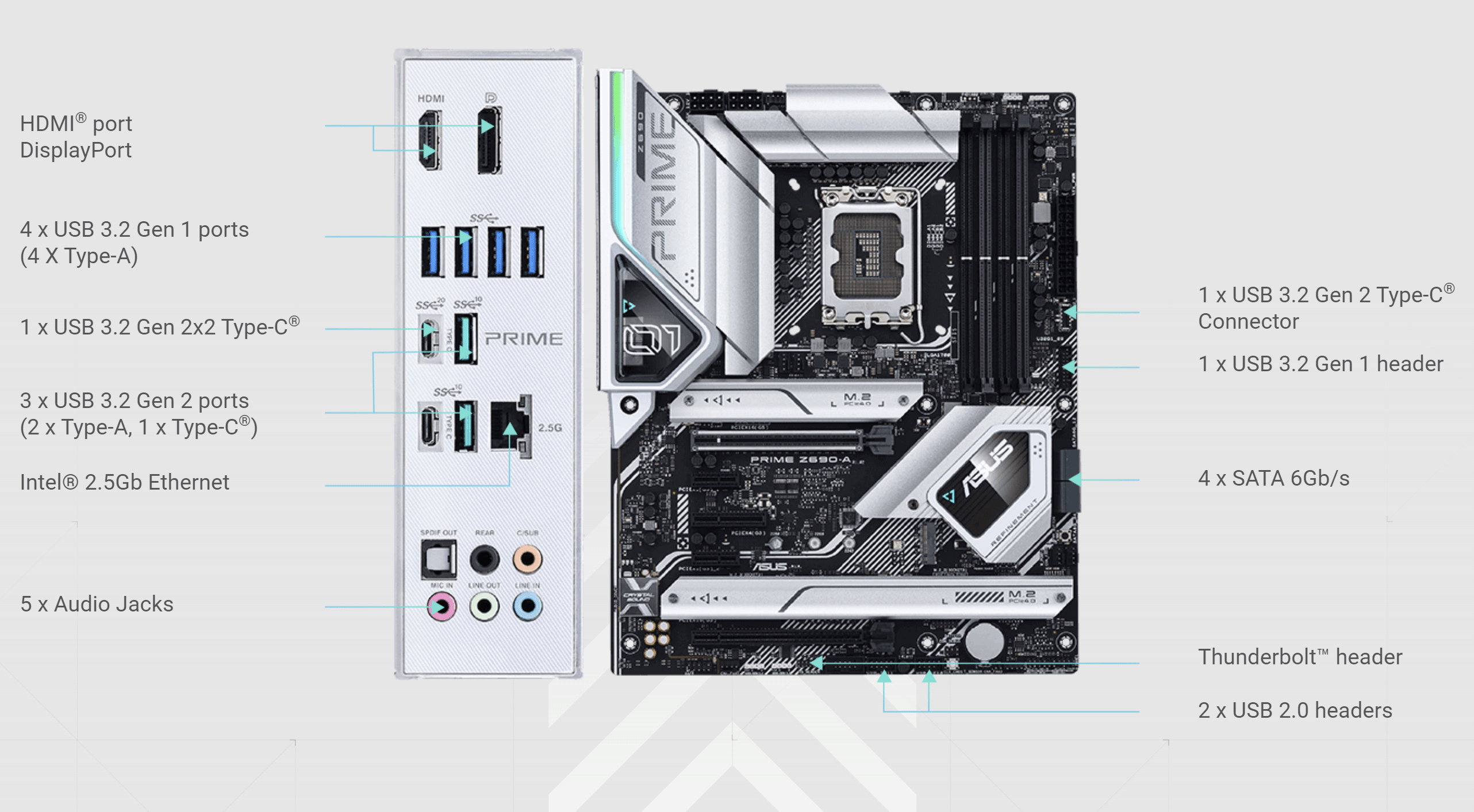

Back I/O Ports • 1 x 2.5Gb Ethernet
• 1 x DisplayPort
• 1 x HDMI
• 1 x USB 3.2 Gen 2x2 (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 (4 x Type-A)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
Internal I/O Ports Fan and cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x CPU Over Voltage jumper
• 1 x Power button
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header
Chassis 4000D AIRFLOW Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

4000D Tempered Glass Mid-Tower
• Form Factor
- Mid Tower
• Case Material
- Steel, Tempered Glass, Plastic
• Case Windowed
- Tempered Glass
• Dimensions
- 453mm L x 230mm W x 466mm H
• Maximum GPU Length
- 360mm
• Maximum PSU Length
- 220mm
• Maximum CPU Cooler Height
- 170mm
• Expansion Slots
- 7 vertical + 2 horizontal
• Drive Bays
- 2 x 3.5"
- 2 x 2.5"
• Front I/O
- (1x) USB 3.1 Type C, (1x) USB 3.0, (1x) Audio in/out
• Radiator Compatibility:
- 120mm, 140mm, 240mm, 280mm, 360mm
• Compatible Corsair Liquid Coolers
- H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

Images



Corsair 4000D AIRFLOW Tempered Glass Mid-Tower ATX




Corsair 4000D Tempered Glass Mid-Tower ATX





$1,013.85
